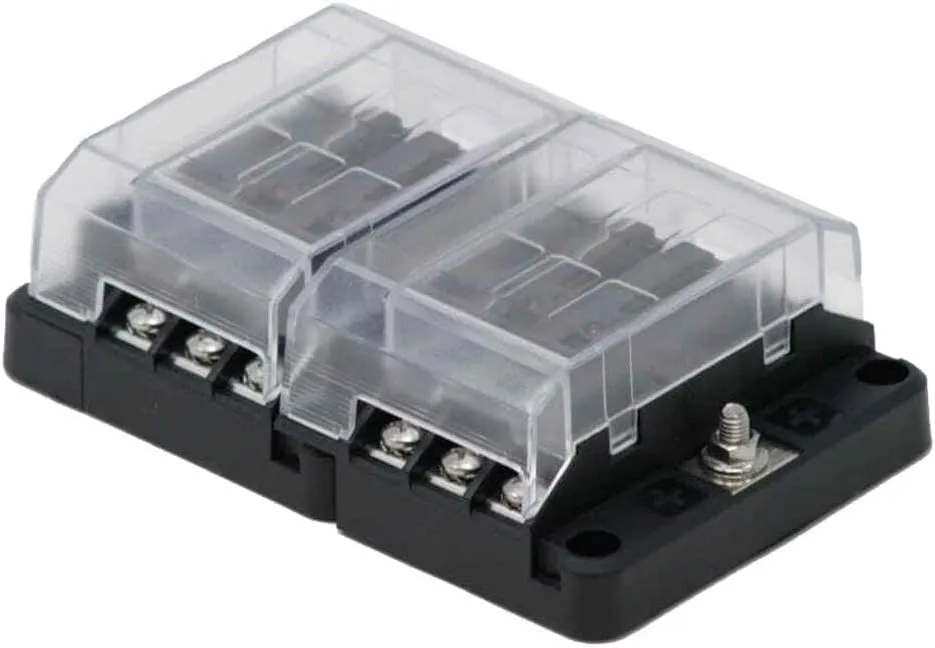

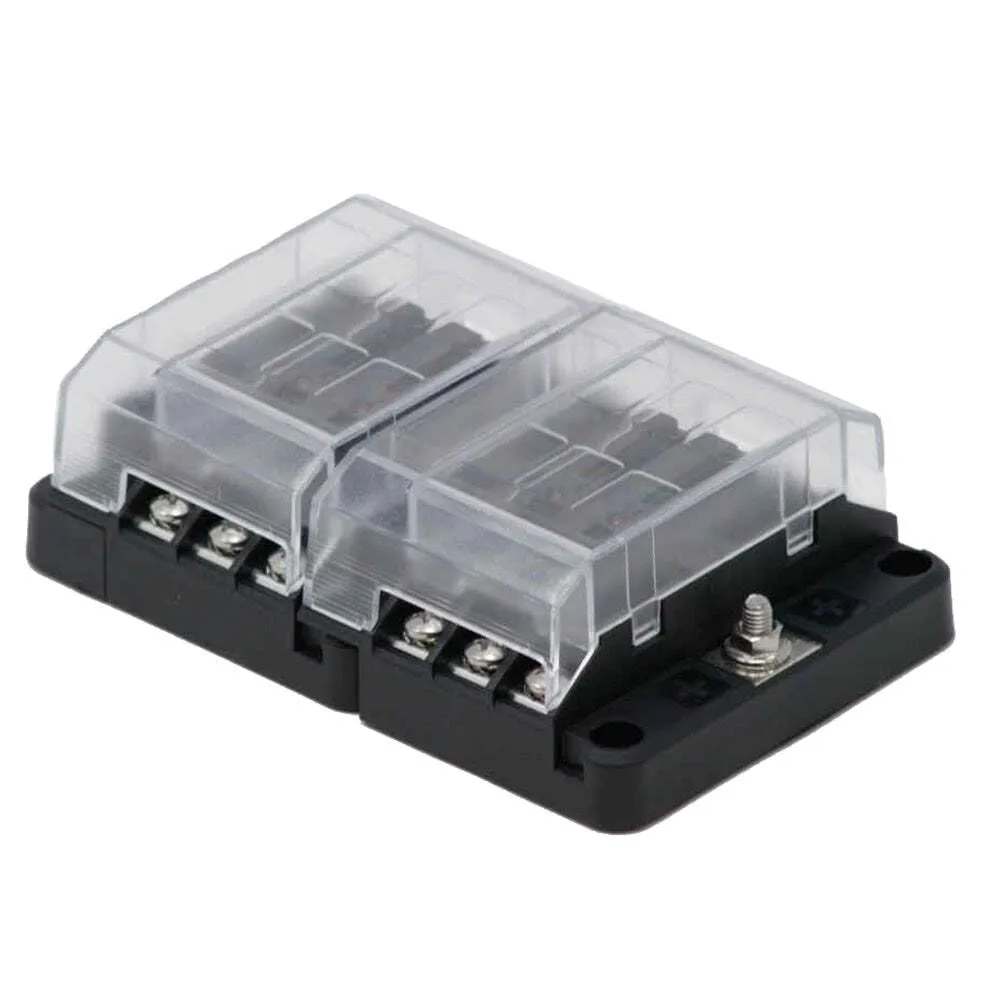

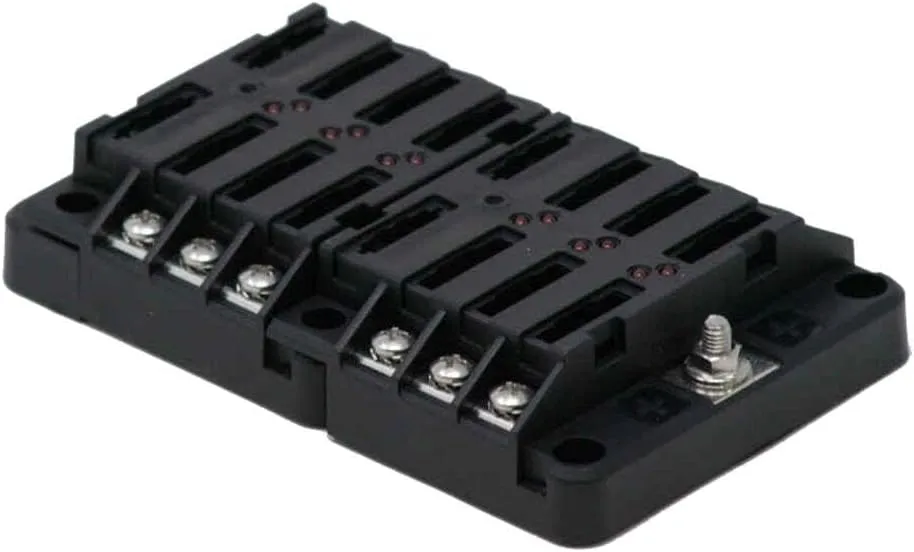

RT Fuse Block 12 Position with LED Indication. This 12-position fuse block has a modular design that can produce seven unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. It features blown-fuse LED indication to speed correction of system faults and improve remote diagnostics. Built for harsh environments with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Bullet-proof construction uses high-temperature materials and stainless steel self-locking hardware, allowing mounting anywhere on the vehicle. Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps and supports SAE circuit protection standards for thermal/short circuit events. Focal features include spare fuse locations (two locations per 6 circuits for spare or test resistors), stainless steel self-locking hardware (100% non-ferrous corrosion-resistant materials), LED fuse diagnostics (blown fuse LED indication for each output circuit), and cover/label recesses to protect terminal studs and cable terminal edges from inadvertent shorts. Model 8029.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 100a |
| Fuse Type | Ato/Atc/Atf |
| Included Components | Great Product |
| Model Name | 8029 |
| Number of Items | 1 |
| Type | Fuse Blocks |
| UPC | 850035199749 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 4 x 3 inches |
| Size | 12 Position |
| Weight | 1.05 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Amperage | 100a |
| Warranty | Warranty |
