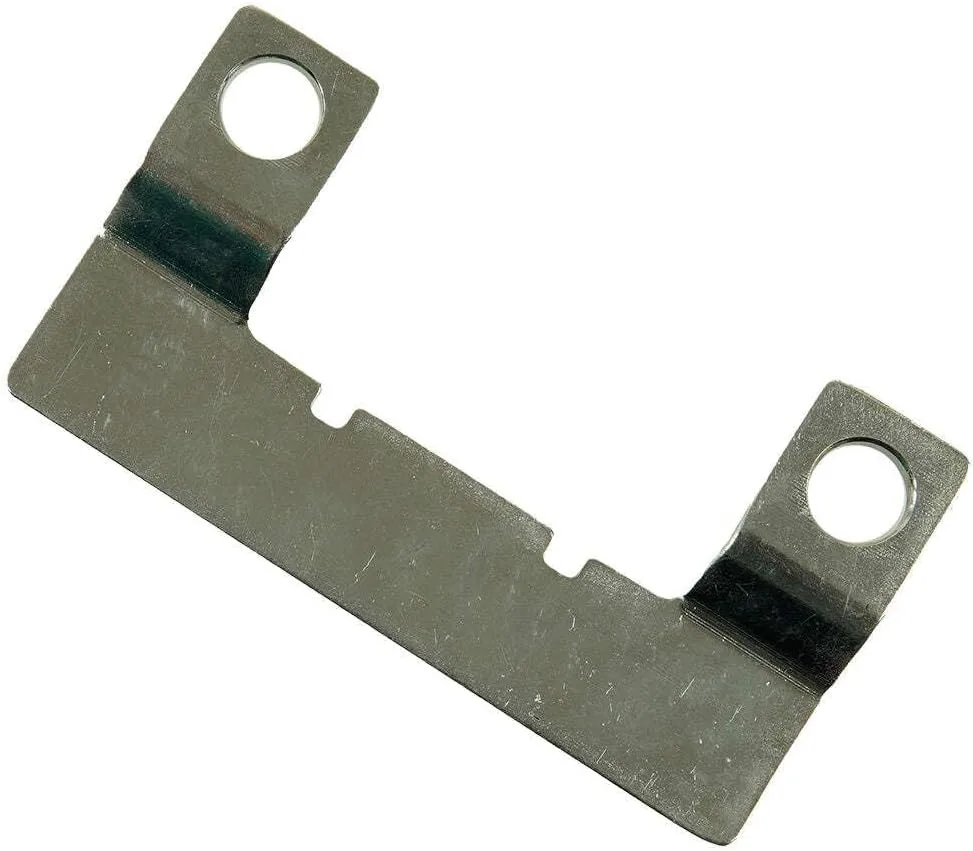

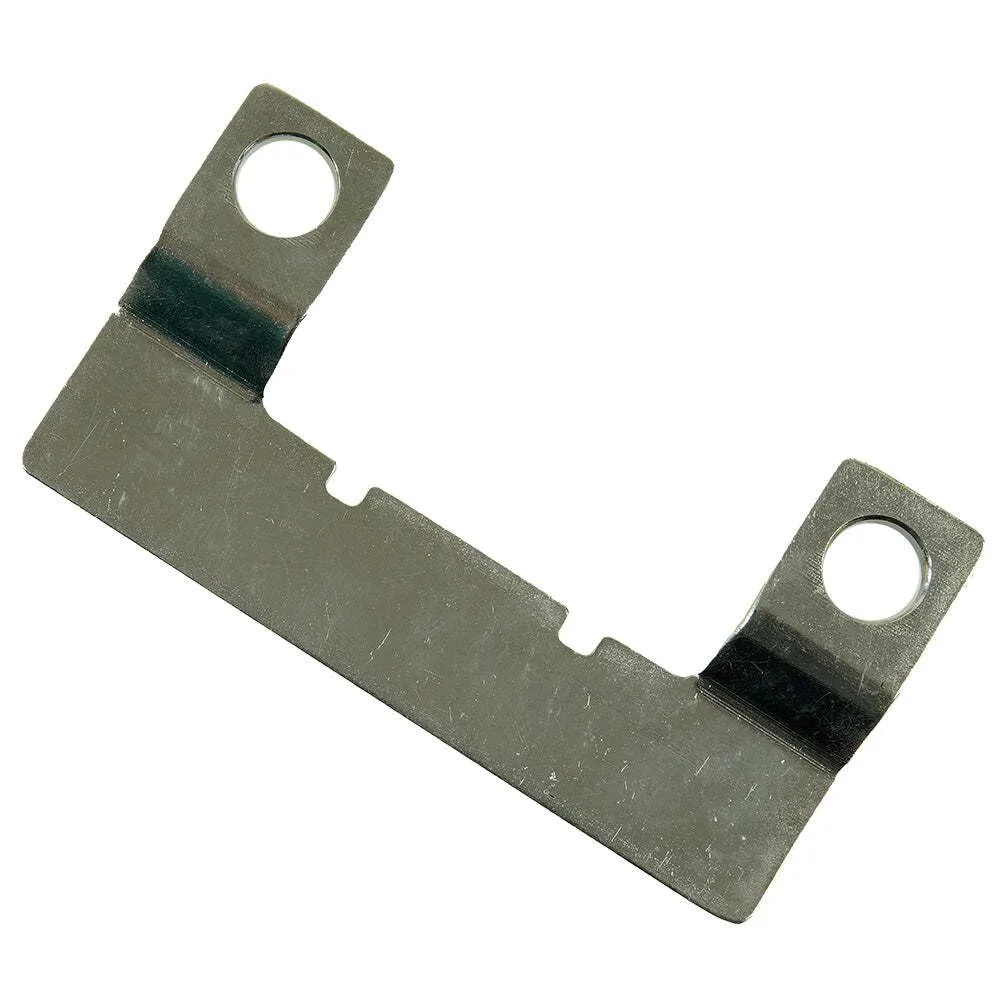

XD Relay Cross-Over Bus Bar. The XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management. Features: Tin-plated copper ensures reliable circuit connectivity and anti-corrosive features keep it last long term. Robust protective insulation ensures no accidental contact shorts between XD relays. Specifications include Continuous Current (Amps): 500; Max Voltage (VDC): 72; Material: Tin-plated copper; Size (L x W): 90 x 47mm; Thickness: 2.8mm (1/8"); Terminal Stud Hole Size: 10.5mm (3/8”). WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Great Product.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Number | 8791 |
| Number of Items | 1 |
| Operation Mode | Automatic |
| UPC | 850035199886 |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 3 inches |
| Product Weight | 0.2 Pounds |
| Size | 5 x 3 x 3 inches |
| Weight | 3.2 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Continuous Current (Amps) | 500 |
| Max Voltage (VDC) | 72 |
| Terminal Stud Hole Size | 10.5mm (3/8”) |
| Thickness | 2.8mm (1/8") |
