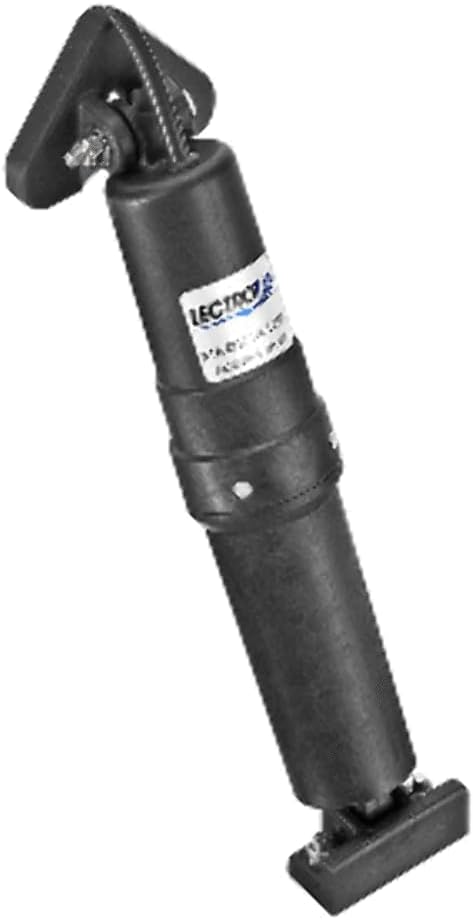

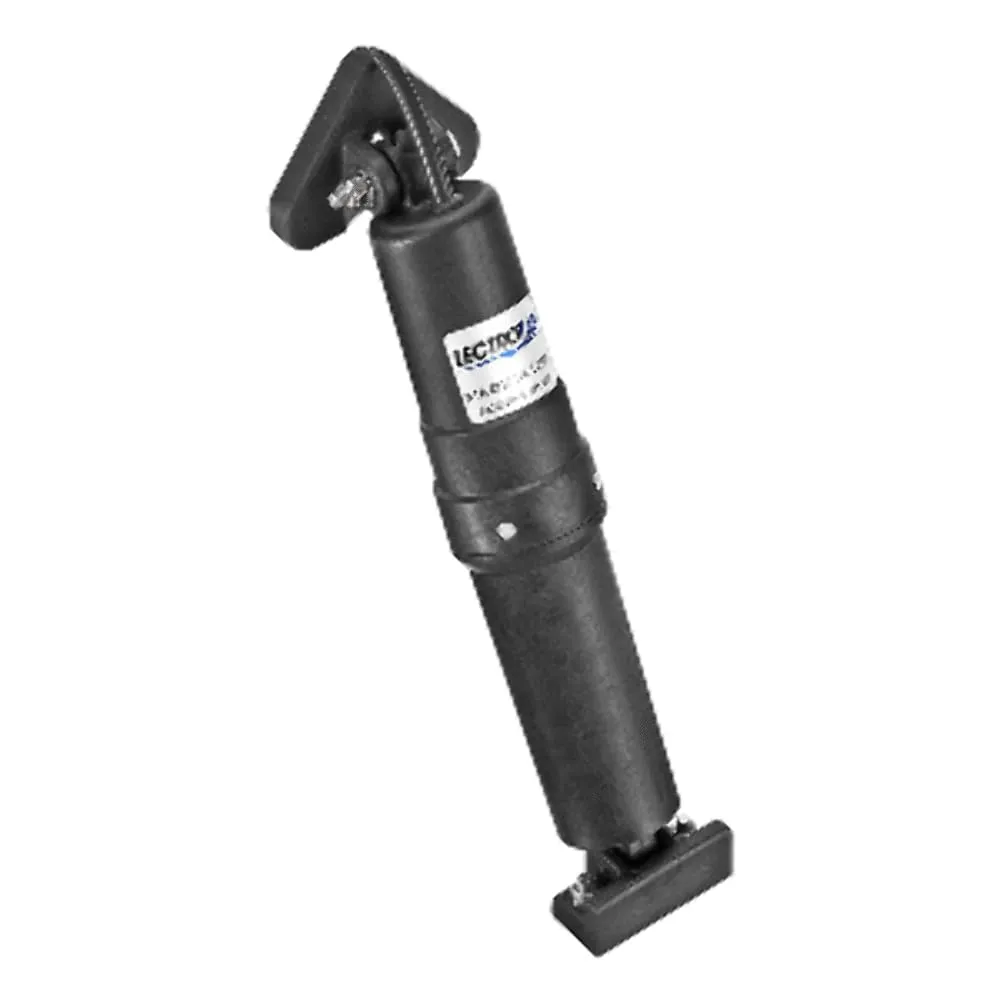

Lectrotab 12 V Trim Tab Actuator - 6' Cable
Customize
12 V Trim Tab Actuator - 6' Cable. Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket. Features include upper ram seal protection, internal pressure equalization, internal brake system to prevent unwanted tab movement, quiet operation, full load testing to push 1000 lbs of force, and non-metallic external structure resistant to corrosion and sun/water damage. Technical Specifications: Actuator DC Voltage - 12 V; Actuator Stroke Length - 2.25" (57 mm); Actuator Cable Length - 6' (1.8 M); Actuator Vertical Height - 11.875" (302 mm). Sold as an individual.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | A-BK |
| Number of Items | 1 |
| Proposition 65 Warning | True |
| UPC | 850046155000 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Dimensions Lx Wx H | 14 x 3 x 3 inches |
| Item Package Dimensions L x W x H | 14 x 3 x 3 inches |
| Length | 14 inches |
| Product Dimensions | 14 x 3 x 3 inches |
| Weight | 2.5 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Actuator Cable Length | 6' (1.8 M) |
| Actuator DC Voltage | 12 V |
| Actuator Stroke Length | 2.25" (57 mm) |
| Actuator Vertical Height | 11.875" (302 mm) |
| Included Features | Internal pressure equalization; internal brake; fully load tested to push 1000 lbs |
| Lower Mounting Bracket | Standard |
| Upper Mounting Bracket | Standard |
