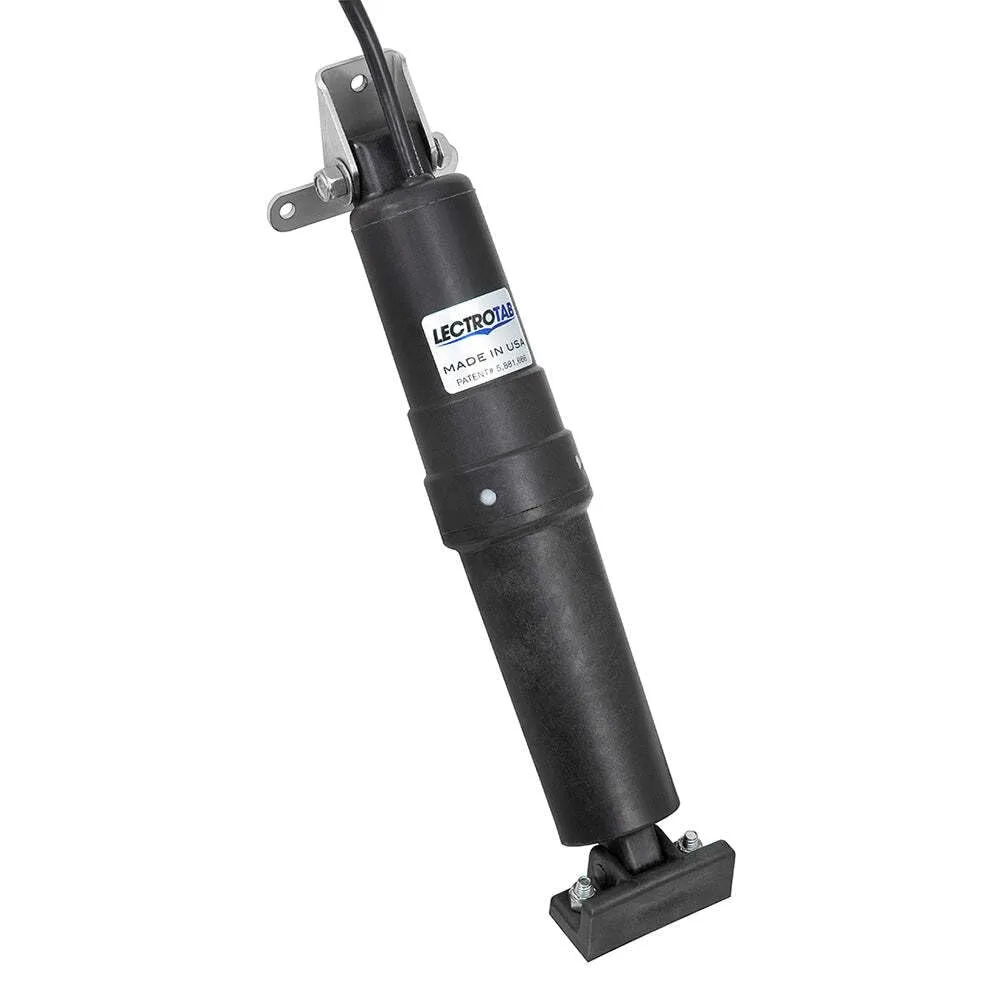

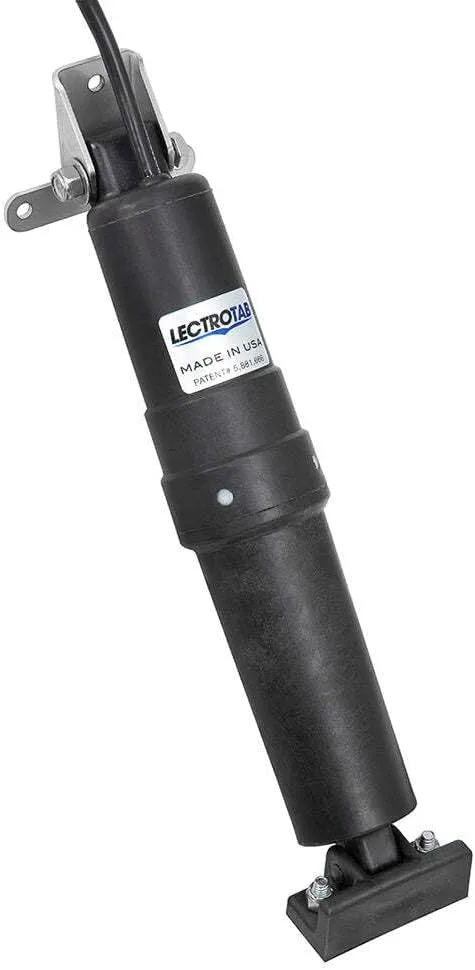

Lectrotab 12V Heavy Duty Tab Actuator - 6' Cable f/Everglades Boats
Customize
12V Heavy Duty Tab Actuator - 6' Cable for Everglades Boats. Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures precise tab positioning, provides maximum lift force, and is completely self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket. Compatible With: Everglades Boats. Features: Reinforced actuator upper mounting boss; upper ram seal location cannot be damaged due to a fouled ram or barnacle growth; utilizes an internal pressure equalization system; internal brake system prevents unwanted tab movement when underway or backing down; quiet operation; all actuators are fully load-tested to push 1000 lbs of force; non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater. Technical Specifications: Actuator DC Voltage - 12 V; Actuator Stroke Length - 2.25" (57 mm); Actuator Cable Length - 6' (1.8 M); Actuator Vertical Height - 11.875" (302 mm); Connectors - Deutsch style. Sold as an Individual. Product package dimensions: 13 x 3 x 3 inches; package weight: 2.6 pounds.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | A-BK-26 |
| Number of Items | 1 |
| Part Number | A-BK-26 |
| UPC | 850046155598 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 0.1 inches |
| Length | 13 inches |
| Product Dimensions | 13 x 3 x 0.1 inches |
| Size | One Size |
| Weight | 2.6 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Actuator Cable Length | 6' (1.8 M) |
| Actuator DC Voltage | 12 V |
| Actuator Stroke Length | 2.25" (57 mm) |
| Actuator Vertical Height | 11.875" (302 mm) |
| Connectors | Deutsch style |
