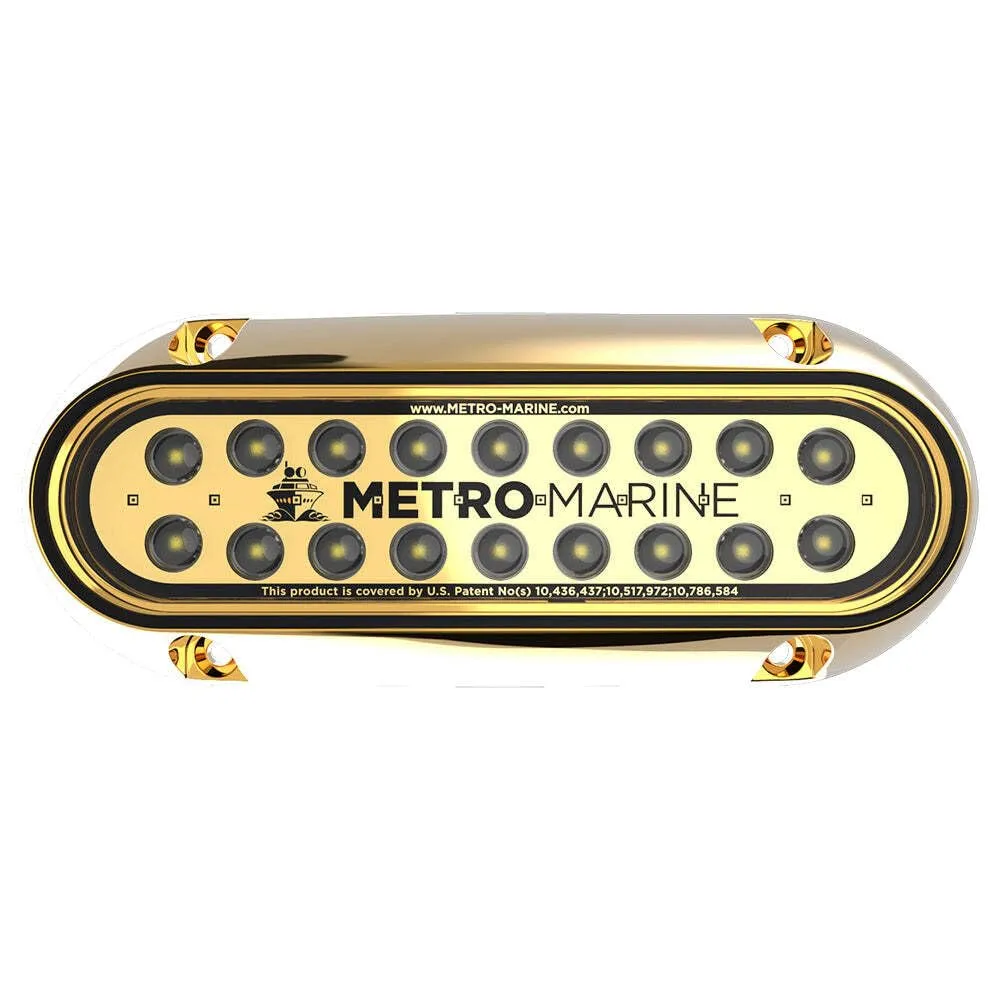

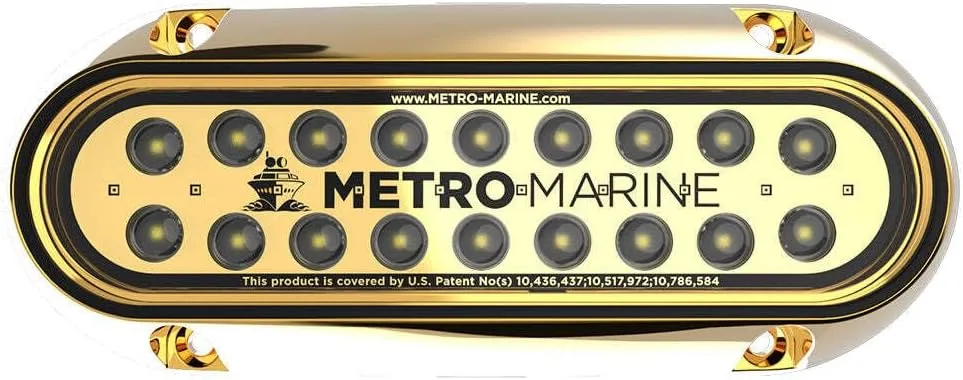

High-Output Elongated Underwater Light with Intelligent Monochromatic LEDs (White, 90° Beam). The F-Series underwater marine lighting fixtures are designed to be mounted up to 4.6M (15') below the water’s surface to provide vibrant white light. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are ideal for yachts, docks, sea walls, fountains and theme park installations. The F-BME1-H-W3-90 features 18 high-output LEDs per fixture for close adjacent placement with fully-mixed, uniform light, 90° optical lensing for mid- to large-scale structures, and high efficiency. Metro Marine’s patented UVC lens-cleaning system prevents biofouling, and a patented anti-condensation assembly (manufactured in a Class 1000 Clean Room) eliminates internal condensation. Technical highlights: Beam Angle - 90°, Input Voltage - 10VDC–30VDC, Power Consumption - 45.5W, Product Dimensions (W x H x D) - 7.23" x 2.91" x 1.09", Weight - 2.42 lbs (product spec in manufacturer literature). Lens Material: Clear Quartz. Material: AB2 Aluminum Bronze. Mounting Style: Surface. Ideal for marine and architectural underwater lighting applications.
Specifications:
| Materials & Construction |
| Material | Ab2 Aluminum Bronze |
| Outer Material | Ab2 Aluminum Bronze |
| Product Details |
| Material | Ab2 Aluminum Bronze |
| Model Name | F-BME1-H-W3-90 |
| Mounting Style | Surface |
| Voltage - Input Range (Volts) | 10-30v |
| Warranty Description | Warranty |
| Watts | 45.5w |
| Sizing & Dimensions |
| Height | 5 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 9 x 5 inches |
| Weight | 4.8 pounds |
| Width | 9 inches |
| Technical Specifications |
| Beam Angle | 90° |
| Input Voltage | 10-30v |
| Lens Material | Clear Quartz |
| Power Consumption | 45.5w |
| UPC | 850050884309 |
