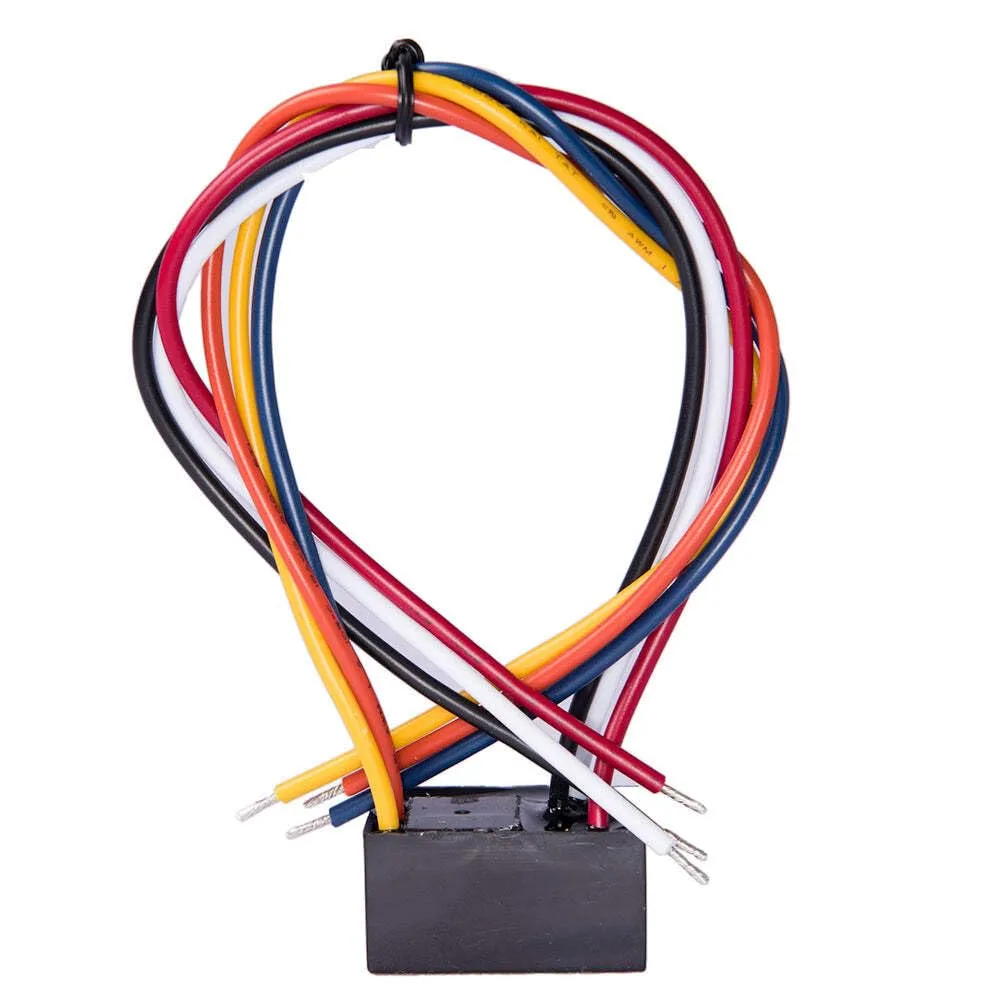

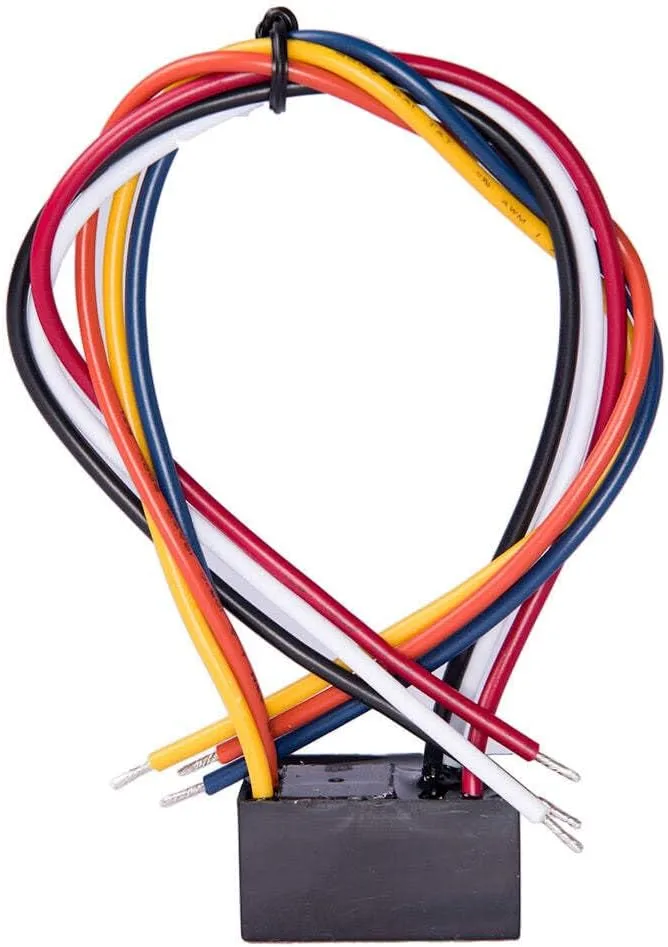

PAM4 Wired DC Relay. The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights. Relay may be energized across a wide voltage range from 9VDC to 32VDC. Ideal for 12VDC and 24VDC circuits. 20mA operating current is constant across the operating range. Input voltages are polarity-sensitive and diode-protected. Relay is required to power or switch 12V systems that draw more than 1 Amp via the internal outputs of the MTC. Works with MTC and Siren 3 Pro. Item Dimensions LxWxH: 5 x 4 x 1 inches. Item Package Dimensions L x W x H: 4.1 x 3.4 x 2.1 inches. Package Weight (as listed in marketplace data): 0.14 Kilograms.
Specifications:
| Materials & Construction |
| Color | Multicolor |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Included Components | Great Product |
| Model Name | SM-ACC-DCRE |
| Number of Items | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Height | 1 inches |
| Length | 5 inches |
| Package Weight | 4.94 ounces |
| Product Dimensions | 5 x 4 x 1 inches |
| Size | One Size |
| Width | 4 inches |
| Technical Specifications |
| Coil Voltage | 12 Volts |
| Maximum Switching Current | 1 Amps |
| Operation Mode | Automatic |
