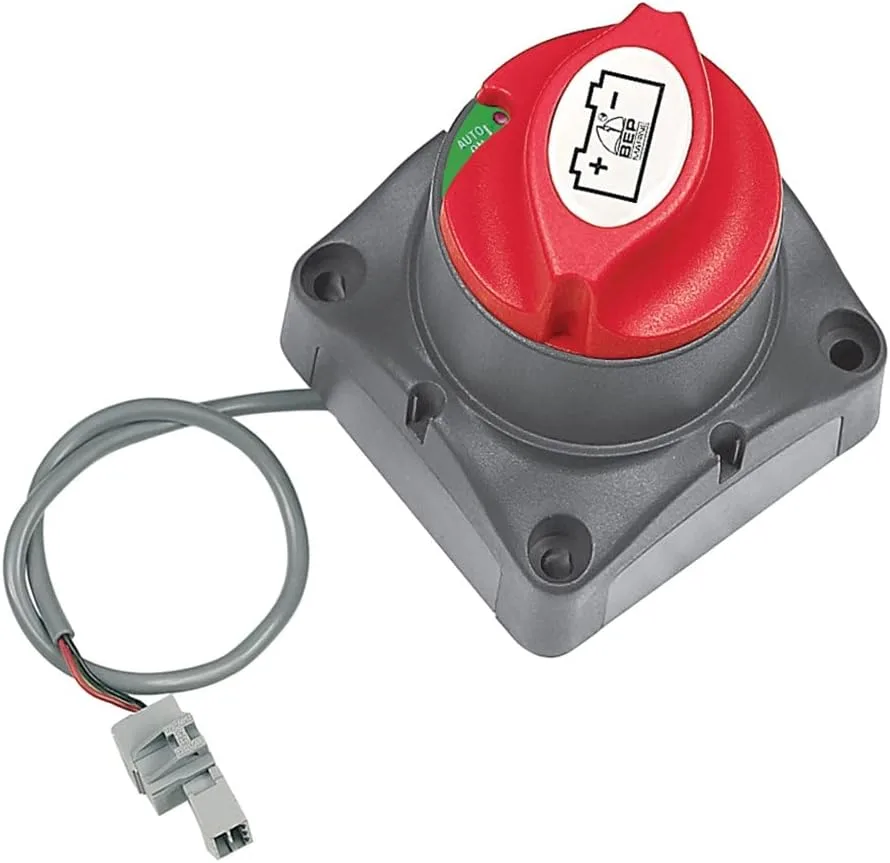

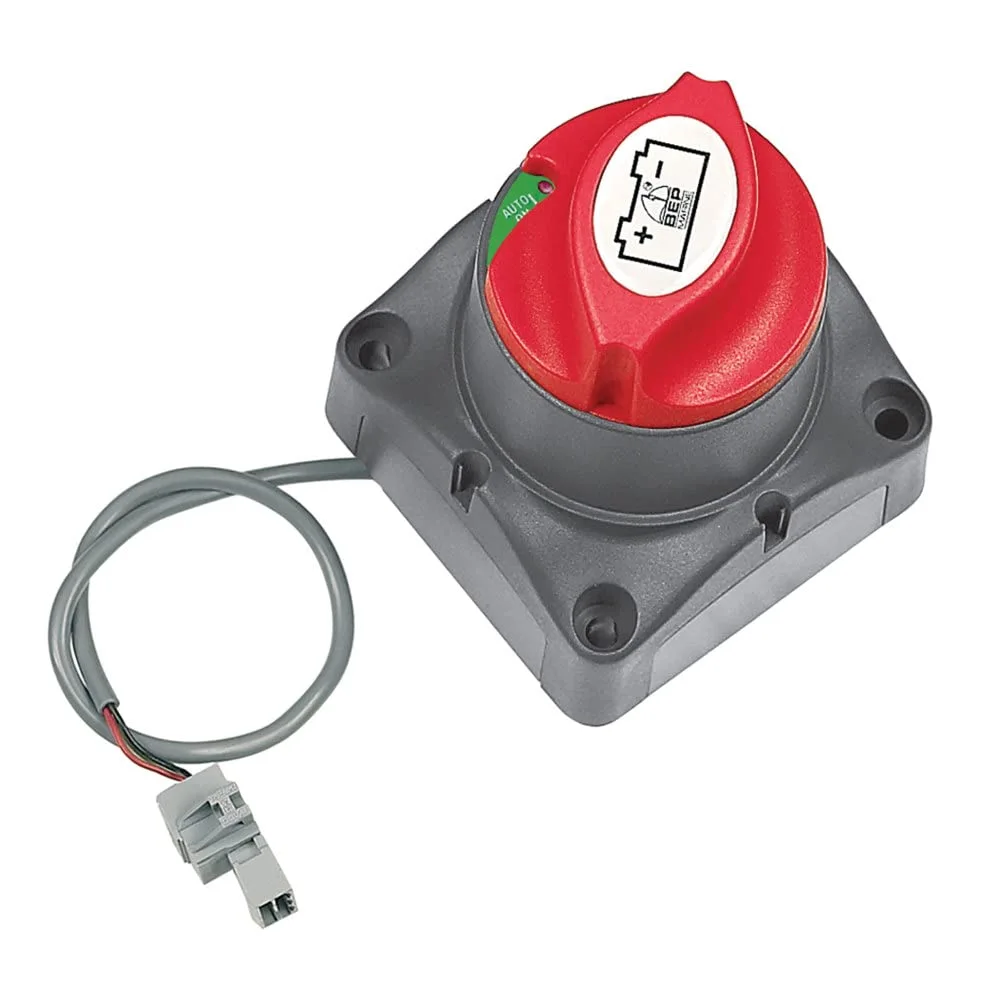

BEP 275A Remote Operated Battery Switch
Customize
Remote Operated Battery Switch, 275A Cont. The MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. Remote operation Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables) Reduced installation labor due to shorter battery cable runs Manual override option to meet CE/ABYC requirements Power Draw with switch off: 12mA LED status identification for remote control switch Same capacities/specifications and mounting options as standard BEP battery switches Uses interchangeable labeling system (Item # 713 or 715). Contact Material: Copper Alloy. Actuator Type: Motorized. Circuit Type: 2-way. Item dimensions L x W x H: 2.7 x 4 x 2.7 inches. Terminal: Screw. Connector Type: Deutsch Plug. Current Rating: 275 Amps. Operation Mode: ON-OFF. International Protection Rating: IP54. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Country Of Origin: New Zealand
- Package Weight: 0.181 Kilograms
- Package Dimensions: 6.1 L X 7.1 W X 7.4 H (Centimeters)
- Product Type: Electronic Switch
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Copper Alloy |
| Material | Copper Alloy |
| Product Details | |
| Actuator Type | Motorized |
| Circuit Type | 2-way |
| Connector Type | Deutsch Plug |
| Contact Material | Copper Alloy |
| Contact Type | Electronic |
| Control Method | Remote |
| Controller Connectivity | X-10 |
| Controller Type | Remote X-10 |
| Current Rating | 275 Amps |
| Included Components | Switches |
| International Protection Rating | IP54 |
| Model Name | 701-MD |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Size | 275 AMP |
| Terminal | Screw |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.7 inches |
| Item Package Dimensions | 2.91 x 2.8 x 2.4 inches |
| Length | 2.7 inches |
| Product Dimensions | 2.7 x 4 x 2.7 inches |
| Size | 275 AMP |
| Weight | 0.01 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Actuator Type | Motorized |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Deutsch Plug |
| Controller Type | Remote X-10 |
| Current Rating | 275 Amps |
| Included Components | Switches |
| International Protection Rating | IP54 |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Warranty | Warranty |
