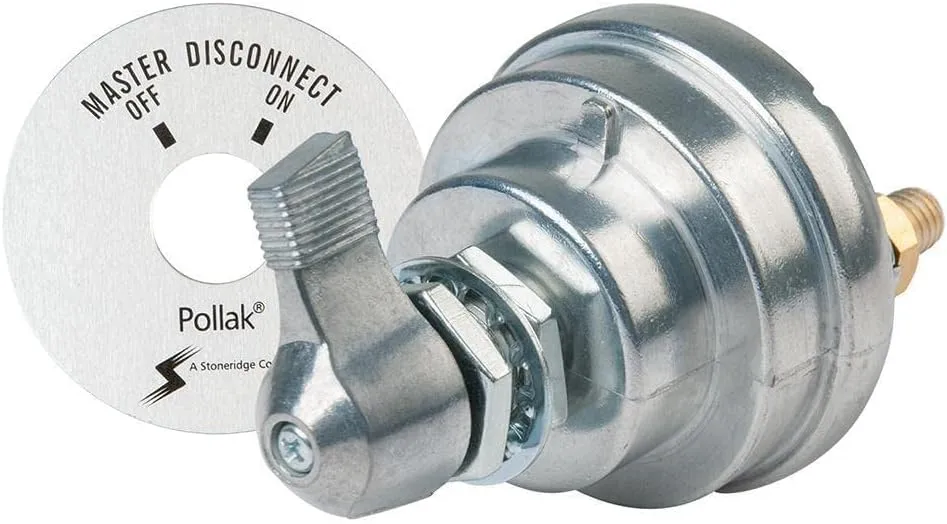

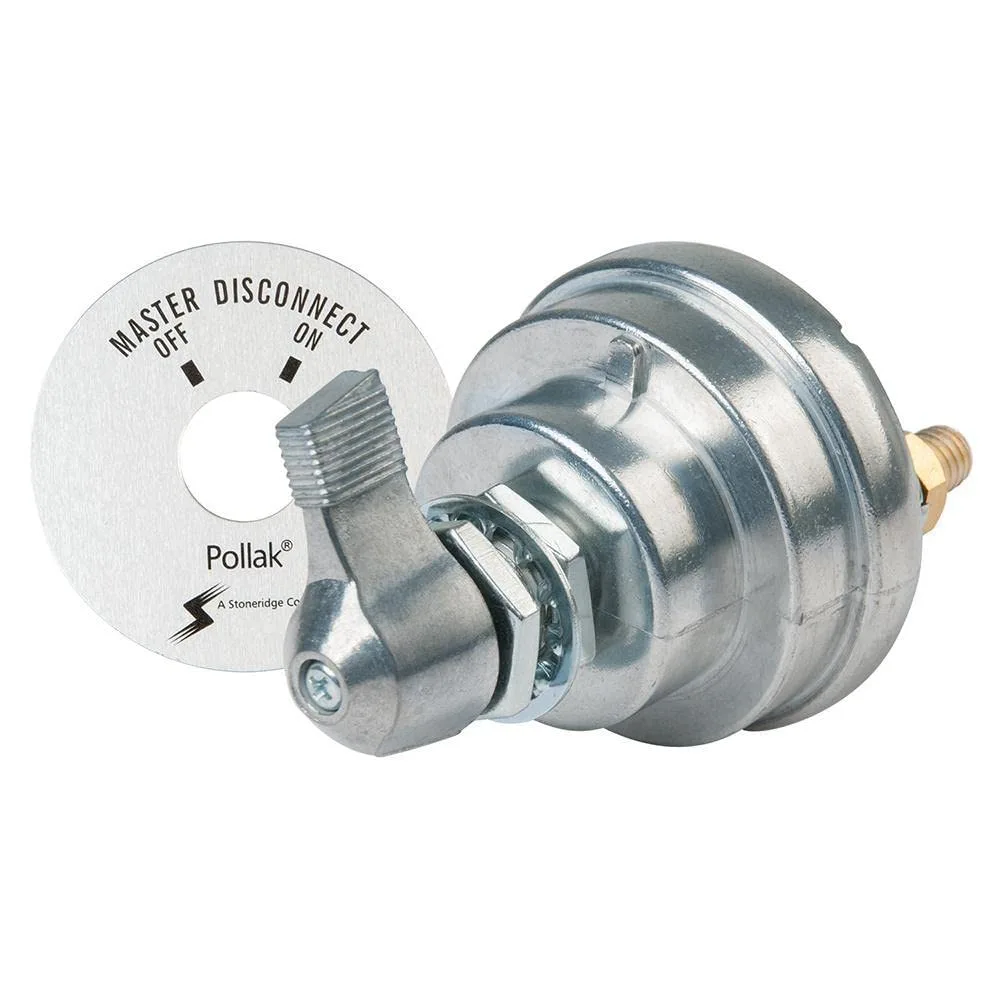

BEP 1001001 Lever-Operated Off/On Battery Switch
Customize
Lever-Operated Master Disconnect - ON/OFF. This single pole, single throw switch turns one circuit on and off. Features: Nominal Voltage is 6-36V DC with 175A continuous and 800A intermittent ratings. Has 3/8" brass terminal studs. Includes face plate which indicates position of the M284 switch. 3/4" mounting hole, up to 5/16" panel thickness. Compares to Cole Hersee part number M-284-09-BP. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Marketing/technical summary: BEP 1001001 Lever-Operated Off/On Battery Switch — single pole, single throw panel-mount battery switch for boats and marine electrical systems; IP54 rated actuator (hinge lever), includes face plate and 3/8" brass terminal studs. Item dimensions approx. 3.5 x 2.5 x 2.6 inches; item weight approx. 0.8 pounds. Package dims and weight included.
- Replaces Cole hersee part number m-284-09
- 3/4" mounting Hole, up to 5/16" panel thickness and 3/8" brass terminal studs
- Includes face plate which indicates position of the switch
- Nominal voltage is 6-36v DC with 175a continuous and 800a intermittent ratings
- This single pole, single Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Assorted |
| Product Details | |
| Actuator Type | Hinge Lever |
| Connectivity Protocol | X-10 |
| Connector Type | Plug In |
| Contact Type | Normally Open |
| Included Components | Battery Swtich |
| International Protection Rating | IP54 |
| Model Name | Lever-Operated Off/On Switch |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operating Voltage | 36 Volts |
| Operation Mode | ON OFF ON |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.6 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5 x 2.5 x 2.6 inches |
| Size | One Size |
| Weight | 0.8 pounds |
| Width | 2.5 inches |
| Technical Specifications | |
| Actuator Type | Hinge Lever |
| Connector Type | Plug In |
| Contact Type | Normally Open |
| International Protection Rating | IP54 |
| Number of Positions | 1 |
| Operating Voltage | 36 Volts |
