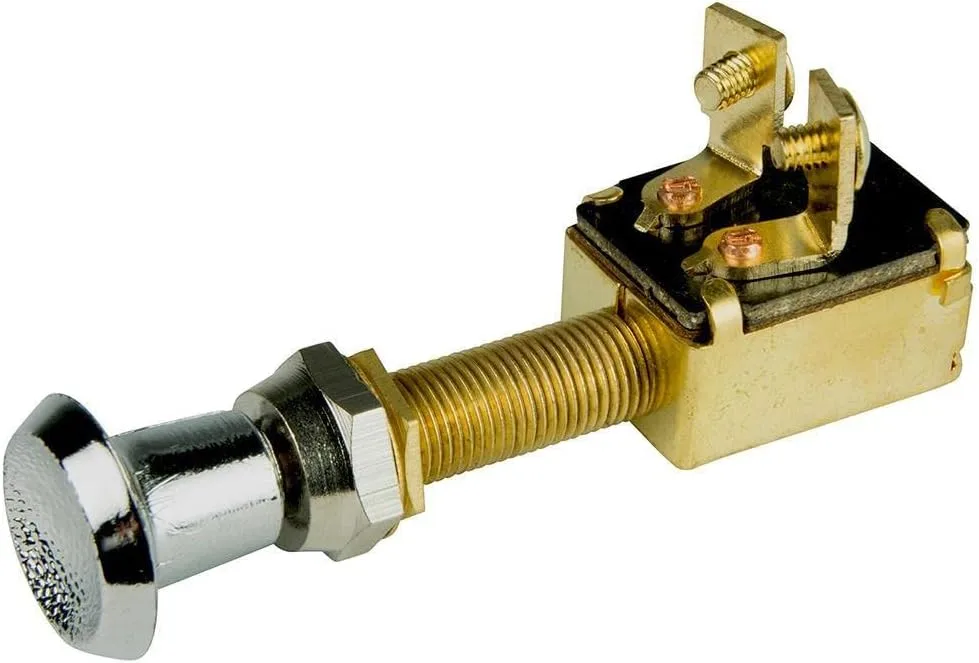

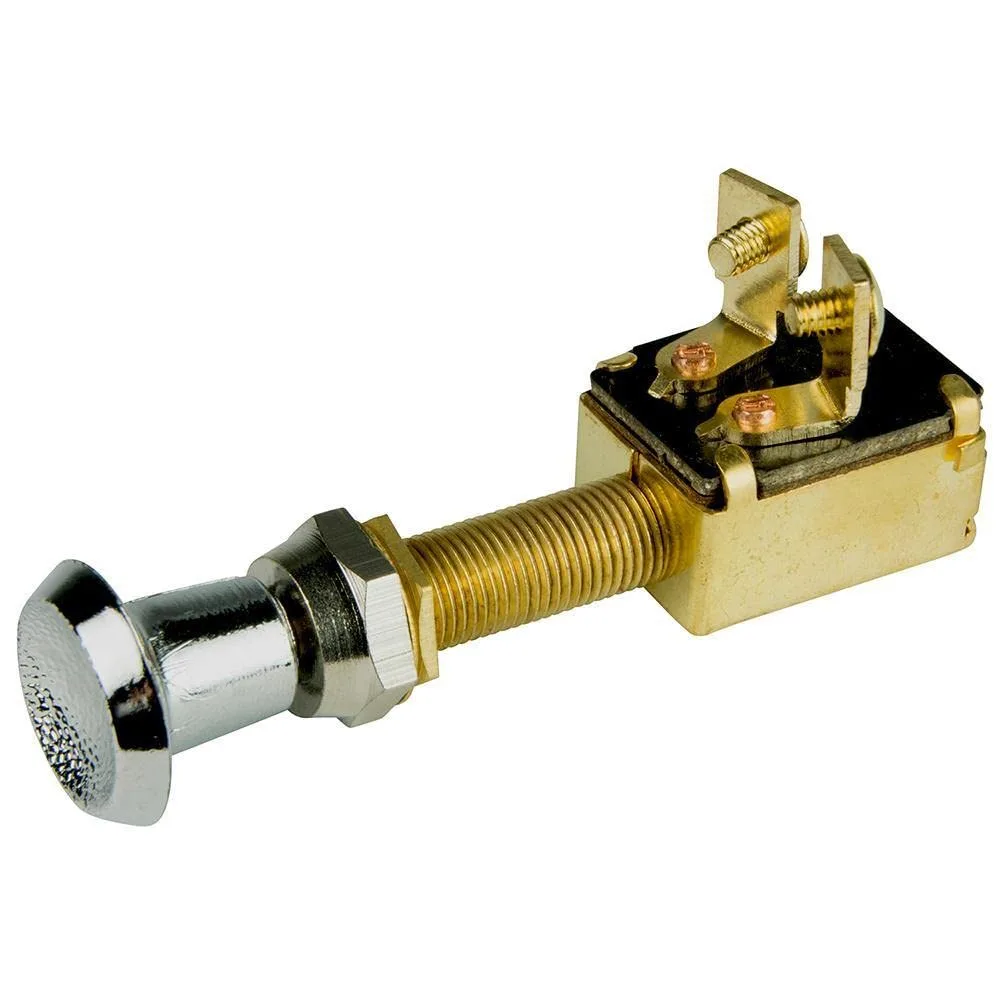

BEP 1001303 SPST Push-Pull Switch, 2 Position - Off/On (Two Circuit)
Customize
2-Position SPST Push-Pull Switch - OFF/ON (two-circuit). Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. All knobs are screw-on type. Nominal voltage is 6-36V DC. Rated for 10A at 12V DC. #8-32 screw terminals. Fits panels up to 1" thick. Replaces Cole Hersee part number M-527. Ideal for marine electrical equipment and panel installations where a durable, corrosion-resistant push-pull ON/OFF switch is required. IP54 rated, panel mount, 2-position operation, contact material brass, actuator type push-pull. Package dimensions ~4.25 x 2.68 x 1.5 inches; item dimensions 3.3 x 1.25 x 1.8 inches; item weight 2.24 ounces.
- Replaces Cole Hersee part number M-527
- Nominal voltage is 6-36V DC. Rated for 10A at 12V DC. Fits panels up to 1" thick. #8-32 screw terminals
- Brass case, stem, terminals and mounting hardware. All knobs are screw-on type
- Heavy-duty, noncorrosive construction with moisture-repellent insulators
- Single pole, single throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Chrome |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Actuator Type | push-pull |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Current Rating | 10 Amps |
| Included Components | Push Pull Switch |
| International Protection Rating | IP54 |
| Model Name | 2 Position SPST Push-Pull Switch - Off/On |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Voltage | 36 Volts |
| Operation Mode | ON-OFF |
| Terminal | Screw Terminals,screw-on |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.8 inches |
| Length | 3.3 inches |
| Product Dimensions | 3.3 x 1.25 x 1.8 inches |
| Size | One Size |
| Weight | 2.24 ounces |
| Width | 1.25 inches |
| Technical Specifications | |
| Warranty | Warranty |
