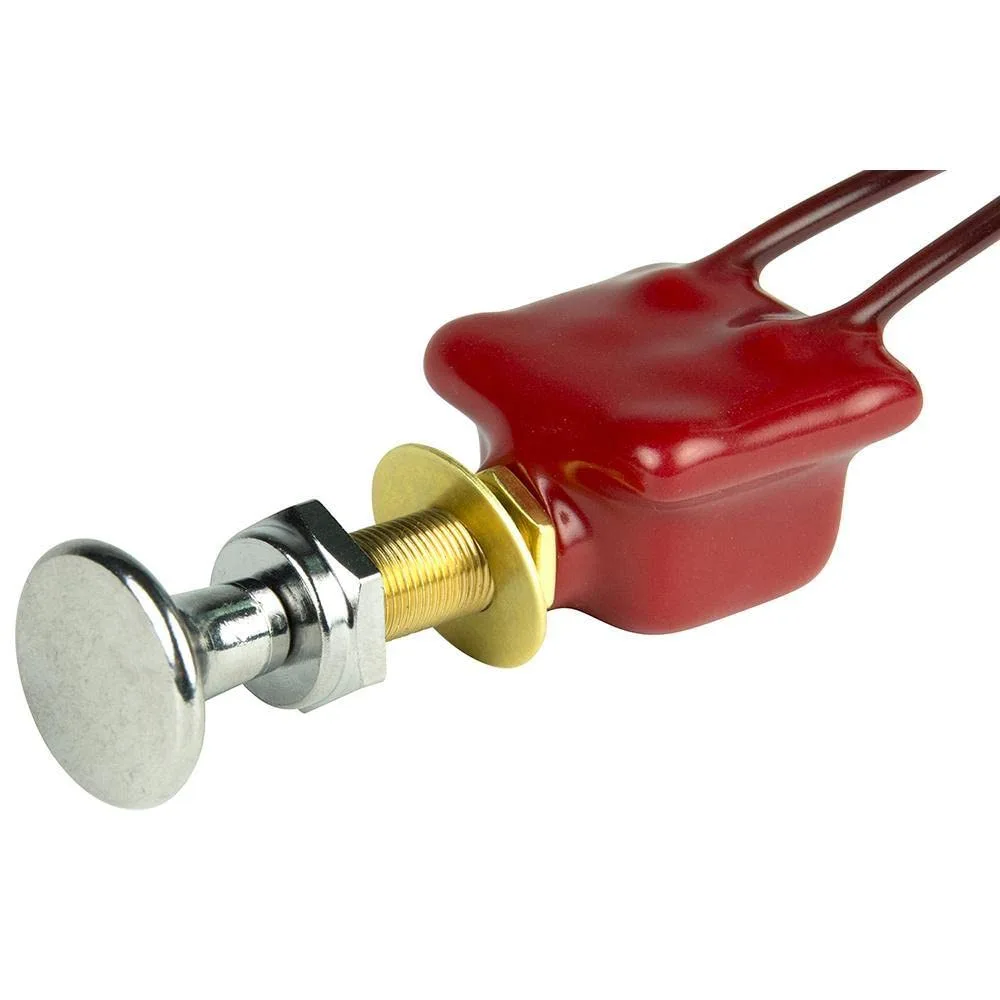

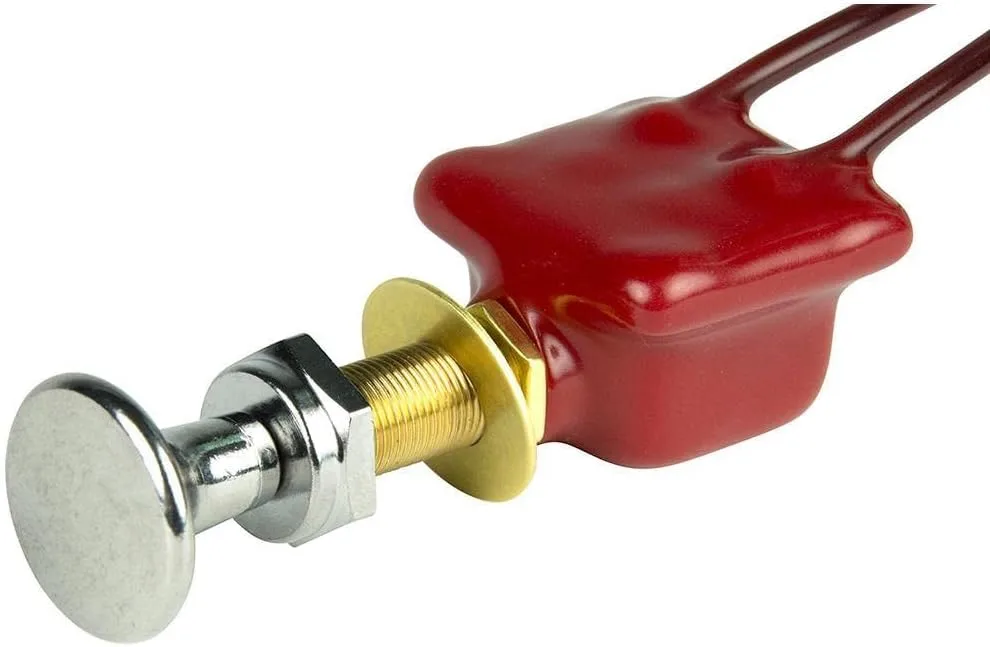

BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON
Customize
2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. Plasticized body helps seal out moisture and dirt. All knobs are screw-on type. Features: Nominal voltage is 6-36V DC Rated for 10A at 12V DC Two 8" 16 AWG wire leads for terminals Fits panels up to 5/8" thick Same as Cole Hersee part number M-606 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, Terminals and mounting hardware. Plasticized body helps seal out moisture and dirt. All knobs are screw-on type. Nominal voltage is 6-36v DC. Rated for 10A at 12V DC. Two 8" 16 AWG wire leads for Terminals. Fits panels up to 5/8" thick. Replaces Cole hersee part number m-606.
- Replaces Cole hersee part number m-606
- Nominal voltage is 6-36v DC. Rated for 10a at 12V DC. Two 8" 16 AWG Wire leads for terminals. Fits panels up to 5/8" thick
- Brass case, stem, terminals and mounting hardware. All knobs are screw-on type
- Heavy-duty, noncorrosive construction with moisture-repellent insulators. Plasticized body helps seal out moisture and dirt
- Single pole, single Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Assorted |
| Contact Material | Brass |
| Material | Plastic |
| Product Details | |
| AC Adapter Current | 10 Amps |
| Connector Type | Screw |
| Contact Material | Brass |
| Current Rating | 10 Amps |
| Included Components | Push Pull Switch |
| Model Name | 2 Position SPST Push-Pull Switch - Off/On |
| Model Number | 1001306 |
| Mounting Type | Panel Mount |
| Operation Mode | ON-OFF |
| Size | One Size |
| Terminal | Spst |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.8 inches |
| Item Package Dimensions | 4.33 x 2.68 x 1.42 inches |
| Length | 3.3 inches |
| Package Dimensions | 4.33 x 2.68 x 1.42 inches |
| Product Dimensions | 3.3 x 1.25 x 1.8 inches |
| Product Weight | 0.16 Pounds |
| Weight | 2.56 ounces |
| Width | 1.25 inches |
| Technical Specifications | |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Included Components | Push Pull Switch |
| Mounting Type | Panel Mount |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
