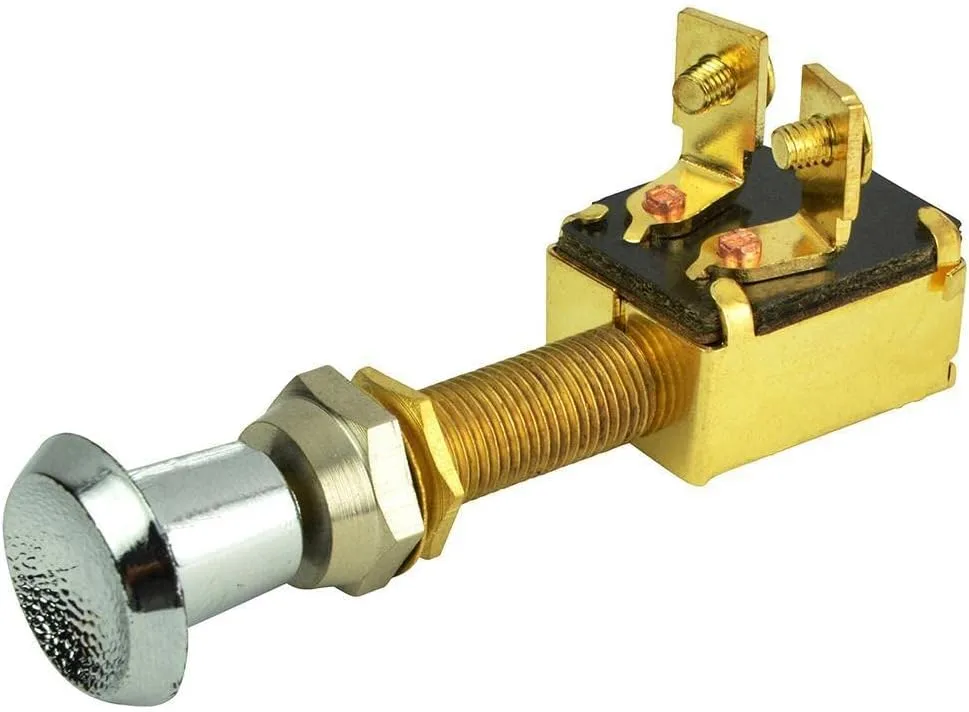

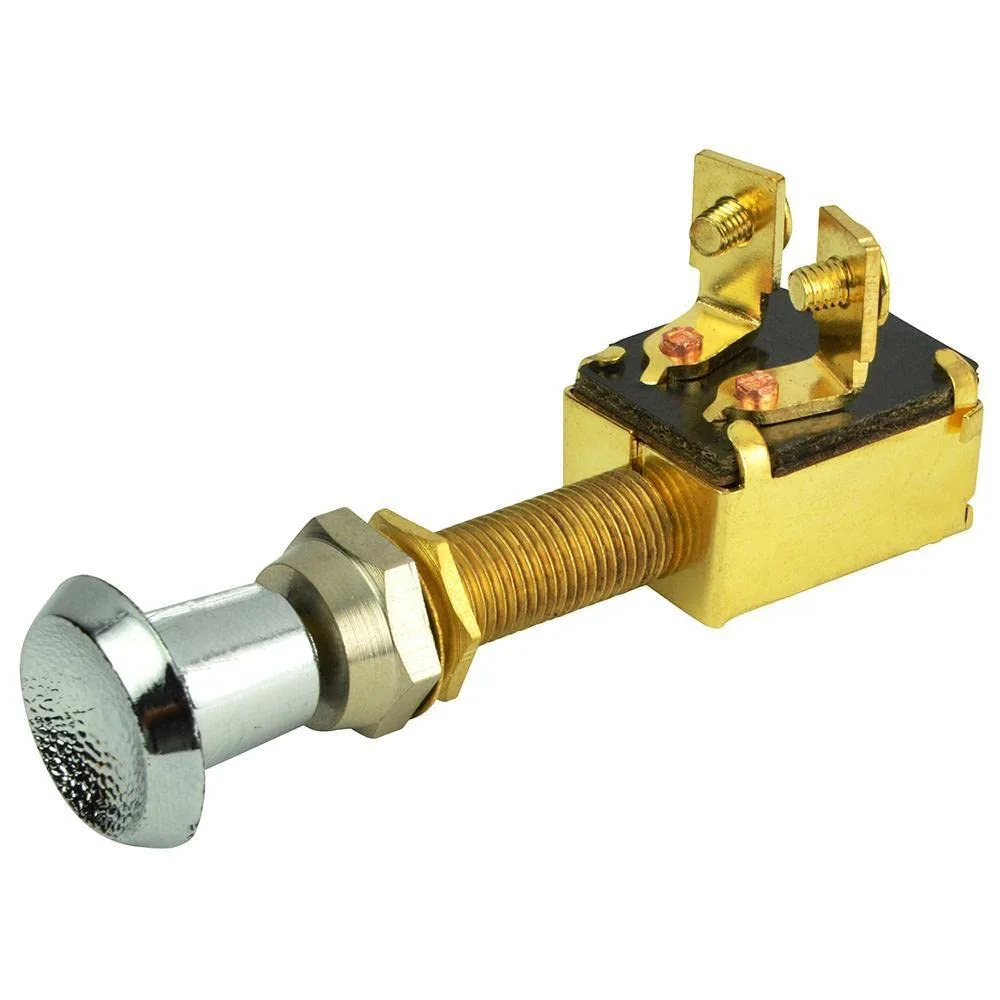

BEP 1001307 SPST Push-Pull Switch, 2 Position - Off/On
BEP 2-position SPST push-pull switch with contoured chrome knob. Brass case, stem and terminals with moisture-repellent insulators. 6–36V DC nominal; rated 10A at 12V DC. #8-32 screw terminals; fits panels up to 3/4" thick.
$20.99
Customize
UPC
870216046013 Available Quantity
3 GSA Item
No GSA Compliant
No Product Details
2-Position SPST Push-Pull Switch w/Contoured Knob - OFF/ON. Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. All knobs are screw-on type. Features: Nominal voltage is 6-36V DC. Rated for 10A at 12V DC. #8-32 screw terminals. Fits panels up to 3/4" thick. Replaces Cole Hersee part number M-628. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number m-628
- Nominal voltage is 6-36v DC. Rated for 10a at 12V DC. #8-32 screw terminals. Fits panels up to 3/4 inch thick
- All knobs are screw-on type. Brass case, stem, terminals and mounting hardware
- Heavy-duty, noncorrosive construction with moisture-repellent insulators
- Single pole, single Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Chrome |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Actuator Type | push-pull |
| Circuit Type | 1-way |
| Connector Type | screw |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Control Method | Touch |
| Global Trade Identification Number | 00870216046013, 00691289660018 |
| Included Components | Push Pull Switch |
| Model Name | 2 Position SPST Push-Pull Switch - Off/On |
| Number of Positions | 2 |
| Operation Mode | Off |
| Size | Pack of 1 |
| Terminal | screw terminals,screw-on |
| UPC | 870216046013 |
| Wattage | 120 watts |
| Sizing & Dimensions | |
| Height | 1.8 inches |
| Length | 3.3 inches |
| Product Dimensions | 3.3 x 1.25 x 1.8 inches |
| Size | Pack of 1 |
| Weight | 2.24 ounces |
| Width | 1.25 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 36 Volts |
| Warranty | Warranty |
| Wattage | 120 watts |
