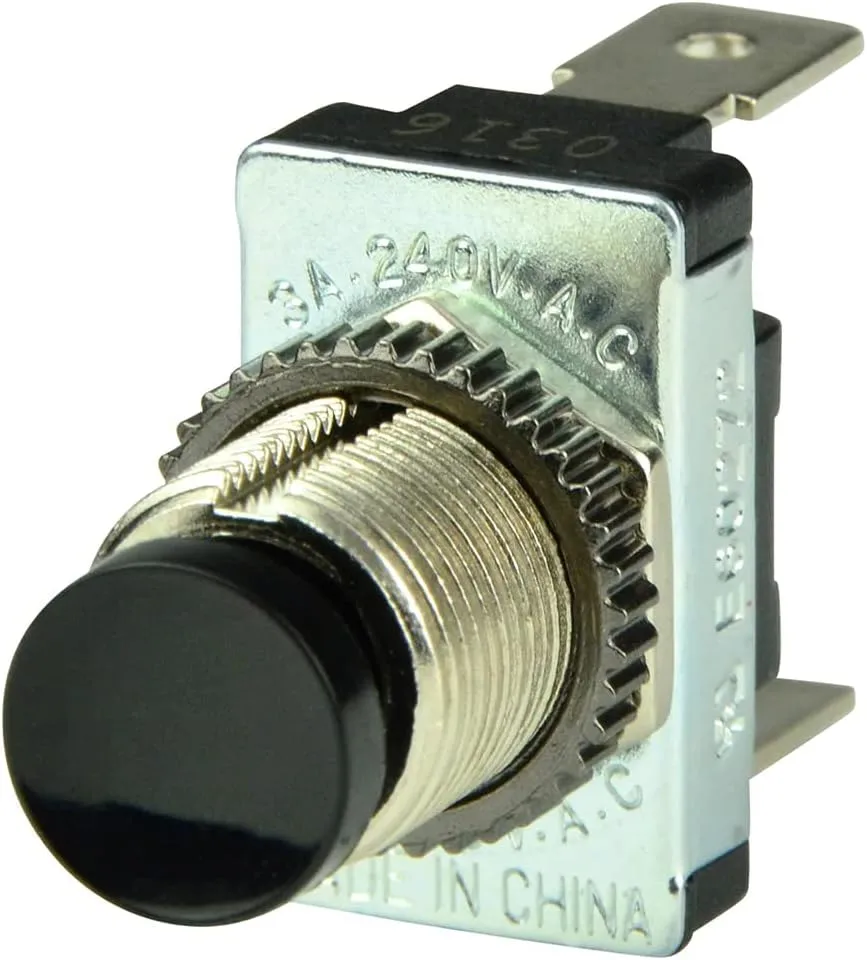

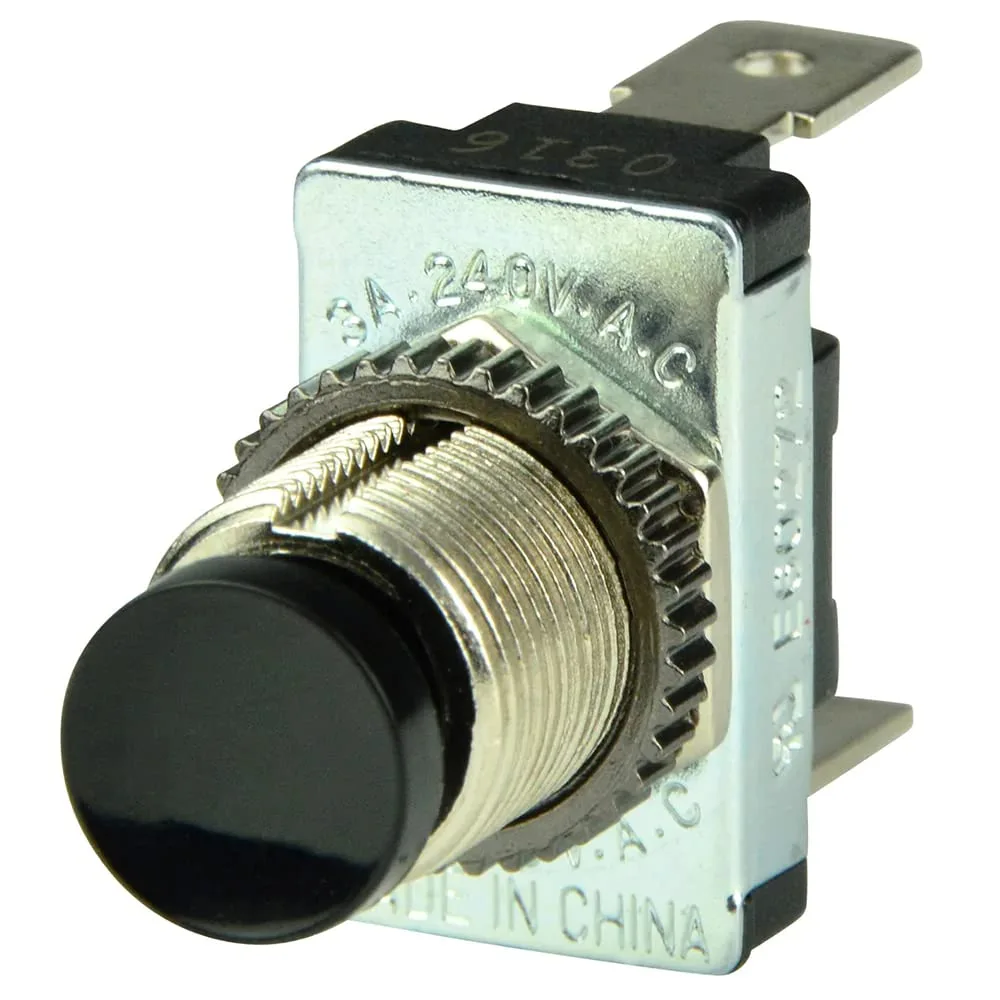

Single pole, single throw momentary switch turns one circuit on and off. Compact black push button switch can be used for horn, starter, and other momentary applications. Nominal voltage is 12V/24V DC. Rated for 5A at 12V DC, 5A at 24V DC. Two 1/4" blade terminals. Fits panels up to 1/4" thick. Replaces Cole Hersee part number 9187-02. Compact marine-grade design suitable for panel mounting in boating and other 12/24V DC applications.
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Actuator Type | push button switch |
| Connector Type | Plug In |
| Contact Type | Normally Open |
| Controller Type | Push Button |
| Included Components | Contact Switches |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operation Mode | Off,Push Button |
| Terminal | Button |
| Sizing & Dimensions | |
| Height | 2.13 inches |
| Item Dimensions | 2 x 0.69 x 2.13 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.69 x 2.13 inches |
| Weight | 0.80 ounces |
| Width | 0.69 inches |
| Technical Specifications | |
| Current Rating | 5 Amps |
| Operating Voltage | 24 Volts |
| Warranty | Warranty |
