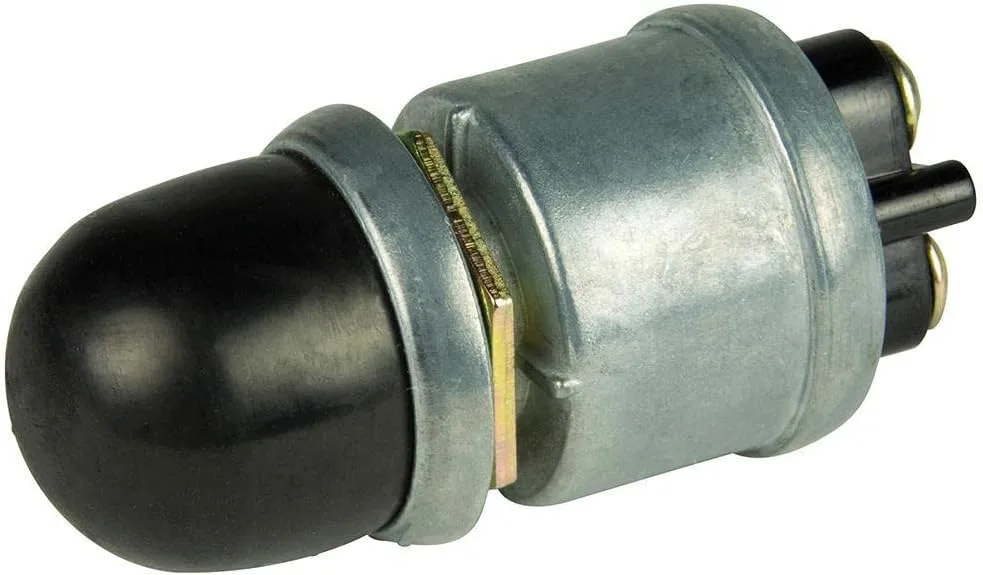

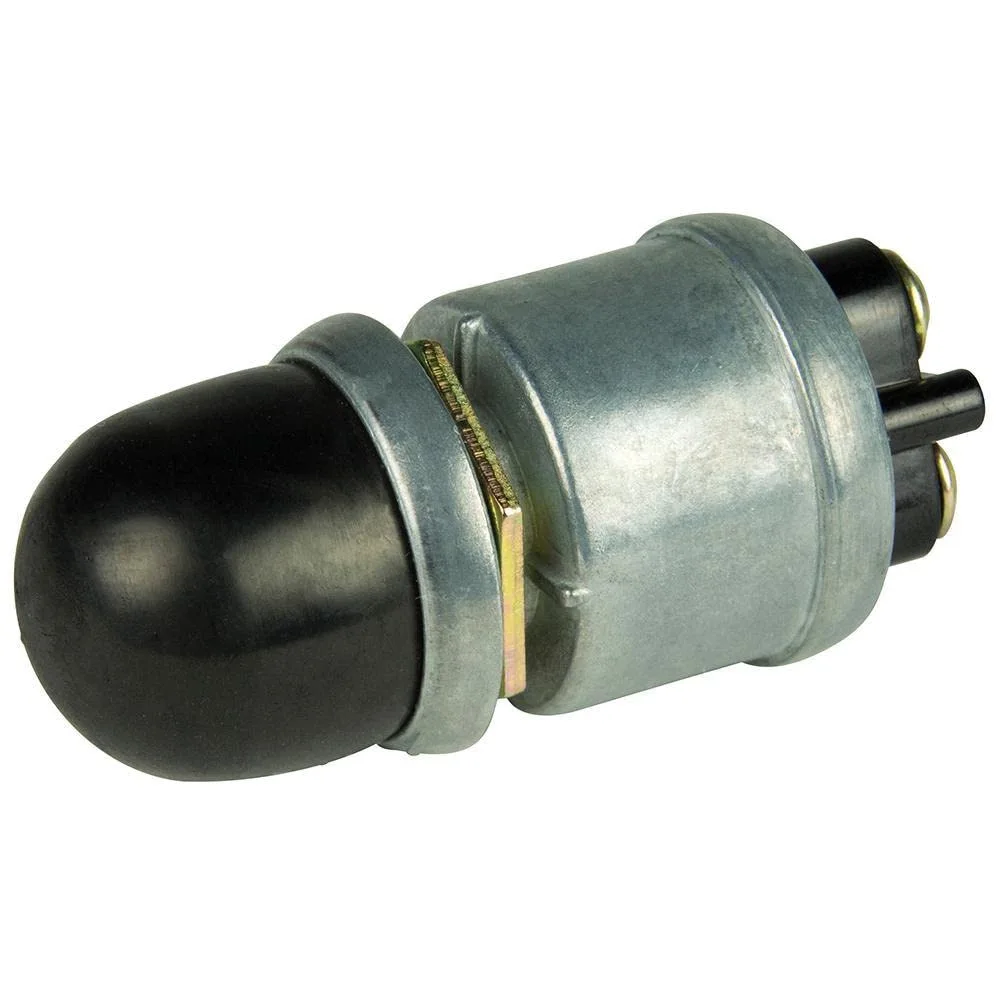

BEP 2-Position SPST Heavy-Duty Push Button Switch w/Cover - OFF/(ON) - 35 Amp
Customize
2-Position SPST Heavy-Duty Push Button Switch with Cover - OFF/(ON) - 35 Amp Single pole, single throw switch turns one circuit on and off. Can be used for intermittent windshield wiper or horn control. Features: Replacement cap 1001501 Nominal voltage is 6-36V DC Rated for 35A at 12V DC #8-32 screw terminals Fits panels up to 1" thick Same as Cole Hersee part number M-626 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Single pole, single throw switch turns one circuit on and off. Can be used for intermittent Windshield wiper or horn control. Replacement cap 1001501. Nominal voltage is 6-36v DC. Rated for 35A at 12V DC. #8-32 screw Terminals. Fits panels up to 1 inch thick. Replaces Cole hersee part number m-626.
- Replaces Cole hersee part number m-626
- 8-32 screw terminals. Fits panels up to 1 inch thick
- Nominal voltage is 6-36v DC. Rated for 35a at 12V DC
- Can be used for intermittent windshield wiper or horn control
- Single pole, single Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Brass |
| Product Details | |
| Actuator Type | push button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | screw |
| Connector Type (duplicate-check) | screw |
| Contact Material | Brass |
| Contact Type | SPST |
| Control Method | Touch |
| Controller Type | Push Button |
| Current Rating | 35 Amps |
| Included Components | Push Button Switches |
| Model Name | 2 Position SPST Heavy-Duty Push Button Switch - OFF/(On) |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operation Mode | OFF-NONE-(ON) |
| Operation Voltage | 36 Volts |
| Terminal | button,screw terminals |
| Terminal Type | button,screw terminals |
| Sizing & Dimensions | |
| Height | 2.2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2.2 inches |
| Size | One Size |
| Weight | 2.08 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Current Rating | 35 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 36 Volts |
| Warranty | Warranty |
