BEP 1001601 Kill and Lanyard Ignition Switches & Lanyards

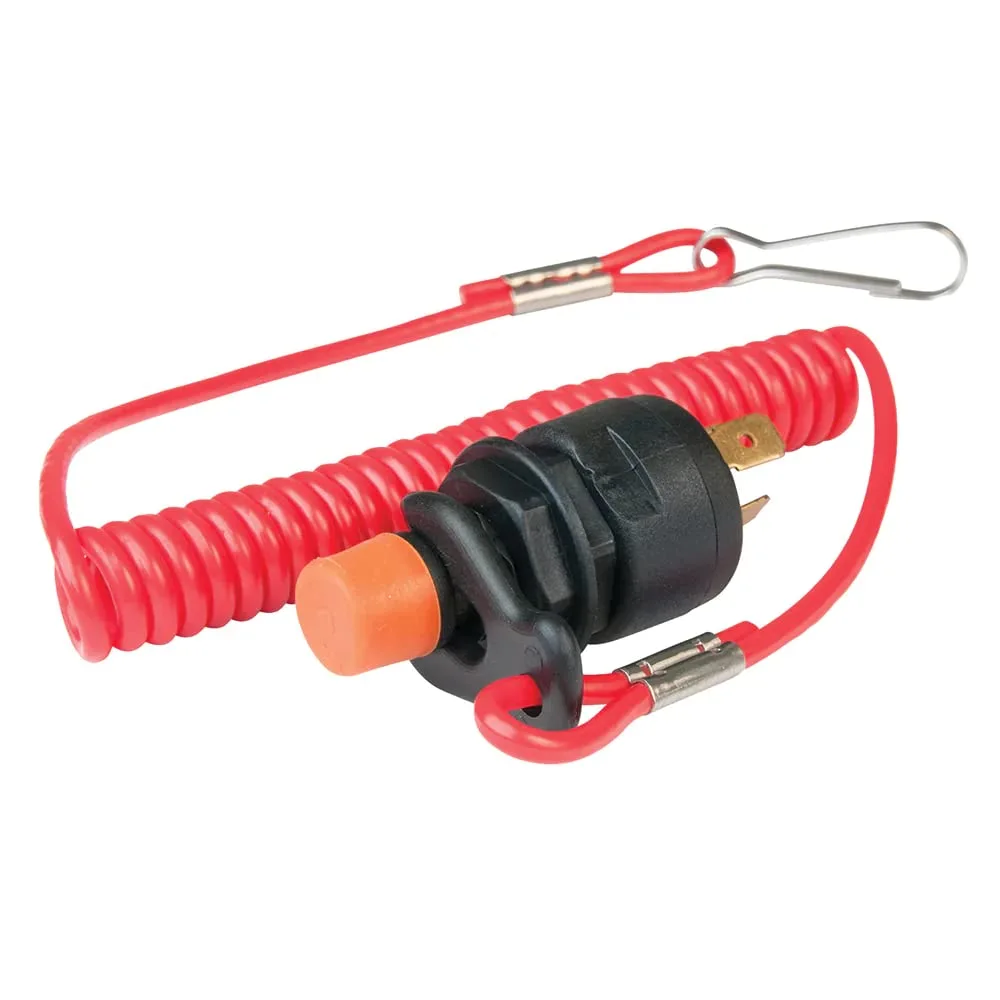

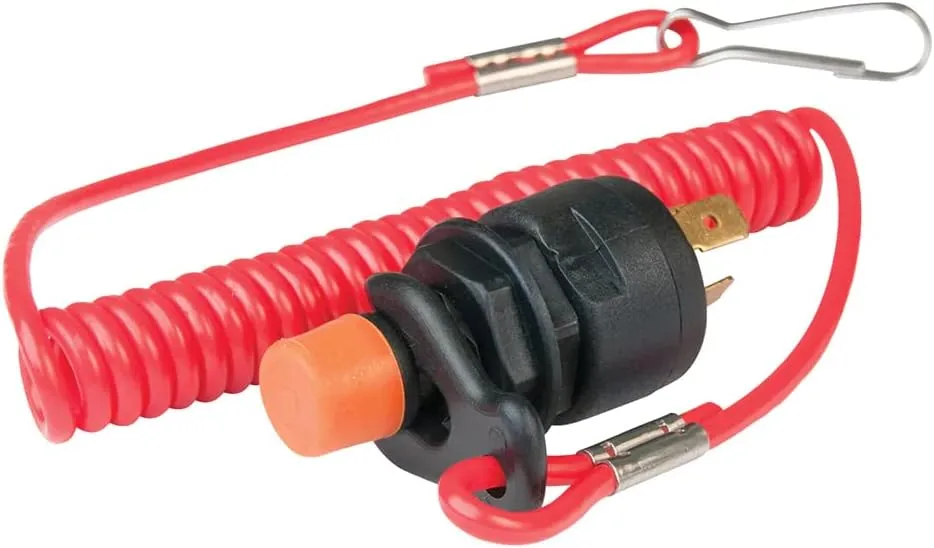

BEP 1001601 Kill Switch & Lanyard — marine ignition safety switch with 7" 16 AWG wire leads, IP65 rating, 12/24V, 10A. Includes switch, lanyard and disconnect clip. Replaces Cole Hersee M-597.
$31.99
Customize
UPC
870216046129 Available Quantity
3 GSA Item
No GSA Compliant
No Product Details
Kill Switch & lanyard. Add safety to older boats easily. In an emergency, a quick pull on the lanyard stops the engine, preventing accidental runaway. Includes switch, lanyard, and disconnect clip. Contact engine manufacturer for specific installation instructions. Features: Nominal voltage is 12V/24V DC. Rated for 10A at 12V DC. 7" 16 AWG wire leads for terminals. IP65. Same as Cole Hersee part number M-597. Replaces Cole hersee part number m-597. 7 inch 16 AWG Wire leads for terminals. Rated Ip65. Nominal voltage is 12V/24V DC. Rated for 10a at 12V DC. In an emergency, a quick pull on the lanyard stops the engine, preventing accidental runaway.
- Replaces Cole hersee part number m-597
- 7 inch 16 AWG Wire leads for terminals. Rated Ip65
- Nominal voltage is 12V/24V DC. Rated for 10a at 12V DC
- In an emergency, a quick pull on the lanyard stops the engine, preventing accidental runaway
- Add safety to older boats easily
Specifications:
| Materials & Construction | |
| Color | red |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Wire Leads With Barrel Connector |
| Contact Material | Copper |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Included Components | Ignition Switches & Lanyards |
| Model Name | Kill Switch and Lanyard |
| Number of Items | 1 |
| Operation Mode | manual |
| Operation Voltage | 12 Volts |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Item Dimensions Lx Wx H | 2 x 1.2 x 2 inches |
| Item dimensions L x W x H | 2 x 1.2 x 2 inches |
| Item Package Dimensions L x W x H | 5.83 x 3.82 x 2.76 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 1.2 x 2 inches |
| Weight | 2.08 ounces |
| Width | 1.2 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| International Protection Rating | IP65 |
| Operating Voltage | 12 Volts |
| Terminal | Screw |
