BEP 1001904 SPDT Toggle Switch - (On)/Off/(On)
BEP 1001904 SPDT panel-mount toggle switch (ON)/OFF/(ON) — 12V DC, 25A rating, standard black nylon handle, three #6-32 screw terminals, 15/32" mounting stem; replaces Cole Hersee 54104.
$10.99
Customize
UPC
870216046556 Available Quantity
2 GSA Item
No GSA Compliant
No Product Details

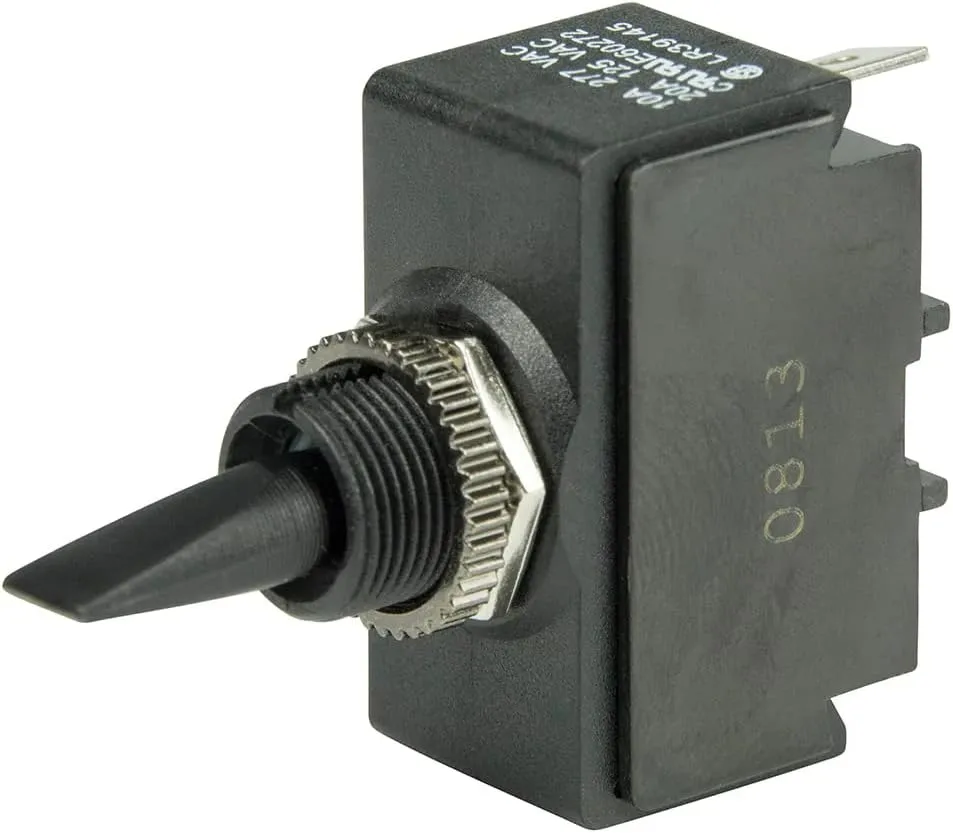

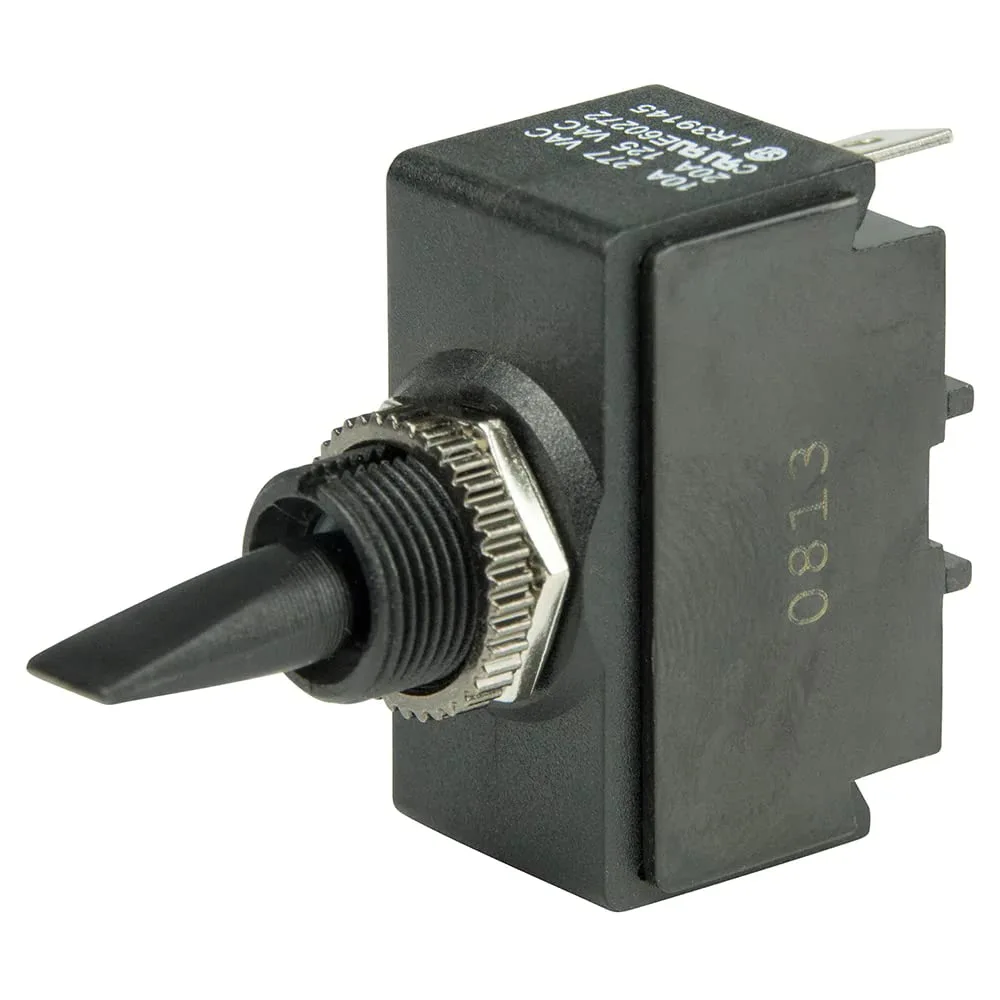

BEP 1001904 SPDT Toggle Switch — single pole, double throw switch that selects one of two circuits. Features a standard black nylon handle, nominal 12V DC voltage rating, and 25A current rating at 12V DC. Three #6-32 screw terminals and a 15/32" mounting stem fit panels up to 1/8" thick. Replaces Cole Hersee part number 54104. Action: (ON)-OFF-(ON). Throw/Pole: SPDT. Color: Black. Material: Plastic. Mounting Type: Panel Mount. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Single pole, double Throw toggle switch turns one of two circuits on
- Standard black nylon handle
- Nominal voltage is 12V DC. Rated for 25a at 12V DC
- Three #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/8" thick
- Replaces Cole hersee part number 54104
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Action | (On)-Off-(On) |
| Connector Type | Screw |
| Included Components | Nylon Toggles |
| Model Name | SPDT Toggle Switch - (On)/Off/(On) |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | ON-OFF-ON |
| Size | 3500 |
| Terminal | Spdt |
| UPC | 870216046556 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Product Weight | 0.06 pounds |
| Size | 3500 |
| Weight | 0.96 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Voltage | 12 Volts |
| Warranty | Warranty |
