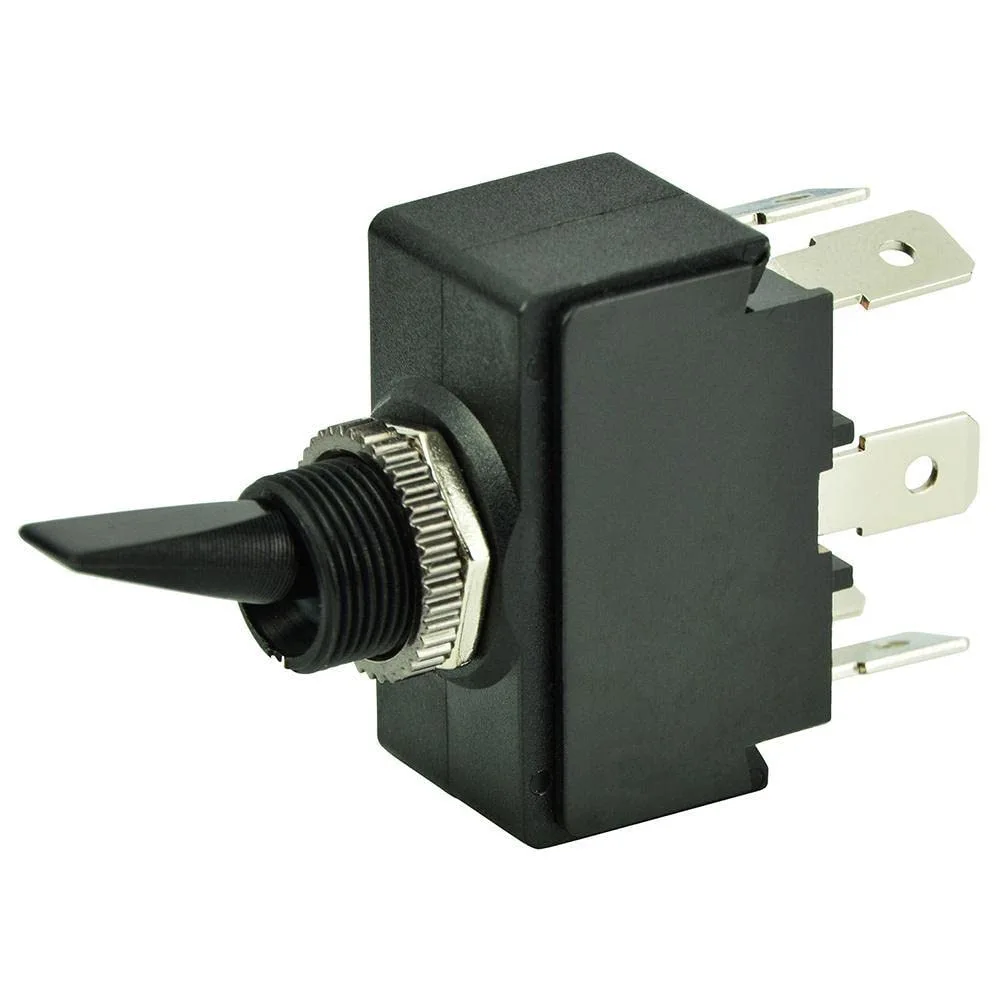

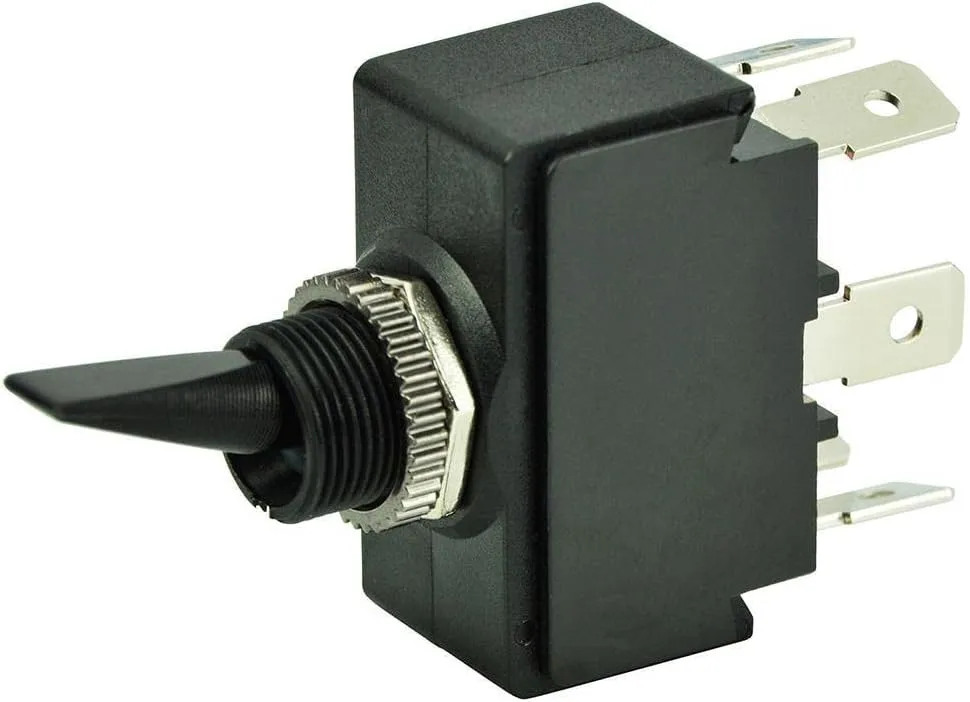

DPDT Toggle Switch - ON/OFF/ON. Double pole, double throw toggle switch turns two of four circuits on at the same time. Standard black nylon handle. Nominal voltage is 12V DC. Rated for 25A at 12V DC. Six 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/8" thick. Same as Cole Hersee part number 54107-01. Replaces Cole hersee part number 54107-01. Mounting type is panel mount; connector type is quick connect. Ideal for marine and industrial electrical control applications where a reliable ON-OFF-ON DPDT switch is required. Includes nylon toggles; single item package.
- Double pole, double Throw toggle switch turns two of four circuits on at the same time
- Standard black nylon handle
- Nominal voltage is 12V DC. Rated for 25a at 12V DC
- Six 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/8" thick
- Replaces Cole hersee part number 54107-01
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Color | Multi |
| Connector Type | Quick Connect |
| Included Components | Nylon Toggles |
| Insulation Resistance | 100 Megaohms |
| Model Name | DPDT Toggle Switch - On/Off/On |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | ON-OFF-ON |
| Size | One Size |
| Terminal | Dpdt |
| Sizing & Dimensions |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 0.96 ounces |
| Width | 0.7 inches |
| Technical Specifications |
| AC Adapter Current | 25 Amps |
| Connector Type | Quick Connect |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts |
| Voltage | 12 Volts |
