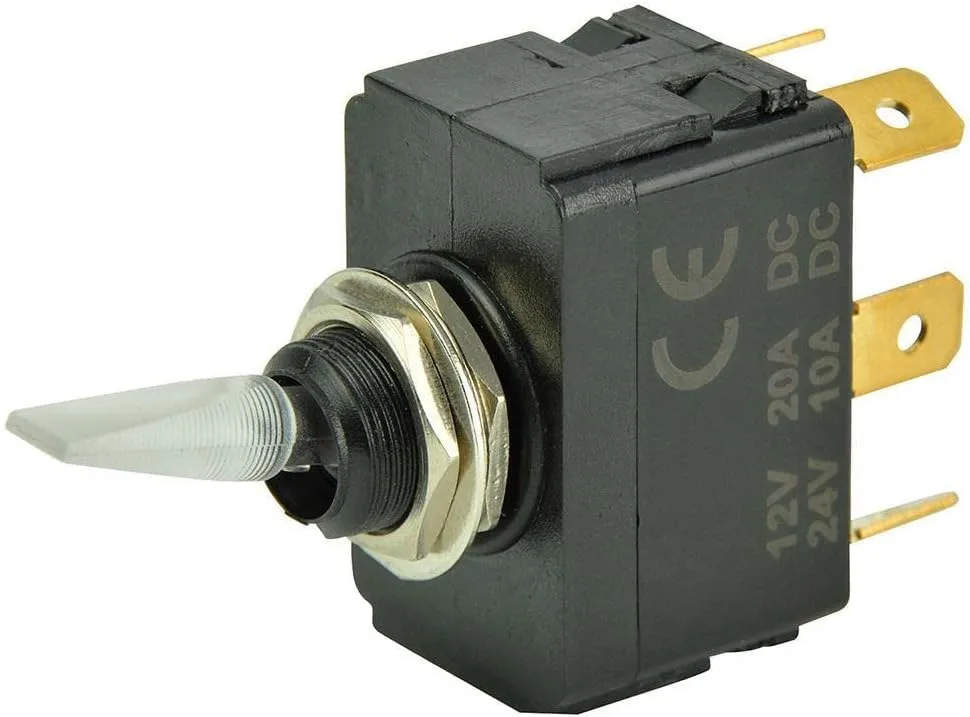

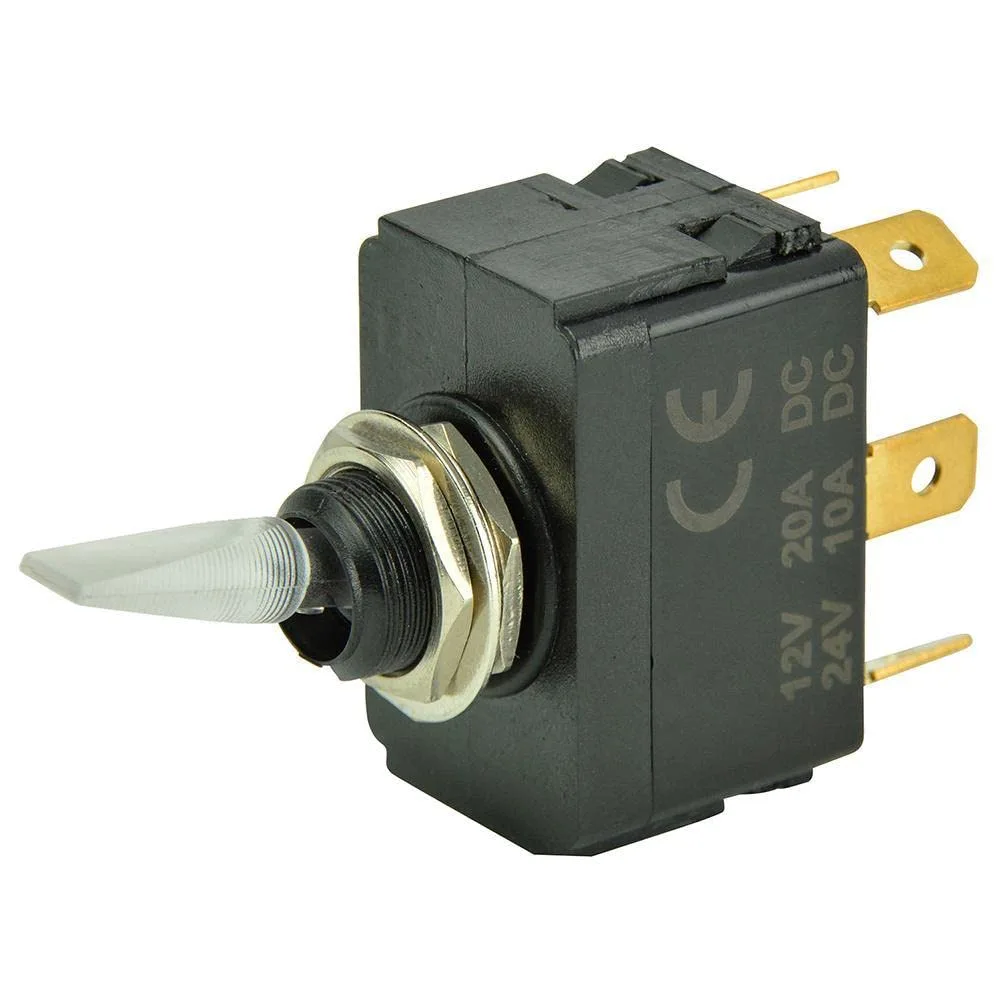

BEP 1001907 SPDT Lighted Toggle Switch - On/Off/On
Customize
SPDT Lighted Toggle Switch - ON/OFF/ON. Single pole, double throw toggle switch turns one of two circuits on. Common applications include combining nav lights and anchor light with independent bulbs or maintained dual windshield wiper control. Nominal voltage is 12V DC. Rated for 25A at 12V DC. Five 1/4" blade terminals. Switch illuminates Red when on and is clear when off. 15/32" mounting hole, fits panels up to 1/8" thick. Replaces Cole Hersee part number M-54111-02. Features: Nominal voltage is 12V DC; Rated for 25A at 12V DC; Five 1/4" blade terminals; Switch illuminates red when on and is clear when off; 15/32" mounting hole; fits panels up to 1/8" thick. Common marine and automotive replacement part for lighting and wiper control circuits.
- Replaces Cole hersee part number m-54111-02
- Five 1/4" blade terminals. 15/32" mounting Hole, fits panels up to 1/8" thick
- Nominal voltage is 12V DC. Rated for 25a at 12V DC
- Common applications include combining Nav lights and anchor light with independent Bulbs or maintained dual windshield wiper control
- Single pole, double Throw toggle switch turns one of two circuits on. Switch Illuminates Red when on and is clear when off
Specifications:
| Materials & Construction | |
| Color | Clear (illuminates red when on) |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Quick Connect |
| Contact Material | Copper Alloy |
| Material | Plastic |
| Model Name | SPDT Lighted Toggle Switch - On/Off/On |
| Mounting Type | Panel Mount |
| Operation Mode | ON-OFF-ON |
| Speaker Cutout Diameter or Length | 0.47 Inches |
| Terminal | SPDT |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 1.12 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Connector Type | Quick Connect |
| Current Rating | 25 Amps |
| Global Trade Identification Number | 00870216046587 |
| Item Dimensions Lx Wx H | 2 x 0.7 x 2 inches |
| Item Package Dimensions L x W x H | 5.31 x 2.83 x 0.91 inches |
| Operating Voltage | 12 Volts |
| UPC | 870216046587 |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
