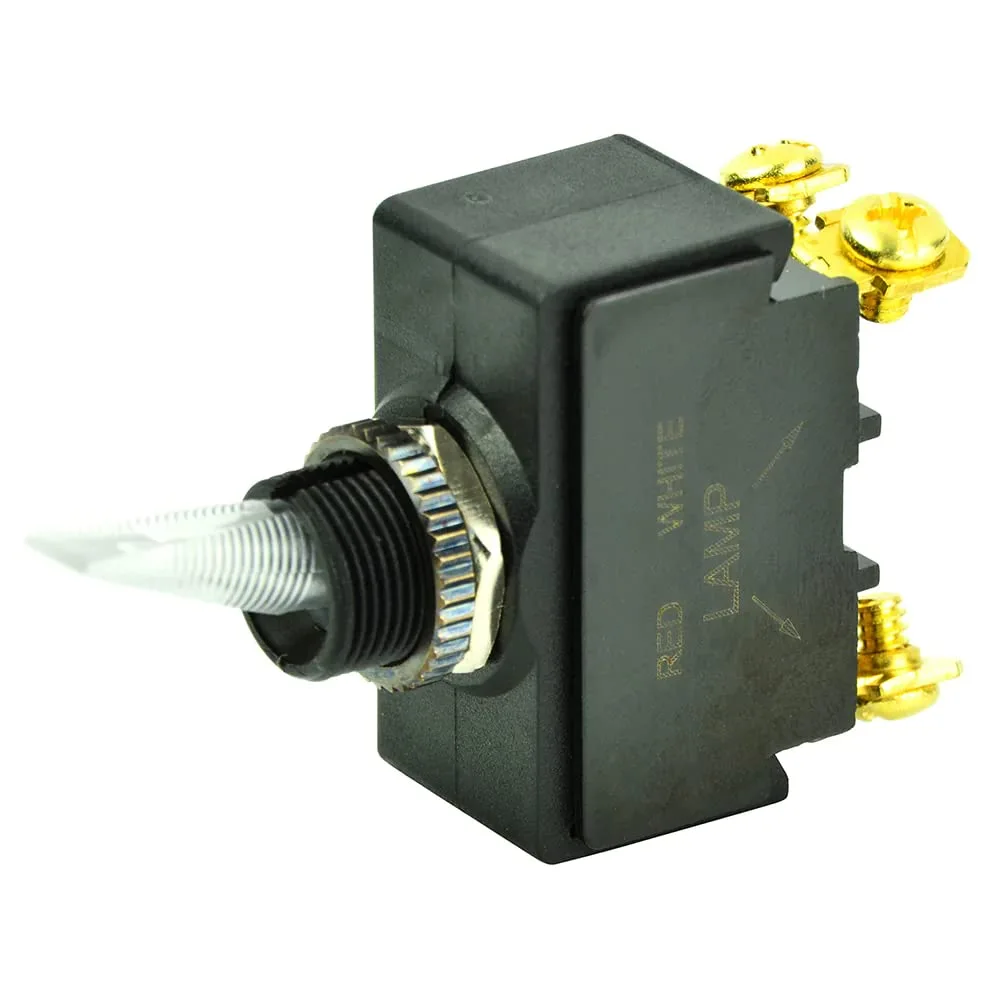

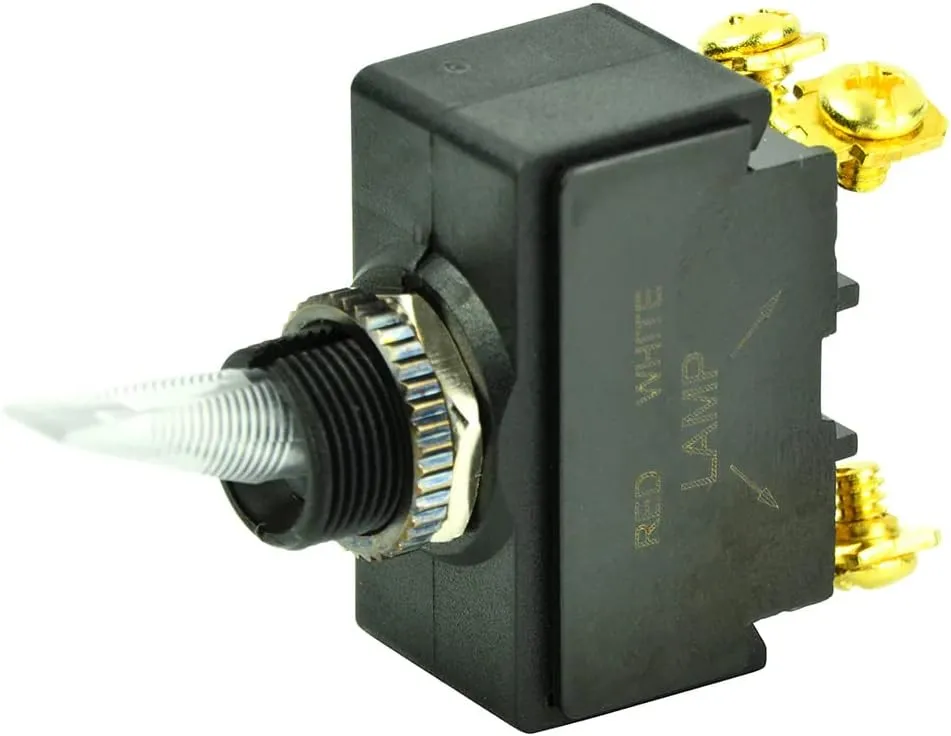

BEP SPST Lighted Toggle Switch - Red LED - 12V - #6-32 Terminal - ON/OFF
BEP SPST lighted toggle switch (model 1001908) with red LED, 12V nominal, rated 25A at 12V DC, four #6-32 screw terminals, panel mount (15/32" hole) — ON/OFF.
$15.99
Customize
UPC
870216046594 Available Quantity
7 GSA Item
No GSA Compliant
No Product Details
SPST Lighted Toggle Switch - Red LED - 12V - #6-32 Terminal - ON/OFF Single pole, single throw toggle switch turns one circuit on and off. Features: Nominal voltage is 12V DC Rated for 25A at 12V DC Four #6-32 screw terminals Switch illuminates red when on and is clear when off 15/32" mounting hole, fits panels up to 1/8" thick Same as Cole Hersee part number M-54109 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
- Replaces Cole hersee part number m-54109
- Four #6-32 screw terminals. 15/32" mounting Hole, fits panels up to 1/8" thick
- Nominal voltage is 12V DC. Rated for 25a at 12V DC
- Switch Illuminates Red when on and is clear when off
- Single pole, single Throw toggle switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Contact Material | Copper |
| Current Rating | 25 Amps |
| Included Components | Nylon Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Model Name | SPST Lighted Toggle Switch - Off/On |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation | On-Off |
| Operation Mode | ON OFF |
| Terminal | SPST |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 1.12 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Connector Type | Screw |
| Contact Material | Copper |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts |
