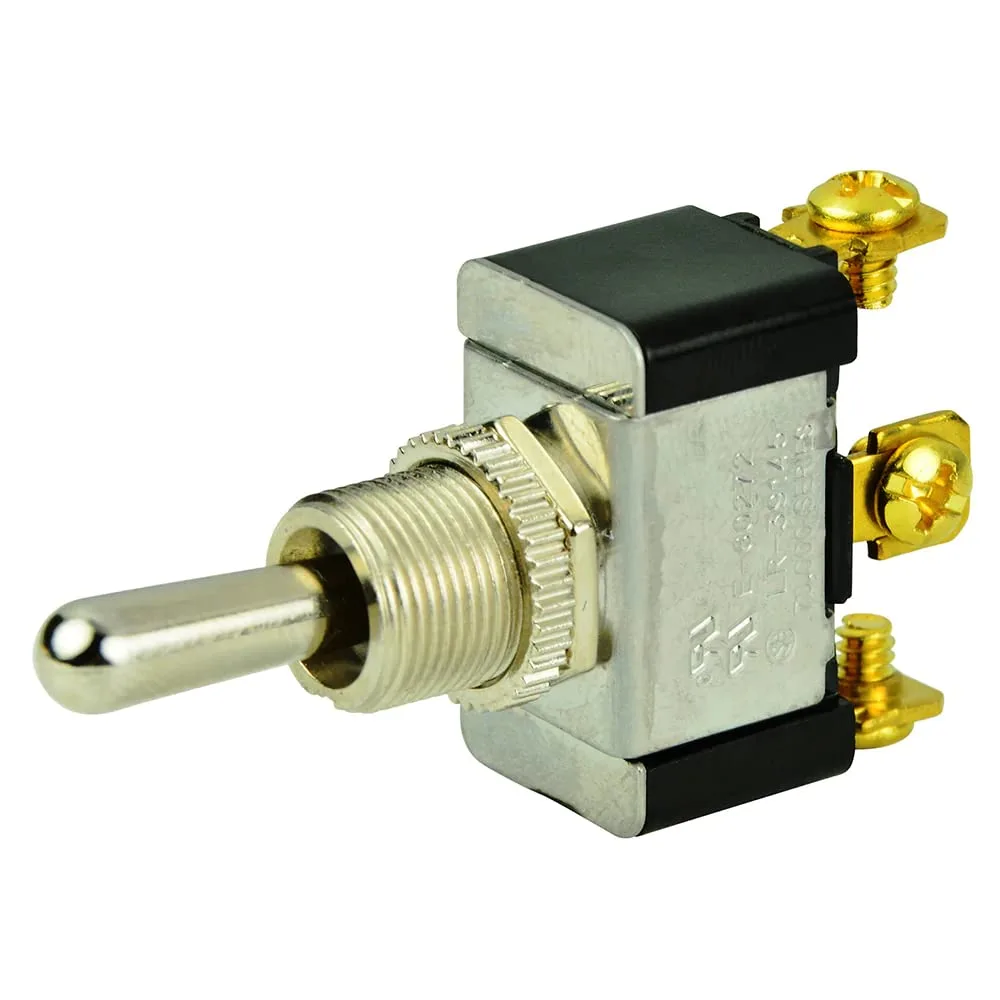

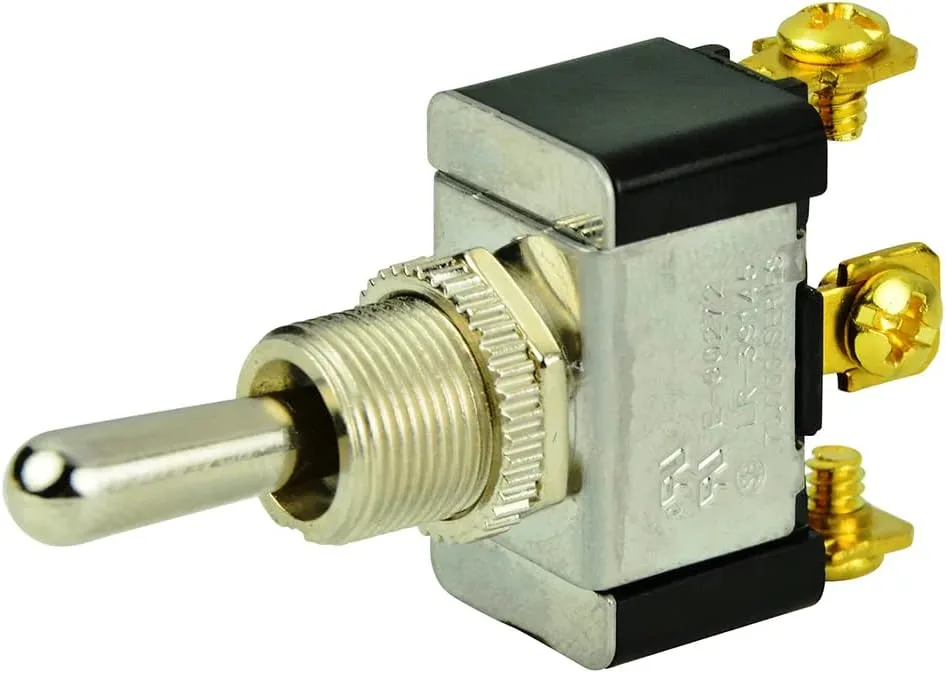

BEP 1002004 SPDT Chrome Plated Toggle Switch -(On)/Off/(On)
BEP 1002004 SPDT chrome-plated toggle switch (ON)-OFF-(ON), panel-mount, 12/24V DC; rated 25A @ 12V and 15A @ 24V; three #6-32 screw terminals; mounting stem 15/32" fits panels up to 1/4" thick.
$11.99
Customize
UPC
870216046631 Available Quantity
2 GSA Item
No GSA Compliant
No Product Details
SPDT Chrome Plated Toggle Switch - (ON)/OFF/(ON) Single pole, double throw toggle switch turns one of two circuits on. Common applications include intermittent trim tab or windshield wiper control. Features: Nominal voltage is 12V/24V DC Rated for 25A at 12V DC, 15A at 24V DC Three #6-32 screw terminals Mounting stem 15/32" fits panels up to 1/4" thick Same as Cole Hersee part number 55021-04 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
- Replaces Cole hersee part number 55021-04
- Three #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- Common applications include intermittent trim tab or windshield wiper control
- Single pole, double Throw toggle switch turns one of two circuits on
Specifications:
| Materials & Construction | |
| Action | (On)-Off-(On) |
| Color | No Color |
| Contact Material | Brass |
| Material | Plastic |
| Throw/Pole | Spdt |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Contact Material | Brass |
| Current Rating | 15 Amps |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Model Name | SPDT Chrome Plated Toggle Switch -(On)/Off/(On) |
| Mounting stem | 15/32" fits panels up to 1/4" thick |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Part Number | 1002004 |
| Size | One Size |
| Terminal | Spdt |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Item Dimensions Lx Wx H | 2 x 0.7 x 2 inches |
| Item Package Dimensions L x W x H | 5 x 2.87 x 1.42 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Weight | 1.28 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Current Rating | 15 Amps |
| Insulation Resistance | 100 Megaohms |
| Mounting Type | Panel Mount |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
