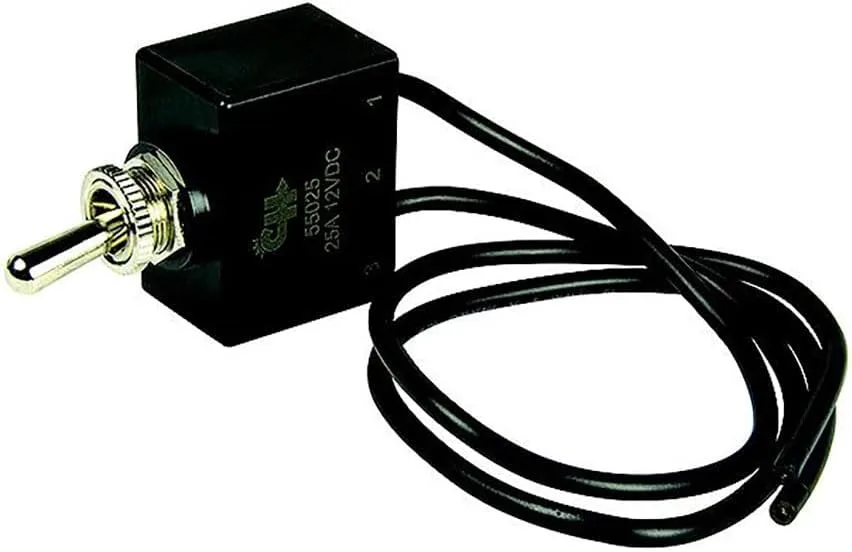

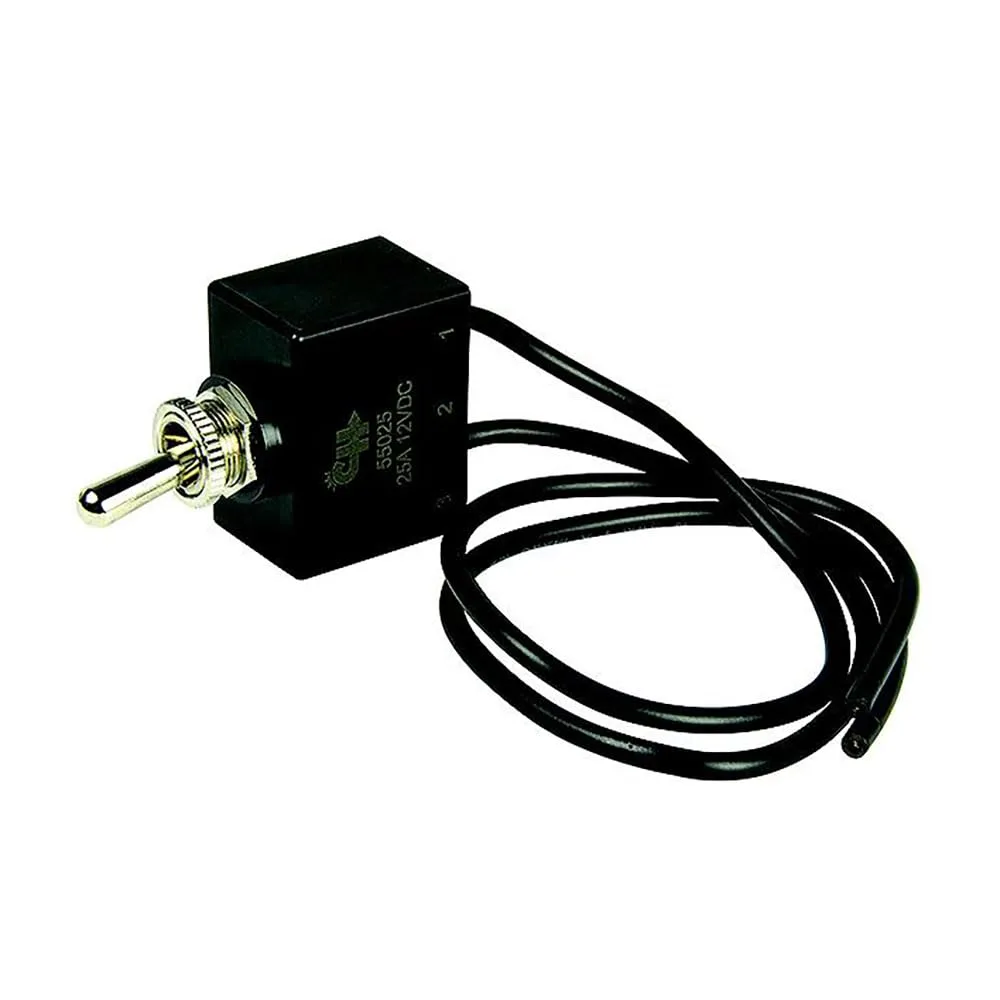

BEP 1002008 SPDT Sealed Toggle Switch - On/On
Customize
SPDT Sealed Toggle Switch - ON/ON. Single pole, double throw toggle switch turns one of two circuits on. Common applications include hallway style light switching or switching between batteries, shunts, or current transformers for multiple measurements in a single meter. Completely sealed switches built to stand up to the most extreme conditions. Engineered to IP67 specifications utilizing a double o-ring within a bushing at the toggle and a full epoxy seal at the back. Nominal voltage is 12V/24V DC. Rated for 25A at 12V DC, 15A at 24V DC. 10" 14 AWG wire lead terminals. Mounting stem 15/32" fits panels up to 1/8" thick. Replaces Cole Hersee part number 55025-03. Action: ON-ON. Color: Chrome. Mounting Type: Panel Mount. Material: Plastic/Brass. Connector Type: Screw. Contact Material: Brass. Insulation Resistance: 100 Megaohms. Includes chrome plated toggle. Ideal for marine and automotive replacement and OEM applications.
- Replaces Cole hersee part number 55025-03
- 10" 14 AWG Wire lead terminals. Mounting stem 15/32" fits panels up to 1/8" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- Common applications include hallway style light switching or switching between batteries, shunts, or current transformers for multiple measurements in a single meter
- Single pole, double Throw toggle switch turns one of two circuits on. Engineered to Ip67 specifications utilizing a double O-ring within a bushing at the toggle and a full epoxy seal at the back
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Contact Material | Brass |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Model Name | SPDT Sealed Toggle Switch - On/On |
| Mounting Type | Panel Mount |
| Operating Voltage | 24 Volts |
| Operation Mode | ON-OFF |
| Terminal | Spdt |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 1.2 x 2 inches |
| Product Weight | 0.18 Pounds |
| Size | One Size |
| Weight | 2.88 ounces |
| Width | 1.2 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Contact Material | Brass |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 24 Volts |
| Voltage | 12 Volts |
