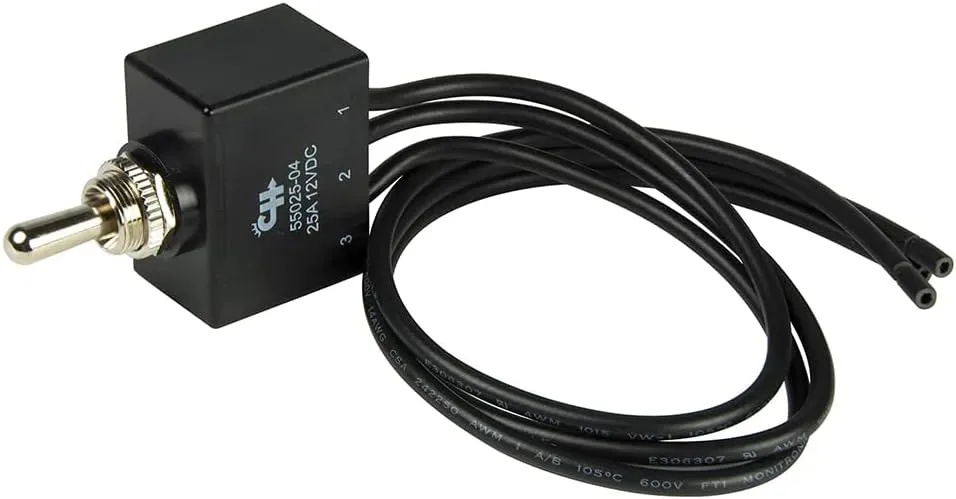

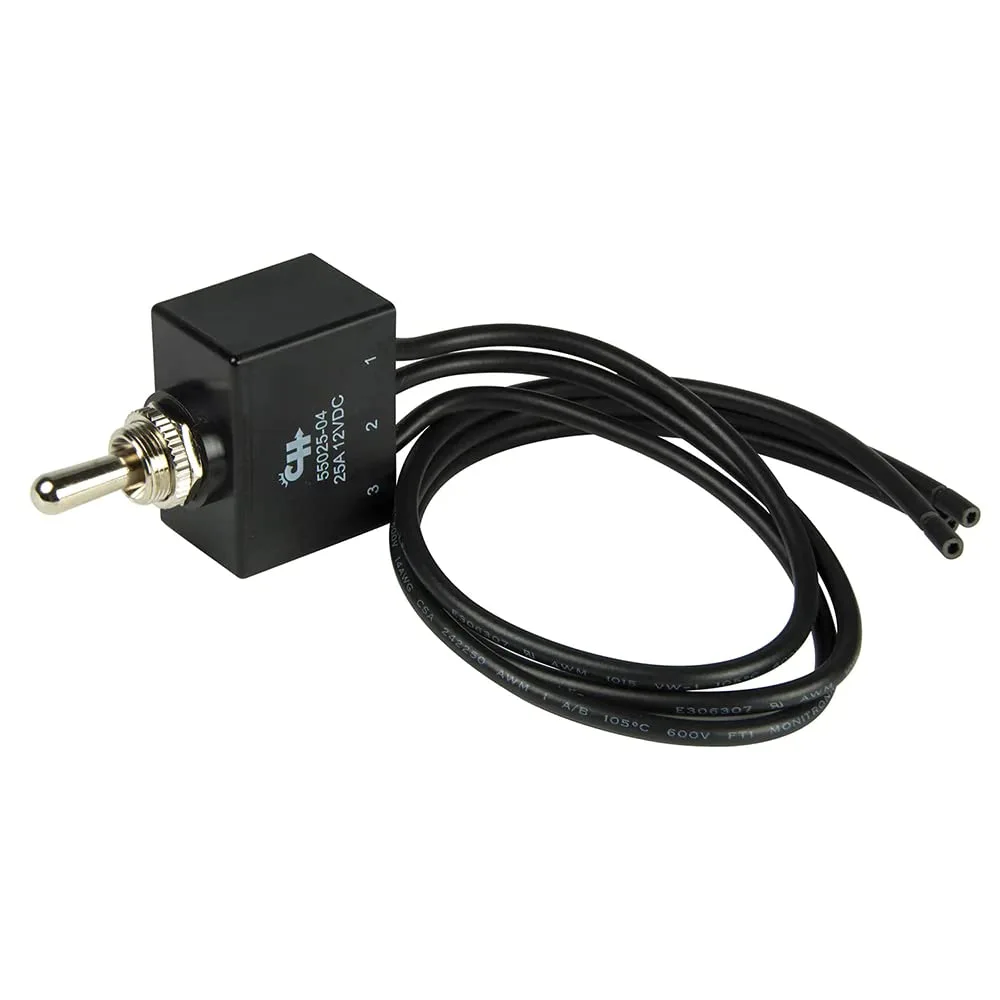

BEP 1002009 SPDT Sealed Toggle Switch - (On)/Off/(On)
Customize
SPDT Sealed Toggle Switch - (ON)/OFF/(ON). Single pole, double throw toggle switch turns one of two circuits on and off. Common applications include intermittent trim tab or windshield wiper control. Completely sealed switches built to stand up to the most extreme conditions. Engineered to IP67 specifications utilizing a double o-ring within a bushing at the toggle and a full epoxy seal at the back. Nominal voltage is 12V/24V DC. Rated for 25A at 12V DC, 15A at 24V DC. 10" 14 AWG wire lead terminals. Mounting stem 15/32" fits panels up to 1/8" thick. Replaces Cole Hersee part number 55025-04. Features include chrome plated toggles, panel-mount design, quick connect terminals and durable construction suitable for marine and industrial electrical control applications. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number 55025-04
- 10" 14 AWG Wire lead terminals. Mounting stem 15/32" fits panels up to 1/8" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- Common applications include intermittent trim tab or windshield wiper control
- Single pole, double Throw toggle switch turns 1 of 2 circuits on and off.Engineered to Ip67 specifications utilizing a double O-ring within a bushing at the toggle and a full epoxy seal at the back
Specifications:
| Materials & Construction | |
| Color | Chrome |
| Material | Plastic |
| Outer Material | Chrome |
| Product Details | |
| Action | (On)-Off-(On) |
| Connector Type | Quick Connect |
| Contact Material | Copper Alloy |
| Current Rating | 25 Amps |
| Dielectric Strength | 500 volts (500V) |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 1000 Megaohms |
| Material | Plastic |
| Model Name | SPDT Sealed Toggle Switch - (On)/Off/(On) |
| Mounting Type | Panel Mount |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Specification Met | Ip 67 |
| Terminal | Spdt |
| Throw/Pole | Spdt |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 1.2 x 2 inches |
| Size | One Size |
| Weight | 2.88 ounces |
| Width | 1.2 inches |
| Technical Specifications | |
| Voltage | 12 Volts |
| Warranty | Warranty |
