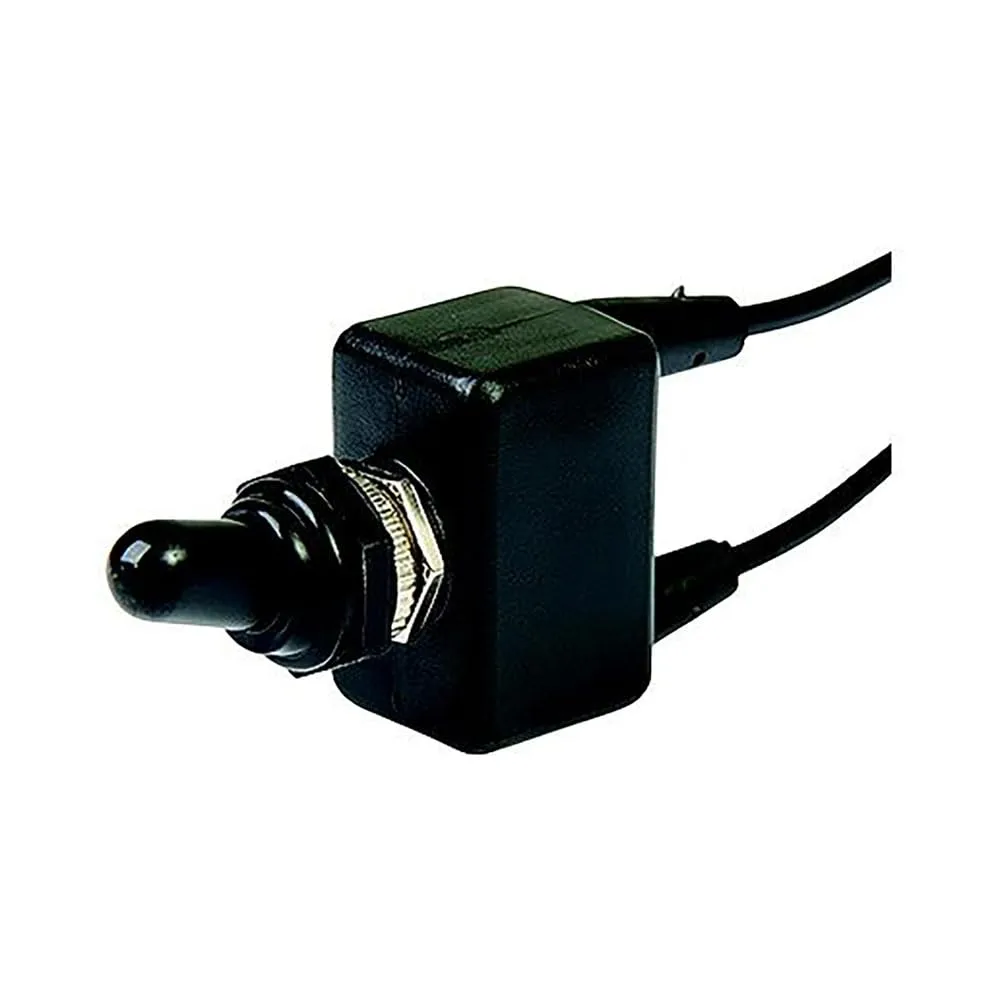

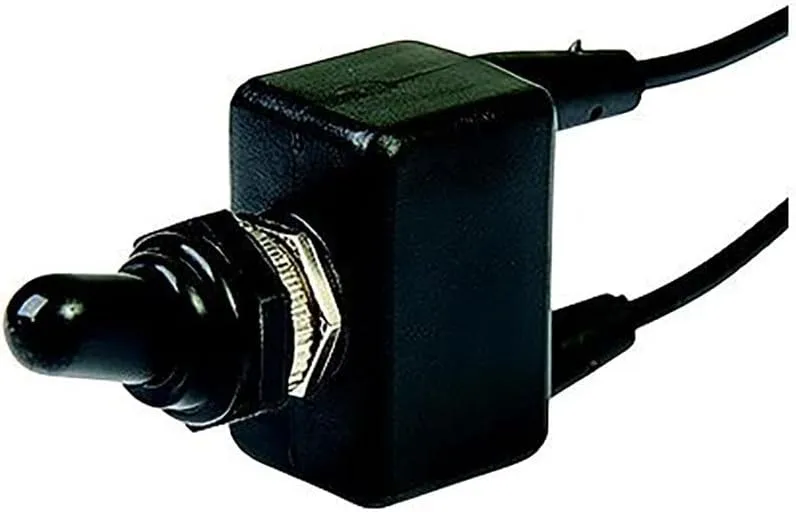

BEP 1002016 SPST PVC Coated Toggle Switch With Wire Leads - Off/On
Customize
SPST Water-Resistant Toggle Switch - OFF/ON Single pole, single throw toggle switch turns one circuit on and off. Common applications include any single circuit requiring an on-off style switch. PVC coated for water resistant integrity. Features: Nominal voltage is 12V Rated for 25A at 12V DC 8" 16 AWG wire lead terminals Mounting stem 15/32" fits panels up to 3/16" thick Same as Cole Hersee part number 5582-30. Single pole, single throw toggle switch turns one circuit on and off. Common applications include any single circuit requiring an On-Off style switch. PVC coated for water resistant integrity. Nominal voltage is 12V. Rated for 25A at 12V DC. 8" 16 AWG wire lead Terminals. Mounting stem 15/32" fits panels up to 3/16" thick. Replaces Cole hersee part number 5582-30.
- Replaces Cole hersee part number 5582-30
- 8" 16 AWG Wire lead terminals. Mounting stem 15/32" fits panels up to 3/16" thick
- Nominal voltage is 12V. Rated for 25a at 12V DC
- Common applications include any single circuit requiring an on-off style switch
- Single pole, single Throw toggle switch turns one circuit on and off. PVC coated for water resistant integrity
Specifications:
| Materials & Construction | |
| Color | Black |
| Connector Type | Quick Connect |
| Contact Material | Silver, Copper Alloy, Brass, Bronze |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Action | On-Off |
| Included Components | Chrome Plated Toggles |
| Model Name | SPST Water-Resistant Toggle Switch - Off/On |
| Mounting Type | Panel Mount |
| Throw/Pole | Spst |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Speaker Cutout Diameter or Length | 0.19 inches |
| Weight | 1.76 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts (DC) |
| Operation Mode | On-off |
| Terminal | SPST |
| Voltage | 12 Volts |
| Warranty | Warranty |
