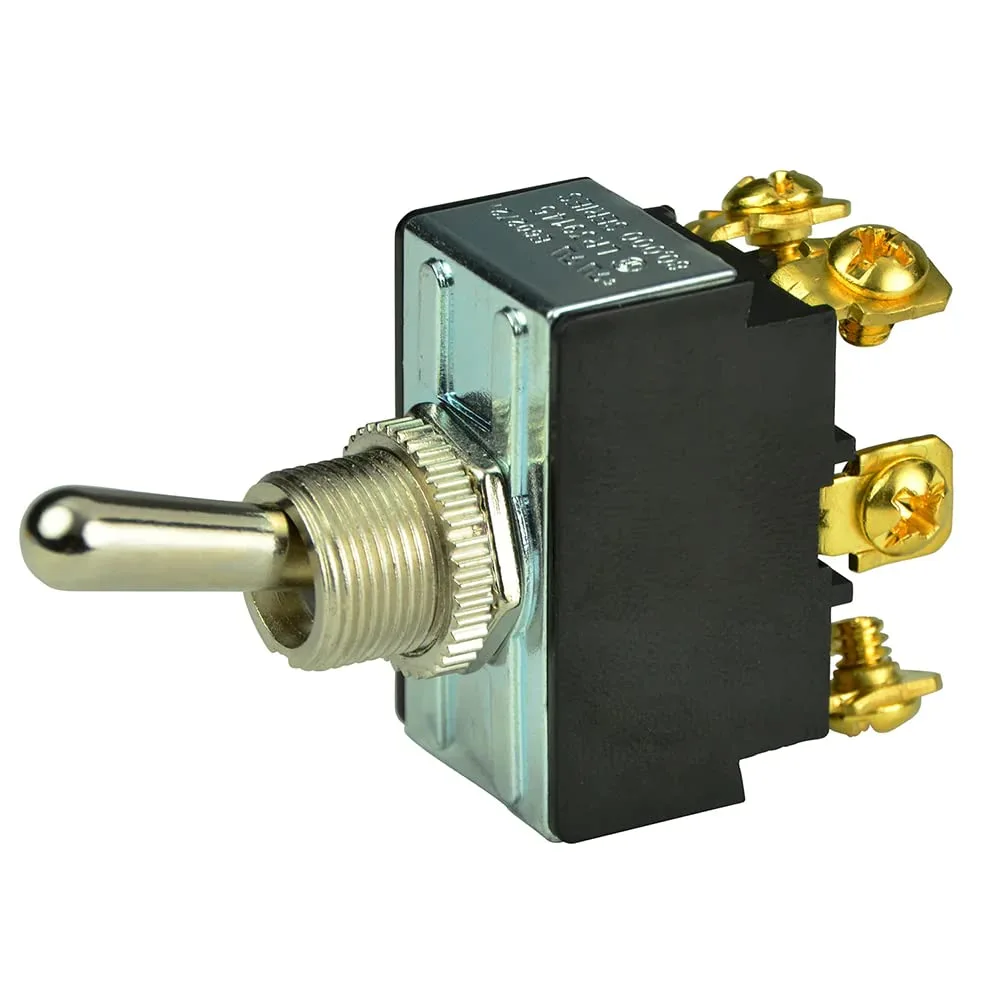

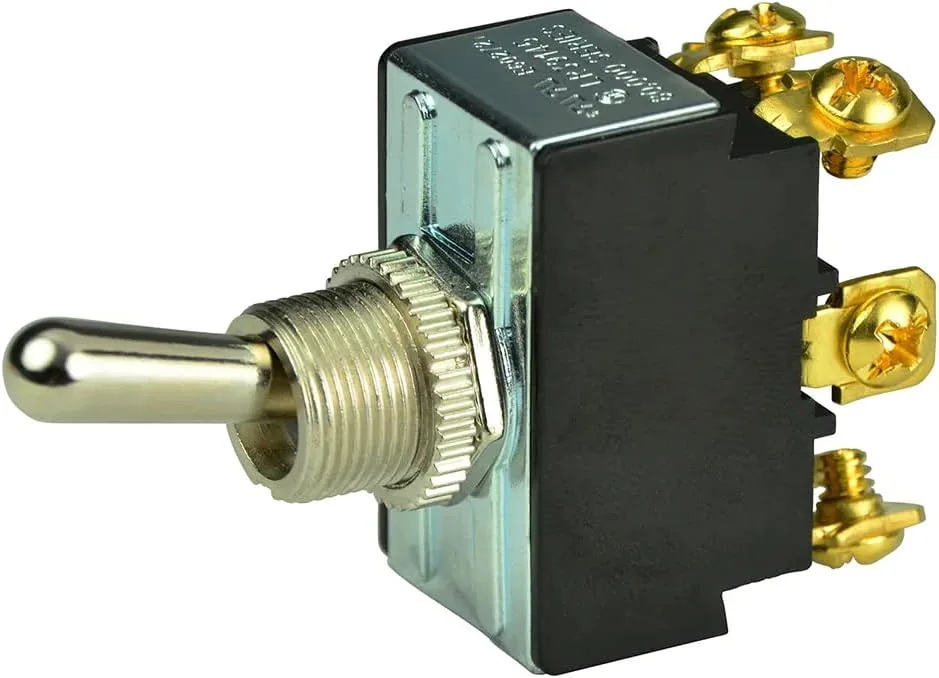

BEP 1002018 DPDT On/Off/On Chrome Plated Toggle Switch
BEP 1002018 DPDT chrome-plated ON/OFF/ON toggle switch — double pole double throw, panel-mount, rated 25A@12V/15A@24V, six #6-32 screw terminals, mounting stem fits up to 1/4" panels.
$13.99
Customize
UPC
870216046778 Available Quantity
7 GSA Item
No GSA Compliant
No Product Details
Double pole, double throw chrome-plated toggle switch (ON/OFF/ON) designed for panel mounting. Nominal voltage 12V/24V DC. Rated for 25A at 12V DC and 15A at 24V DC. Features six #6-32 screw terminals and a 15/32" mounting stem that fits panels up to 1/4" thick. Common marine applications include combining navigation lights and anchor light circuits using shared bulbs. Replaces Cole Hersee part number 5592. Includes chrome plated toggle(s).
- Replaces Cole hersee part number 5592
- Six #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- Common applications include combining Nav lights and anchor light with shared Bulbs
- Double pole, double Throw toggle switch turns two of four circuits on at a time
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Current Rating | 25 Amps |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Model Name | DPDT Chrome Plated Toggle Switch - On/Off/On |
| Mounting Stem/Fit | Mounting stem 15/32" fits panels up to 1/4" thick |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Terminal | Dpdt |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 1.44 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Connector Type | Screw |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
