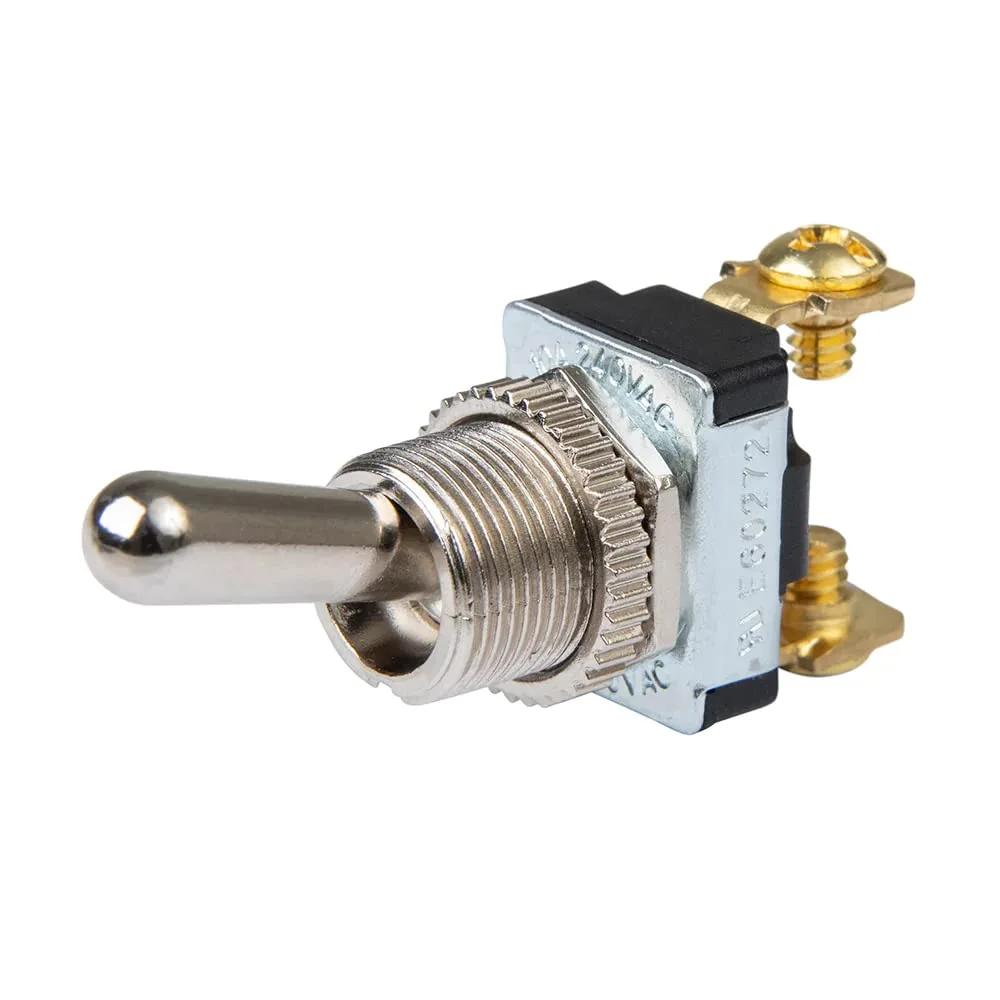

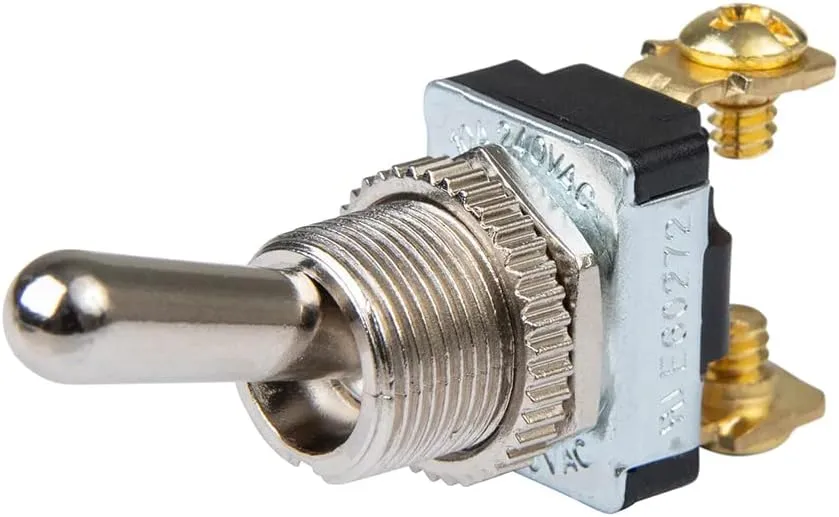

BEP 1002021 SPST Chrome Plated Toggle Switch - 11/16" Handle - Off/On
Customize
SPST Chrome Plated Toggle Switch - 11/16" Handle - OFF/ON. Single pole, single throw toggle switch turns one circuit on and off. Common applications include any single circuit requiring an on-off style switch. Features: Nominal voltage is 12V DC. Rated for 10A at 12V DC. 11/16" handle and two #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick. Same as Cole Hersee part number M-484. Replaces Cole hersee part number m-484. Mounting Type: Panel Mount. Material: Plastic (body) with copper contact material; chrome-plated toggle. Connector Type: Screw terminals. Insulation resistance: 100 Megaohms. Includes chrome plated toggles. Package and item dimensions and weights provided for shipping and fitment. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number m-484
- 11/16" handle and two #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V DC. Rated for 10a at 12V DC
- Common applications include any single circuit requiring an on-off style switch
- Single pole, single Throw toggle switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Material | Plastic, Copper |
| Outer Material | Chrome Plated |
| Product Details | |
| AC Adapter Current | 10 Amps |
| Color | Chrome Plated |
| Connector Type | Screw |
| Contact Material | Copper |
| Current Rating | 10 Amps |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Model Name | SPST 10A Chrome Plated Toggle Switch, 11/16" Handle - Off/On |
| Mounting Type | Panel Mount |
| Operation | On-Off |
| Operation Mode | ON-OFF |
| Part Number | 1002021 |
| Terminal | Spst |
| Throw/Pole | Spst |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 0.96 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Connector Type | Screw |
| Contact Material | Copper |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts (DC) |
| Warranty | Warranty |
