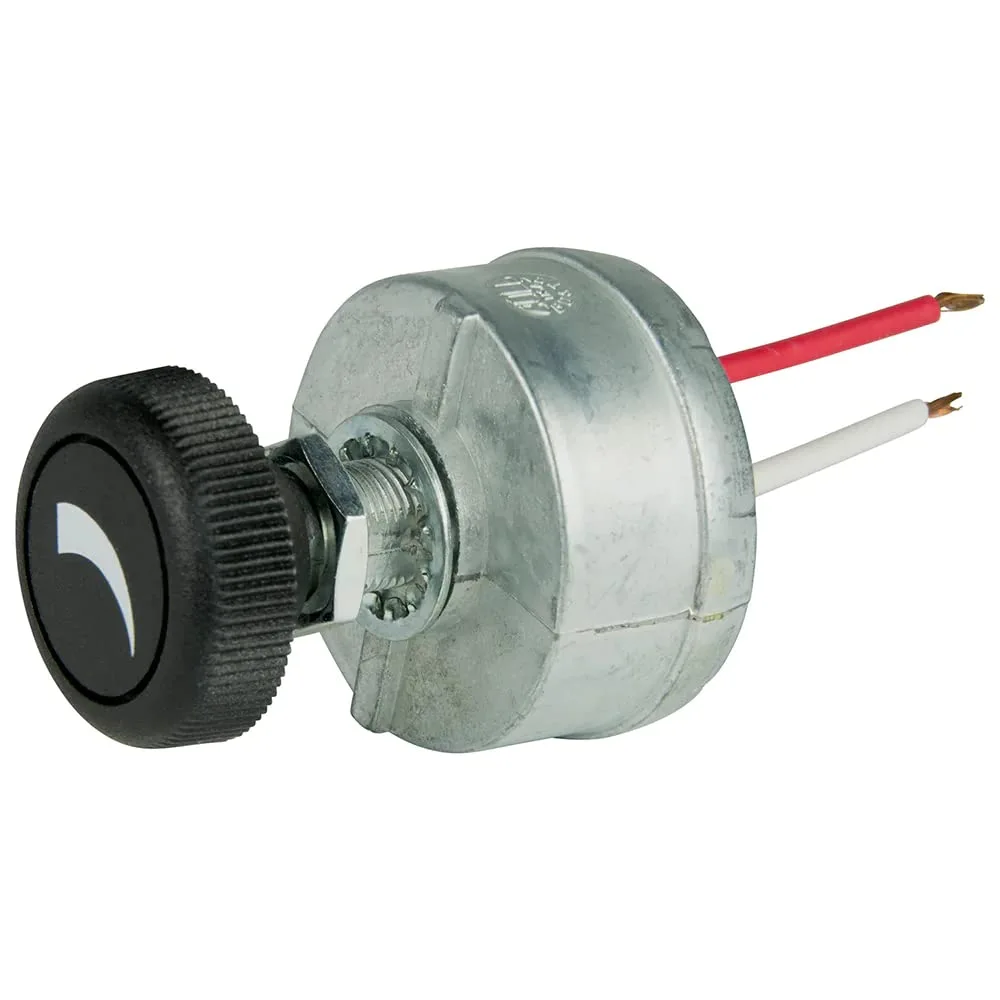

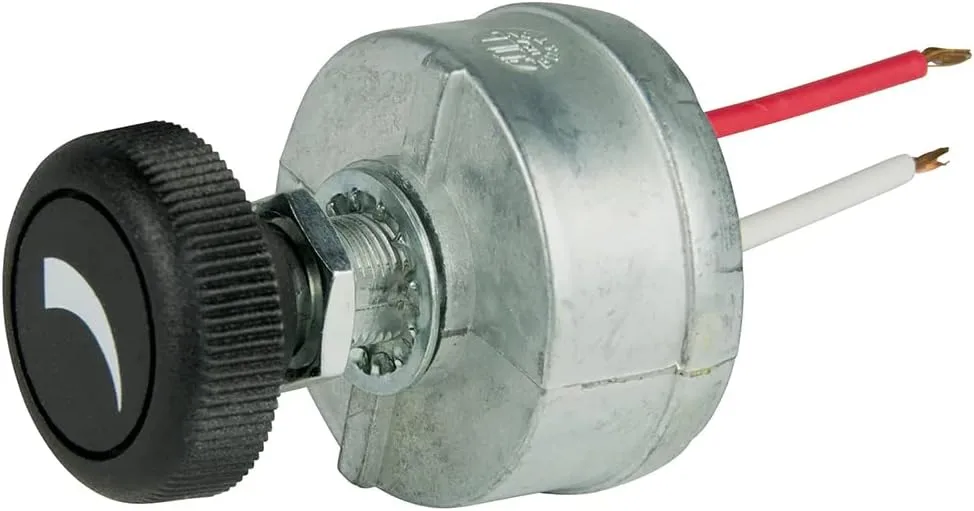

BEP Electronic Dimmer Switch w/Wire Leads - 7A @ 12V DC
Customize
Electronic Dimmer Switch w/Wire Leads - 7A @ 12V DC. Controls incandescent light intensity from dim to bright. Not meant for LED lights. Features: Nominal voltage is 12V DC. Rated for 7A at 12V DC. 2" 16 AWG wire lead terminals. 7/16" mounting hole, fits panels 1/4" thick. Connections: Red (Battery) and White (Load). Replaces Cole Hersee part number 74601-01. Manufacturer: BEP Marinco Electrical Group. Package dimensions (manufacturer): 4.8 x 2.8 x 1.97 inches. Package weight: 0.09 kilograms (approx. 3.17 ounces). WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number 74601-01
- 2" 16 AWG Wire lead terminals. 7/16" mounting Hole, fits panels 1/4" thick. Connections: Red (Battery) and White (load)
- Rated for 7a at 12V DC
- NOT meant for LED lights
- Controls incandescent light intensity from dim to bright
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Material | Plastic |
| Contact Type | Normally Open |
| Control Method | Touch |
| Included Components | Dimmers |
| Model Name | Electronic Dimmer Switch - 7A @ 12V DC |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operation Mode | DIMMER |
| Terminal | Wire Lead Terminals |
| Wattage | 84 watts |
| Sizing & Dimensions | |
| Height | 2.13 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 1.2 x 2.13 inches |
| Size | One Size |
| Weight | 3.2 ounces |
| Width | 1.2 inches |
| Technical Specifications | |
| Current Rating | 7 Amps |
| International Protection Rating | IP00 |
| Mounting Hole | 7/16" (fits panels 1/4" thick) |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Terminal | Wire Lead Terminals |
| Unit Count | 1.0 Count |
| Wattage | 84 watts |
