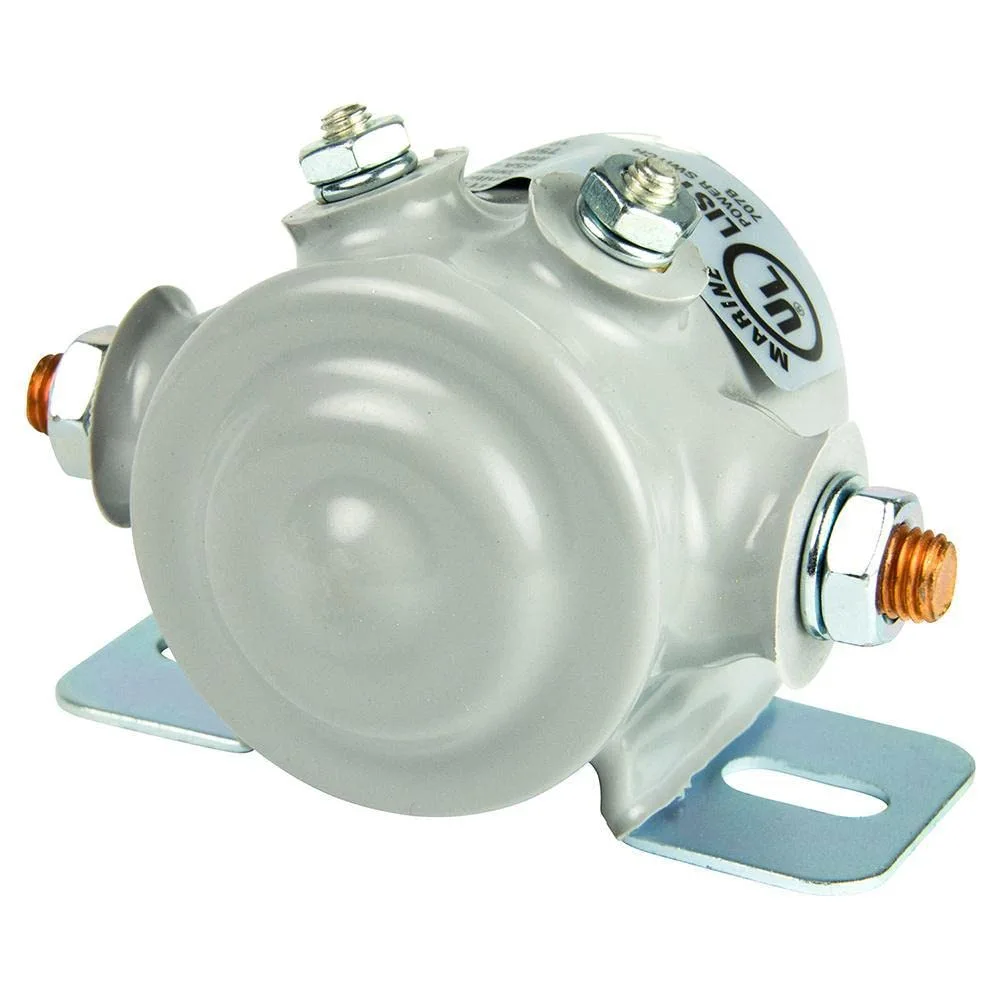

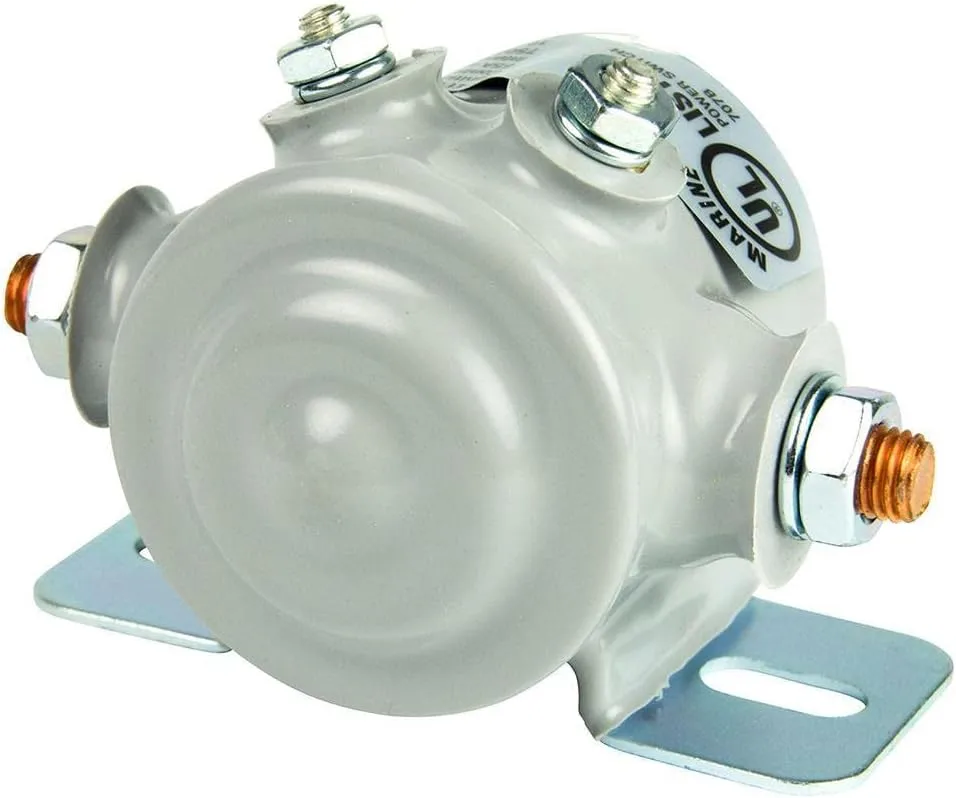

BEP 24117-01 65A Continuous Duty Solenoids
BEP 65A PVC-coated continuous duty solenoid for remotely switching high-amperage 12V loads. Copper terminals, PVC-coated steel case, bracket mounting, UL & CE approved.
$119.99
Customize
UPC
870216046891 Available Quantity
1 GSA Item
No GSA Compliant
Yes Product Details
65A PVC Coated Continuous Duty Solenoid. Remotely switch high amperage loads with a low amperage on-off switch. Features continuous duty at 65A (12V DC) with an intermittent rating of 100A for 10 seconds, copper #10-32 thread signal terminals, copper 5/16"-24 thread contact terminals, PVC-coated steel case, and bracket mounting holes (5/16" x 19/32", 2-13/64" on centers). UL and CE approved. Replaces Cole Hersee part number 24117-01. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number 24117-01
- UL and CE approved
- Copper #10-32 thread signal terminals. Copper 5/16"-24 thread contact terminals. PVC coated steel case. Bracket mounting holes 5/16" x 19/32", 2 13/64" on centers
- Continuous duty, 65a at 12V DC. Intermittent rating 100a: 10 seconds
- Remotely switch high amperage loads with a low amperage
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Copper |
| Outer Material | PVC coated steel |
| Product Details | |
| Actuator Type | Plunger |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminals |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Control Method | Remote |
| Current Rating | 65 Amps |
| Included Components | Solenoids |
| International Protection Rating | IP00 |
| Model Name | 65A Continuous Duty Solenoid |
| Number of Items | 1 |
| Number of Positions | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Wattage | 780 watts |
| Sizing & Dimensions | |
| Height | 2.5 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5 x 2.5 x 2.5 inches |
| Size | One Size |
| Weight | 12.70 ounces |
| Width | 2.5 inches |
| Technical Specifications | |
| Contact Material | Copper |
| Current Rating | 65 Amps |
| International Protection Rating | IP00 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
