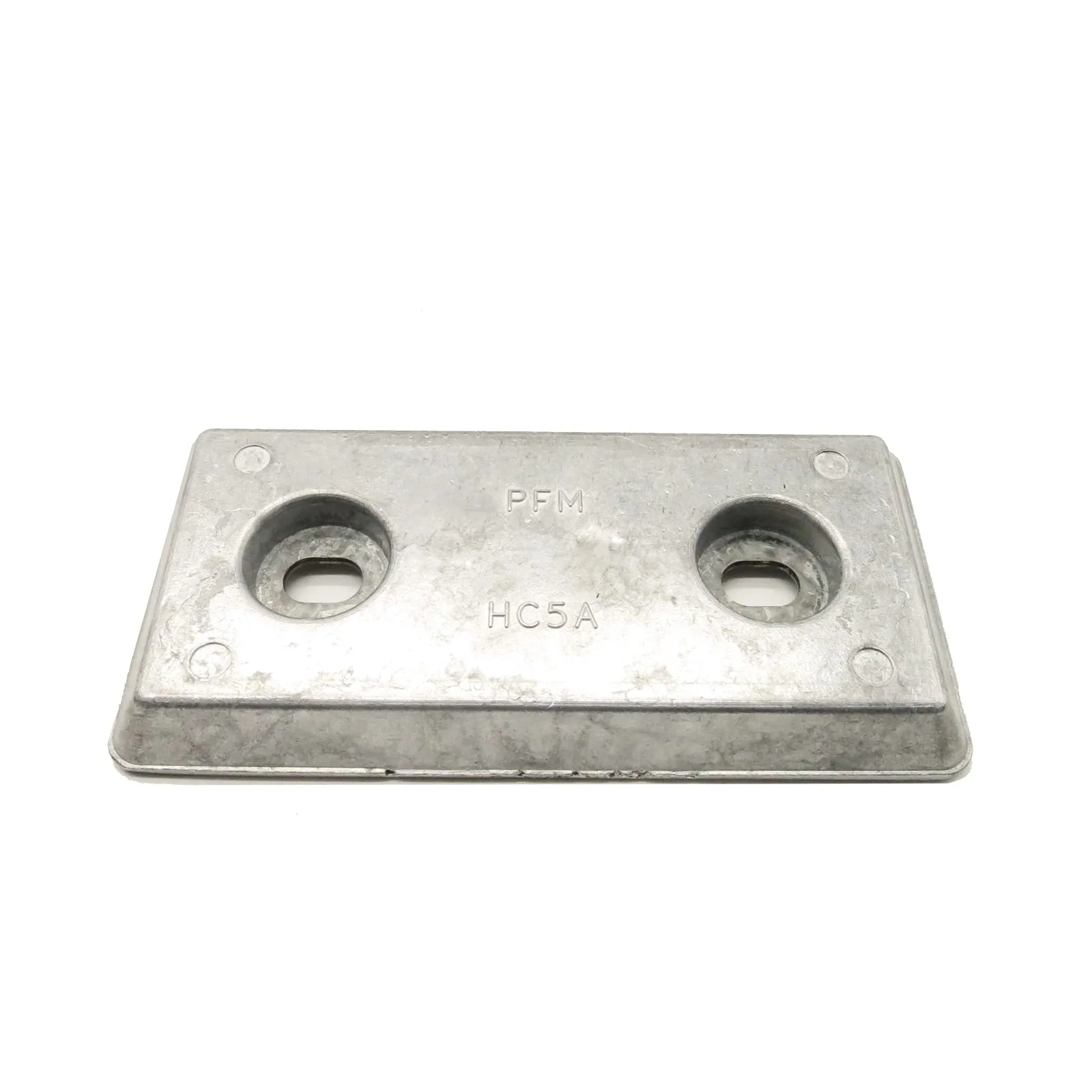

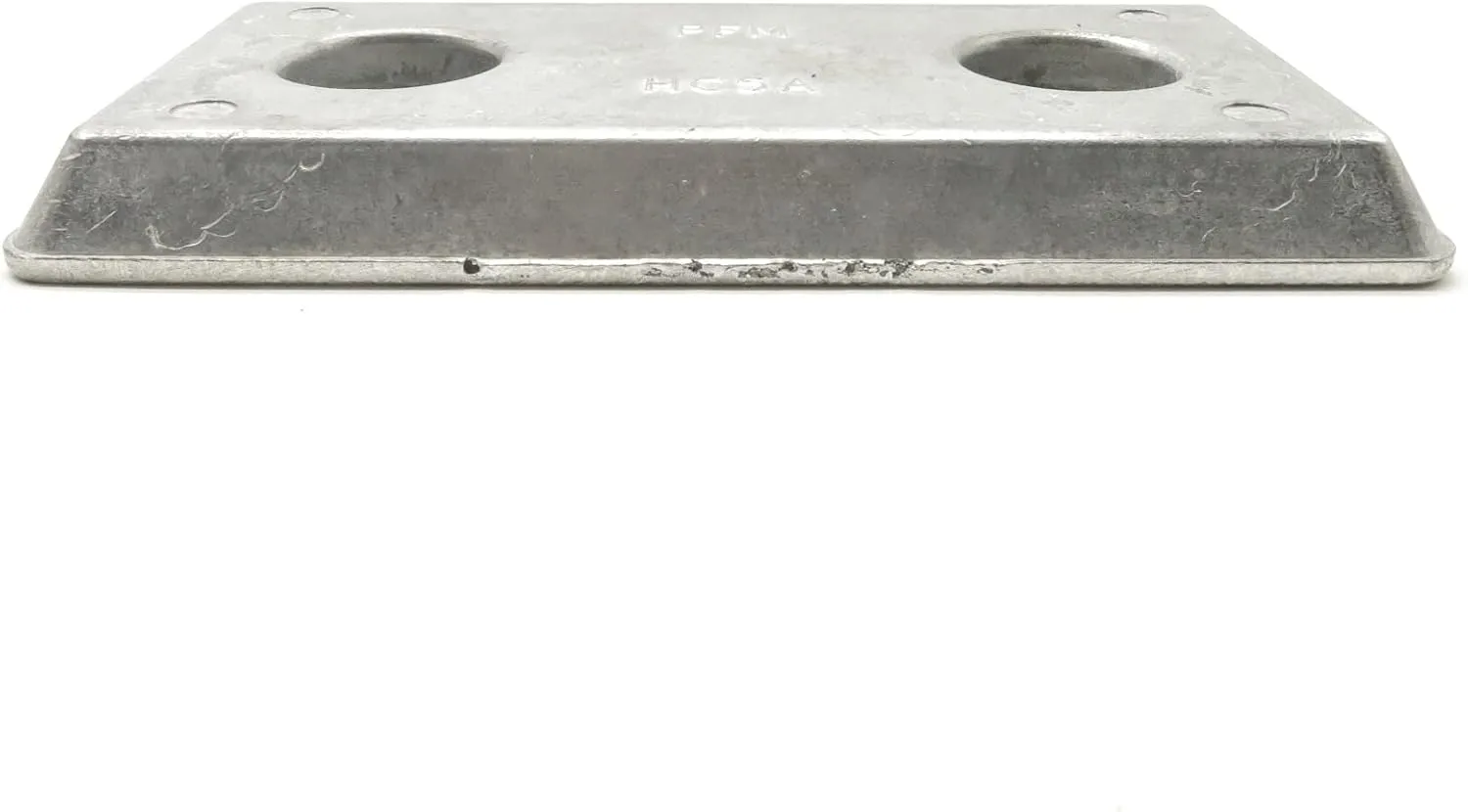

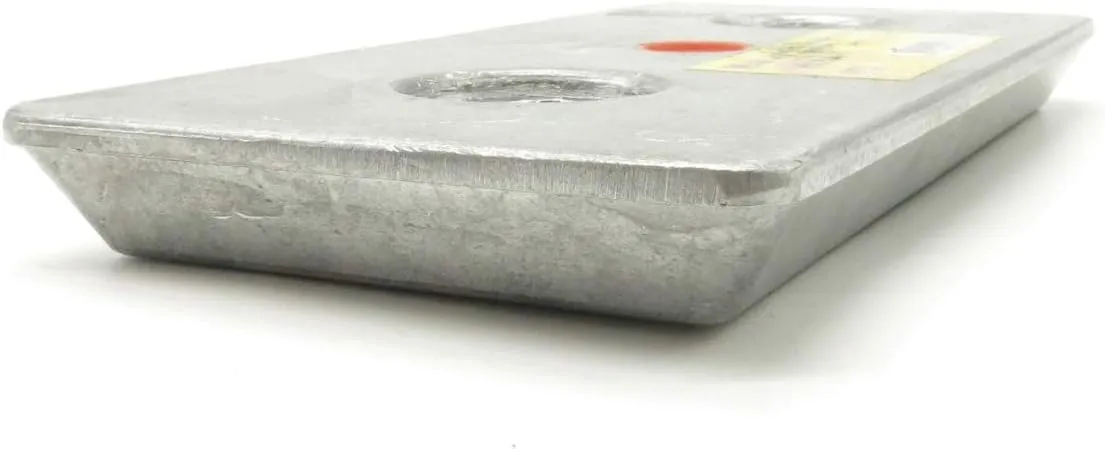

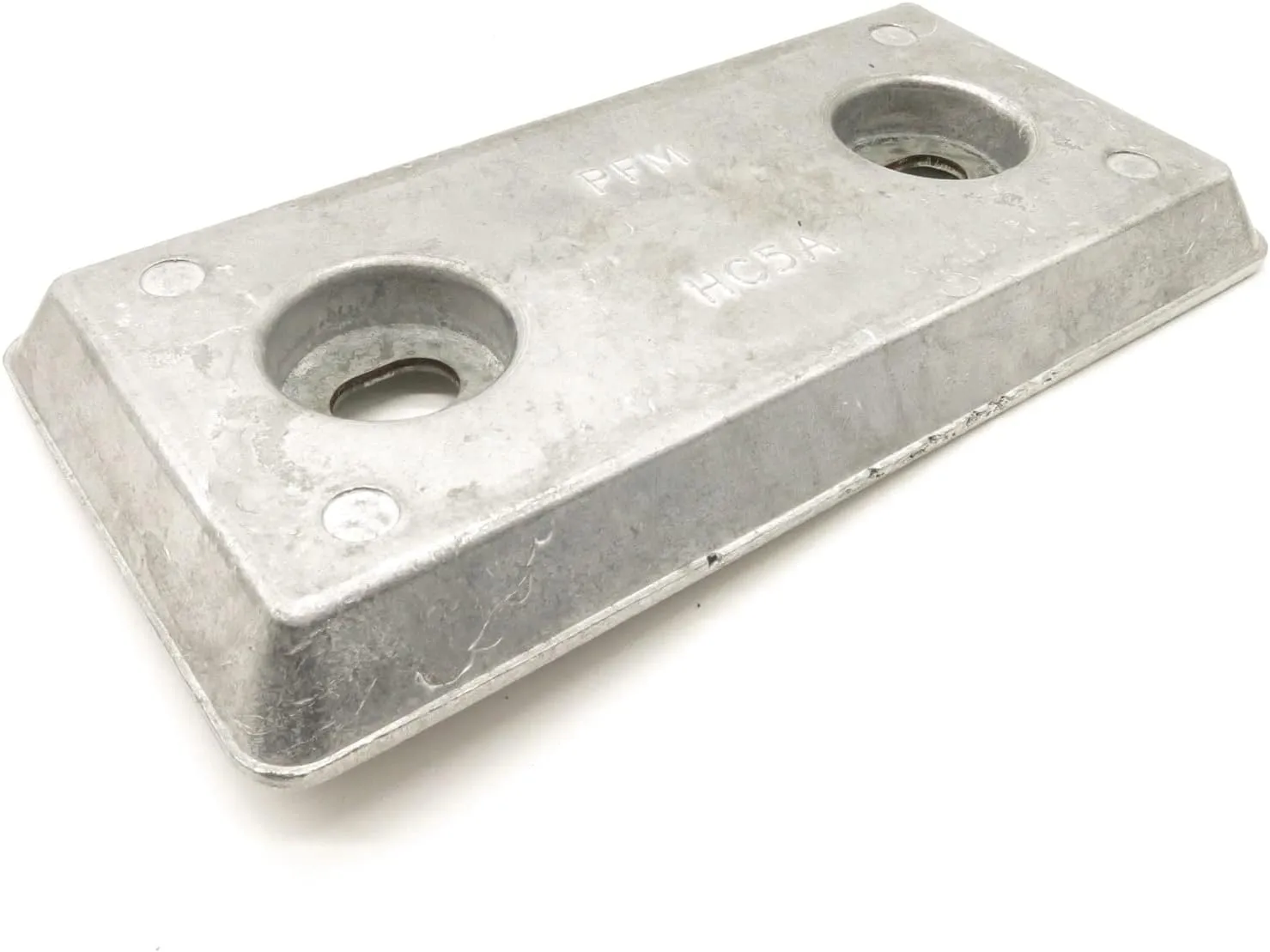

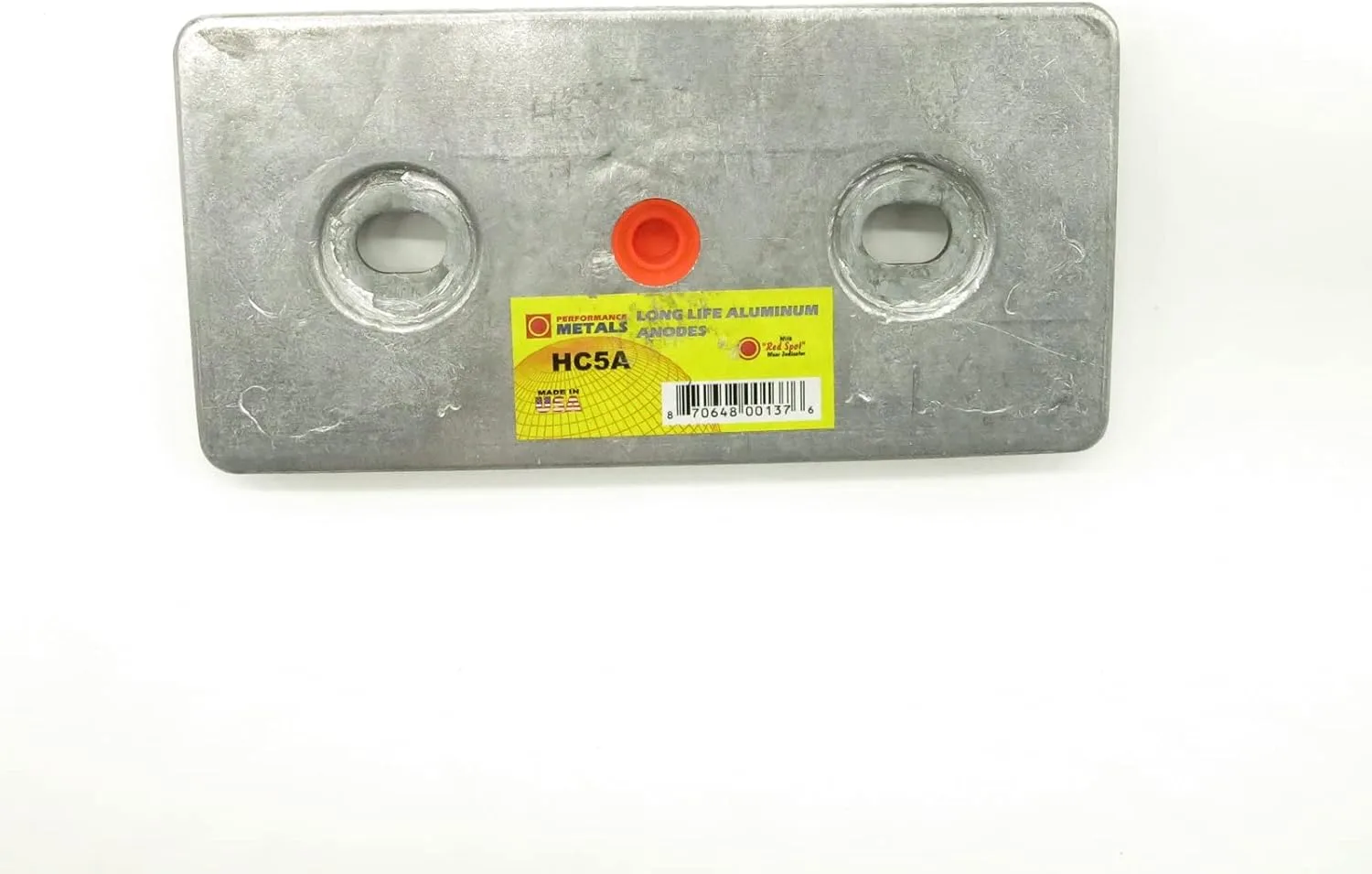

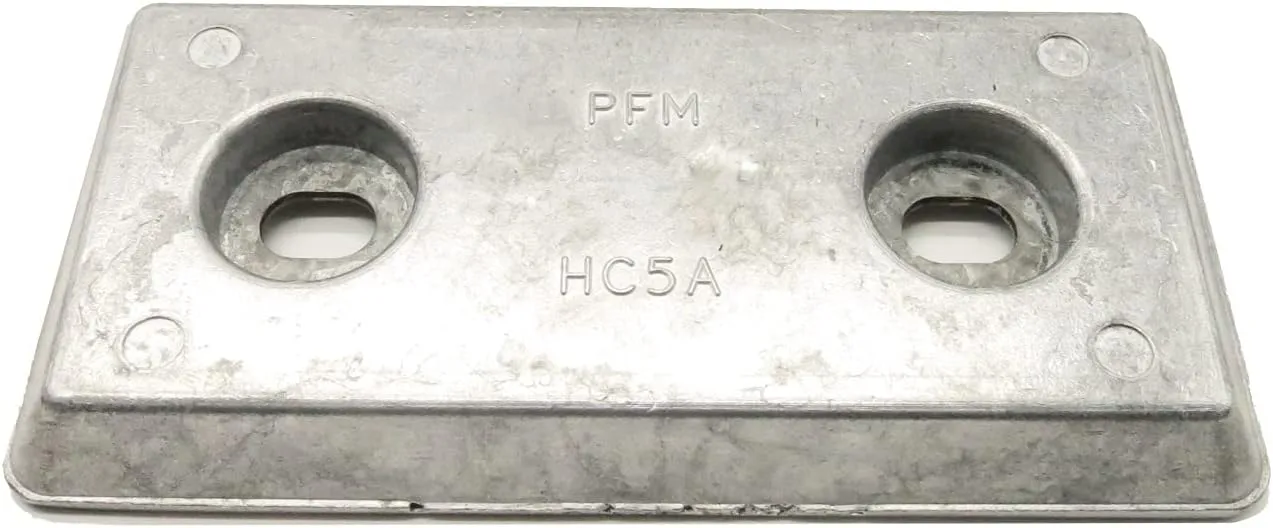

HC5A Hull Anode - Aluminum Performance Metals Navalloy aluminum anodes are manufactured to the military specification MIL-DTL 24779 and are suitable for use in all water types- salt, brackish, or fresh. The anode includes the exclusive, patented “red spot” wear indicator. Replaces: ZHC-5, Material: Aluminum All metals immersed in an electrolyte (sea water for example) produce an electrical voltage. When two dissimilar metals are in contact (electrically connected) they produce a galvanic cell (like a battery), with the less noble metal (a bronze propeller for example) forming the anode and the more noble metal (stainless steel shaft) forming the cathode. Aluminum anode alloy provides more protection and lasts longer than zinc. It will continue to work in freshwater and is safe for use in salt water. Aluminum is the only anode that is safe for all applications. If you want to protect both metals you need to connect a third metal that is more active than the first two. The most active metal (zinc for example) becomes the anode to the others and sacrifices itself by corroding (giving up metal) to protect the cathode - hence the term sacrificial anode.
- Suitable for fresh and salt water.
- Long Life Aluminum Anode
- HC5A Premium Hull Plate Anode
Specifications:
| Materials & Construction |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details |
| Number of Items | 1 |
| Sizing & Dimensions |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 8 x 1 inches |
| Weight | 1.9 pounds |
| Width | 8 inches |
