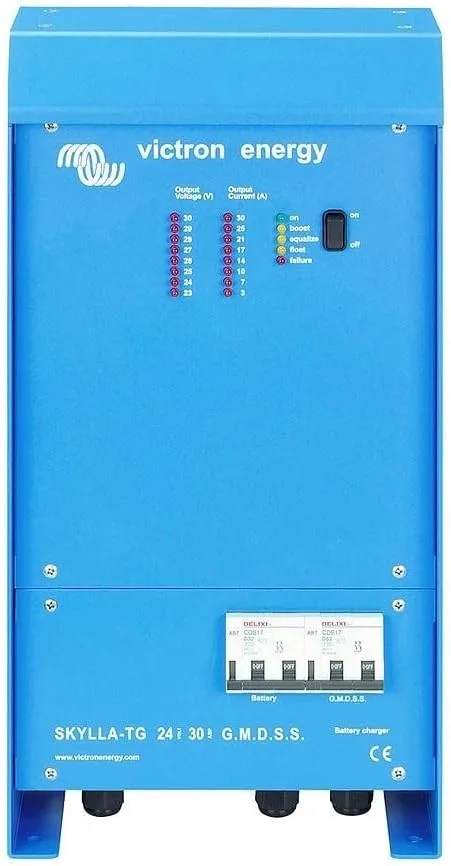

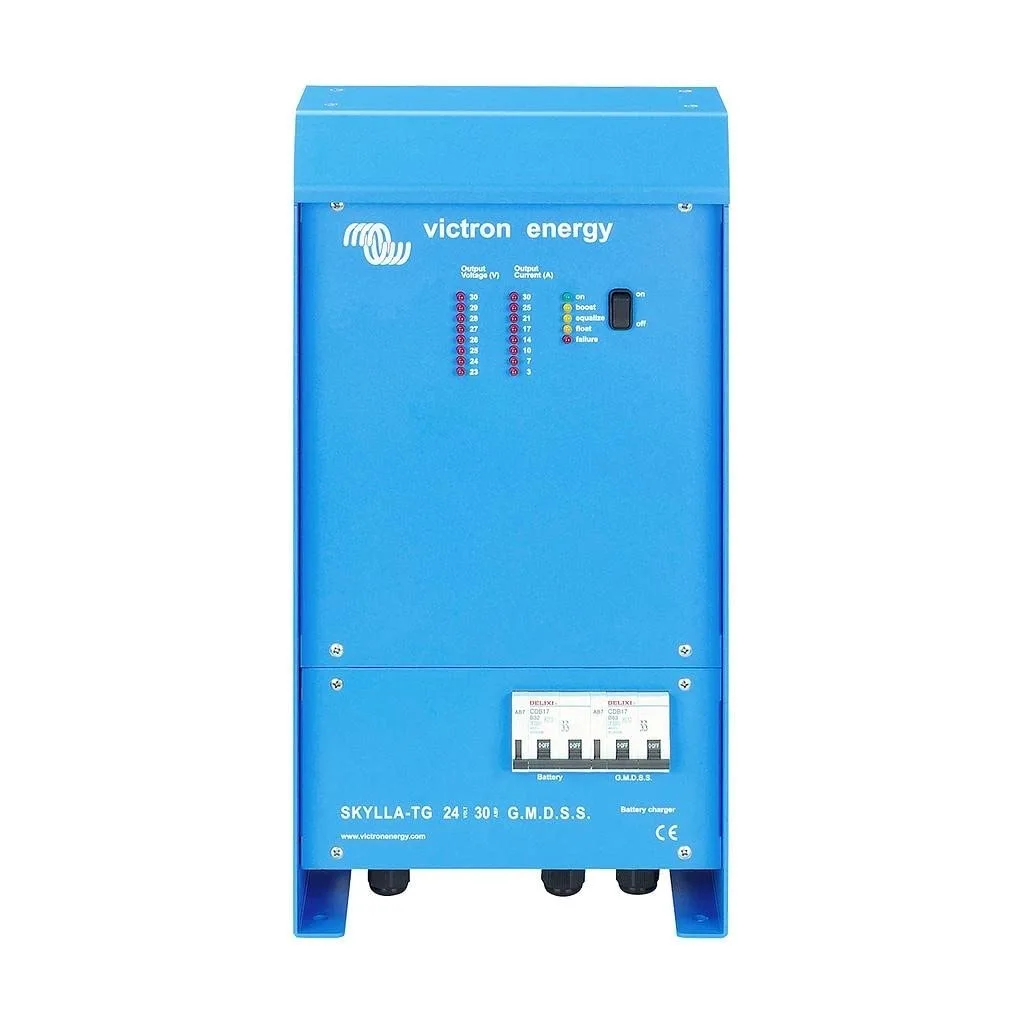

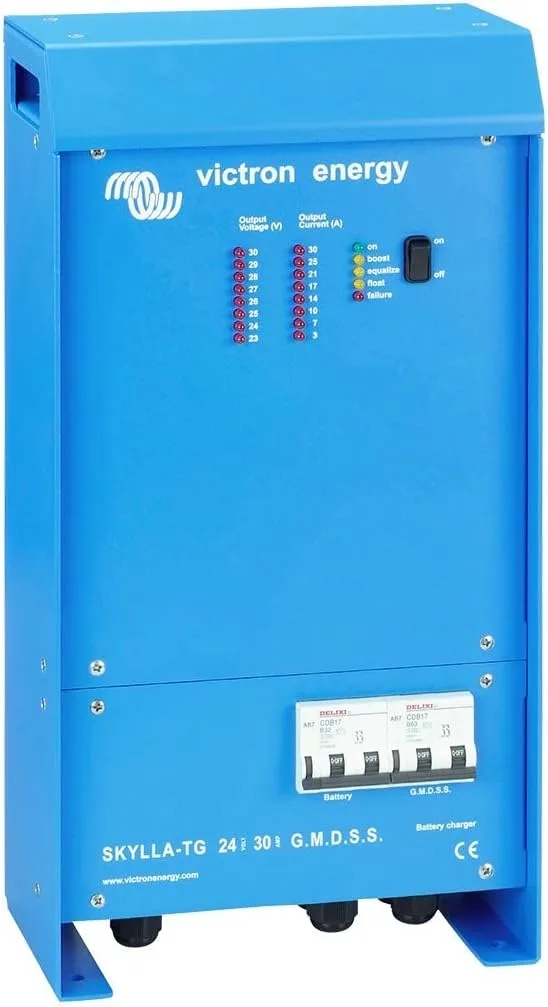

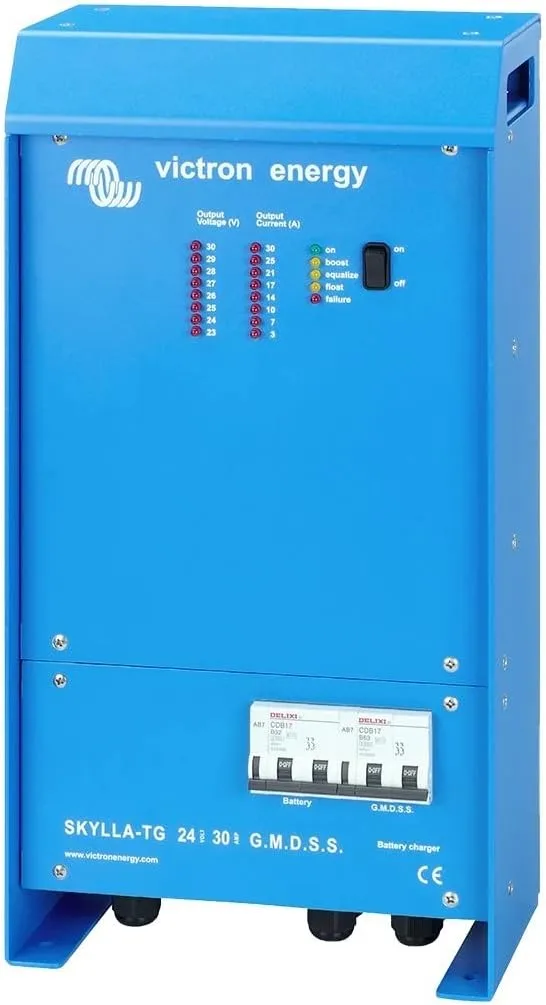

Victron Energy Skylla-TG GMDSS Battery Charger 24-Volt 30 Amp 120-240V

Skylla-TG Charger - 24/30 GMDSS. This Victron Skylla-TG 24/30 Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight-wire UTP cable connects the charger to the panel. GMDSS – The Global Maritime Distress & Safety System (GMDSS) was developed by the International Maritime Organisation (IMO) to improve maritime distress and safety communications. Power Supply – The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS. Installation Made Easy: The Skylla GMDSS – The Victron Skylla GMDSS Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight-wire UTP cable connects the charger to the panel. Skylla TG 24 30 GMDSS – No Adjustments Needed. The whole system is 'click and go': the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required. Battery Time To Go – The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored, so the panel can even indicate the 'time to go' in case of a power supply blackout. Perfect Charger for Any Type of Battery – Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system. Specifications (selection): Input Voltage (V AC): 120 / 230; Input Voltage Range (V AC): 90-265; Frequency (Hz): 45-65; Power Factor: 1; Charge Voltage 'Absorption' (V DC): 28.5; Charge Voltage 'Float' (V DC): 26.5; Charge Current (A): 30 (limited to 22 A at 110 V AC); Charge Characteristic: IUoUo (three-step); Temperature Sensor: Yes; Can Be Used as Power Supply: Yes; Forced Cooling: Yes; Protection: a, b, c, d; Operating Temp. Range: -40 to +50 degrees C (-40 – 122 degrees F); Humidity (non-condensing): Max 95%. Enclosure: Aluminium (blue RAL 5012). Weight: 6 kg (13 lbs). Dimensions (H x W x D): 485 x 250 x 147 mm (19.1 x 9.9 x 5.8 inches). Accessories: VE.Net GMDSS panel (ordered separately); UTP-cable (ordered separately). Standards: Safety: EN 60335-1, EN 60335-2-29; Emission/Immunity: EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3; Maritime Nav. & Radiocomm: IEC 60945.

• Adjustable charge voltage ensures flexibility for different battery technologies.
• Built-in battery controller monitors capacity and displays ‘time to go’ during outages.
• Pre-configured for GMDSS with easy-to-adjust settings.
• Displays all data and alarms on a digital panel (VE.Net GMDSS panel, sold separately).
• Offers integrated GMDSS monitoring and alarm functions with direct battery and system connections.
