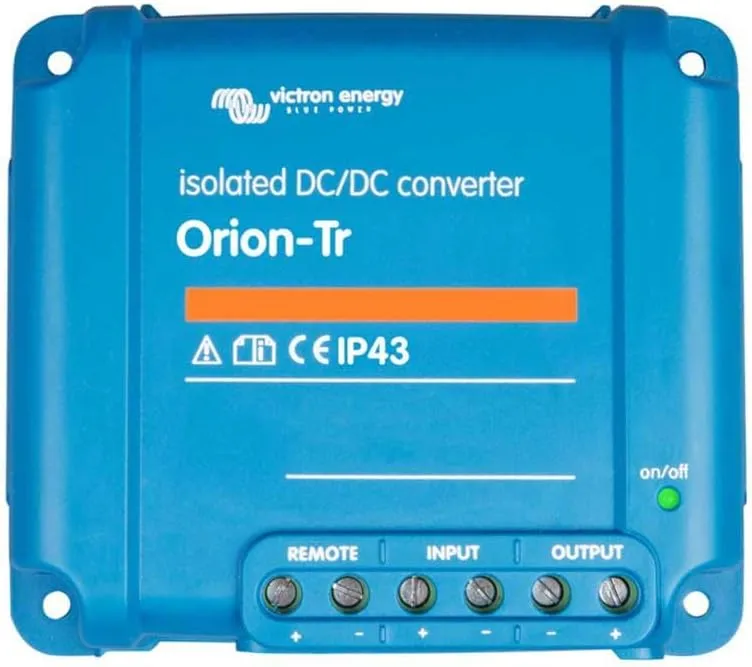

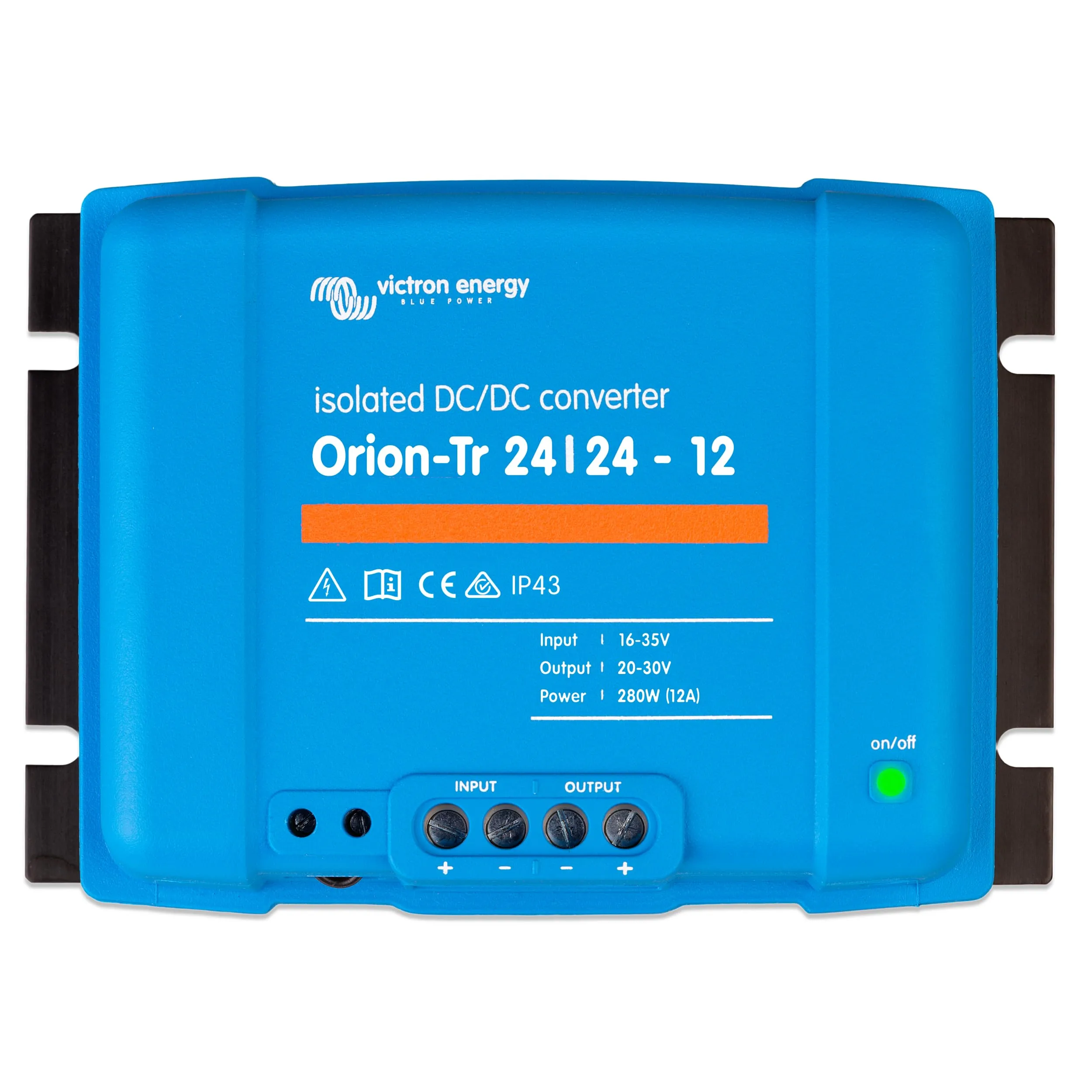

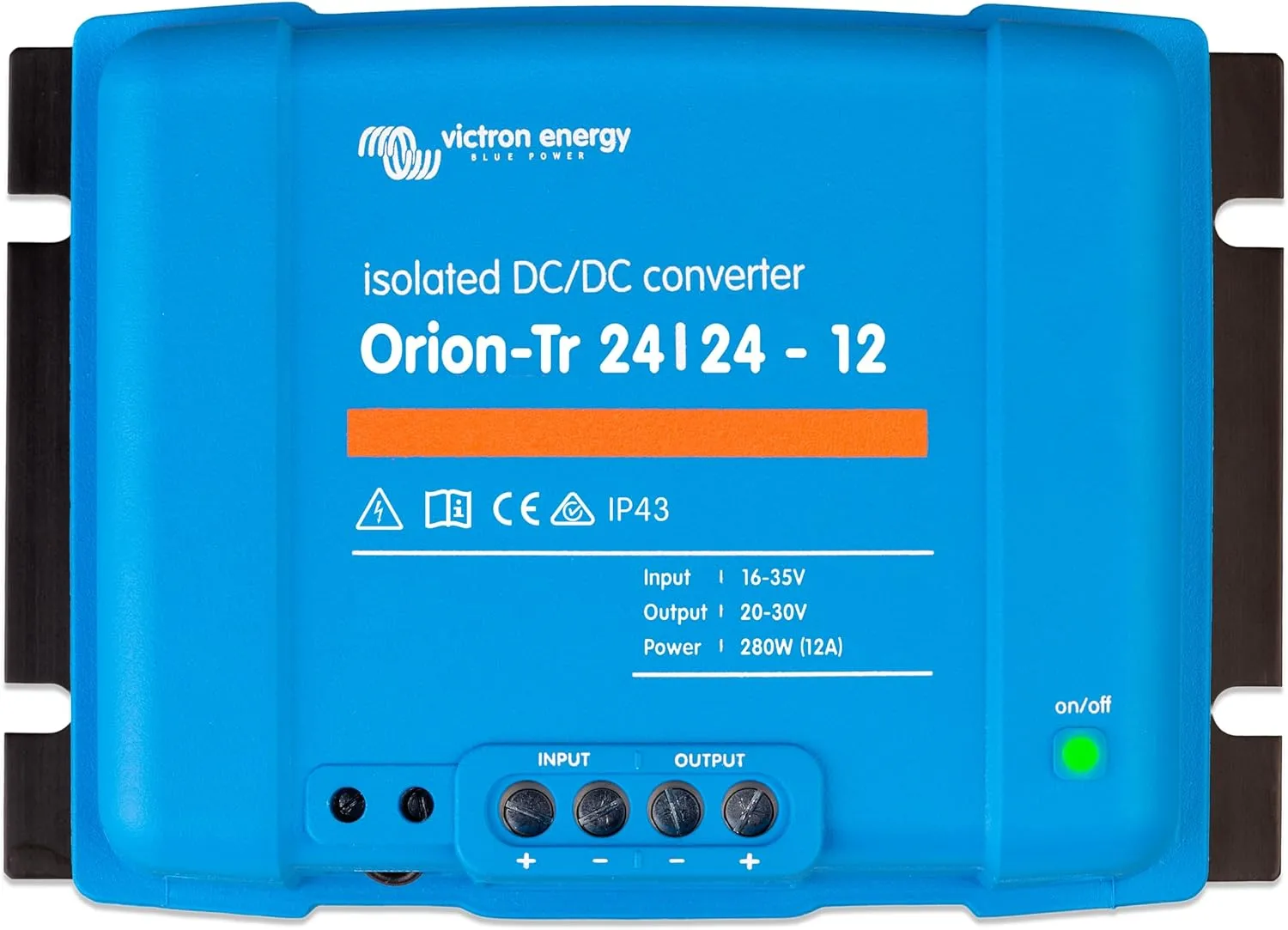

Victron Energy Orion-Tr DC to DC Converter - 24/24-Volt 12 amp 280-Watt - IP43 Protected - for Dual Battery Systems

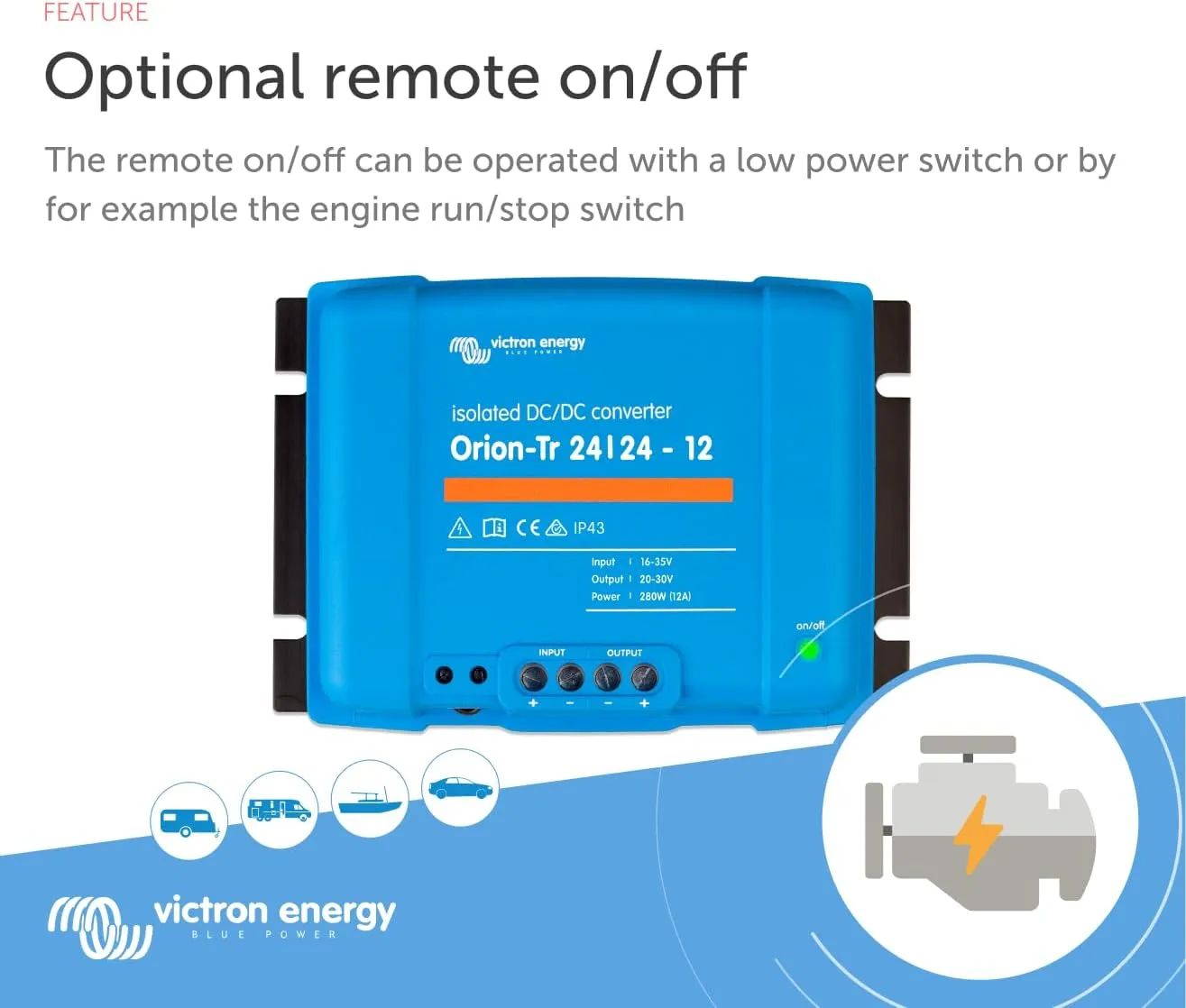

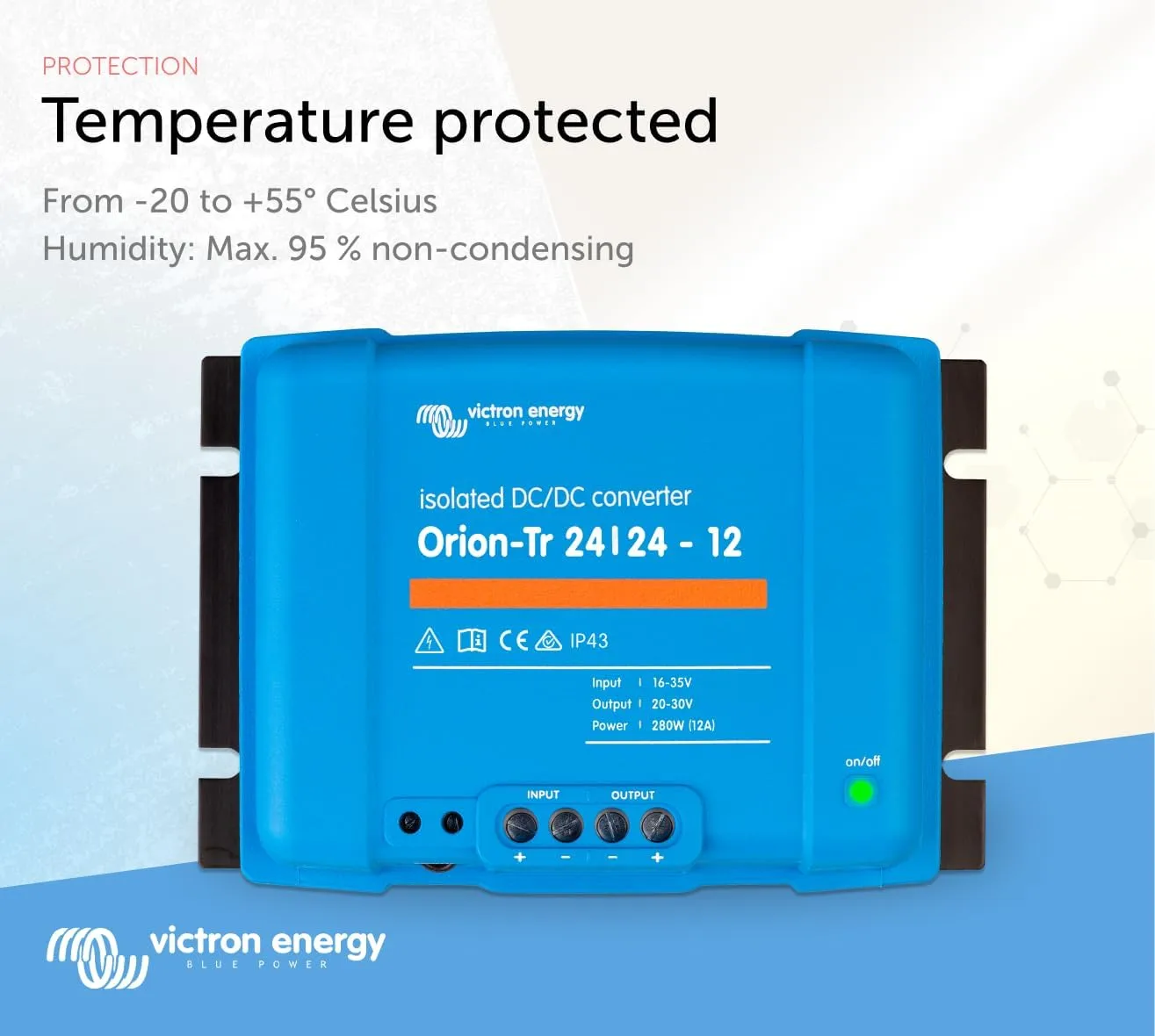

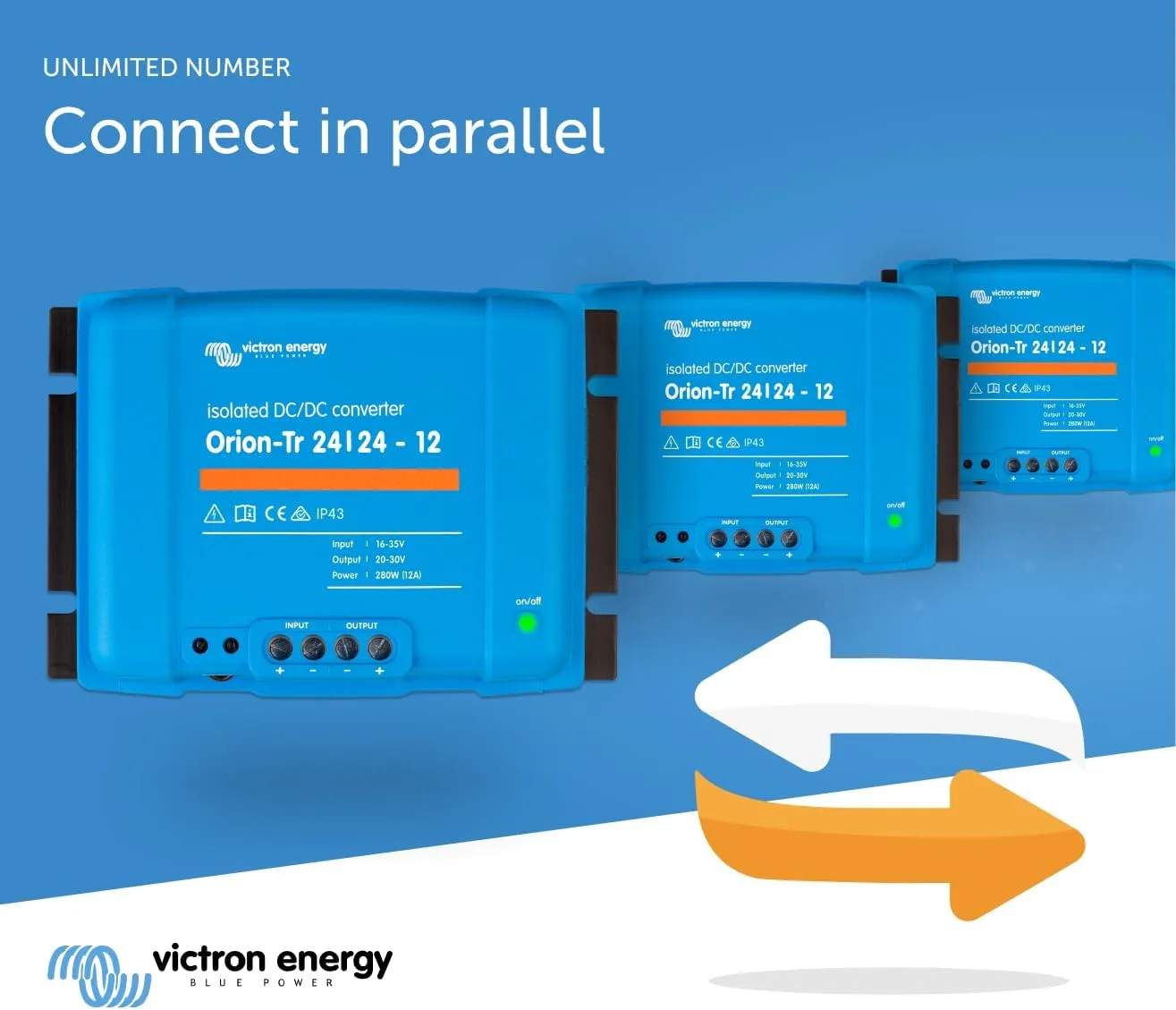

Orion-TR 24/24-12A (280W) Isolated DC-DC Converter Isolated Model - separate in and out (-) leads Remote On/Off Terminal The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current An unlimited number of units can be connected in parallel. High Temperature Protected The output current will reduce at high ambient temperatures. IP43 Protection When installed with the screw terminals oriented downward. Screw Terminals No special tools are needed for installation. Input Fuse (not replaceable) On 12 V and 24 V input models only. Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging). Specifications: Input Voltage Range: 16-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 12 A Maximum Output Current (10 S) at Nominal Output Voltage: 15 A Short Circuit Output Current: 30 A Cont. Output Power at 25 Degrees C: 320 W Cont. Output Power at 40 Degrees C: 280 W Efficiency: 89 % No Load Input Current (2): Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.3 kg (3 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product.

• Reliable Voltage Conversion: The Victron Energy Orion-Tr DC to DC Converter converts power from one DC voltage level to another, ensuring stable and consistent output to protect your sensitive devices.
• Flexible Power Solutions: The Victron Energy Orion-Tr DC to DC Converters are available in various configurations, including different voltage, amperage, and wattage options, as well as isolated and non-isolated to suit a wide range of applications.
• Easy Installation: The Victron DC to DC Converters are equipped with screw terminals, these converters allow for easy installation without the need for special tools.
• IP43 Protection: When installed correctly, the Orion-Tr DC-DC Converter provides splash-resistant IP43 protection, making it ideal for environments with occasional moisture exposure, without compromising reliability or performance
• High Efficiency: Utilizing advanced power conversion technology, the Orion-Tr DC DC Converter series achieves high efficiency, minimizing energy loss and heat generation.
