Victron Battery Switch 275A 12-48VDC Surface or Panel Mount
Customize

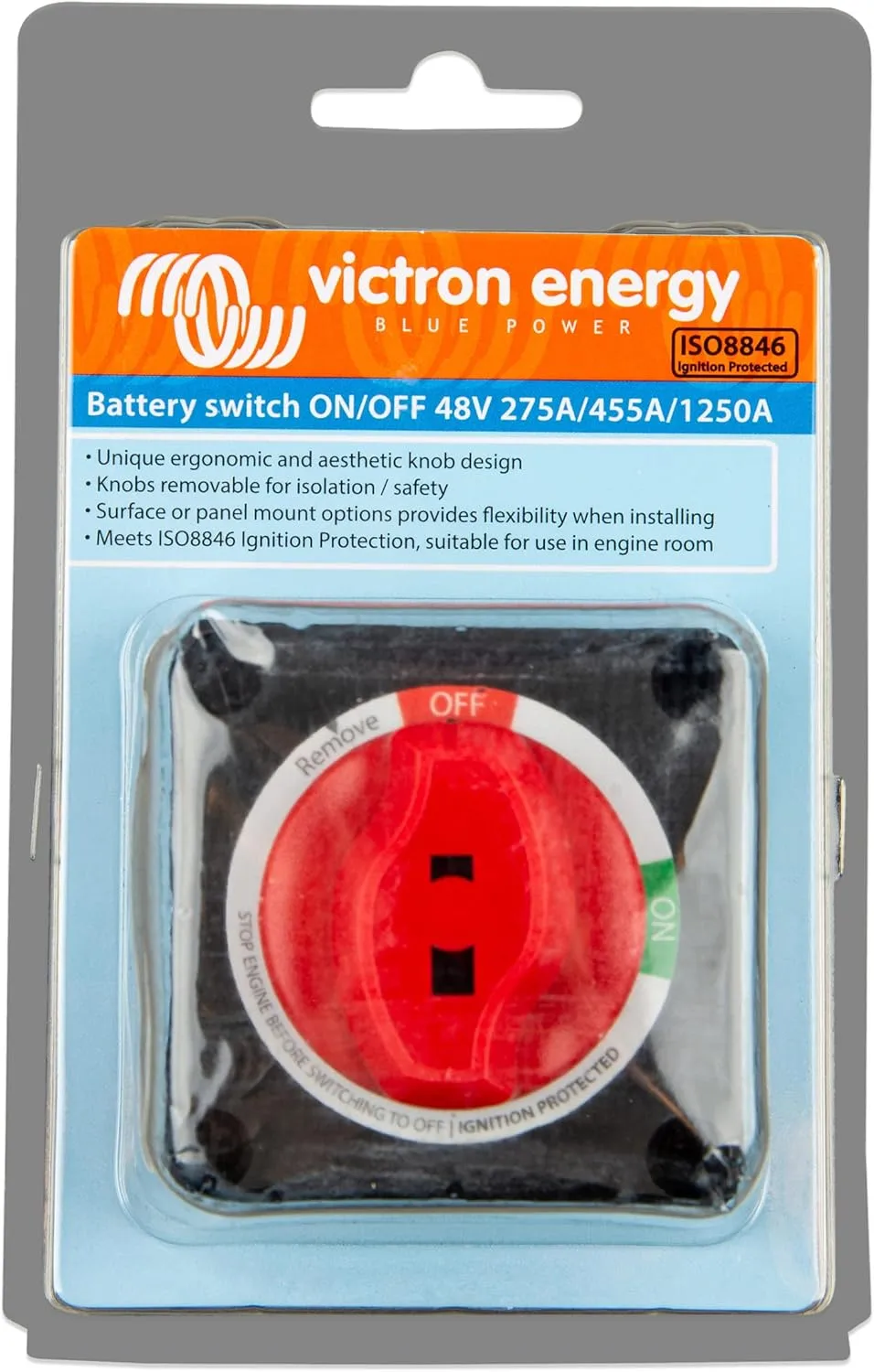

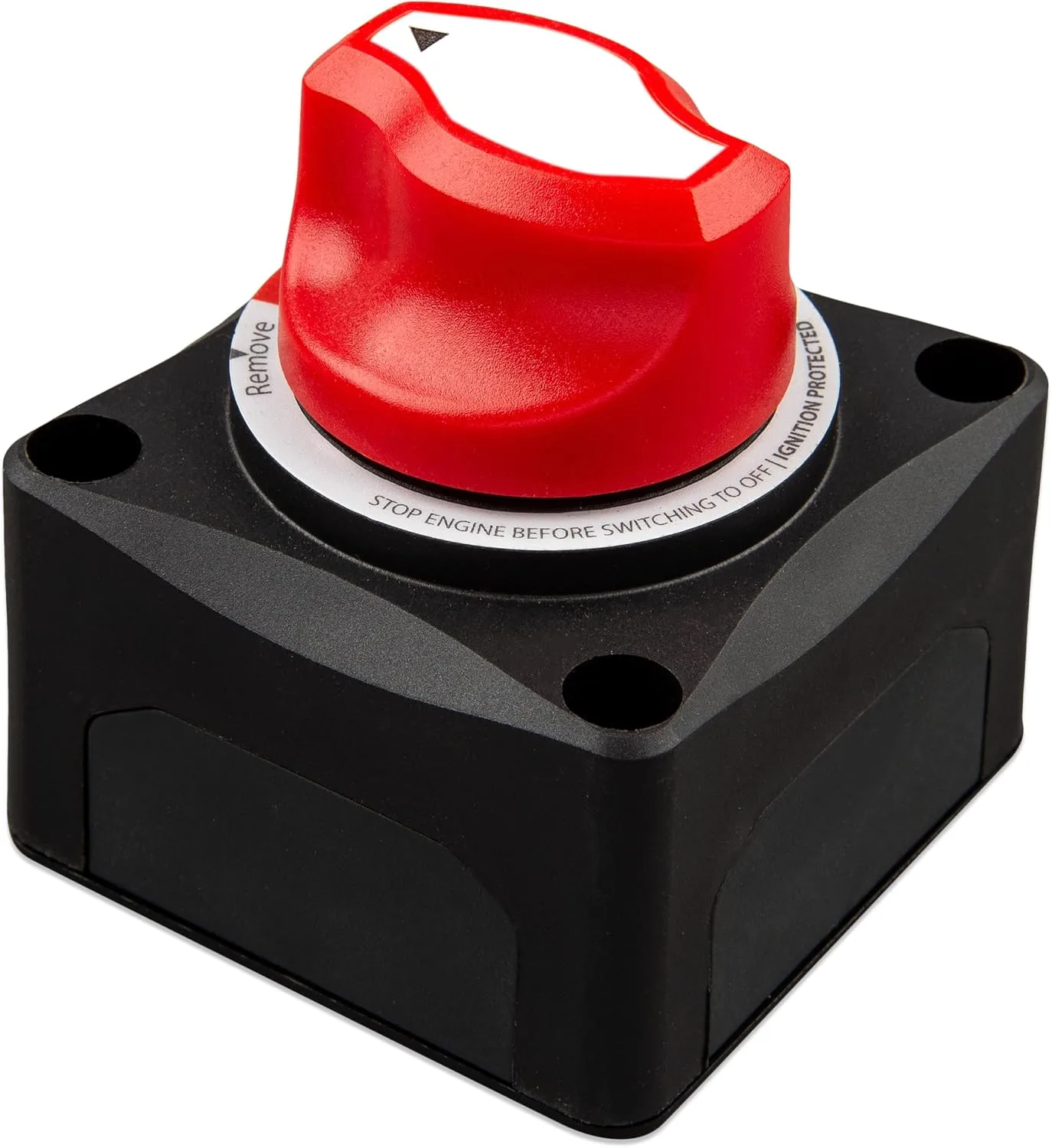

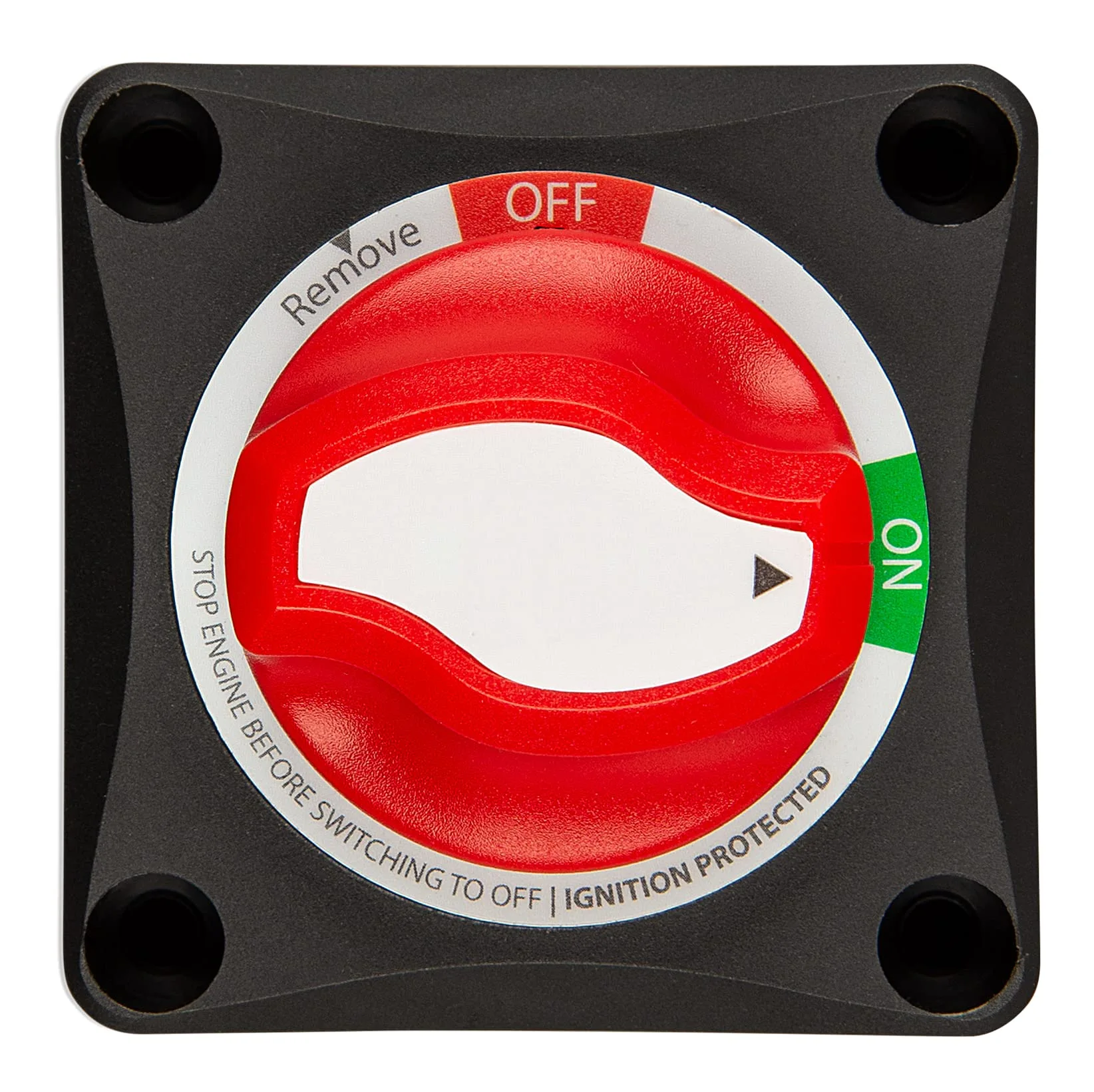

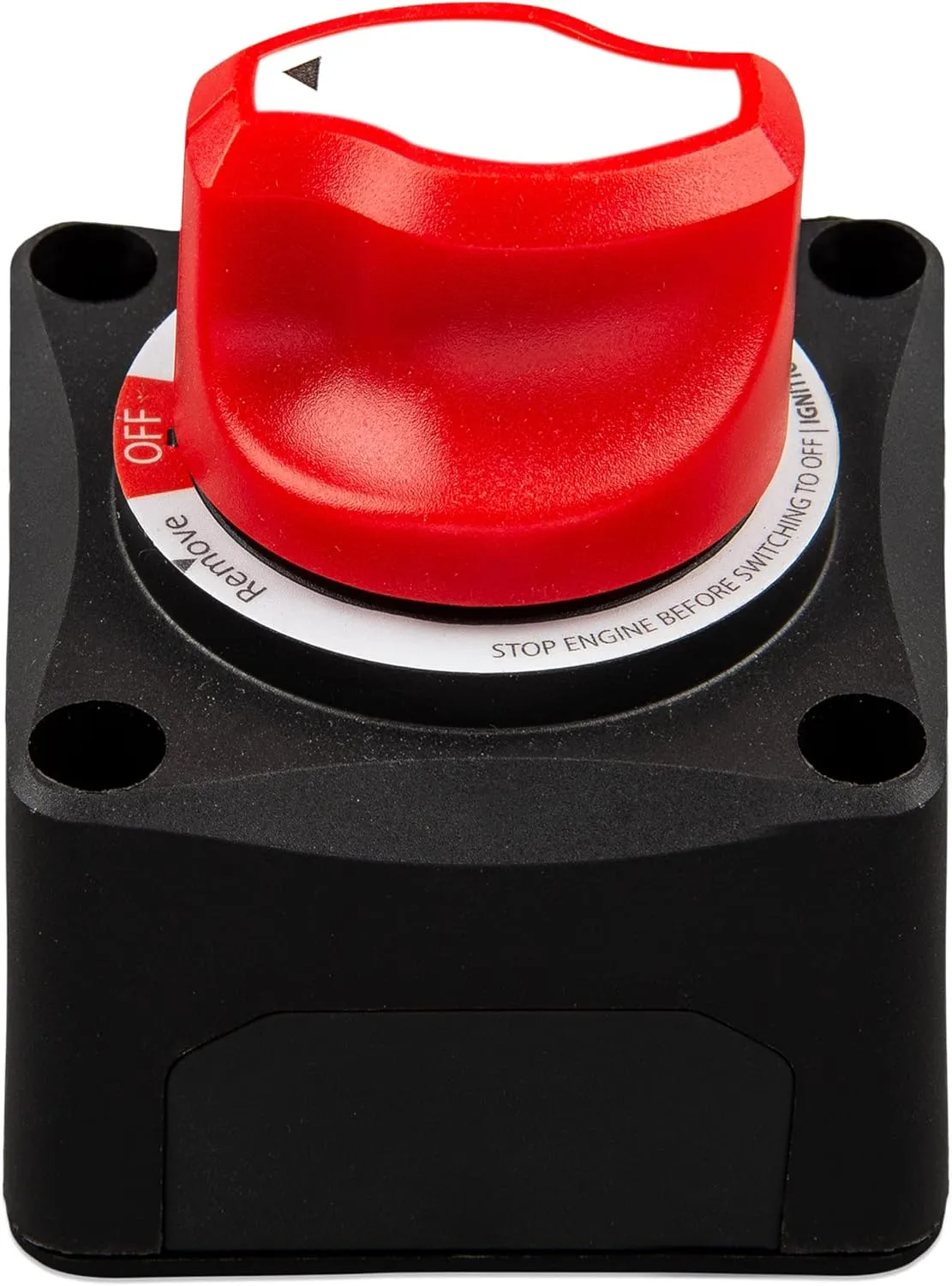

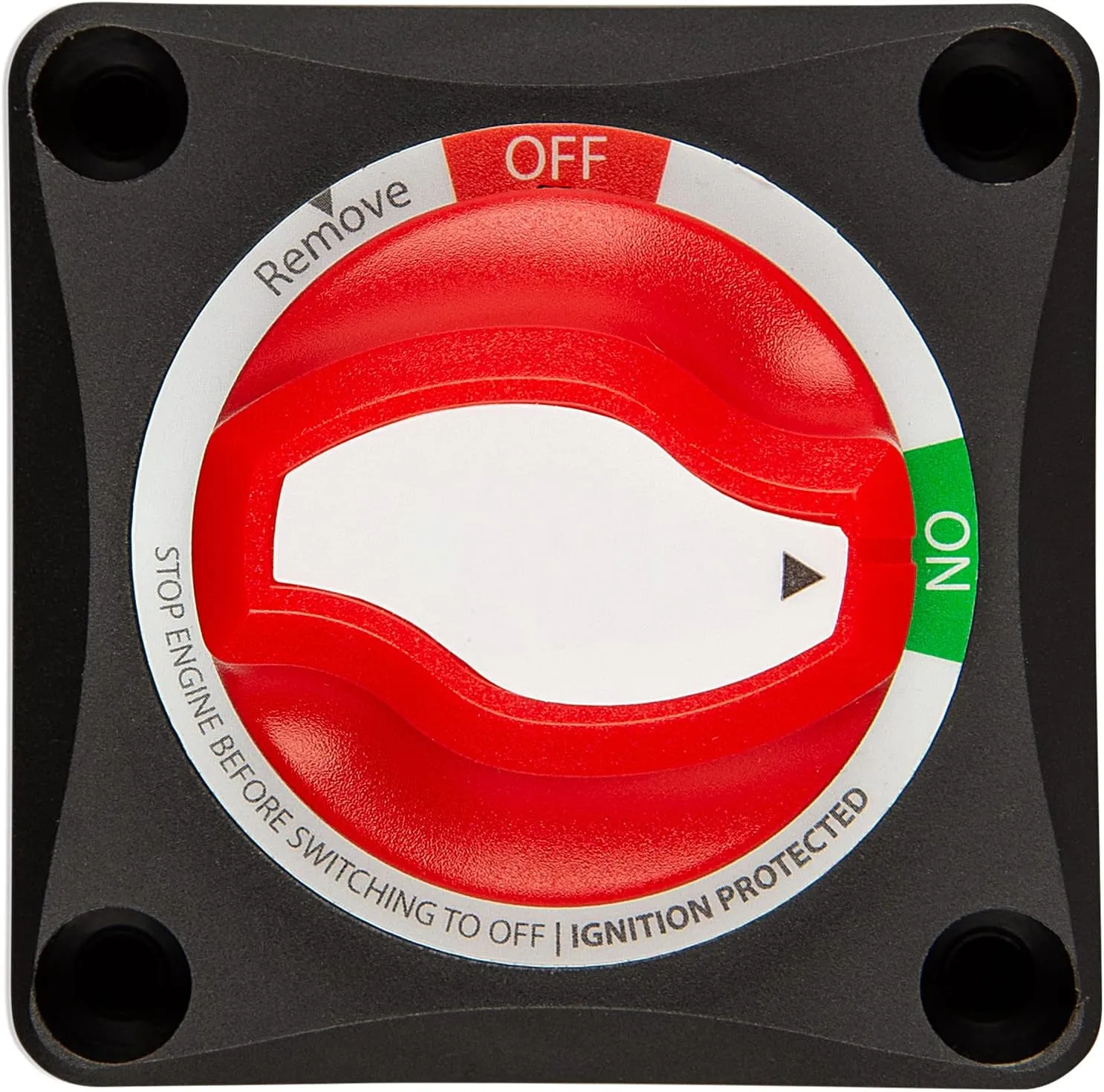

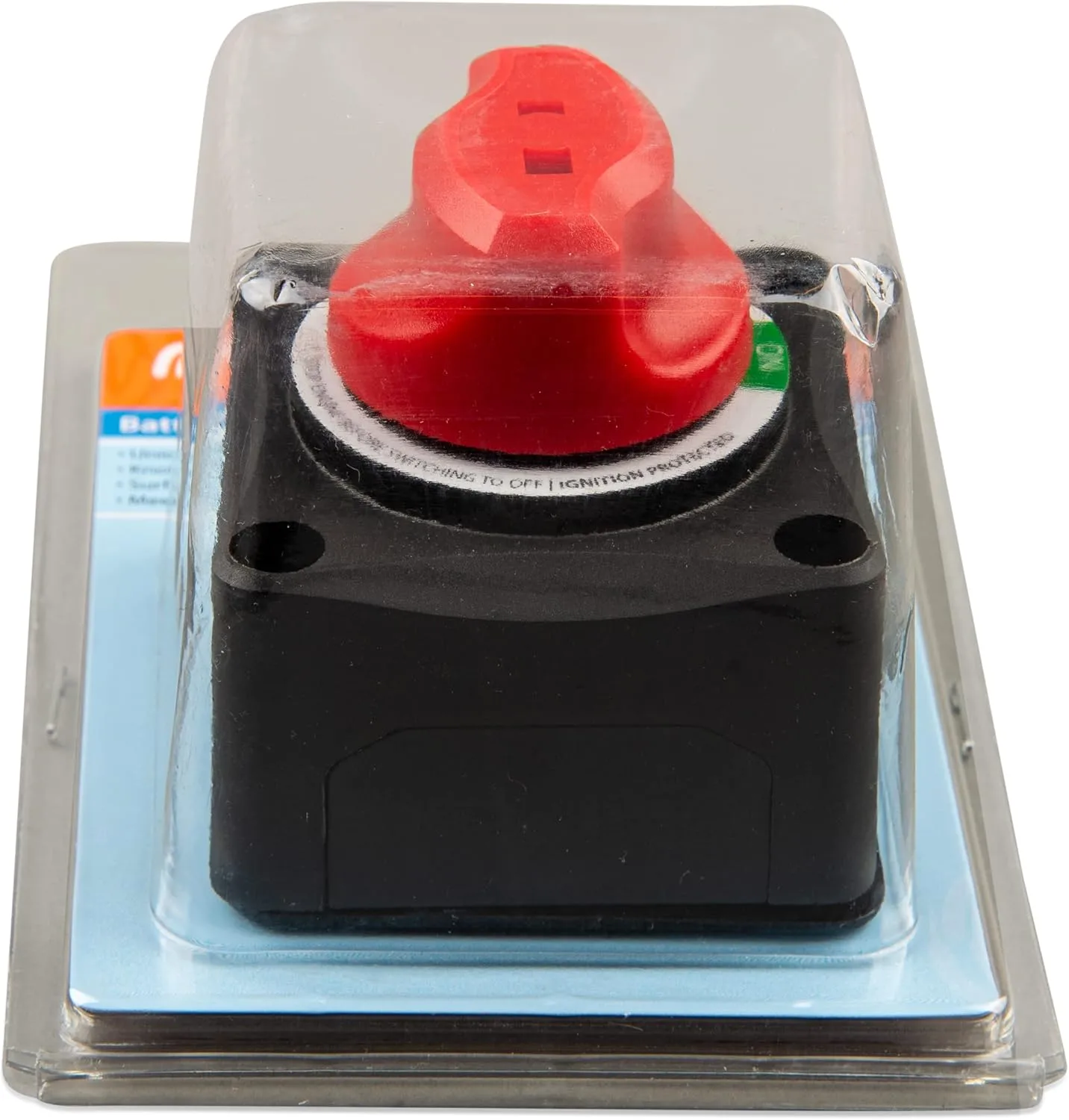

Battery Switch 275A 12-48VDC Surface or Panel Mount The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes. The Battery Switch can be either surface or panel mounted, providing flexibility during install. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room. Please contact your dealer for any returns, repairs or support issues related to this product. Victron Energy Battery Switch is suitable for use in an engine room. Victron Energy Battery Switch can be either surface or panel mounted, providing flexibility during install. The knob is removable for isolation or safety purposes. It has a unique ergonomic and aesthetic knob design. Victron Energy Battery Switch ON/OFF 275 amp is suitable for battery systems up to 48V.
- Victron Energy Battery Switch is suitable for use in an engine room
- Victron Energy Battery Switch can be either surface or panel mounted, providing flexibility during install
- The knob is removable for isolation or safety purposes
- It has a unique ergonomic and aesthetic knob design
- Victron Energy Battery Switch ON/OFF 275 amp is suitable for battery systems up to 48V
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Tin-plated Copper |
| Outer Material | Tin-plated Copper |
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Contact Material | Tin-plated Copper |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Current Rating | 275 Amps |

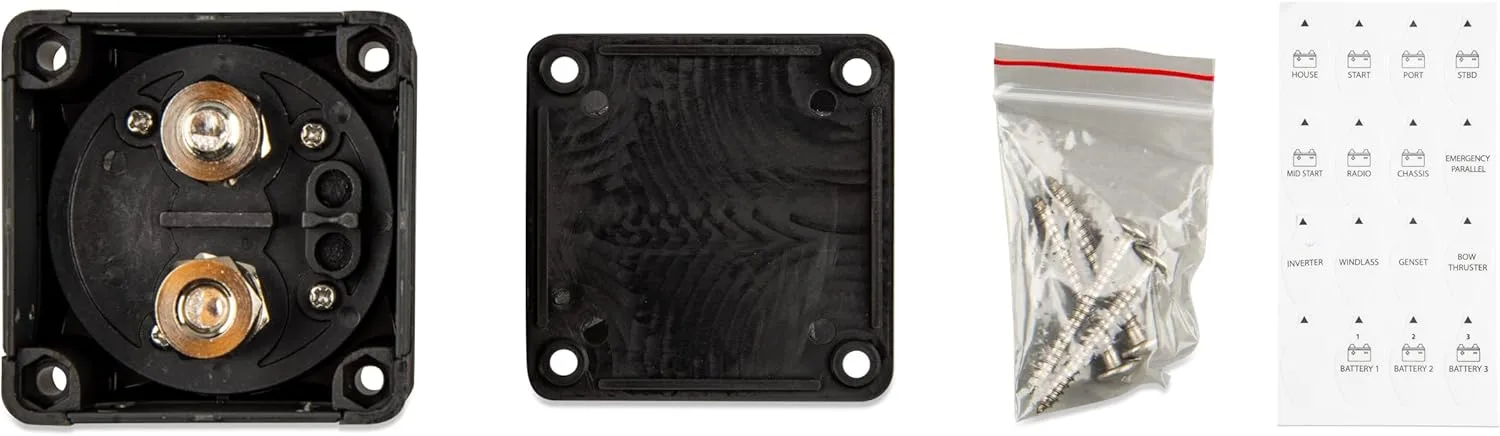

| Included Components | Victron Energy Battery Switch ON/Off 275 amp |
| International Protection Rating | IP54 |
| Number of Positions | 2 |
| Operating Voltage | 48 Volts |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Upper Temperature Rating | 1.5E+2 Degrees Celsius |
| Warranty | Warranty |
| Wattage | 13200 watts |
| Sizing & Dimensions | |
| Height | 2.72 inches |
| Length | 2.72 inches |
| Package Weight | 0.62 pounds |
| Product Dimensions | 2.72 x 2.99 x 2.72 inches |
| Size | One Size |
| Width | 2.99 inches |
| Technical Specifications | |
| International Protection Rating | IP54 |
| Warranty | Warranty |
| Wattage | 13200 watts |
