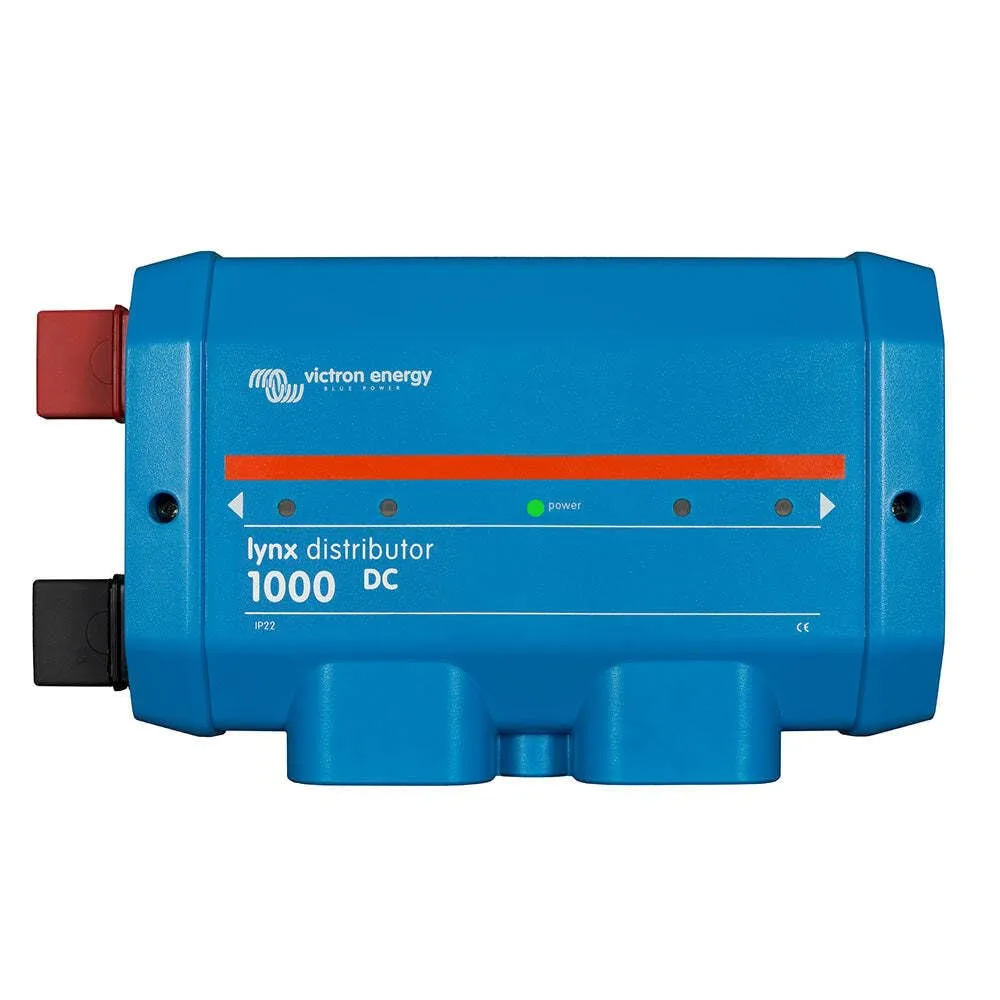

Victron Energy Lynx Distributor - Modular M10 DC Bus Bar with 4 Fuses

Lynx Distributor with M10 Terminals The Lynx Distributor contains a positive and a negative busbar. The positive busbar has four fuse-protected connections with fuse monitoring. The negative busbar has four connections and a ground connection. This model is part of the Lynx distribution and is a M10 busbar model. Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8. The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can. Features: 1000A model with M10 busbars The Lynx Distributor ships together with a 40cm RJ10 cable, which provides power to the Lynx Distributor and is also used to transmit data if connected to a Lynx Smart BMS The Lynx Distributor is designed to hold MEGA fuses If the Lynx Distributor is connected to a Lynx Smart BMS, it can be monitored and set up with the VictronConnect App Up to 4 connected Lynx distributors can be monitored with a GX device if connected to a Lynx Smart BMS The Lynx Distribution System The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management. The Lynx Distribution System Consists of the Following Parts Lynx Power In A positive and negative busbar with four batteries or DC equipment connections. Lynx Distributor A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions. Lynx Shunt VE.Can A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device. Lynx Smart BMS For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars. Please contact your dealer for any returns, repairs or support issues related to this product.

• Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation
• LED Fuse Indication: If you wish to use the fuse indication LEDs on the Victron Energy Lynx Distributor, it also requires a connection to a Victron Energy Lynx Shunt
• Fuse Monitoring: The Lynx Distributor constantly monitors the status of each fuse. When a fuse condition changes, the integrated LED on the front panel clearly indicates the fuse's status
• Fuse Spaces & Indicators: The Lynx Distributor provides space for individual DC fuses in each DC group. It offers an optional LED feature for each fuse, which will indicate if a fuse is blown
• Bus Bar Connection: The Victron Energy Lynx Distributor features positive and negative bus bars, allowing for a connection to up to four individual DC equipment circuits, loads, or DC groups
