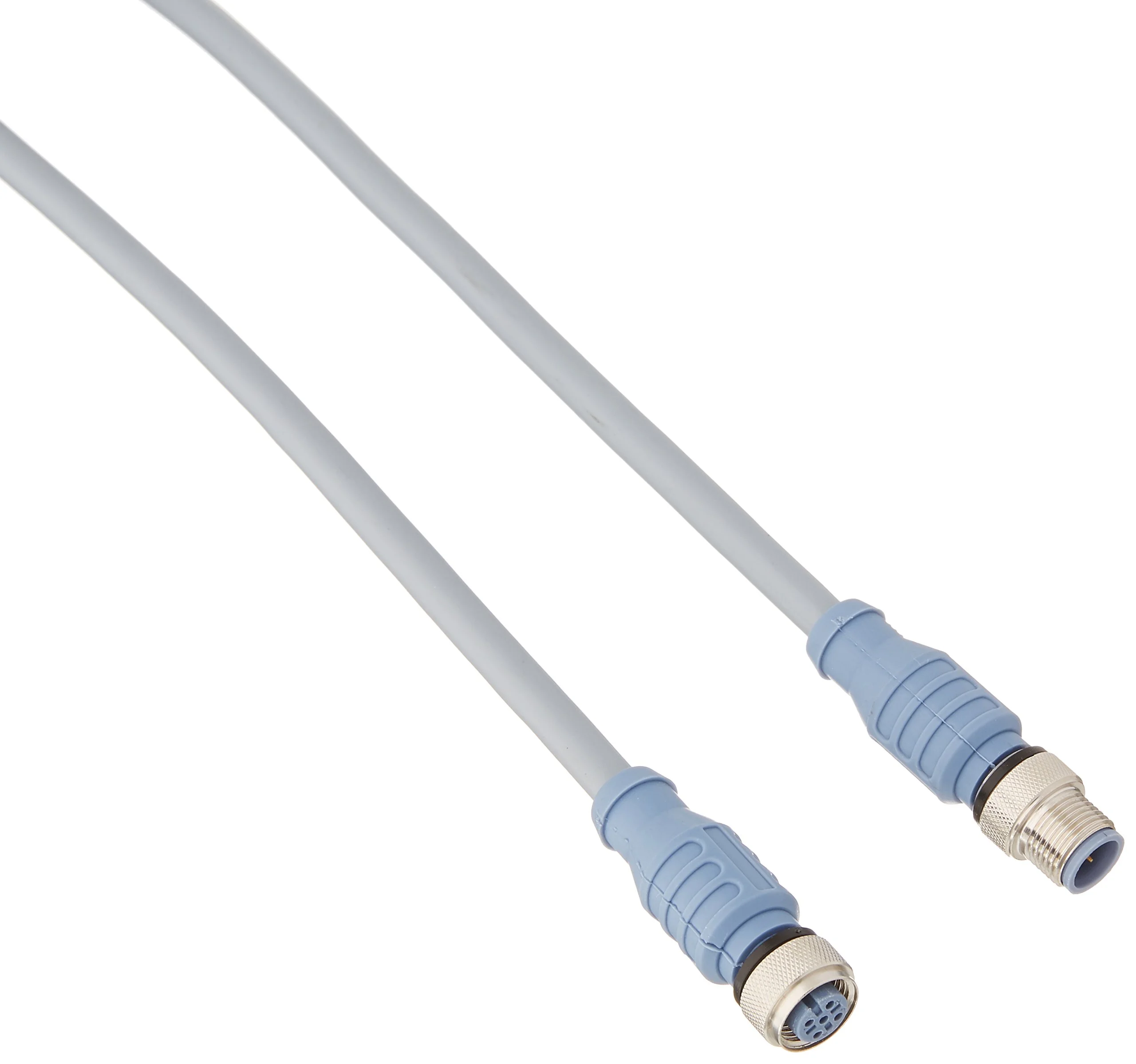

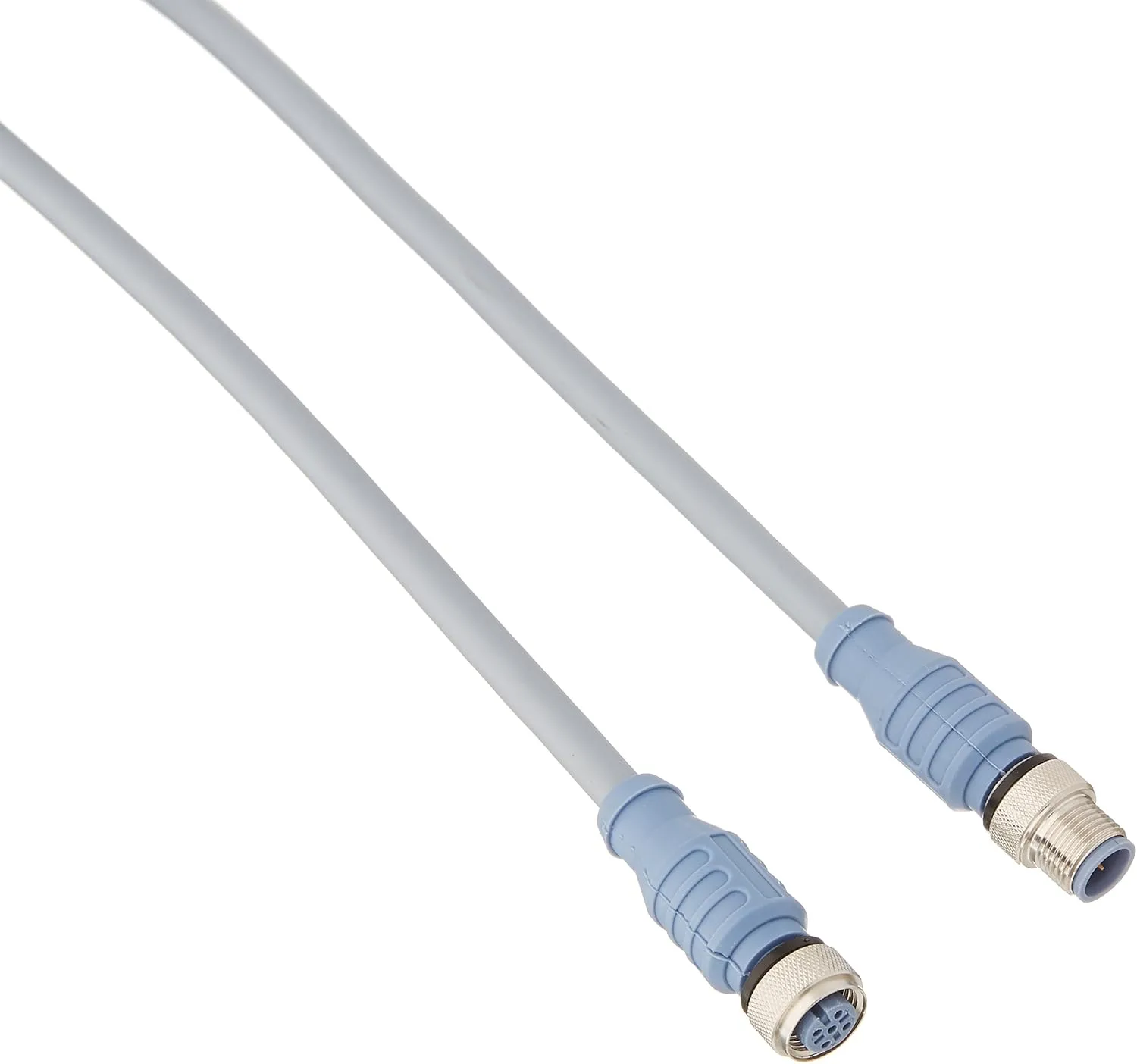

Maretron CM-CG1-CF-03.0micro Double Ended Cordset, 3m,Grey
Customize
Micro Double-Ended Cordset - 3M. Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray; Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray; Contact Mat/Plating: Brass/Gold; Coupling Nut Mat/Plating: Brass/Nickel; Connector Outside Diameter: 0.59". Electrical: Current Rating: 4.0 Amps; Voltage Rating: 250 V. Cable Outer Jacket Mat/Color: PVC/Gray; Conductor Insulation Material: HDPE (data pair), SRPVC (power pair); Number of Conductors: 4X22 AWG, 22 AWG; Drain Wire; Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). Environmental: Protection Class: IEC IP68, NEMA 1,3,4,6P; Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F). Approvals (Cable): UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable); CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4; NMEA: NMEA 2000 Approved. Cable Length: 3 m (approx 10'). Compatible with GPS navigation, fish finders and marine electronics. Package and dimensions: Item Dimensions (product): 8 x 6 x 1 inches. Item Package Dimensions: 10.47 x 7.28 x 1.02 inches. Package Weight (Rainforest): 0.22 kg (7.76 ounces). Product is designed for secure connections and timesaving installation in marine/outdoor environments.
- Item Package Weight: 0.277 Kilograms
- Item Package Dimensions: 2.6 L X 18.5 W X 26.6 H (Cm)
- Product Type: Fishing Equipment
- Country Of Origin: Mexico
Specifications:
| Materials & Construction | |
| Material | Metal |
| Product Details | |
| Cable Type | Ethernet |
| Color | Grey |
| Compatible Devices | GPS Navigation System, Fish Finder, Marine Electronics |
| Connector Gender | Male-to-Female |
| Connector Type | Double-ended Connector |
| Customer Package Type | sealed anti-static bag |
| Data Interface | Nmea 2000 |
| Indoor/Outdoor Usage | Outdoor |
| Maximum Voltage | 2.5E+2 Volts |
| Model Name | CM-CG1-CF-03.0 |
| Number of Items | 1 |
| Number of Pins | 4 |
| Outer Material | Polyvinyl Chloride (PVC) |
| Part Number | CM-CG1-CF-03.0 |
| Recommended Uses For Product | powering and data transmission for fishing equipment or other outdoor marine applications |
| Shape | Round |
| Special Feature | Weatherproof, Shielded |
| Specification Met | CSA |
| Unit Count | 1.00 Count |
| Wattage | 1E+3 |
| Sizing & Dimensions | |
| Cable Length (Feet) | 120 inches |
| Height | 1 inches |
| Length | 8 inches |
| Package Weight | 7.76 ounces |
| Product Dimensions | 8 x 6 x 1 inches |
| Size | 118.11 inches |
| Width | 6 inches |
