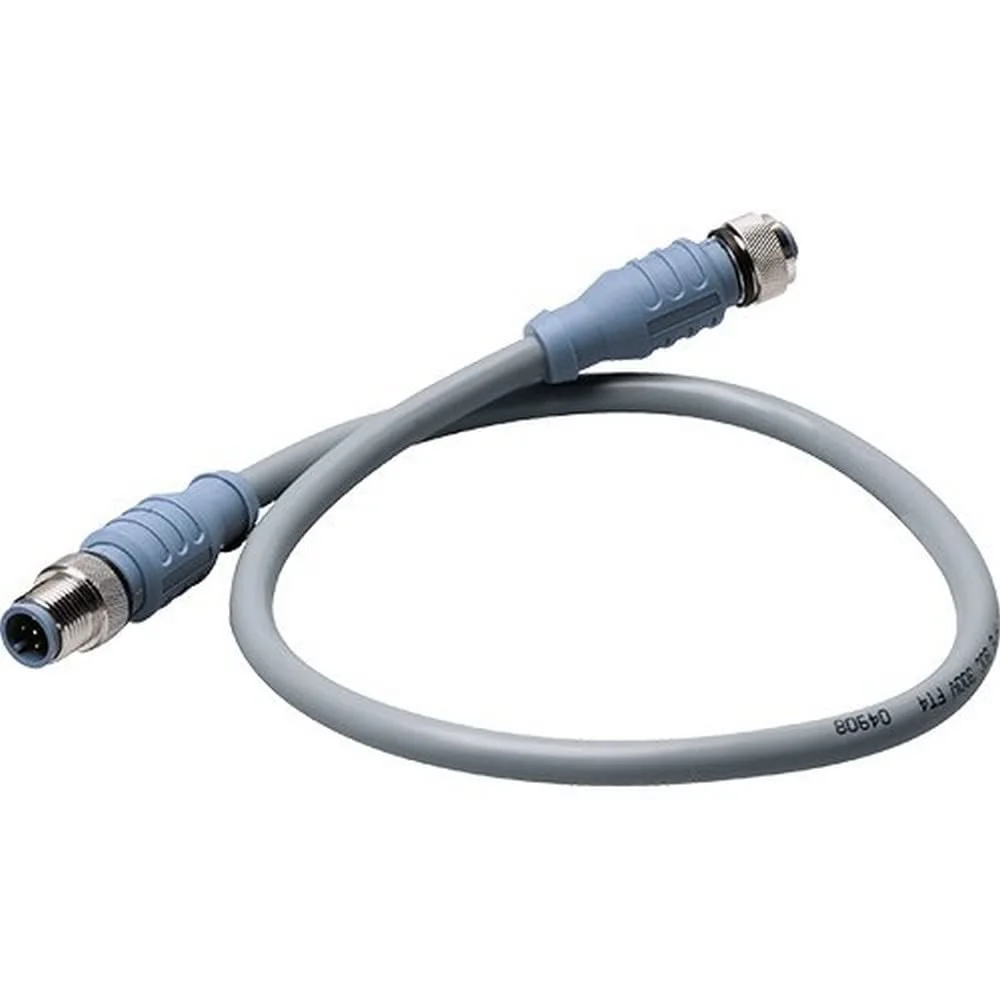

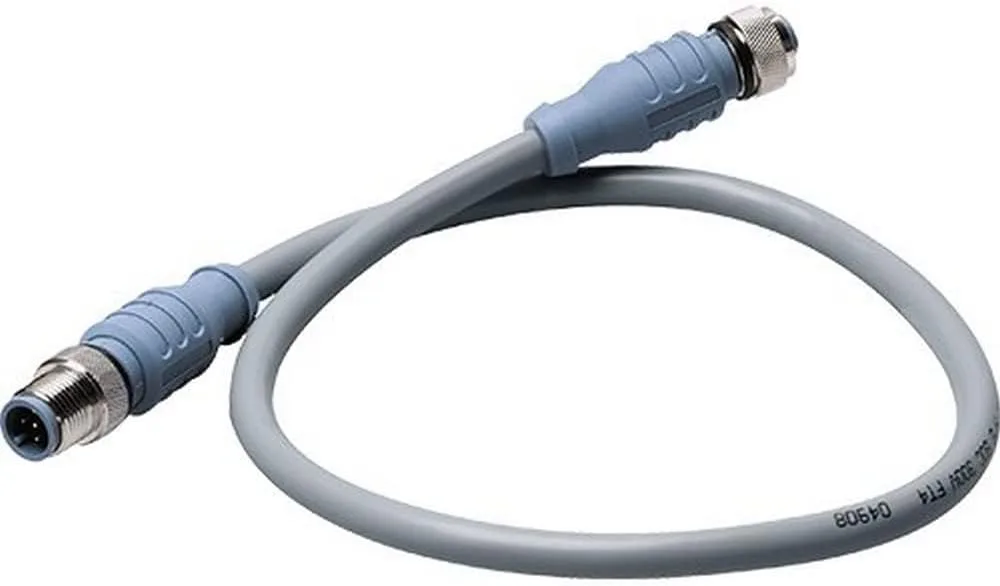

Maretron CM-CG1-CF-05.0 Micro Double-Ended Cordset, 5m
Customize
Maretron CM-CG1-CF-05.0 Micro Double-Ended Cordset, 5m. Mechanical: Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray. Molded Body Material/Color: Thermoplastic PUR/Blue-Gray. Contact Material/Plating: Brass/Gold. Coupling Nut Material/Plating: Brass/Nickel. Connector Outside Diameter: 0.59". Electrical: Current Rating: 4.0 Amps. Voltage Rating: 250 V. Cable Outer Jacket Material/Color: PVC/Gray. Conductor Insulation Material: HDPE (data pair), SRPVC (power pair). Number of Conductors: 4X22 AWG, 22 AWG Drain Wire. Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). Environmental: Protection Class: IEC IP68, NEMA 1,3,4,6P. Temperature Rating: -40 °C to 80 °C (-40 °F to 176 °F). Approvals (Cable): UL PLTC 75 °C Sunlight Resistant E90625; AWM 80 °C 300V. CSA: CMX-OUTDOOR-CMG LL54185 75 °C; AWM I/II A/B 80 °C 300V FT4. NMEA: NMEA 2000 Approved. Cable Length: 5 m (16'). Package details and weights vary by packaging. Suitable for marine electronics connections, NMEA 2000 networks, and devices requiring a compact, rugged micro cordset.
- Country of Origin: Mexico
- Product Type : Fishing Equipment
- Package Weight : 0.8 pounds
- Package Dimensions : 15.0 " L x 10.0 " W x 2.0 " H
Specifications:
| Materials & Construction | |
| Color | Blue-Gray |
| Material | PVC, HDPE, SRPVC, Brass/Gold plating |
| Outer Material | Thermoplastic PUR |
| Product Details | |
| Connector Gender | male-to-female |
| Model Name | Maretron CM-CG1-CF-05.0micro Double Ended Cordset, 5m |
| Number of Items | 1 |
| Size | 5m |
| Voltage | 250 Volts |
| Wattage | 3750 watts |
| Sizing & Dimensions | |
| Cable Length (inches) | 192 |
| Height | 2 inches |
| Length | 15 inches |
| Product Dimensions | 15 x 10 x 2 inches |
| Weight | 0.01 ounces |
| Width | 10 inches |
| Technical Specifications | |
| Approvals | UL PLTC 75 °C; AWM 80 °C 300V; CSA CMX-OUTDOOR-CMG; NMEA 2000 Approved |
| Connector Outside Diameter | 0.59" |
| Current Rating | 4.0 Amps |
| Protection Class | IEC IP68, NEMA 1,3,4,6P |
| Shielding | FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) |
| Temperature Rating | -40 °C to 80 °C (-40 °F to 176 °F) |
| Voltage Rating | 250 V |
