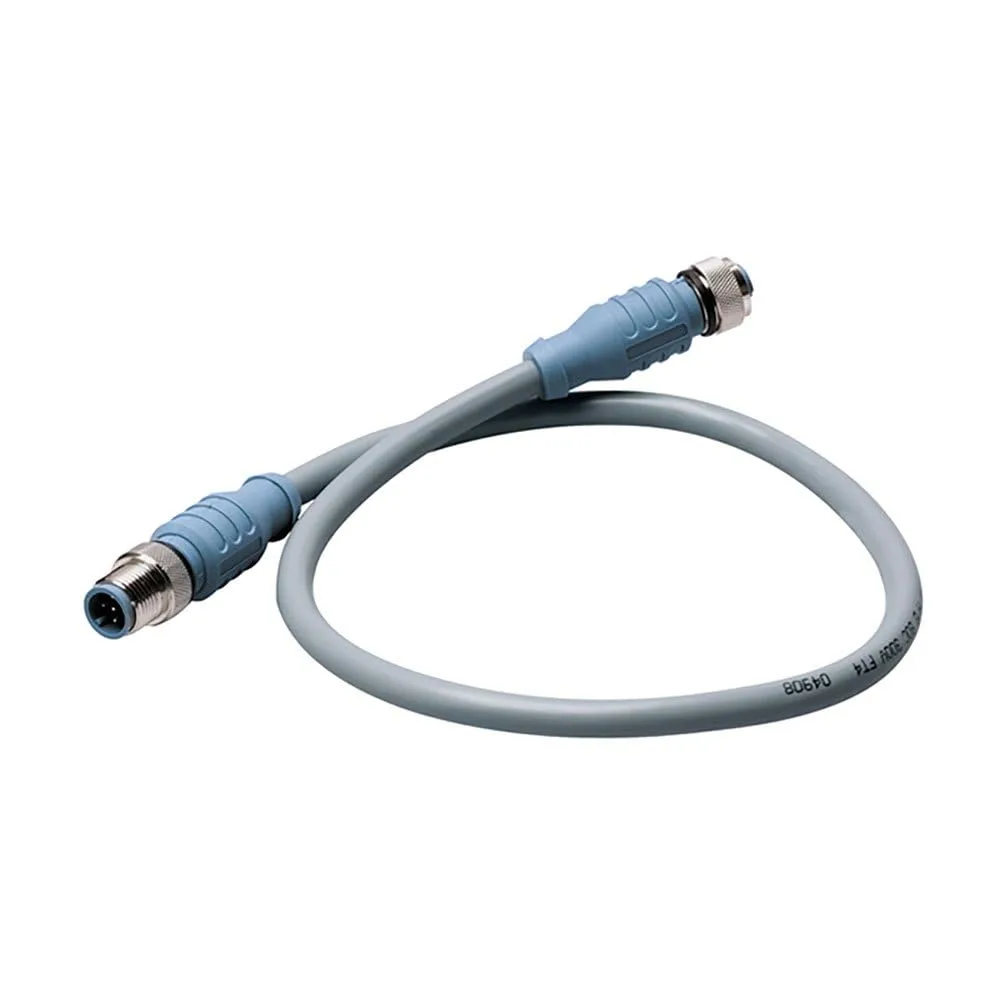

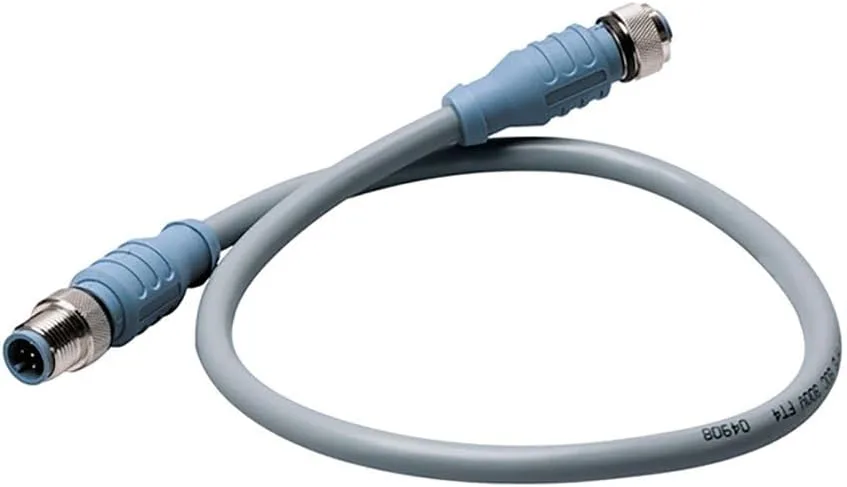

Maretron CM-CG1-CF-10.0 Micro Double Ended Cordset, 10 m
Customize
Maretron CM-CG1-CF-10.0 Micro Double Ended Cordset, 10 Meter (33') — Micro double-ended cordset designed for NMEA 2000 data interfacing. Cable construction: Thermoplastic PUR jacket (blue-gray), conductors: 4x22 AWG plus 22 AWG drain wire; conductor insulation: HDPE (data pair), SRPVC (power pair); shielding (3-levels): FOIL (overall), FOIL (power pair), FOIL (data pair). Contacts: brass with gold plating; coupling nut: brass with nickel plating. Electrical ratings: 4.0 Amps, 250 V. Environmental: IEC IP68, NEMA 1,3,4,6P; temperature rated -40°C to 80°C (-40°F to 176°F). Cable approvals: UL PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V; CSA CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4. NMEA: NMEA 2000 approved. Includes: Maretron CM-CG1-CF-10.0 Micro Double Ended Cordset, 10 m.
- Product Type: FISHING EQUIPMENT
- Package height: 31.6 cm
- Package width: 23.2 cm
- Package length: 5.1 cm
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Cable Length (Feet) | 33' |
| Connector Gender | Male-to-Female |
| Data Interface | Nmea 2000 |
| Model Name | Maretron CM-CG1-CF-10.0 Micro Double Ended Cordset, 10 m |
| Number of Items | 1 |
| Unit Count | 1.0 Count |
| Wattage | 1E+3 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 393.7 inches |
| Product Dimensions | 14 x 10 x 2 inches |
| Size | 39.37 inches |
| Weight | 0.95 pounds |
| Width | 10 inches |
| Technical Specifications | |
| Approvals | UL PLTC 75°C Sunlight Resistant E90625; AWM 80°C 300V; CSA CMX-OUTDOOR-CMG LL54185 |
| Cable Shielding | FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) |
| Current Rating | 4.0 Amps |
| Environmental Protection | IEC IP68, NEMA 1,3,4,6P |
| Temperature Rating | -40 deg C to 80 deg C (-40 deg F to 176 deg F) |
| Voltage Rating | 250 V |
