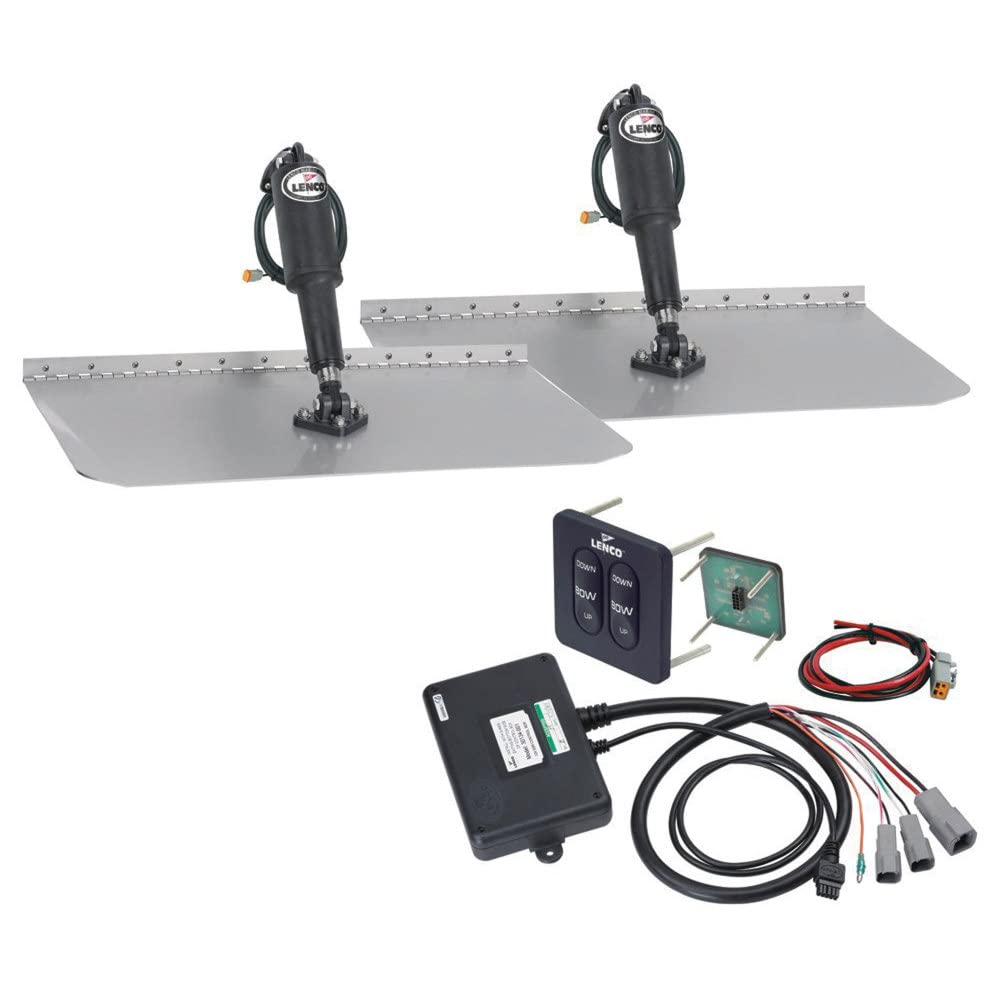

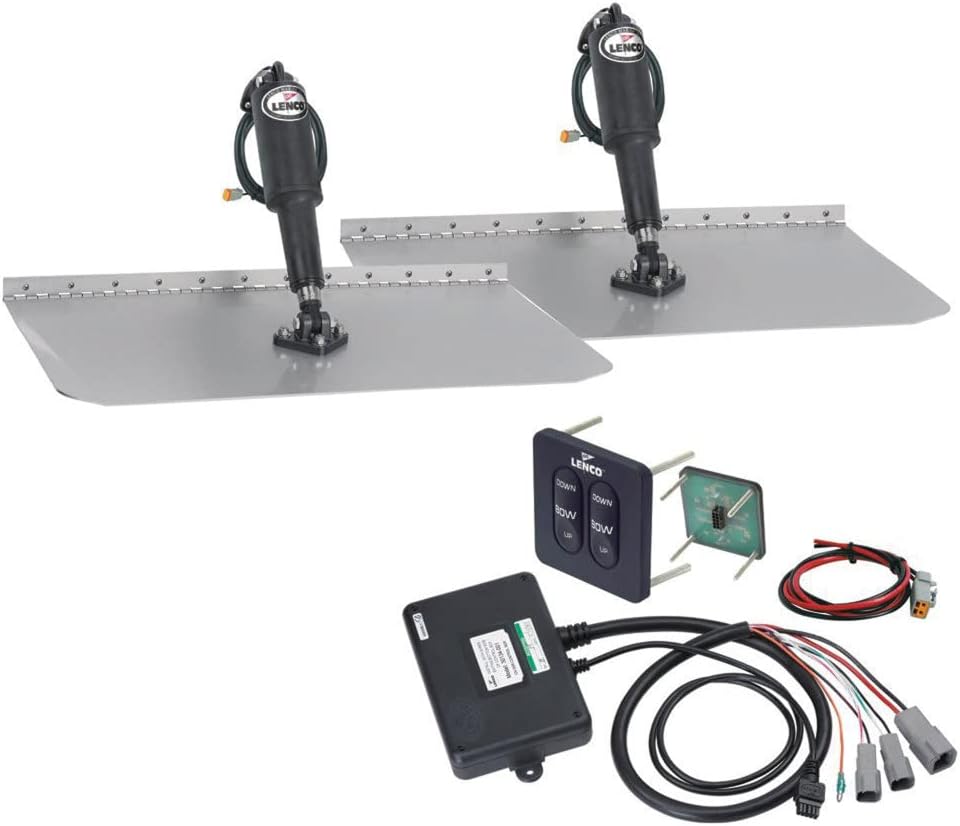

Lenco 12"x12" Standard Trim Tab Kit w/Standard Integrated Switch 12V
Customize
12" x 12" Standard Trim Tab Kit w/Standard Integrated Switch Kit - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts. Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches. Kit includes: Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Standard Tactile Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
- (2) 15085-001 upper mounting brackets with Gland seal
- (2) 30133-103 actuator extension wiring harnesses - 20' (6.1 M) Length
- (2) 15054-001 actuators with 6' (1.8 M) leads and Deutsch connectors
- (2) 12-gauge stainless steel electro-polished Blades
- (1) Switch Kit - choose double rocker, Standard or LED indicator
Specifications:
| Materials & Construction | |
| Contact Material | Stainless Steel |
| Material | Plastic |
| Product Details | |
| Connector Type | Quick Connect |
| Contact Material | Stainless Steel |
| Global Trade Identification Number | 00874847000161 |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Mounting Type | PCB Mount or Panel Mount |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Terminal | Marine |
| UPC | 874847000161 |
| Sizing & Dimensions | |
| Height | 5.25 inches |
| Length | 14 inches |
| Product Dimensions | 14 x 13 x 5.25 inches |
| Size | 12" x 12" |
| Weight | 19 pounds |
| Width | 13 inches |
| Technical Specifications | |
| Connector Type | Quick Connect |
| Insulation Resistance | 100 Megaohms |
| Operation Mode | ON-OFF |
| Voltage | 12 Volts |
