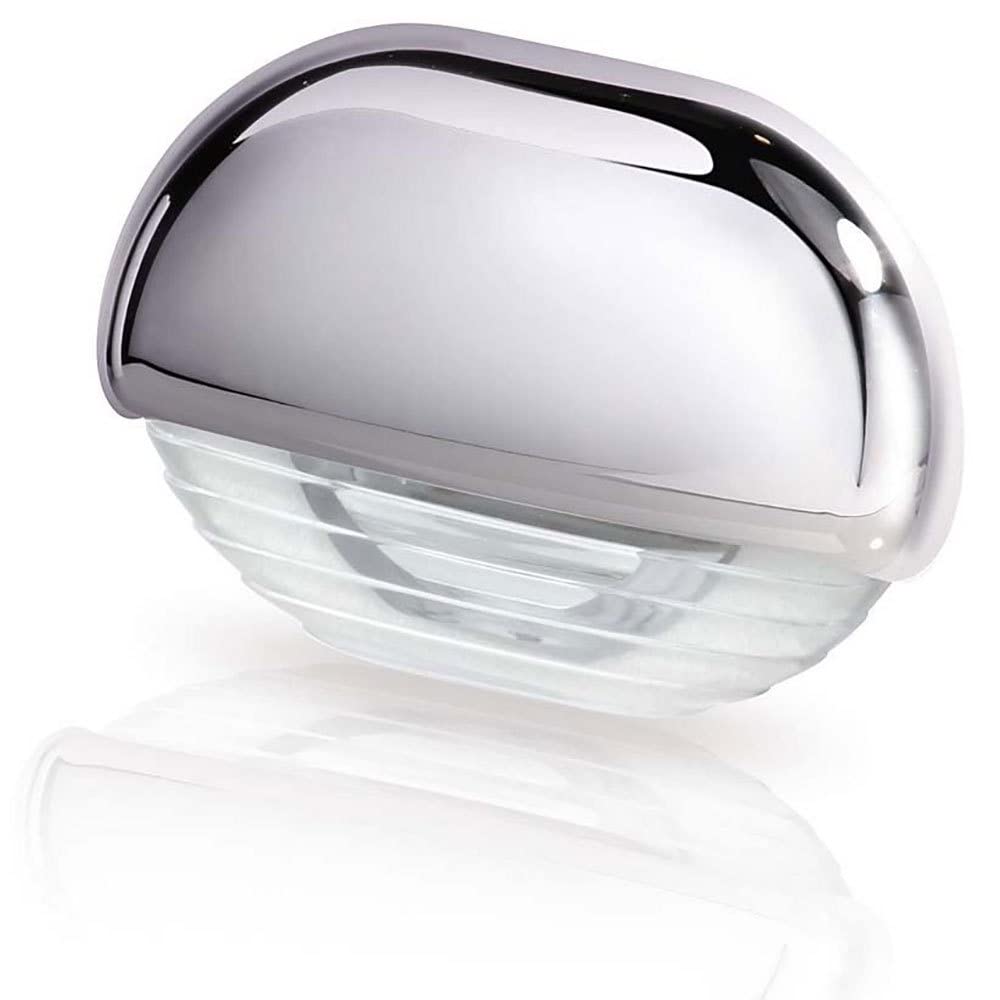

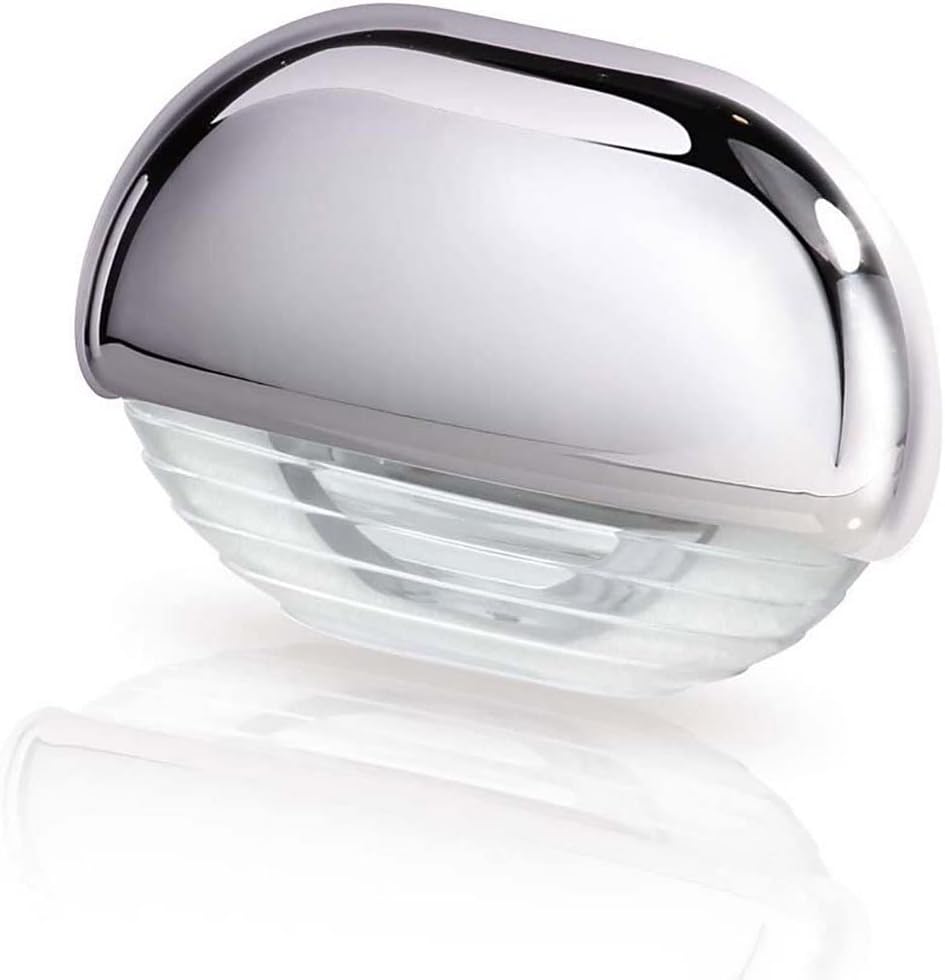

HELLA 958126001 8560 Series' Easy Fit Multivolt White 12-24V DC LED Step Light with Clear Lens and Chrome Plated Plastic Cap
Customize
White LED Easy Fit Step Lamp with Chrome Cap Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications. Light is radiated downward at an angle of 30° making these lamps ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companionways, deck fittings, signs, and switches without shining into the eyes. Multivolt electronics ensure constant light output in 12V or 24V DC systems. Easy Fit Gen 2 series lamps are completely sealed, shock and vibration resistant, and represent reliable "fit and forget" technology. Note: Easy Fit lamps no longer have the two open slots for mounting the original caps. This improves water tightness when installed in wet areas like cockpits. Each lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws. Optic appears clear until illuminated. Features: 12-24V DC Chrome Plated Plated Cap White Specifications: Lens Material: UV resistant enhanced impact acrylic Cap Material: White plastic, chrome-plated plastic, polished 316 stainless steel Cable: Pre-wired with 100mm marine cable Voltage: Multivolt for optimum brightness in 12 and 24 volt systems Power Consumption: 0.5W ( Degree of Protection: IP67 - Completely Sealed Weight: Stainless Cap - 30g (Including cable) Plastic Cap - 15g (Including cable) Approvals: CE, RCM, Bulb Type: LED , Housing: Chrome , LED Color: White , Voltage - Input Range (Volts): 12/24v
- Included components: light, installation materials
- UV resistant enhanced impact acrylic
- Shock and vibration resistant
- "Fit and Forget" technology
- For interior or exterior use
- All HELLA Marine LED lamps feature advanced materials and state of the art technology for reliability, efficiency, and safety at sea
Specifications:
| Materials & Construction | |
| Housing | Chrome |
| Lens Color | Clear |
| Lens Material | Plastic |
| Material | Plastic |
| Product Details | |
| Assembly Required | No |
| Auto Part Position | Inner |
| Bulb Type | Led |
| Housing | Chrome |
| Included Components | Great Product |
| Led Color | White |
| Lens Color | Clear |
| Lens Material | Plastic |
| Model Name | 958126001 |
| Number of Items | 1 |
| Special Feature | vibration resistant |
| Specific Uses For Product | Exterior,Interior |
| Vehicle Service Type | Boat |
| Voltage - Input Range (Volts) | 12/24v |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.46 inches |
| Length | 3.07 inches |
| Product Dimensions | 3.07 x 5 x 1.46 inches |
| Product Weight | 0.03 Pounds |
| Size | 12-24V |
| Weight | 0.48 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Approvals | CE, RCM |
| Cable | Pre-wired with 100mm marine cable |
| Degree of Protection | IP67 - Completely Sealed |
| Power Consumption | 0.5W |
