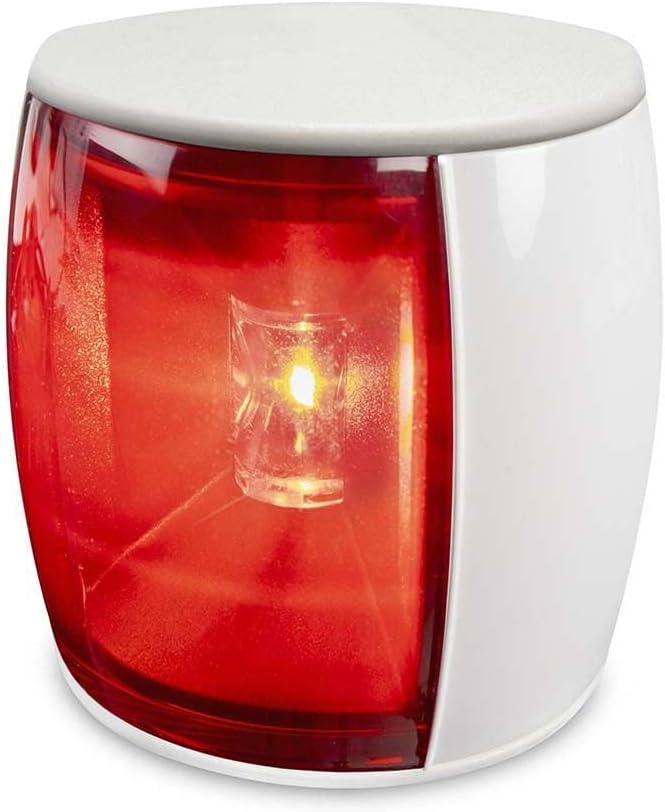

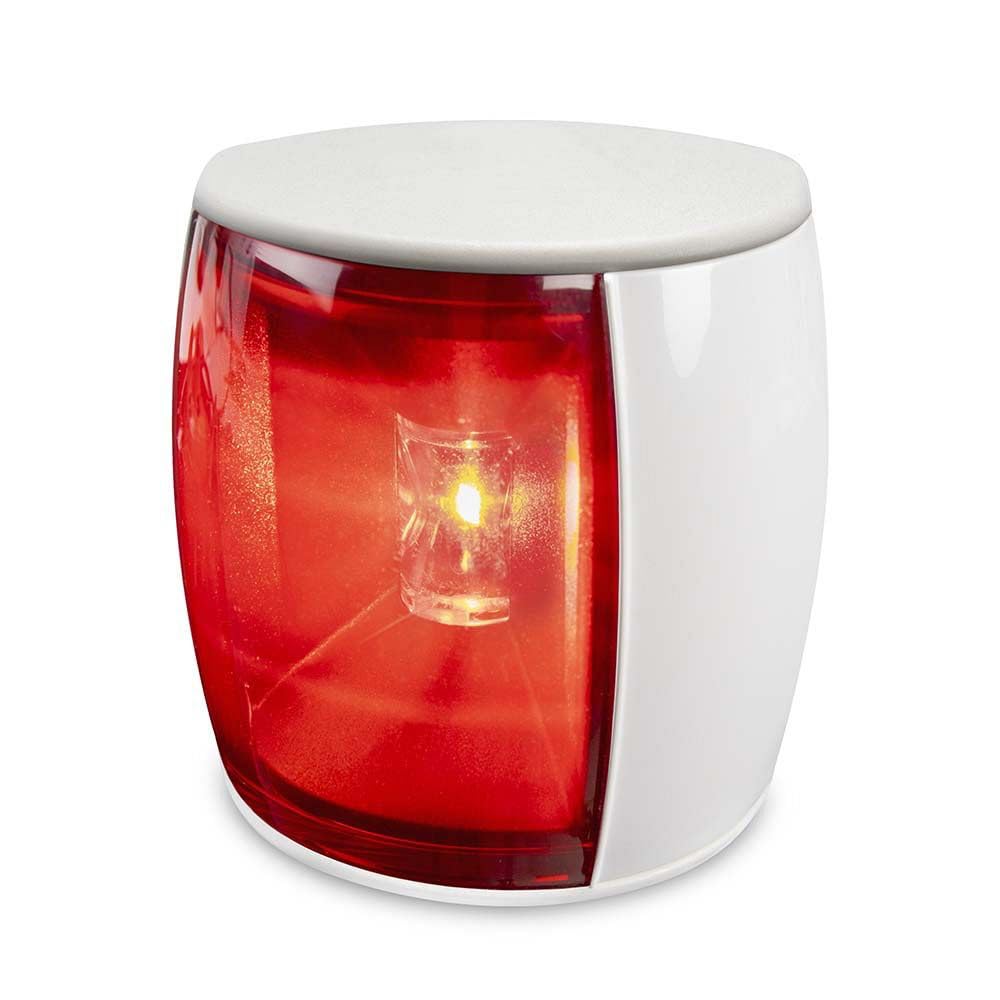

Hella Marine NaviLED PRO Port Navigation Lamp - 2nm - White Shroud
Customize
NaviLED PRO Port Navigation Lamp - 2nm - White Shroud NaviLED PRO Port, Starboard, Masthead and Stern lamps cover vessel requirements up to 50m. Hella marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, these lights are extremely important when navigating at night. All Hella marine products are designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation and other electrical equipment on board. Hella marine lamps are rated at IP67 and completely sealed. UV from the sun, corrosive salt air and constant vibration: these lamps are impervious to the marine environment. Ultra low power consumption from the highly efficient LED light source, these lamps also provide exacting light intensity across a wide range of voltage inputs from 9V DC to 32V DC. Made in New Zealand and fully supported by Hella marine's 5 year warranty, for complete peace of mind. Features and additional details from marketplace data: - Visibility/Range: 2 NM (listed as 2nm / 3 nautical miles for yachts and powerboats in some docs). - Housing: White shroud; Lens Color: Red. - Material: High-impact and UV-resistant acrylic (listed as Plastic in some marketplace data). - Dimensions (Item): 8.86 x 6.1 x 3.35 inches. Item Weight: 0.71 Pounds. - Package Dimensions: 6 x 4 x 4 inches. Package Weight: 0.75 Pounds. - Model: 017.460-011 (also referenced as 017460011). Part Number / Mfg Part No: 017460011. - Operating Voltage: Multivolt 9–33V DC (suitable for 12/24V systems). Spike protected to +500V, reverse polarity protected to -500V. - Compliance: IMO COL REG 72, USCG, ABYC C-5, RCM, Maritime NZ. This lamp provides a durable, UV resistant, completely sealed IP67 solution for vessel navigation lighting requirements with low power consumption and broad voltage compatibility. Comes with 2.5 meters of tinned marine cable and a 5-year warranty.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Housing | White |
| Lens Color | Red |
| Material | Plastic |
| Outer Material | High-impact and UV-resistant acrylic |
| Product Details | |
| Assembly Required | No |
| Included Components | Great Product |
| Model Name | 017460011 |
| Model Number | 017.460-011 |
| Number of Items | 1 |
| Style | Hella Marine 017.460-011 PORT Lamp 2NM C5 Certified |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3.35 inches |
| Length | 8.86 inches |
| Product Dimensions | 8.86 x 6.1 x 3.35 inches |
| Size | Standard |
| Weight | 0.71 pounds |
| Width | 6.1 inches |
| Technical Specifications | |
| Cable | 2.5 meters of tinned marine cable |
| Compliance | IMO Col Reg 72, USCG, ABYC C-5, RCM, Maritime NZ |
| Degree of Protection | IP 67 - Completely Sealed |
| LED | Yes |
| Minimum Visible Distance | 3 nautical miles (yachts and powerboats) |
| Operating Voltage | Multivolt 9–33V DC |
| Visible Range (Miles) | 2 nm |
| Voltage - Input Range (Volts) | 12/24V |
