Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke w/Hardware
Customize

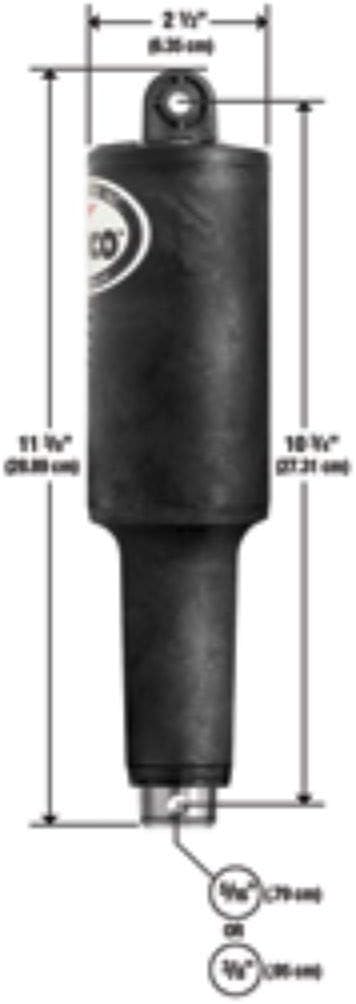

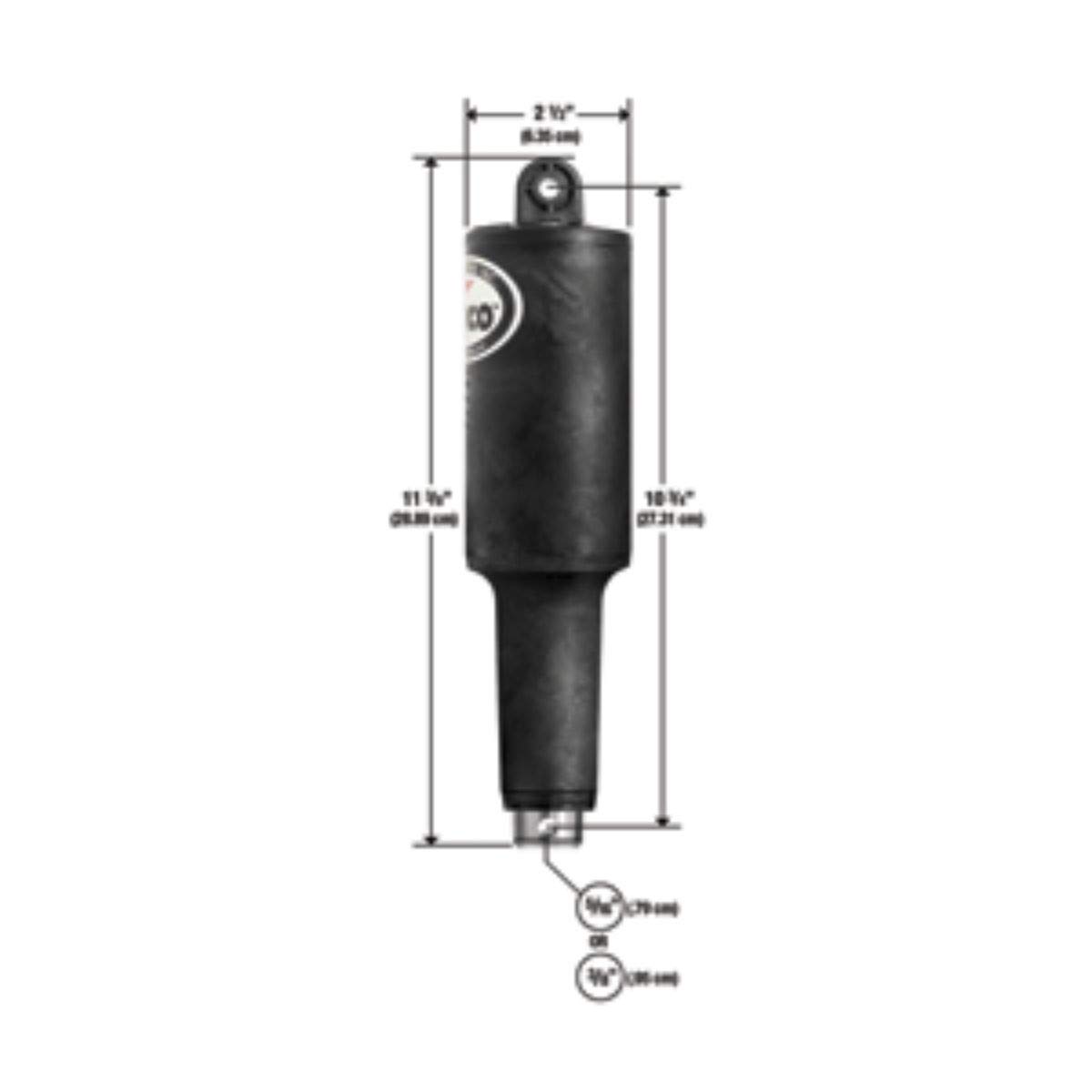

101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware. The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11 3/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing. Specifications: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design. Improved pressure-tight torx screws. Integrated wiper seal at actuator base. Molded-in brass thrust bearing design. Thicker and stronger motor housing wall. Improved O-Ring design for more consistent seal. Over-molded cable providing a stronger tighter seal. Upper mounting bracket with gland seal. Features: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics. Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 12 Volt 5/16" upper and 3/8" lower mounting hardware. 6 foot cable. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Color | No Color |
| Connector Type | Screw |
| Global Trade Identification Number | 03387951006853 |
| Included Components | Great Product |
| Material | Plastic |
| Model Name | 15056-002 |
| Mounting Type | Wall Mount |
| Number of Items | 1 |
| Size | One Size |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 14 inches |
| Product Dimensions | 14 x 4 x 3 inches |
| Size | One Size |
| Weight | 3.2 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Voltage | 12 Volts |
| Warranty | Warranty |
