Weiler 26075 5/8" Miniature Cup Brush, .005" Brass Fill, 1/8" Stem, Made in the USA Pack of 1 .005 Wire Size
Customize

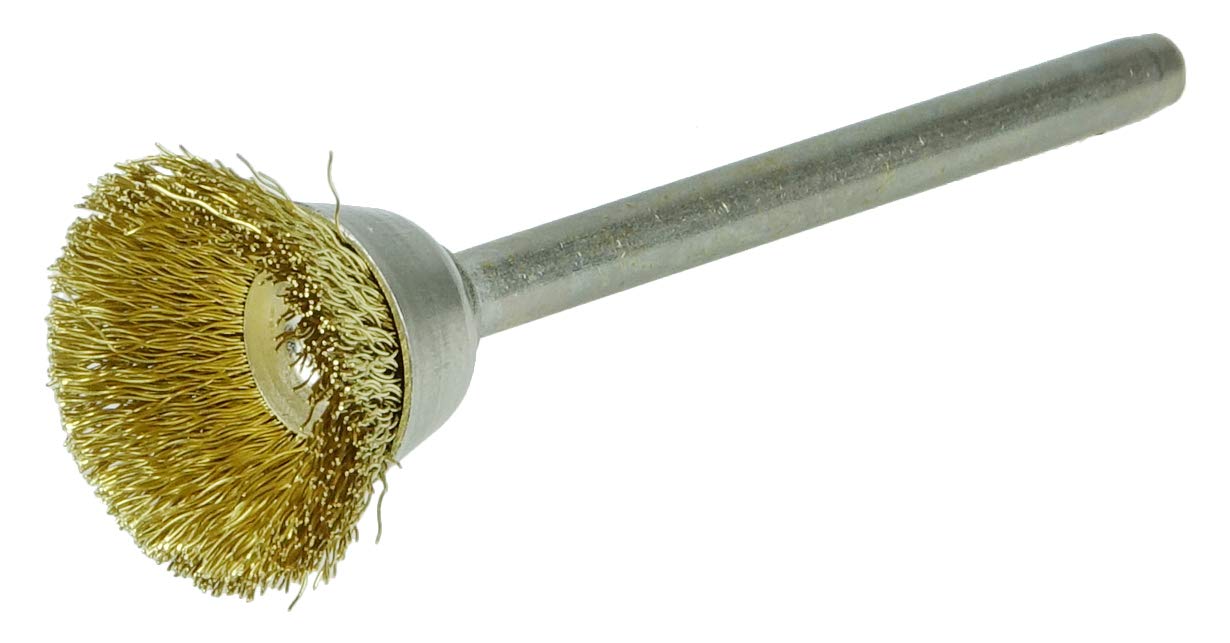

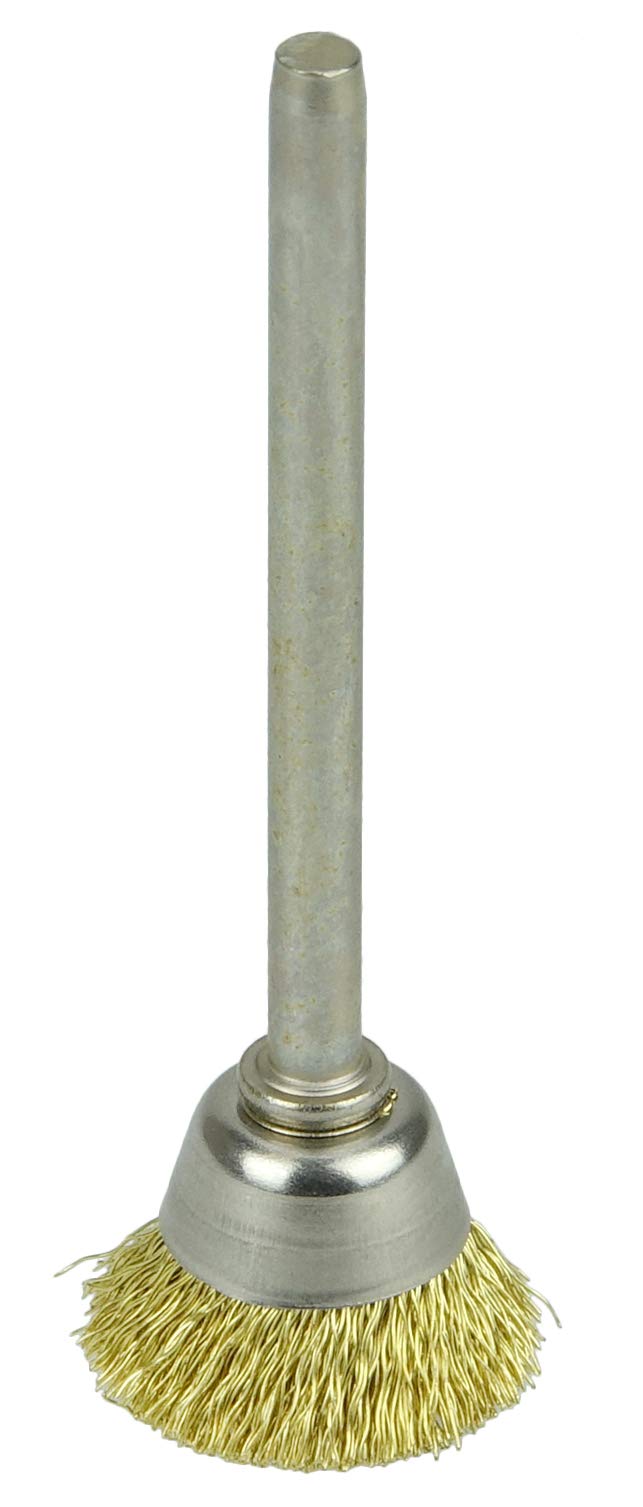

Weiler 5/8" Miniature Cup Brush contains fine crimped wire fill for light-duty cleaning and deburring in confined areas. 1/8" a stem for use on flexible shaft tool and high speed pencil grinders. THE WEILER FAMILY began producing miniature brushes for the jewelry industry in 1898, and their tradition of providing the highest quality, most cost-effective products continues to this day. Weiler's line of miniature brushes are designed for precision cleaning, light deburring, and finishing applications in a variety of crafts, trades, and industries. In addition to use in jewelry production and in dental and optical labs, miniature brushes have many applications in modern industries such as electronics and instrumentation production, aerospace and aircraft manufacture, and precision tool and die shops. They are permanently mounted on 1/8" or 3/32" stems for quick mounting and efficient use on high-speed electric rotary tools and air-powered pencil die grinders. Product details: Brush Diameter (Decimal Inch): 5/8; Brush Type: Crimped; Fill Material: Brass; Arbor Type: Threaded Arbor; Shank Diameter (Inch): 1/8; Abrasive Material: Brass; Trim Length (Inch): 1/4; Shank Included: Yes; Maximum RPM: 37000; Row Count: Single Row. Constructed with an internal steel ring to retain fill and ensure equal spacing around the perimeter to minimize vibration and extend life.
- USE ON ROTARY TOOLS: Fits most flexible shaft rotary tools and high speed pencil grinders that accept a 1/8" stem
- IDEAL FOR LIGHT DUTY CLEANING ON SMALL SURFACES: Light duty cleaning, corrosion removal, and deburring in confined areas
- NON-SPARKING BRASS WIRE FILL: Featuring high-quality brass wire that offers a very soft brushing action in comparison to steel and stainless steel and will not generate a spark when used on metal surfaces
- ROBUST CONSTRUCTION: Constructed with an internal steel ring to retain the fill material and ensure equal spacing around the perimeter to minimize vibration and extend life
- MADE IN THE USA: Weiler Power Cup Bushes are proudly made in the USA at our factory in Cresco, PA
Specifications:
| Materials & Construction | |
| Grit Material | Alloy Steel |
| Material | Brass |
| Product Details | |
| Abrasive Material | Brass |
| Arbor Type | Threaded Arbor |
| Bridled | No |
| Bristle Type | Crimped Wire |
| Brush Diameter (Decimal Inch) | 5/8 |
| Brush Type | Crimped |
| Fill Material | Brass |
| Flared | No |
| Grit Material | Alloy Steel |
| Item model number | 26075 |
| Material | Brass |
| Maximum Rpm | 37000.000 |
| Row Count | Single Row |
| Shank Diameter (Inch) | 1/8 |
| Shank Included | Yes |
| Trim Length (Inch) | 1/4 |
| Unspsc Code | 31191521 |
| Sizing & Dimensions | |
| Height | 2.0000 inches |
| Length | 4.0000 inches |
| Product Dimensions | 1.95 x 0.5 x 0.65 inches |
| Product Weight | 1.4400 |
| Size | 5/8 inch |
| Weight | 1.44 pounds |
| Width | 6.0000 inches |
| Technical Specifications | |
| Maximum Rpm | 37000.000 |
