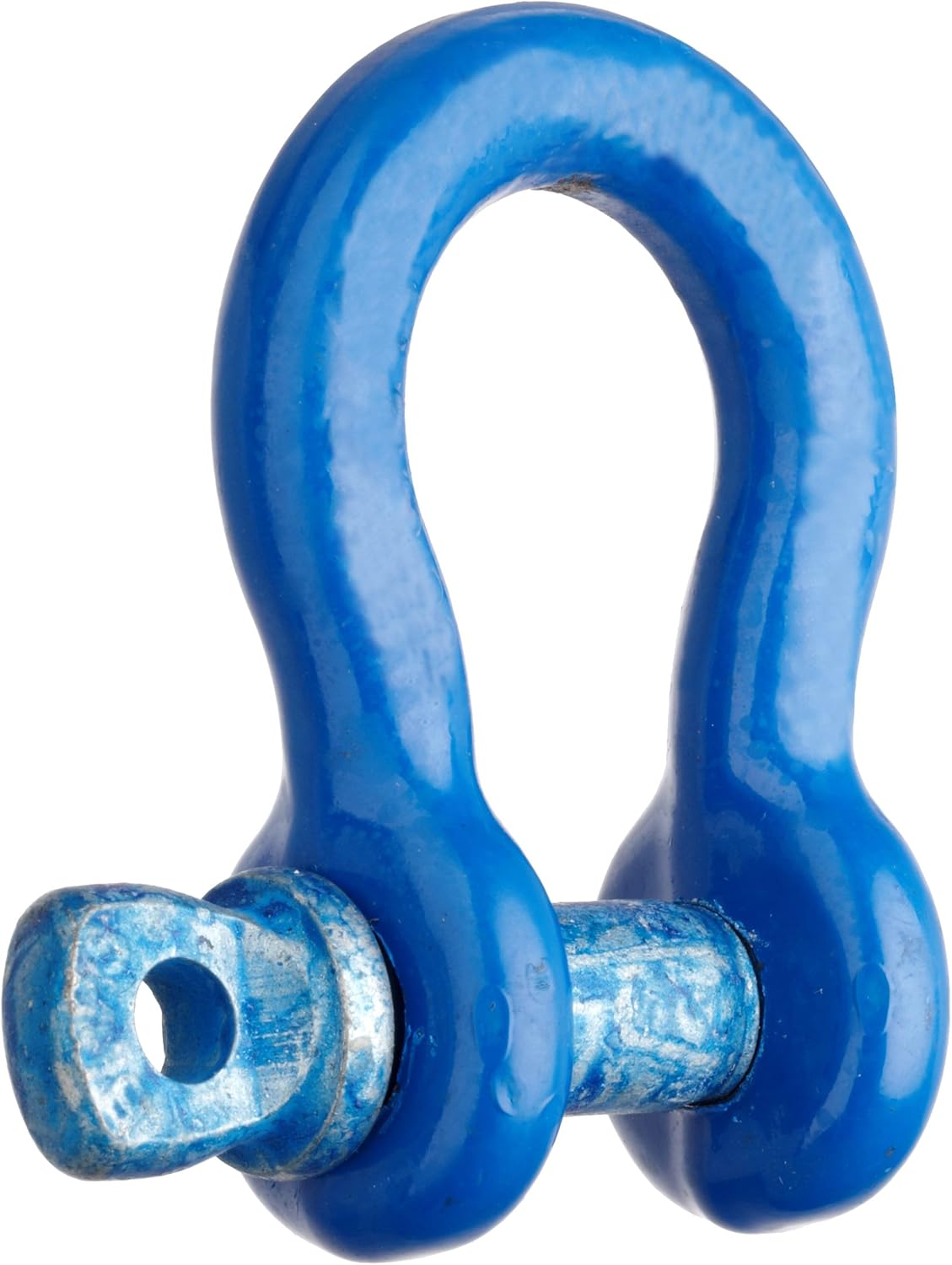

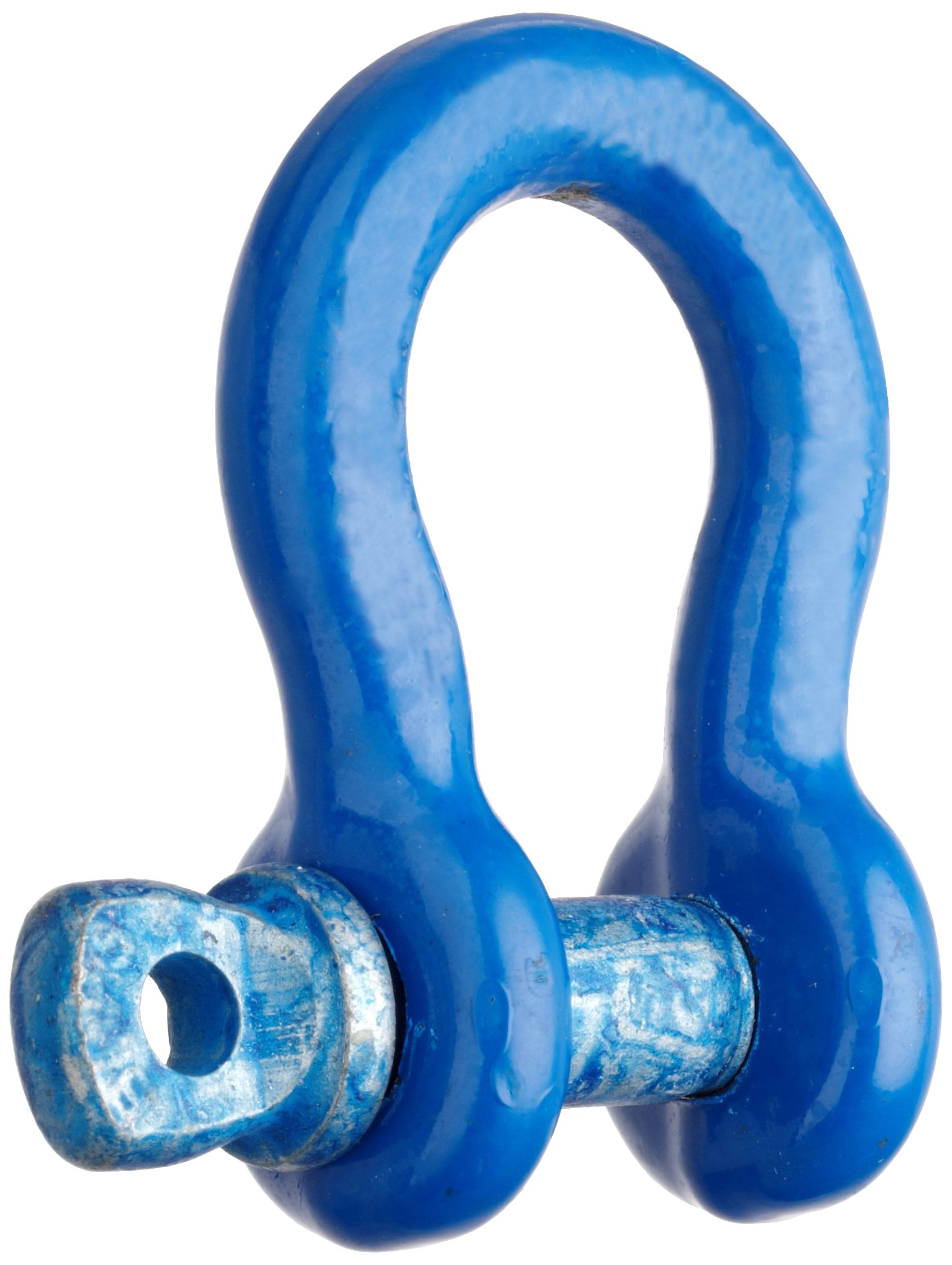

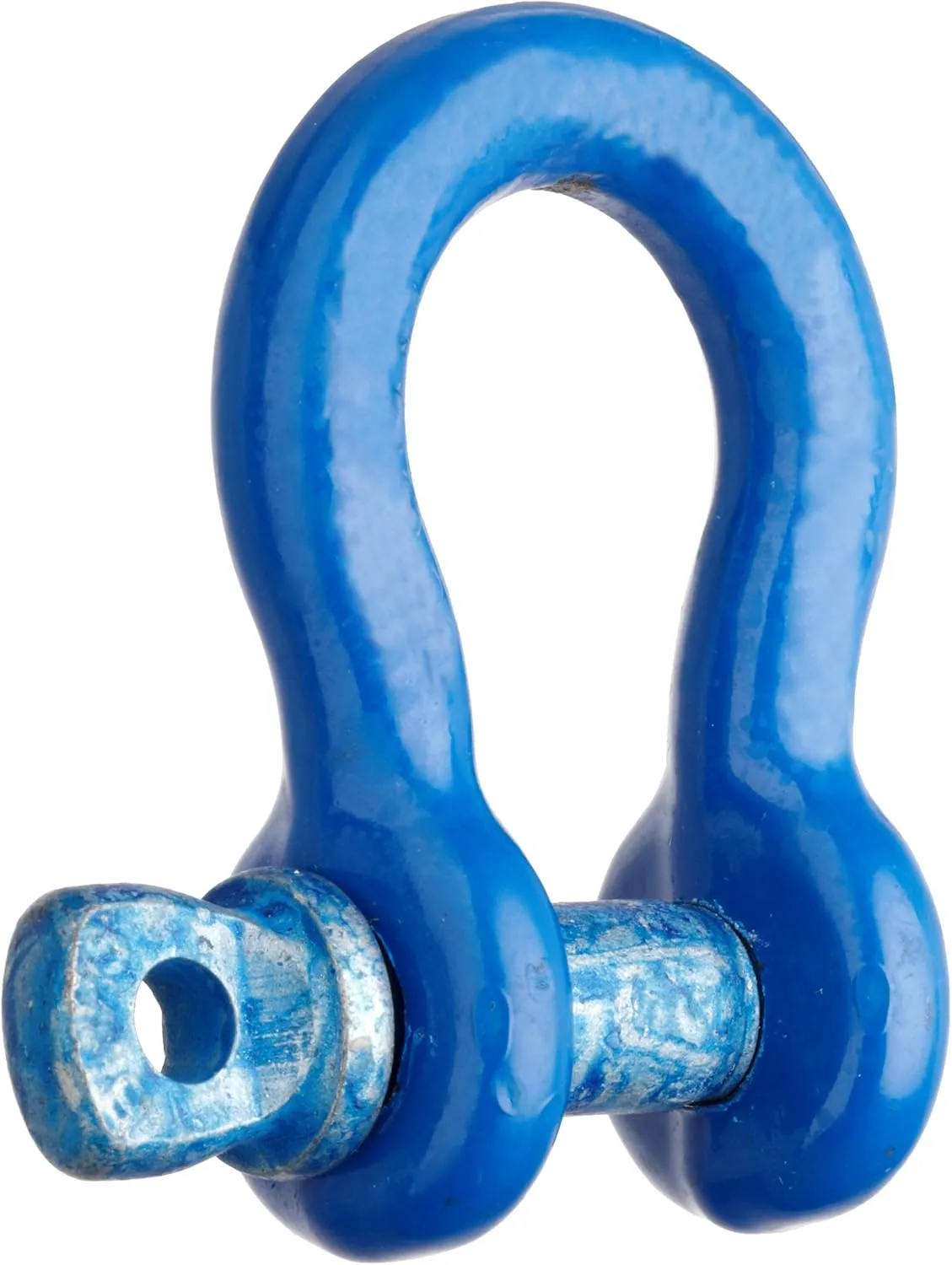

Campbell 419-S Screw Pin Anchor Shackles, Drop-Forged Carbon Steel, Painted Blue, 3/8" Trade, 1 ton Working Load Limit

Campbell 419-S screw pin anchor shackle. Forged carbon steel construction with painted/self-colored finish. Screw pin (threaded) closure; designed for lifting, rigging, pulling and marine applications. Meets ASTM A-153 standards (galvanizing/finish spec where applicable). Typical dimensions and features: 3/8" trade size with working load limit 1 ton; pin size and opening details provided by manufacturer. ProductDatabase entries note inside width approximately 0.9688 in, overall thickness ~0.9375 in, head/holder diameter 0.3750 in; finish: painted; standards: ASTM A-153. Constructed of drop-forged carbon steel with permanently marked working load limit on product, designed for safe rigging when used within rated capacity. Includes one Campbell branded component per package. Model/part number 5410605. UPC 020418076206.

• Comes in standard pack
• 15/16" Eye outer size
• 1-7/16" Length and 31/32" inner width
• Testing and approvals: Galvanized to astm a-153 specifications, 419-s, 419-g screw pin meets the design requirements of federal specification rr- c-271, type iva, grade a, class 2
• Working load limit must not be exceeded
