Ancor 130910 Triplex Cable, 8/3 AWG (3 x 8mm2), Flat - 100ft
Customize

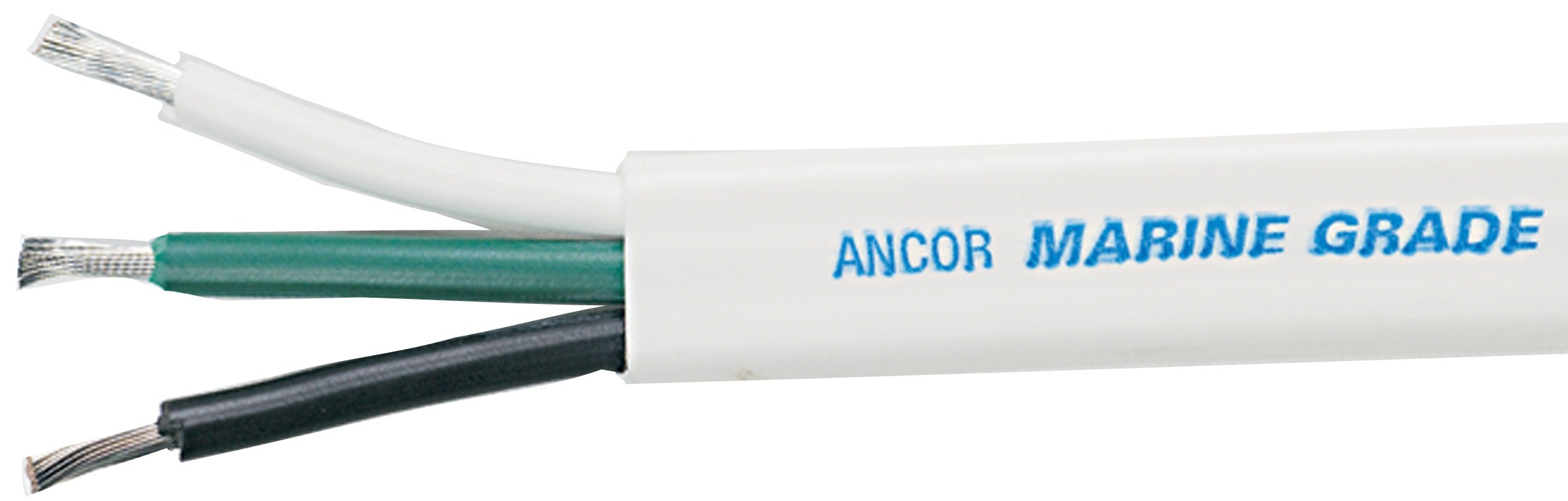

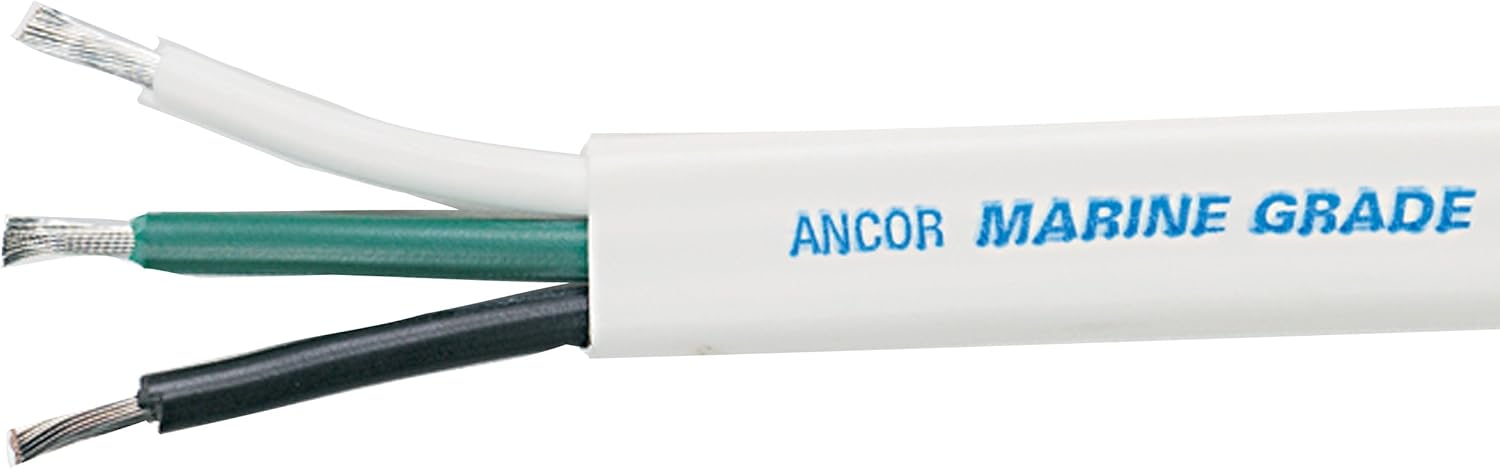

White Triplex Cable - 8/3 AWG - Flat - 100' — Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing. Outer jacket is made for easy removal and provides the best abrasion resistance available. Ancor's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket. Tinned copper stranding provides corrosion and electrolysis resistance. Exceeds UL 1426, ABYC, and CFR Title 46 standards. Length: 100 ft. Gauge: 8/3 AWG. Color: Black/Green/White. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Sport type: Boating
- Exclusive insulation is rated at 600 Volts.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection.
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments.
Specifications:
| Materials & Construction | |
| Color | Black/Green/White |
| Material | Copper |
| Product Details | |
| Included Components | Does not apply |
| Number of Items | 1 |
| Sport Type | Boating |
| Style | 8 Awg, Flat Triplex |
| Warranty Description | As labeled |
| Sizing & Dimensions | |
| Height | 11 inches |
| Length | 11 inches |
| Product Dimensions | 11 x 11 x 11 inches |
| Size | 1200 inches |
| Weight | 28.7 pounds |
| Width | 11 inches |
| Technical Specifications | |
| Gauge | 8/3 Awg |
| No. of wires | 3 |
| Number of Cable Strands | Multi Strand |
| Voltage | 600 Volts |
