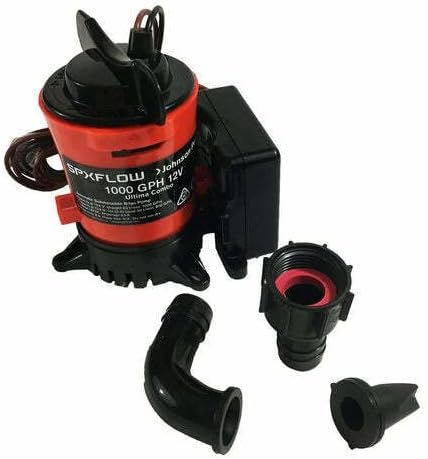

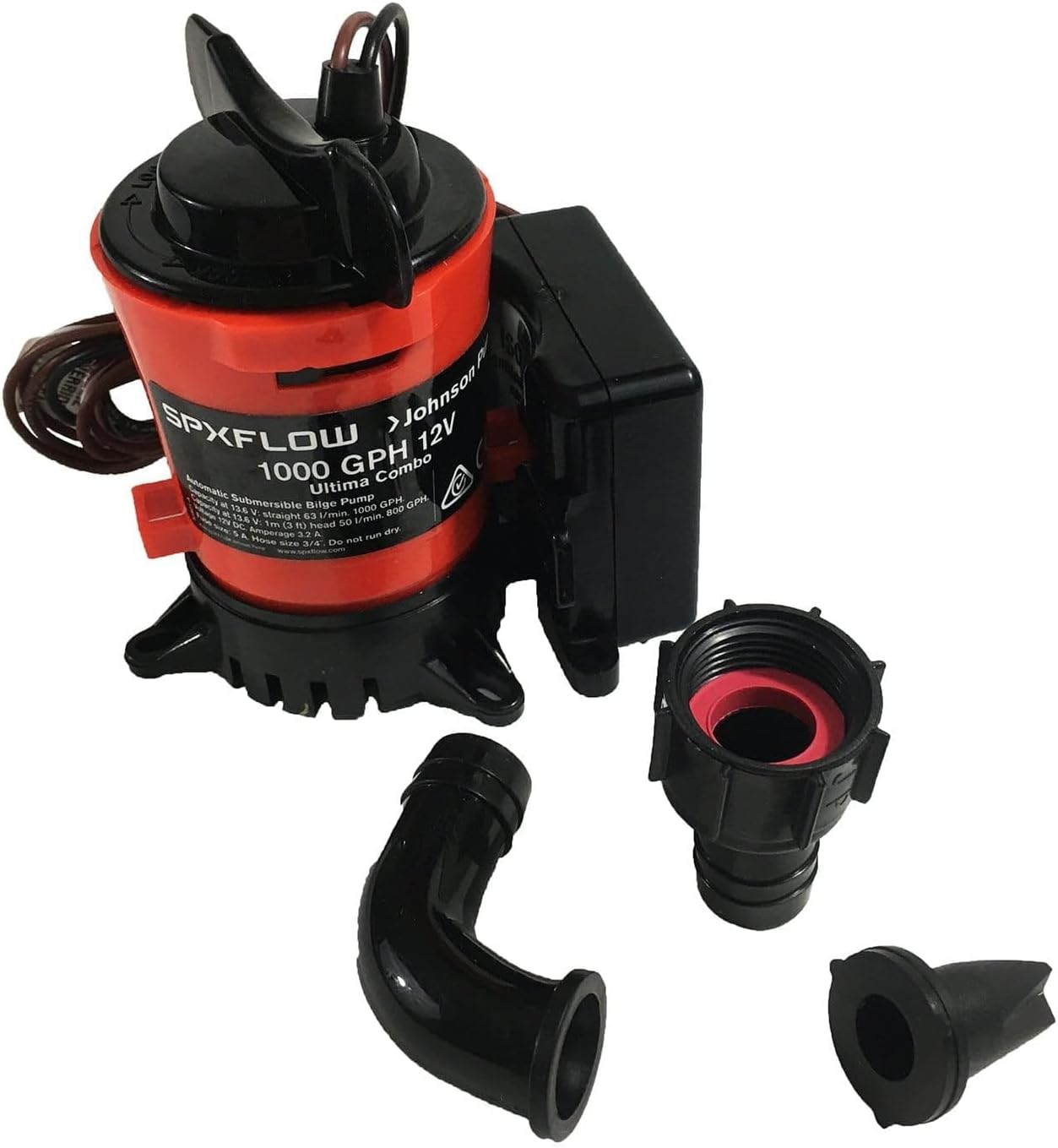

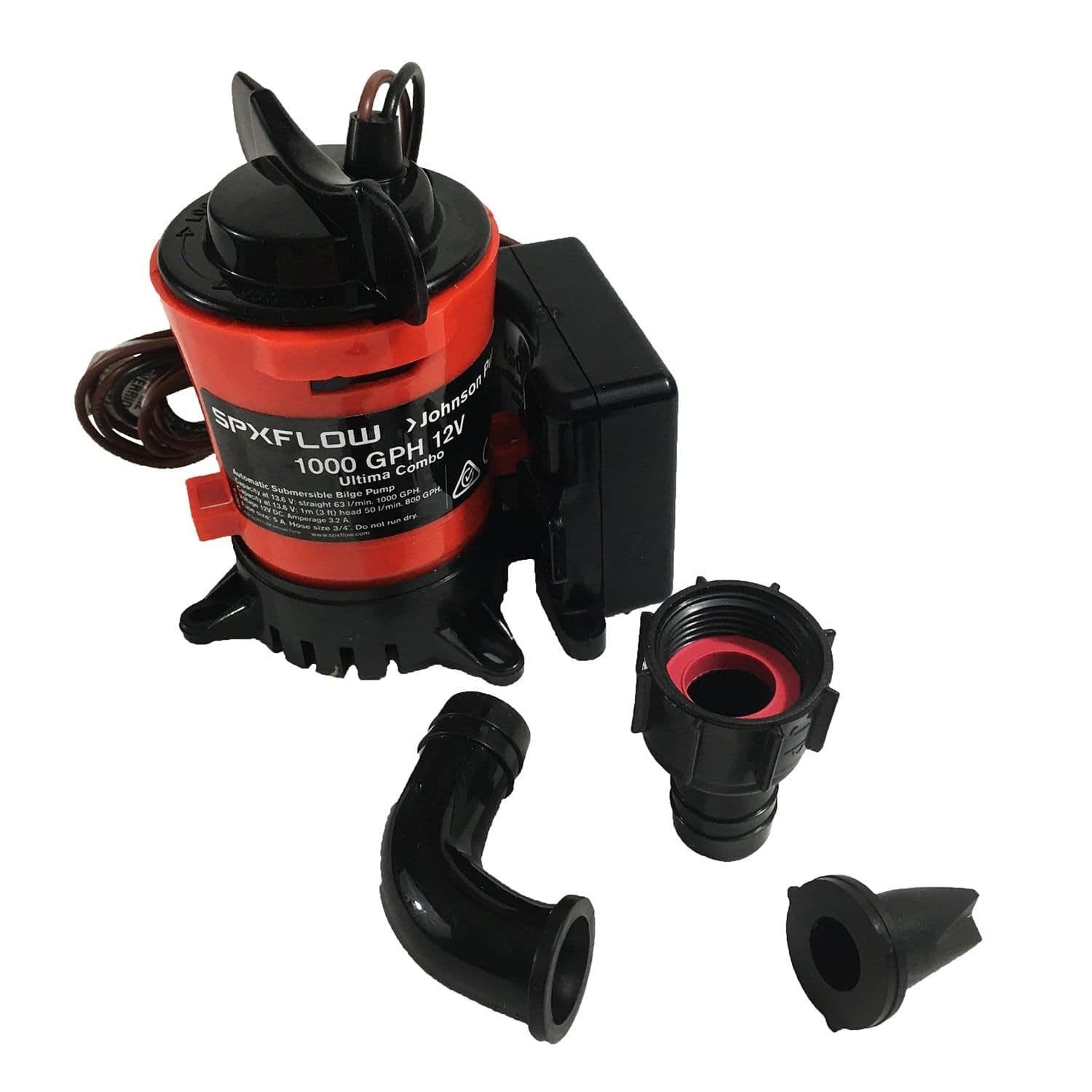

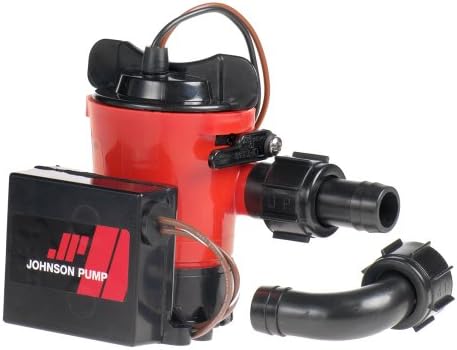

Johnson Pump Ultima Combo Bilge Pump 1000 GPH 3/4" Dura-Port
Customize
1000 GPH Ultima Combo Automatic Submersible Bilge Pump 12V. Johnson Pump Marine Ultima Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with the non-clogging electronic Ultima Switch for automatic operation. The electronic Ultima Switch uses patented Mirus field effect detector cells producing micro-electrical fields that detect water level and automatically activate/deactivate the pump. CE-Approved. Features: pre-configured with an electronic Ultima Switch for automatic operation; capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH; extremely energy efficient; water-cooled motor for long service intervals; compact all-in-one motor/impeller unit with stainless steel (SS2343) shaft; no tools needed for maintenance — pump casing can remain attached to boat and hoses; 500/750/1000 GPH pumps include Dura-Port discharge ports to eliminate stress cracking from over-tightened hose clamps; delivered including both straight and 90° smooth elbow Dura-Port and removable check valve. Pump body: thermoplastic. Shaft seal: lip seal. Shaft: stainless steel. Voltage: 12V. Wire size: 16GA. Hose size: 3/4". Includes Dura-Port connection. (Also marketed as Johnson Pumps Ultima Combo Bilge Pump 1000 GPH.)
- Cartridge Allows Easy Replacement Of Motor Element
- Package Weight :12.0Lbs
- Country Of Origin :United States
- Package Dimensions :10.0 " L X11.0 " W X12.0 " H
- Product Type :Electronic Switch
Materials & Construction
- Material:Plastic
- Outer Material:Plastic
Product Details
- Gallons Per Hour:1000 Gph
- Included Components:Johnson Pumps Ultima Combo Bilge Pump 1000 GPH
- Maximum Flow Rate:1000 Gallons Per Minute
- Maximum Lifting Height:3 Feet
- Operation:Automatic
- Part Number:07903-00
- Power Source:Ac/dc
- Style:Bilge Pump
- Type:Electric
Sizing & Dimensions
- Height:4 inches
- Length:8 inches
- Product Dimensions:8 x 7 x 4 inches
- Size:One Size
- Weight:1.102 pounds
- Width:7 inches
Technical Specifications
- Amperage:3.2 A
- Connection:3/4"
- Fuse Size:5 A
- Voltage:12 Volts
