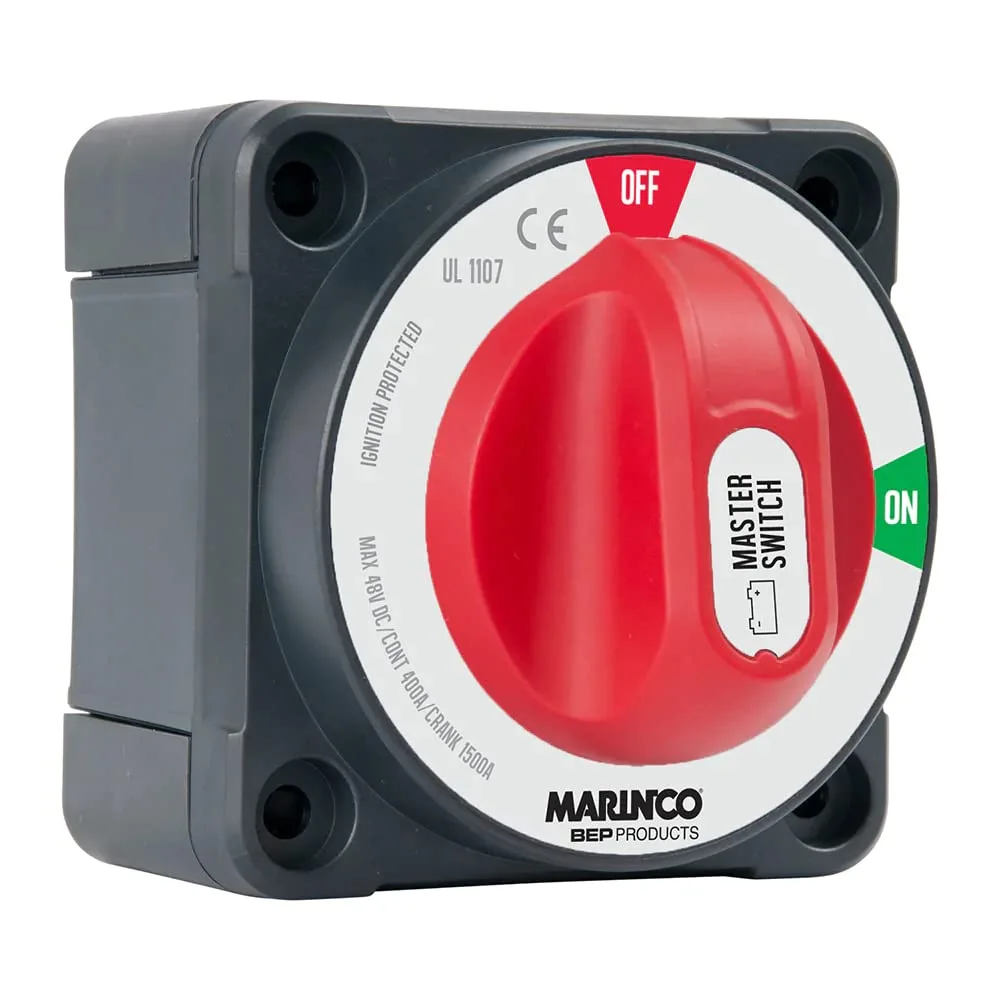

BEP Pro Installer 400A Double Pole Battery Switch, Red/Black Plastic - 770-DP
Customize

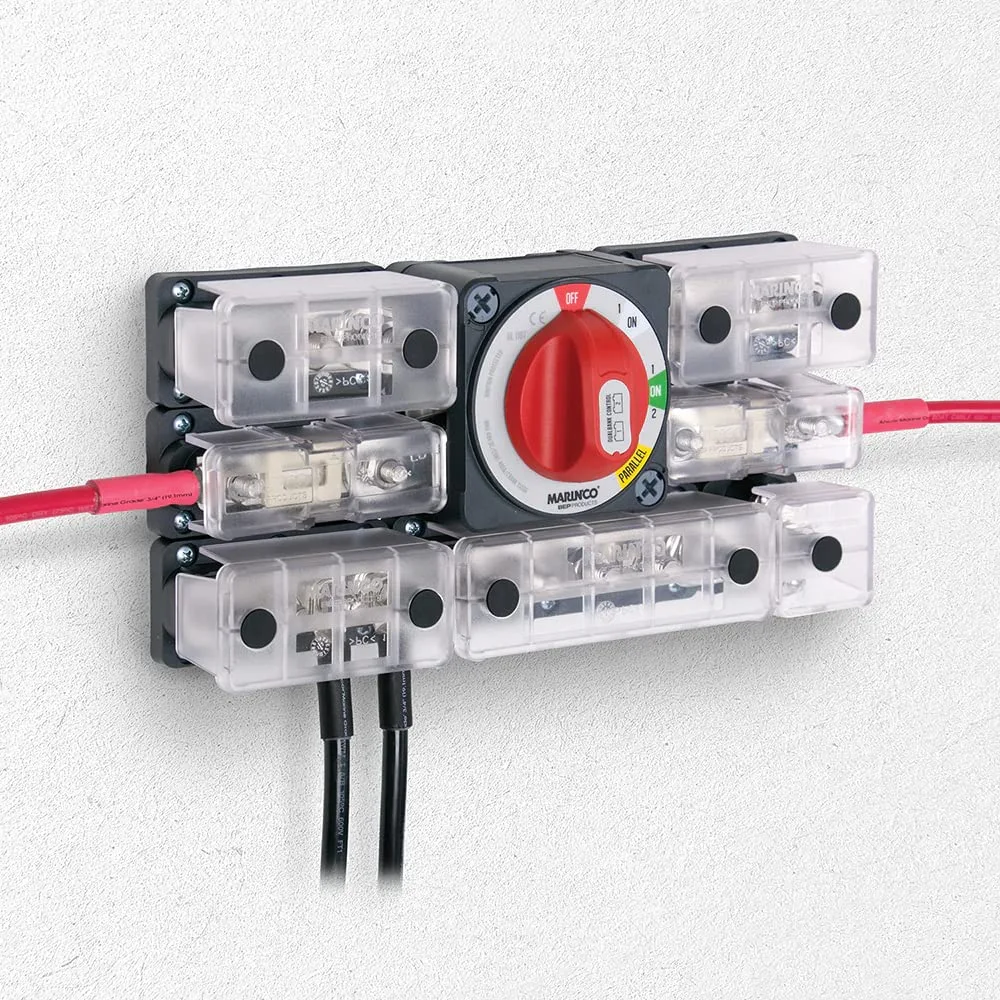

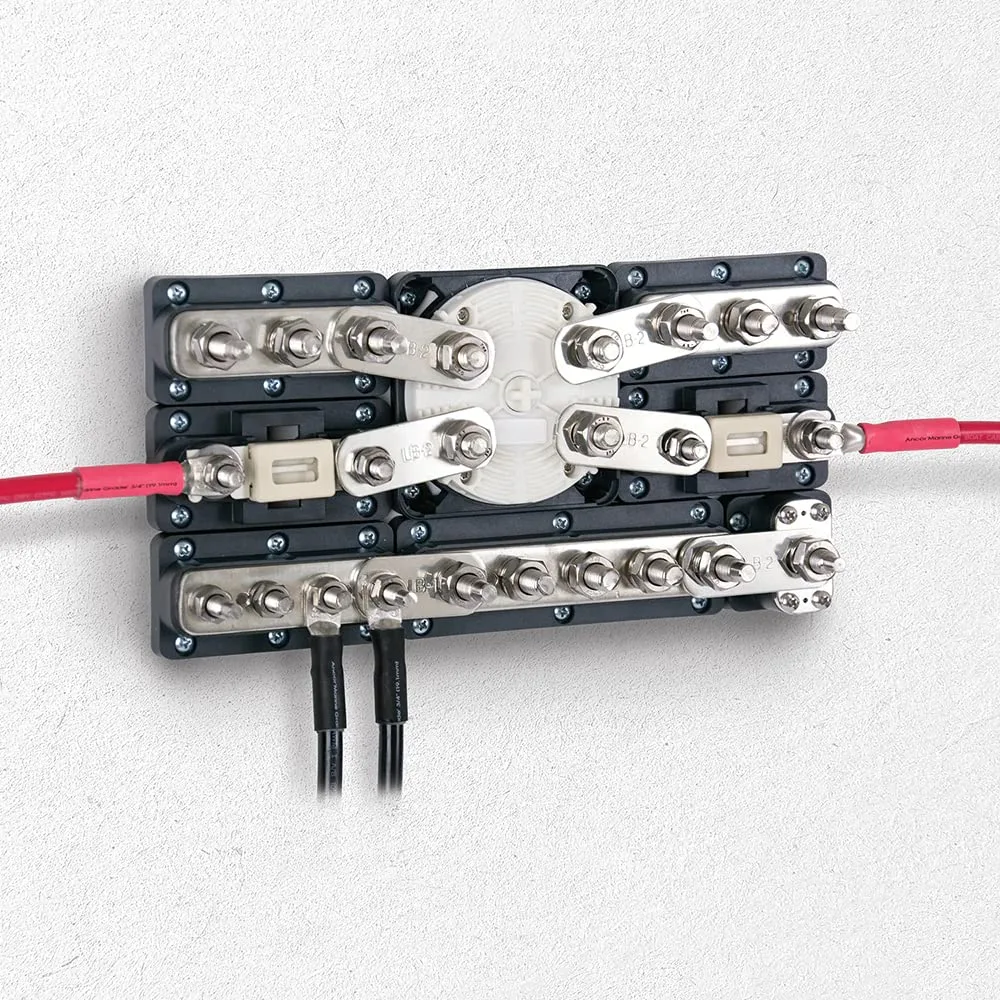

Pro Installer 400A Double Pole Battery Switch - MC10. A powerful new generation battery switch with outstanding performance and features for both the installer and end user. Three mounting options: surface, rear panel, and front panel mounting, plus optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. Same industry standard mounting with On/Off operation. Used where positive and negative supplies must be isolated at the same time. SAFETY NOTE: BEP does not recommend this for switching house and start battery systems at the same time, for safety reasons. You may need to isolate your engine battery in an emergency, but not your house battery which typically powers the communications. Note: 770-DP is replacing 720-DP. 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking. Fiber reinforced plastics. Stainless steel washers/nuts. Tinned copper 10mm (3/8") studs. Tested to UL1107 ignition protection, CE.
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking
- Fiber reinforced plastics
- Stainless steel washers/nuts
- Tinned copper 10mm (3/8") studs
- Tested to UL1107 ignition protection, CE
Specifications:
| Materials & Construction | |
| Terminal | Blade |
| Product Details | |
| Actuator Type | Push Button or Rotary or Hinge Lever or Plunger |
| Afd | No |
| Circuit Type | parallel |
| Connector Type | Stud |
| Contact Type | Normally Open |
| Continuous Amperage | 400a |
| Country of Origin | USA |
| Current Rating | 400 Amps |
| Is Discontinued By Manufacturer | No |
| Item model number | 770-DP |
| Lockable | No |
| Operating Voltage | 48 Volts |
| Operation Mode | ON OFF |
| Positions | On/Off |
| Terminal | Blade |
| Sizing & Dimensions | |
| Height | 4 inches |
| Item dimensions L x W x H | 8 x 7 x 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 4 inches; 1.32 Pounds |
| Weight | 1.32 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Continuous Amperage | 400a |
| Current Rating | 400 Amps |
| Operating Voltage | 48 Volts |
| Operation Mode | ON OFF |
