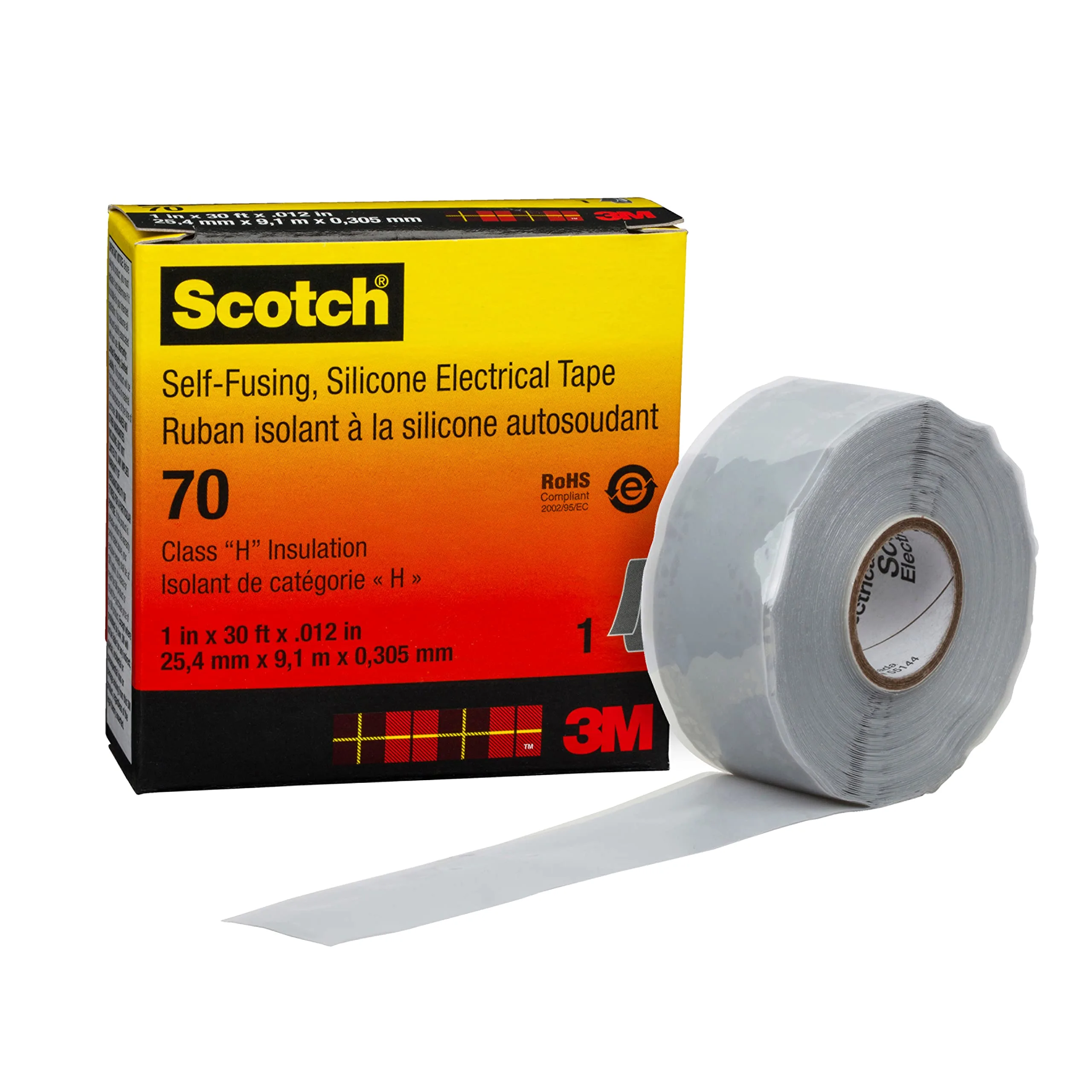

3M Scotch Self-Fusing Silicone Rubber Electrical Tape, High-Temperature, 1 in x 30 ft, Sky Blue/Gray
3M SCOTCH self-fusing silicone electrical tape (Series 70), 1 in x 30 ft. High-temperature, arc- and track-resistant silicone overwrap for terminating and protecting high-voltage cables. Sky Blue/Gray color.
$157.55
Customize
Available Quantity
49 GSA Item
No GSA Compliant
Yes Product Details

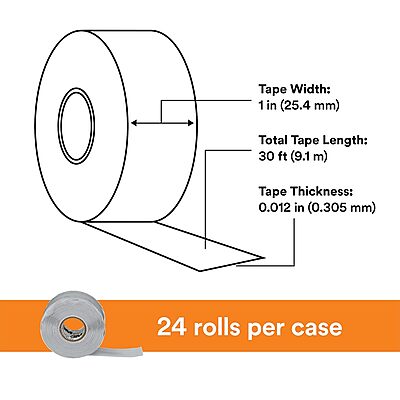

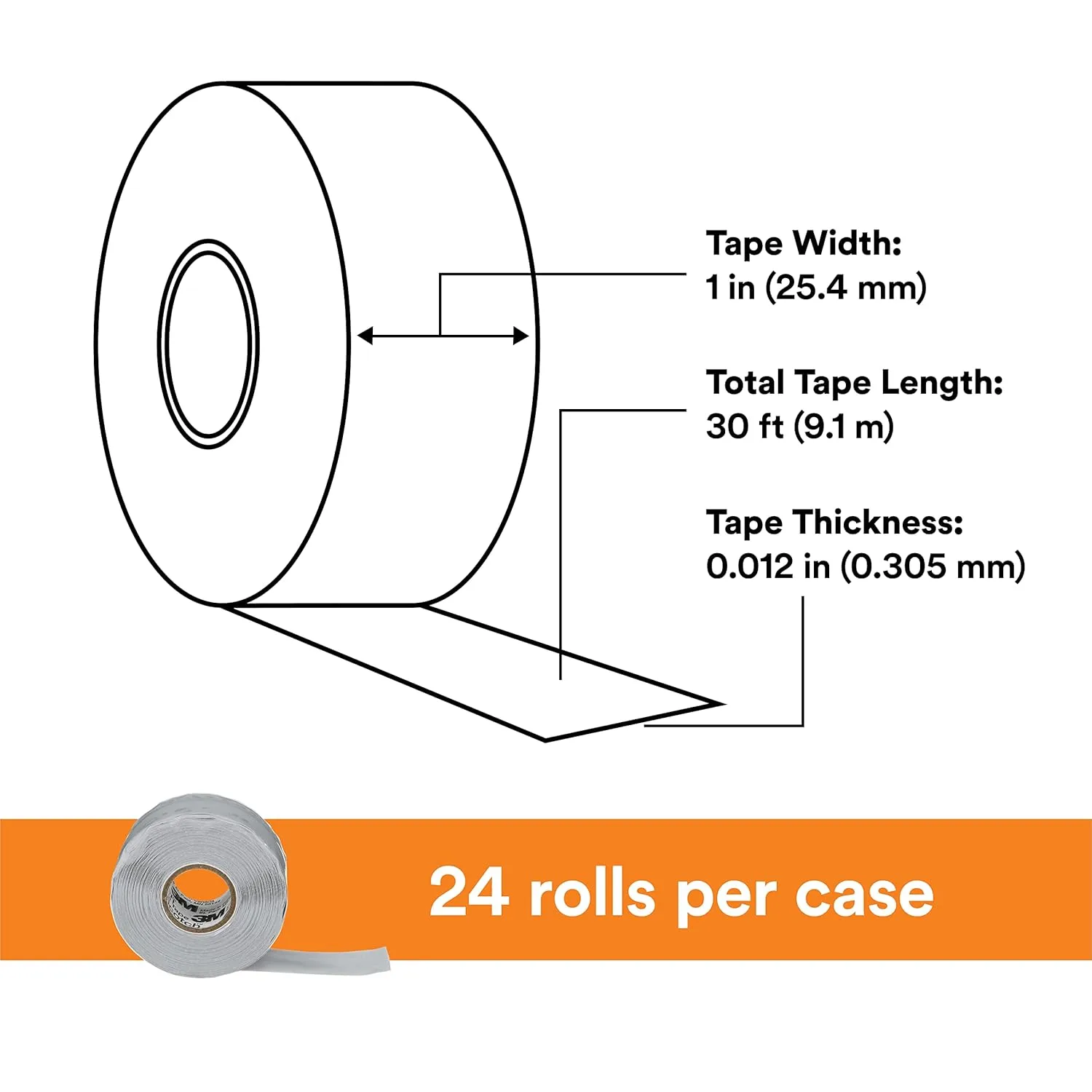

3M Scotch Self-Fusing Silicone Rubber Electrical Tape (Series 70) is a high-temperature, arc- and track-resistant self-fusing inorganic silicone rubber tape with an easy-tear, easy-strip liner. Designed for use as a protective overwrap for terminating high-voltage cables, it provides conformable silicone rubber backing and a highly conformable silicone adhesive. Typical applications include wrapping and overwrap protection for high-voltage cable terminations. Series 70 features: Width: 1 inch; Length: 30 ft (10 yd, 9.14 m); Thickness: 12 mil (per ProductDatabase details); Adhesive Material: Silicone; Maximum Operating Temperature: 180 C. Packaged 24 per carton. RoHS compliant.
- For industrial/occupational use only. Not for consumer sale or use

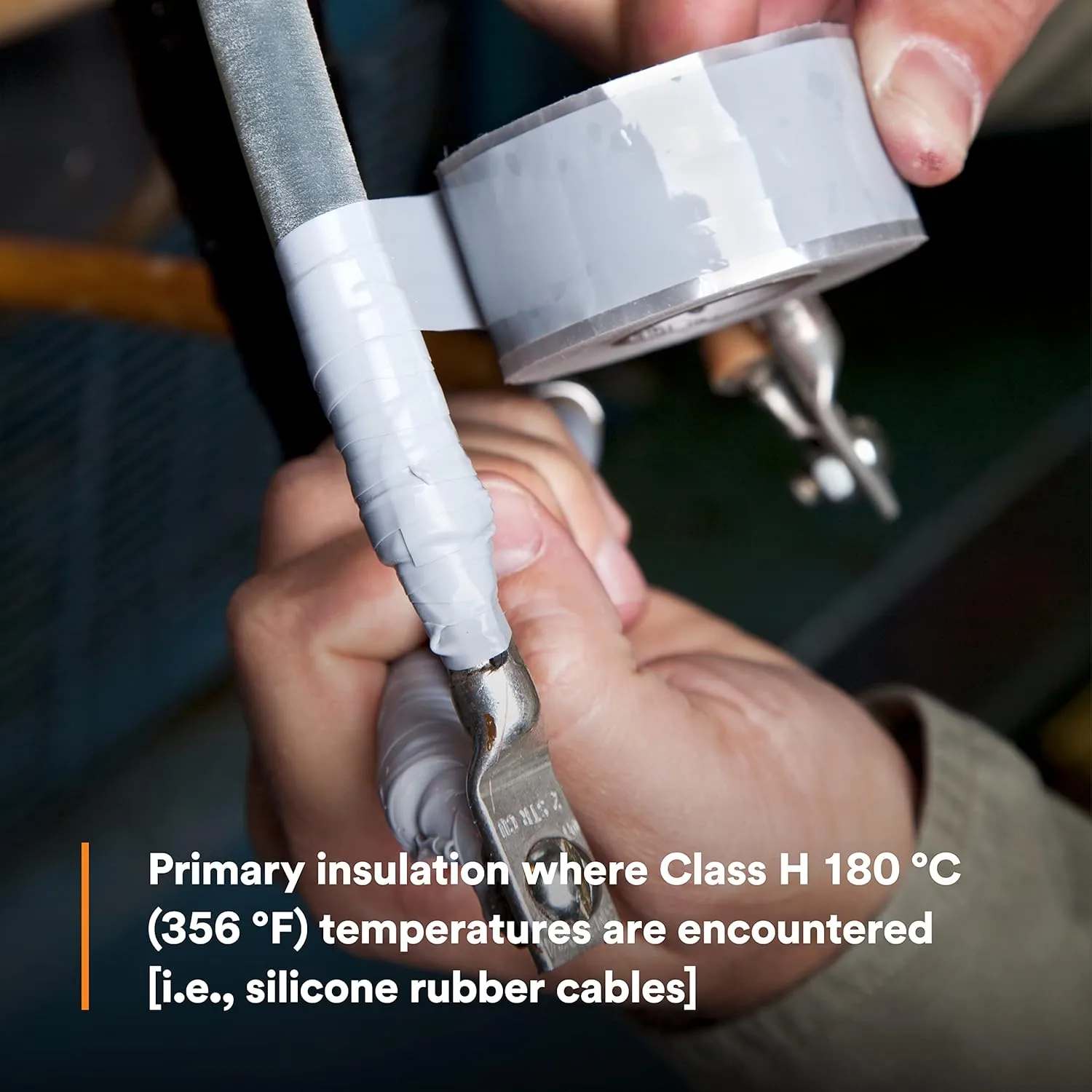

- PRIMARY INSULATION: Where Class H 180 C (356 F) temperatures are encountered (i.e., silicone rubber cables)

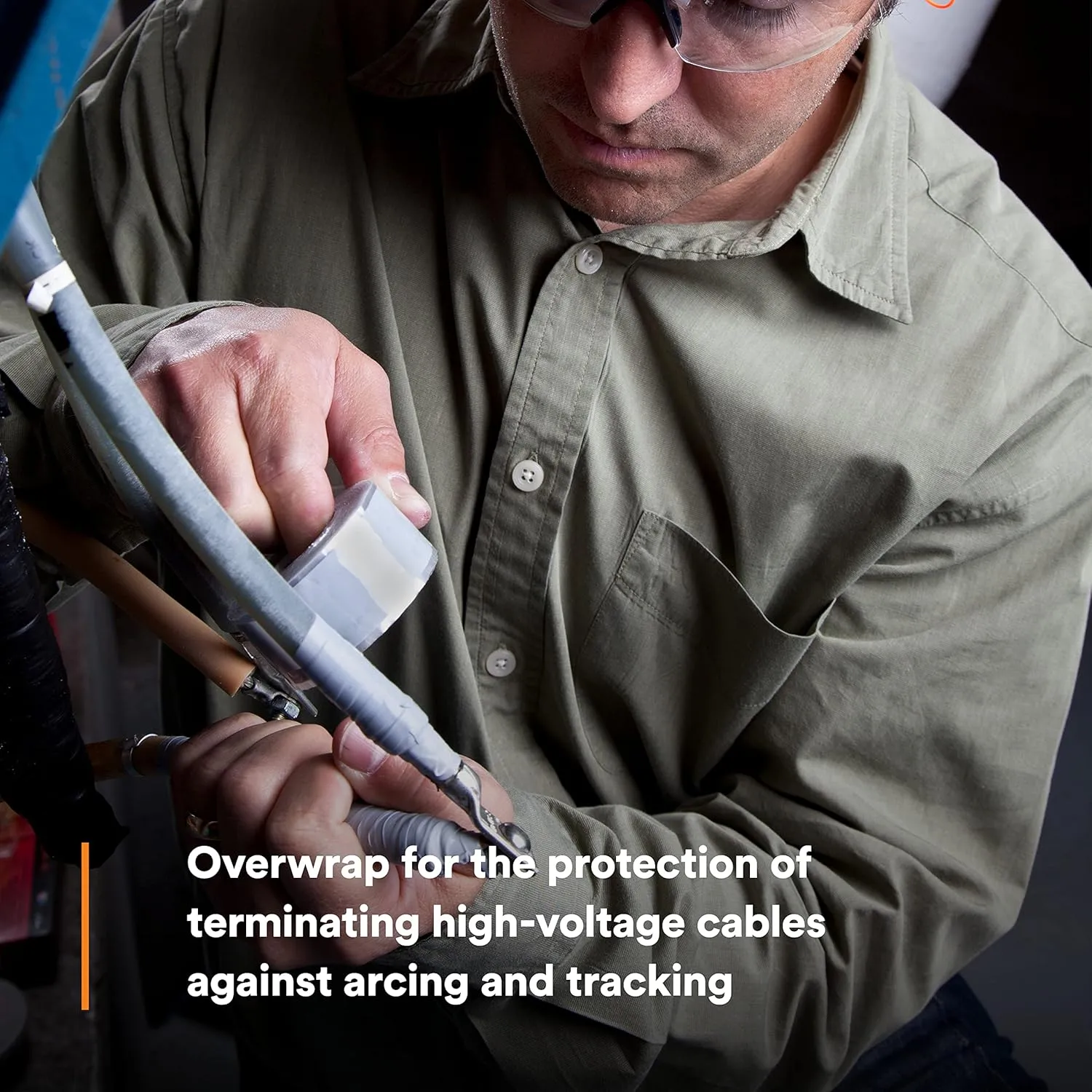

- FOR USE AS AN OVERWRAP: Overwrap for the protection of terminating high-voltage cables against arcing and tracking

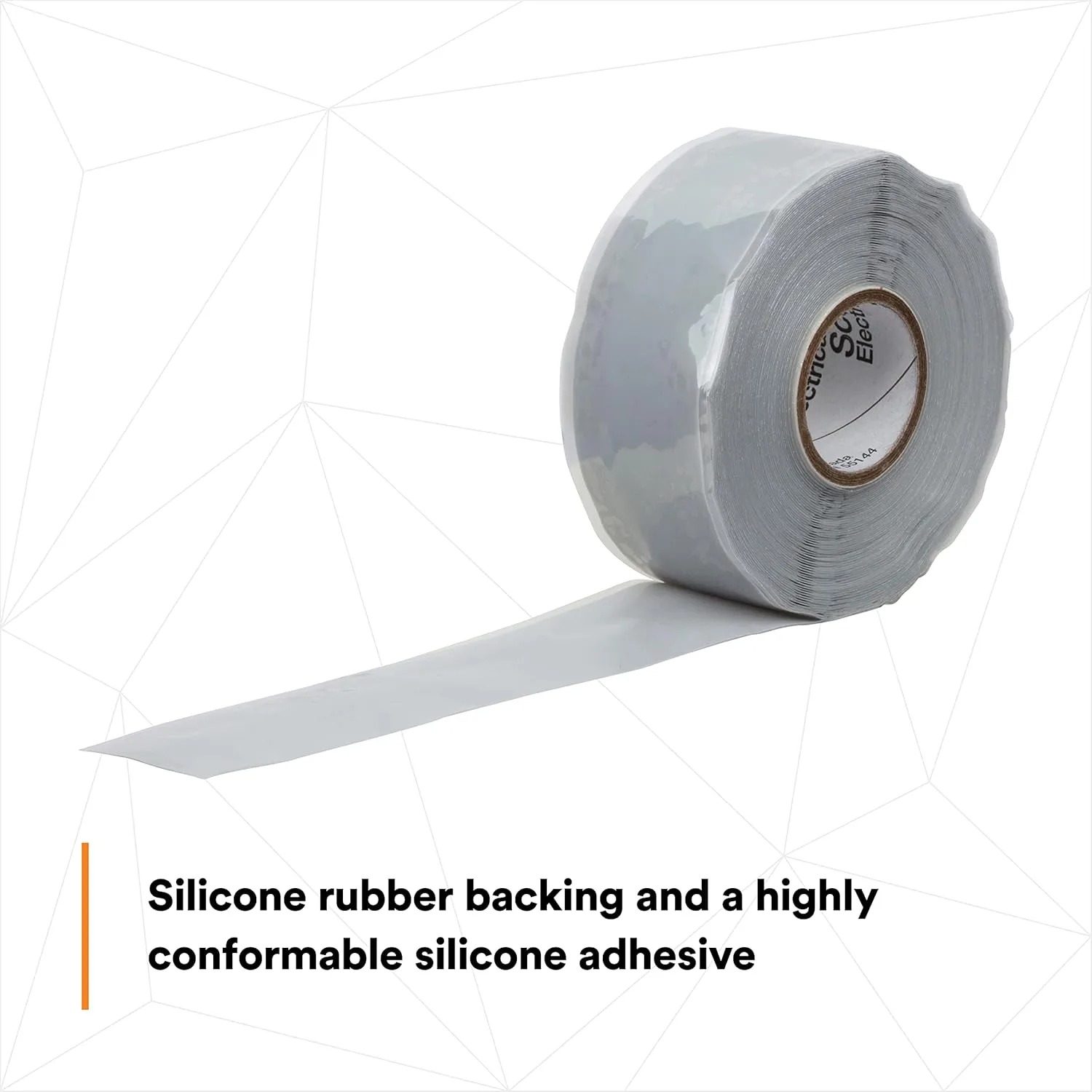

- CONFORMABLE: Silicone rubber backing and a highly conformable silicone adhesive

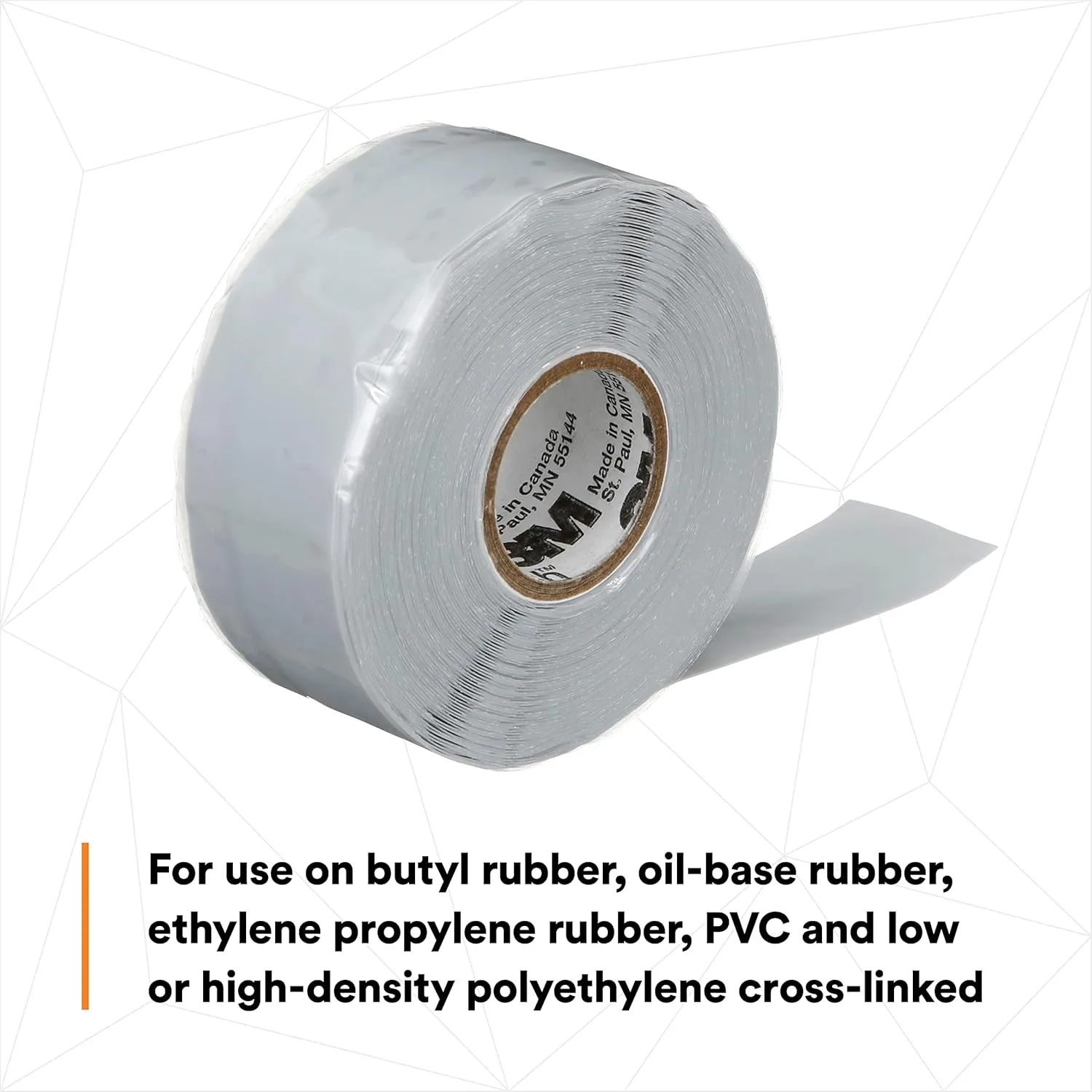

- HIGH-VOLTAGE CABLES INSULATIONS: For use on butyl rubber, oil-base rubber, ethylene propylene rubber, PVC and low or high-density polyethylene cross-linked
Specifications:
| Materials & Construction | |
| Color | Sky Blue/Gray |
| Material | Silicone |
| Outer Material | Silicone |
| Product Details | |
| Applications | Wrapping |
| Number of Items | 1 |
| Recommended Uses For Product | Electrical |
| Series | 70 |
| Series Part Number | 70 |
| Sizing & Dimensions | |
| Length | 360 inches |
| Product Dimensions | 1.18 x 0.98 x 3.23 inches; 3.53 ounces |
| Size | 1 in x 30 ft |
| Weight | 3.53 ounces |
| Width | 0.94 inches |
| Technical Specifications | |
| Adhesive Material | Silicone |
| Length (Meters) | 9.14 |
| Length Ft. | 30.00 |
| Length Range | 6 To 11.9 yd |
| Maximum Operating Temperature C | 180.00 |
| Thickness (Mil) | 12.0000 |
| Unspsc Code | 31201502 |
| Width (Inch) | 1 |
