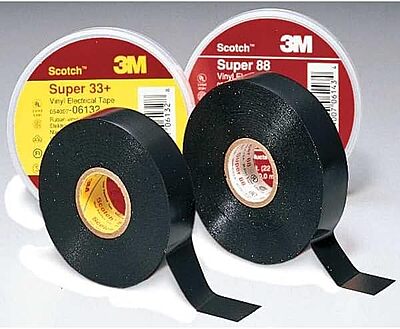

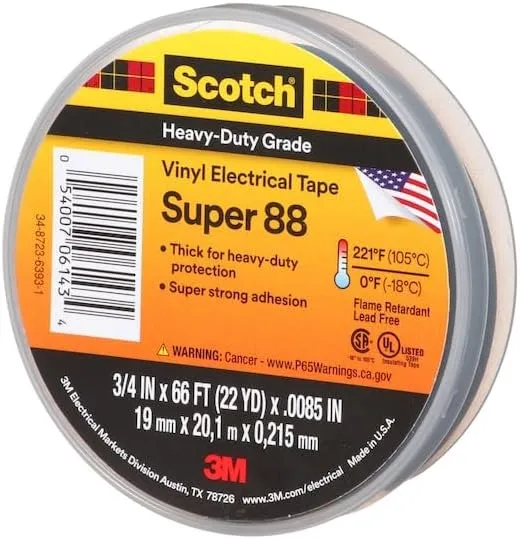

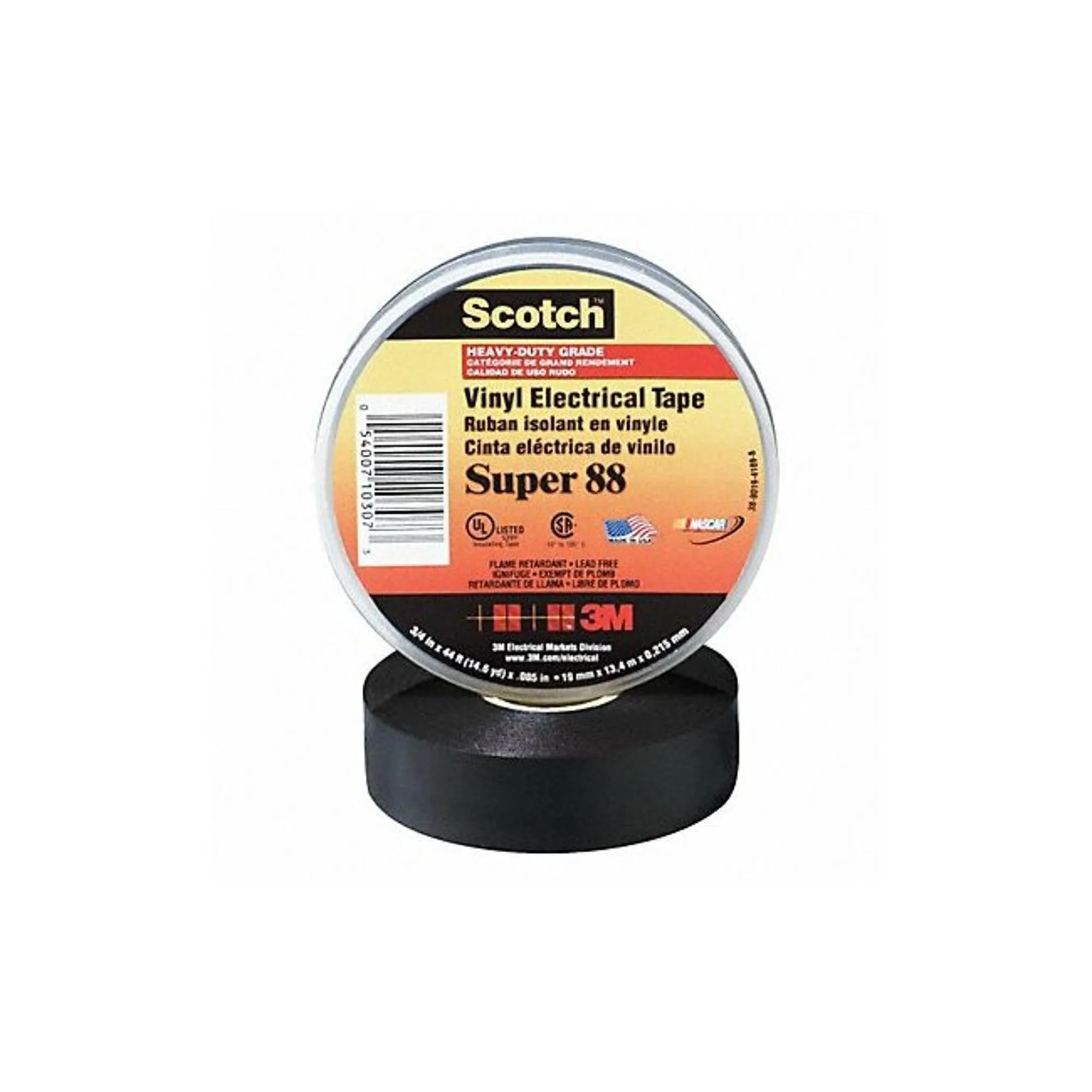

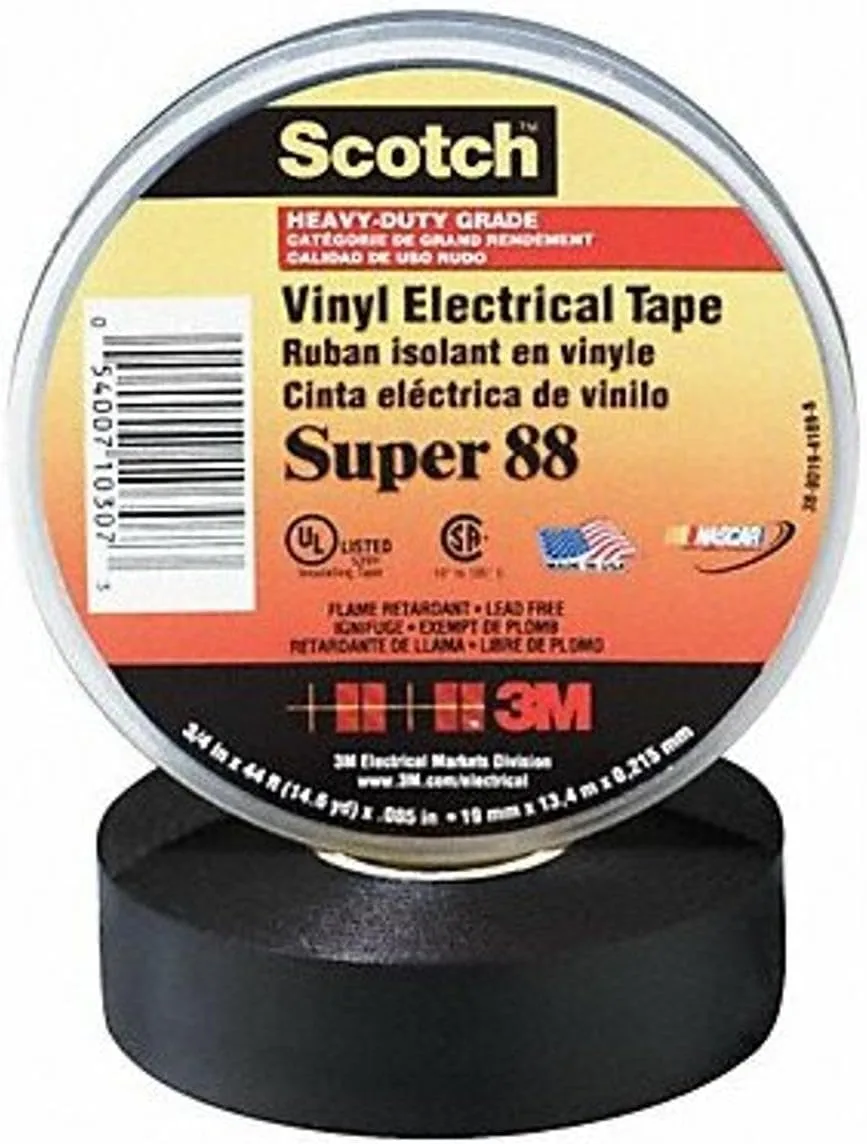

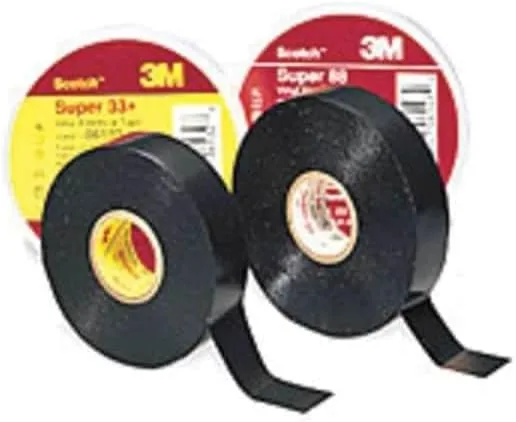

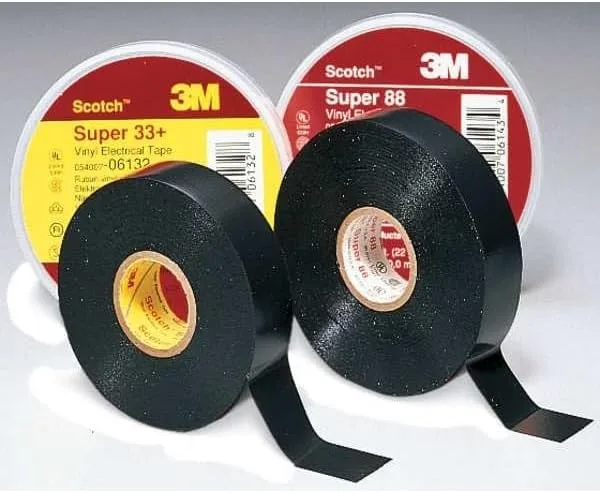

3M 6143 1 Pack Scotch Premium Vinyl Elec Tape 88
Customize
3M Scotch 88 premium vinyl electrical tape (Series 88) is a flame retardant, rubber-based adhesive vinyl insulating tape designed for electrical applications. Available in 3/4" x 66 ft (0.75" x 66 ft) with an 8.5 mil thickness, it provides primary electrical insulation for wire and cable splices rated up to 60 volts and is suitable for bundling, insulating and protecting wiring. Meets relevant standards including ASTM D-3005 Type 2; CSA certification; MIL-I-24391C; UL 510 File E129200; VDE 0340. Tensile strength ~20 lb/in. Operating temperature range from 0 to 220 °F (−17.78 °C to 104.44 °C). Backing: PVC/vinyl; adhesive: natural rubber / rubber-based. Common applications: harnessing wires and cables, insulating splices, corrosion inhibition of conductors.
- Flame retardant, lead free.
- Harnessing of wires and cables.
- Primary electrical insulation for all wire and cable splices rated up to 60 volts.
Specifications:
| Materials & Construction | |
| Adhesive Material | Natural Rubber |
| Color | Black |
| Compatible Material | Vinyl |
| Material | Vinyl |
| Outer Material | Vinyl |
| Product Details | |
| Applications | Bundling; Insulating; Protecting |
| Backing Material | Vinyl |
| Dispenser Included | No |
| Global Product Type | Electrical Tape |
| Number of Items | 1 |
| Recommended Uses For Product | Electrical |
| Series | 88 |
| Special Feature | Rubber-based |
| Standards | Astm D-3005 Type 2; Csa Certified; Mil-I-24391c; Ss 404 09 75; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340 Teil 3-1 |
| Surface Recommendation | Electrical Wires |
| Tensile Strength (Lb./Inch) | 20.00 |
| Water Resistance Level | Water Resistant |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length (Meters) | 20.12 m |
| Length Ft. | 66.00 ft |
| Length Range | 12 To 35.9 yd |
| Length | 7.5 inches |
| Product Dimensions | 7.5 x 4.75 x 4 inches |
| Size | 0.75" x 66 ft |
| Thickness (Mil) | 8.5000 mil |
| Weight | 2.95 pounds |
| Width (Inch) | 0.75 inches |
| Width | 4.75 inches |
| Technical Specifications | |
| Applications | Bundling; Insulating; Protecting |
| Maximum Operating Temperature C | 104.44 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | -17.78 |
| Minimum Operating Temperature F | 0.00 |
| Tensile Strength | 20 lb/in |
