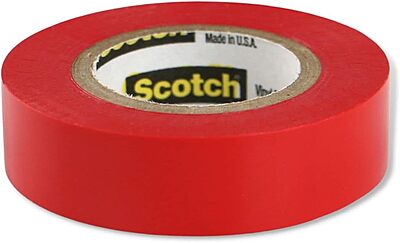

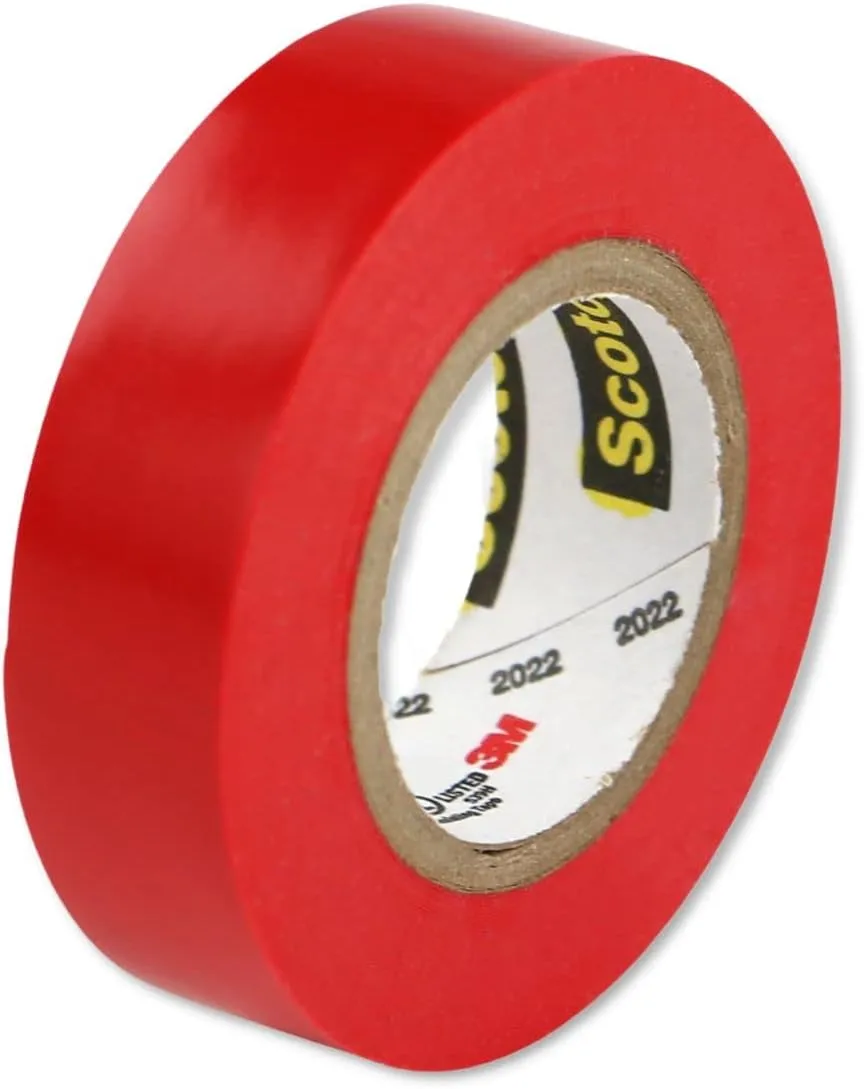

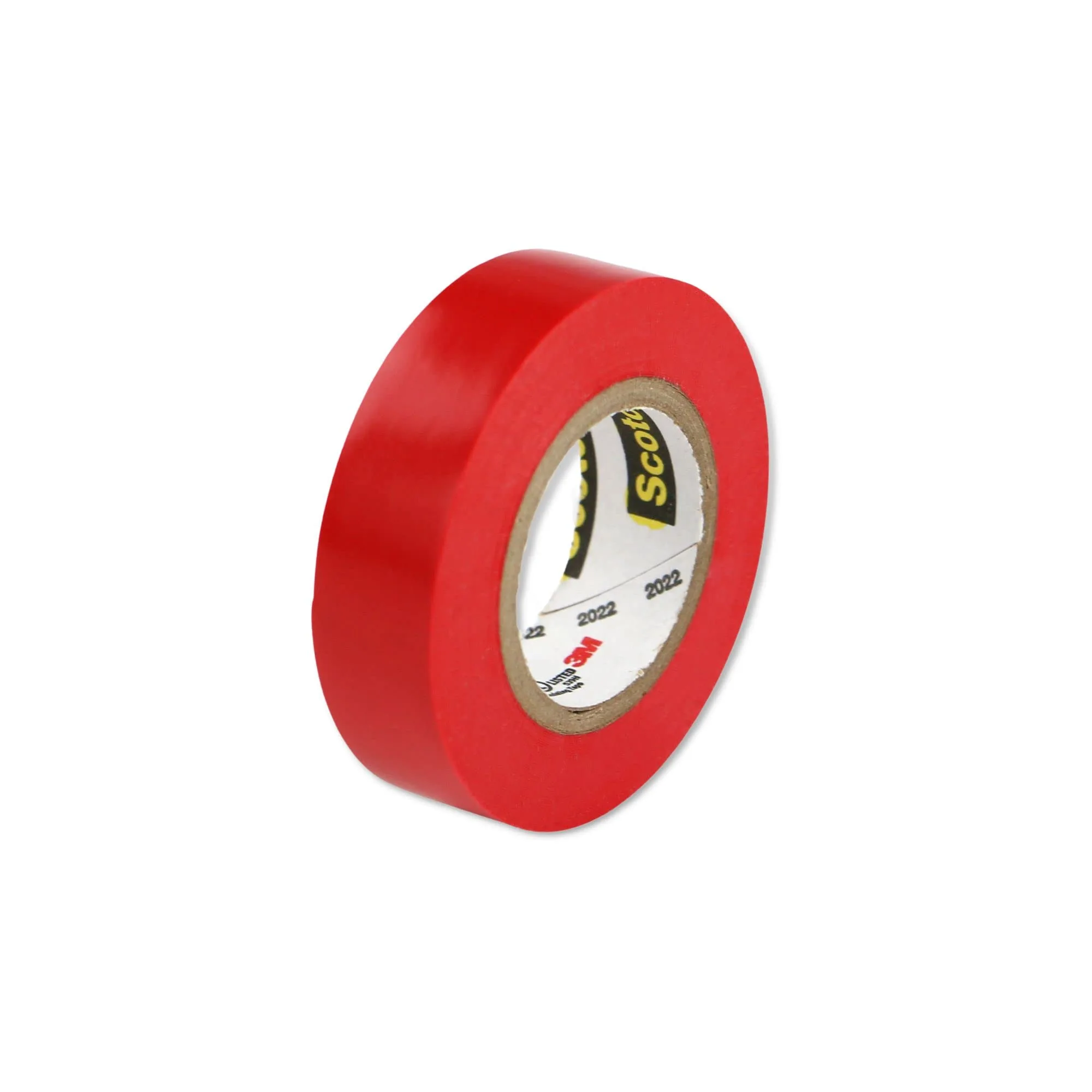

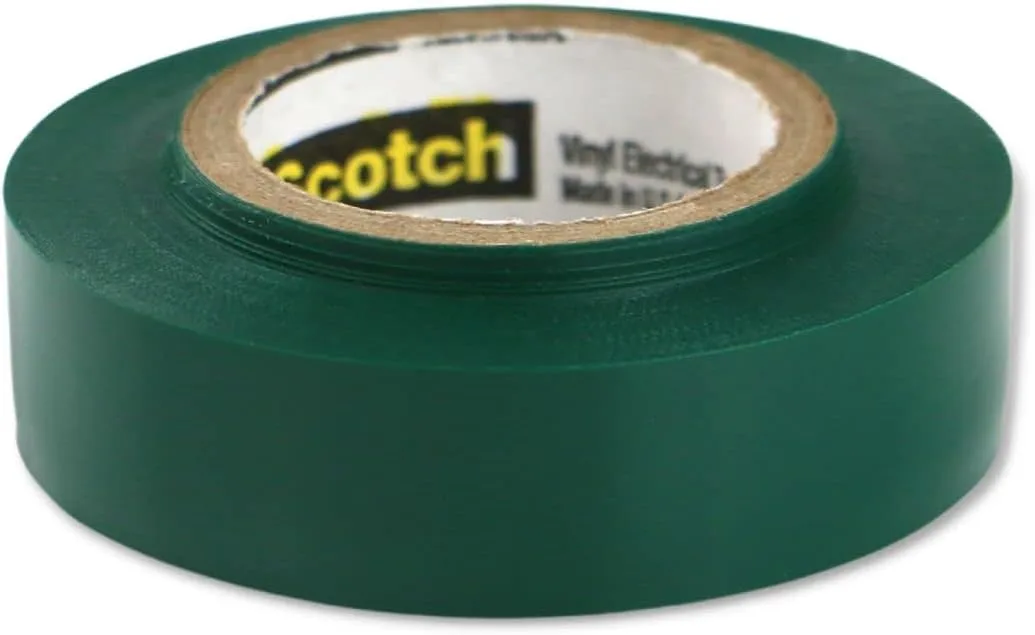

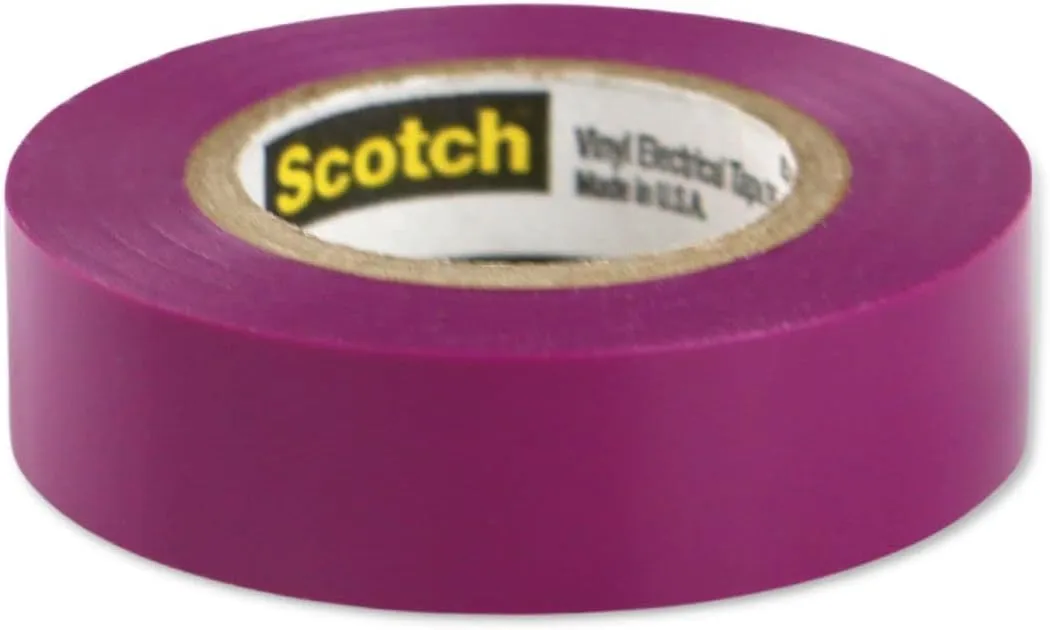

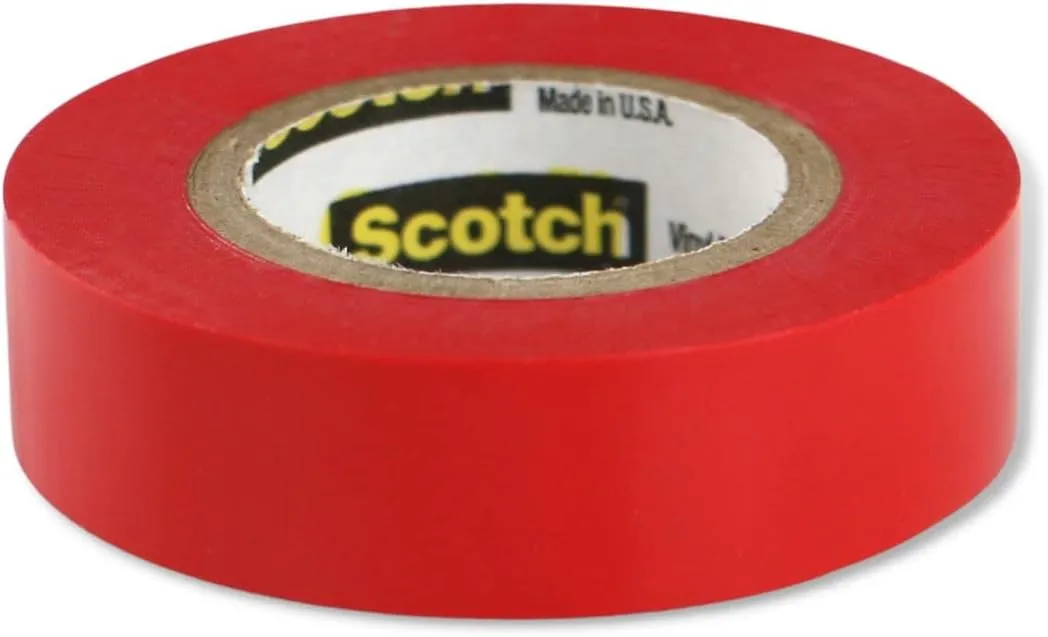

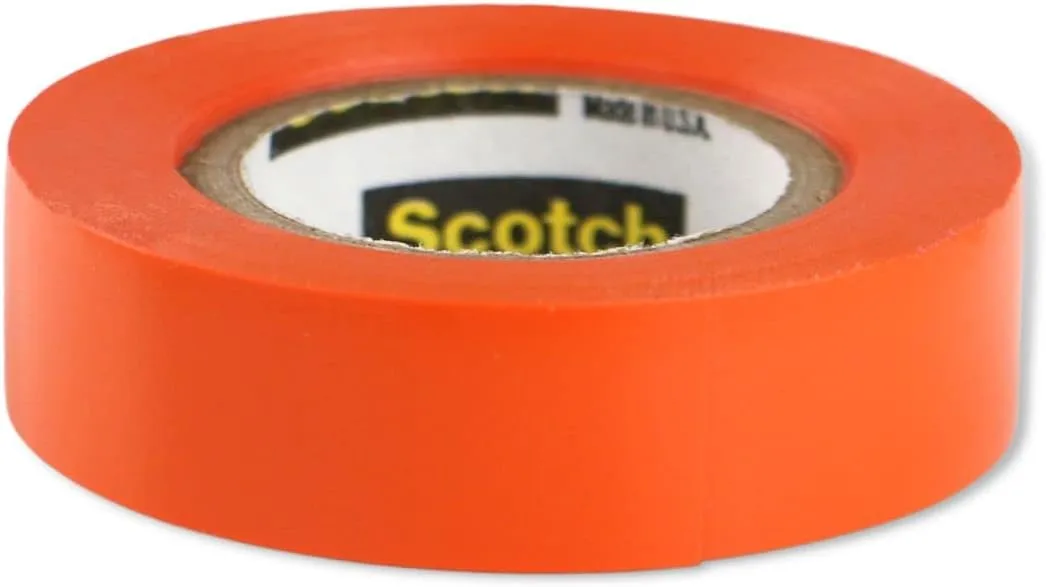

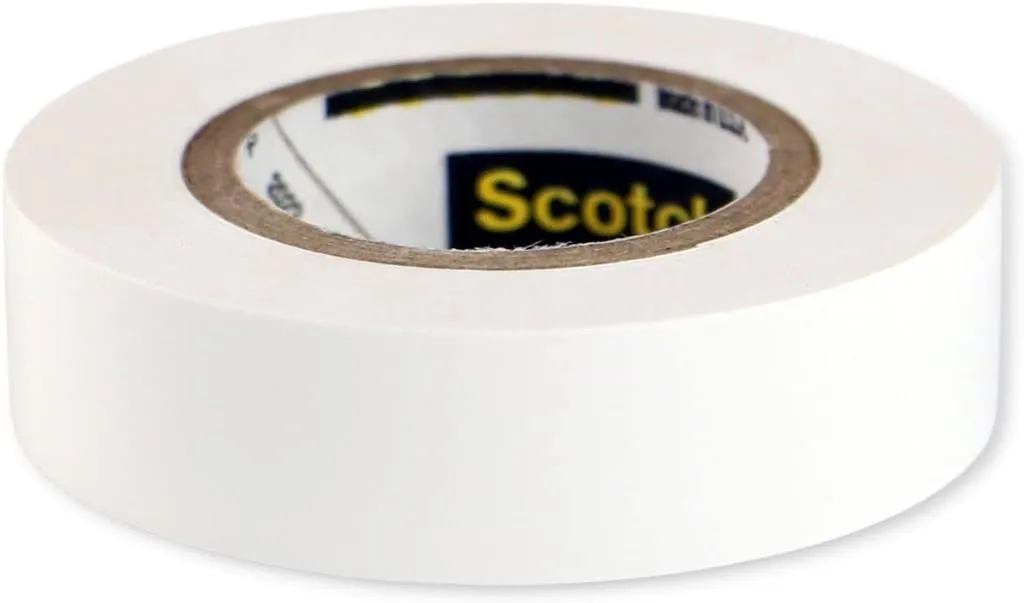

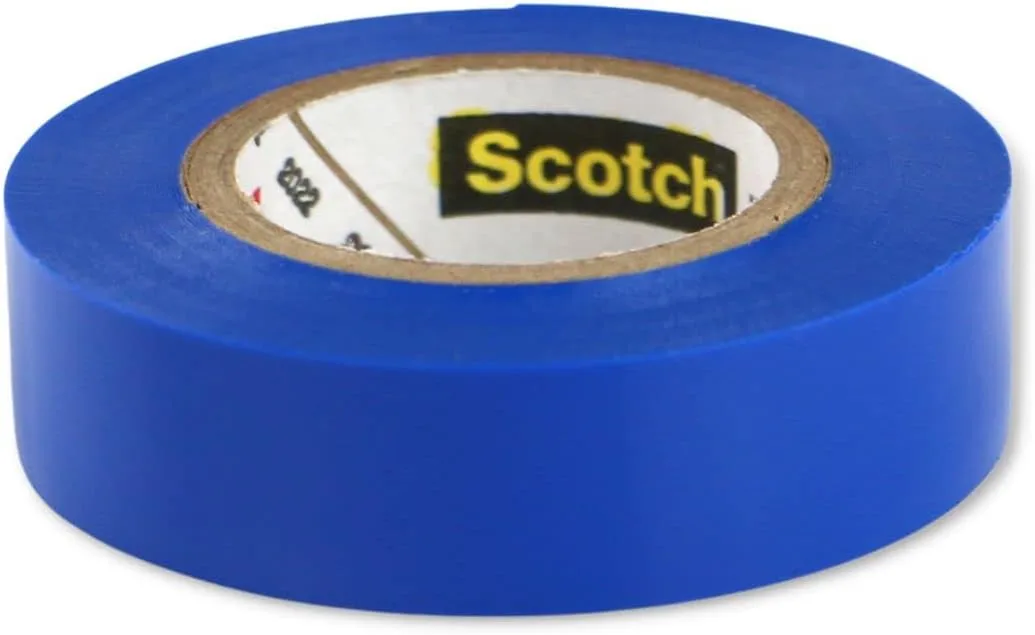

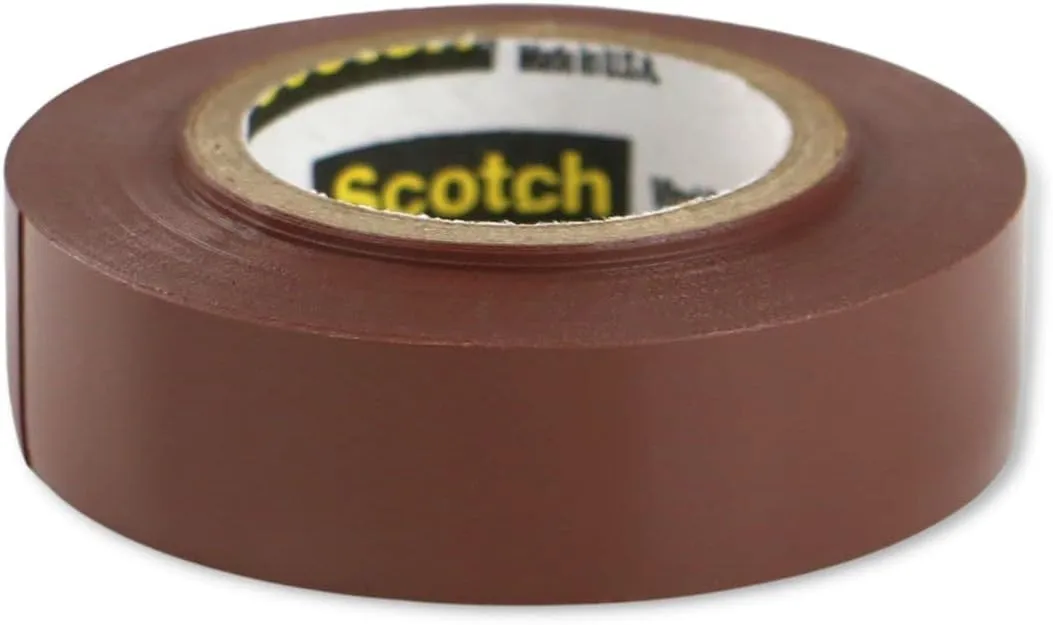

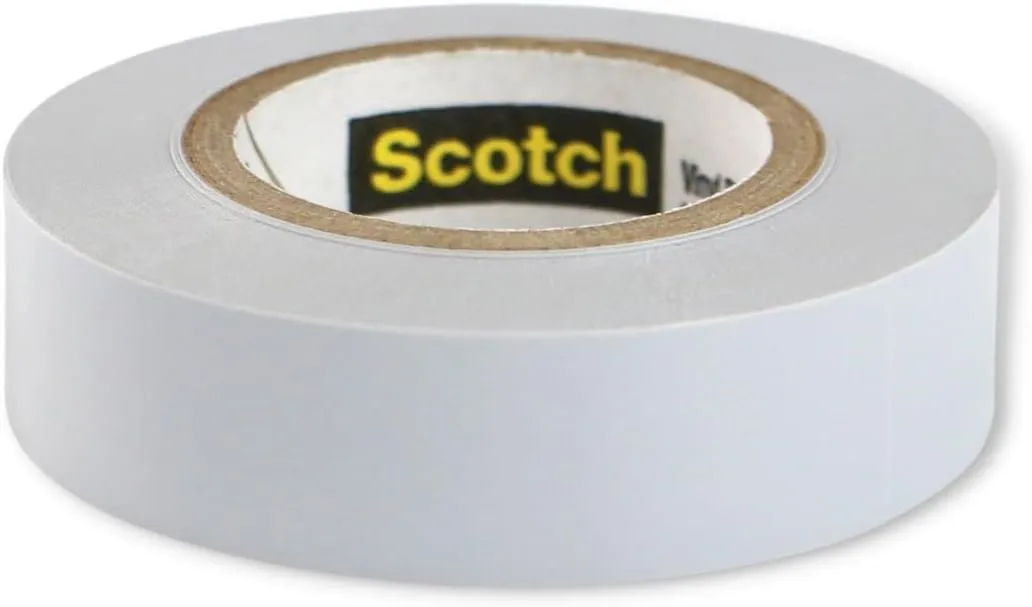

3M Scotch 35 Polyvinyl Chloride Color Coding Electrical Tape, 0 to 221 Degree F, 1250V/mil Dielectric Strength
3M Scotch 35 PVC electrical tape — 1/2 in x 20 ft, 7 mil thickness, 1250 V/mil dielectric strength, temperature range 0–221°F. Flame retardant, UV resistant; ideal for color coding, insulating and wrapping.
$5.54
Customize
UPC
54007102243 Available Quantity
447 GSA Item
No GSA Compliant
Yes Product Details
3M Scotch 35 Polyvinyl Chloride color coding electrical tape provides reliable electrical and mechanical protection. This PVC-backed tape with a pressure-sensitive rubber-resin adhesive delivers 1250 V/mil dielectric strength and a temperature range up to 221°F (105°C). It is flame retardant and resistant to UV and varying weather conditions. Typical uses include phase identification, color coding of motor leads and piping systems, marking safety areas, and general insulating and wrapping tasks. Specifications include 1/2 in width, 20 ft length, 7 mil thickness, Series 35, rubber adhesive, tensile strength 17 lb./inch, and CSA/UL/VDE standards compliance.
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection.
- Flame retardant and is highly resistant to UV rays and varying weather conditions.
- UL Listed, VDE, CSA Certified and RoHS compliant.
- Withstands a temperature range of 14ºF to 221ºF (-10ºC to 105ºC).
- Suitable for use in phase identification, color coding of motor leads and piping systems, and for marking safety areas.
Specifications:
| Materials & Construction | |
| Color | Red |
| Compatible Material | Vinyl, Polyvinyl Chloride |
| Item Thickness | 0.5 Millimeters |
| Material | Polyvinyl Chloride |
| Outer Material | Polyvinyl Chloride |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Number of Items | 1 |
| Recommended Uses For Product | electrical-installation-and-maintenance |
| Series | 35 |
| Series Part Number | 35 |
| Special Feature | Anti Slip |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength (Lb./Inch) | 17.00 |
| Unit Count | 20.0 Feet |
| Sizing & Dimensions | |
| Length | 240 inches |
| Product Dimensions | 0.5" W x 0.01" Th x 20 ft L |
| Size | 1/2 in. x 20 ft. |
| Weight | 0.64 ounces |
| Width | 0.5 inches |
| Technical Specifications | |
| Dielectric Strength (V/Mil) | 1250.00 |
| Length Range | 6 To 11.9 yd |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature F | 32.00 |
| Tensile Strength | 17.00 lb./inch |
