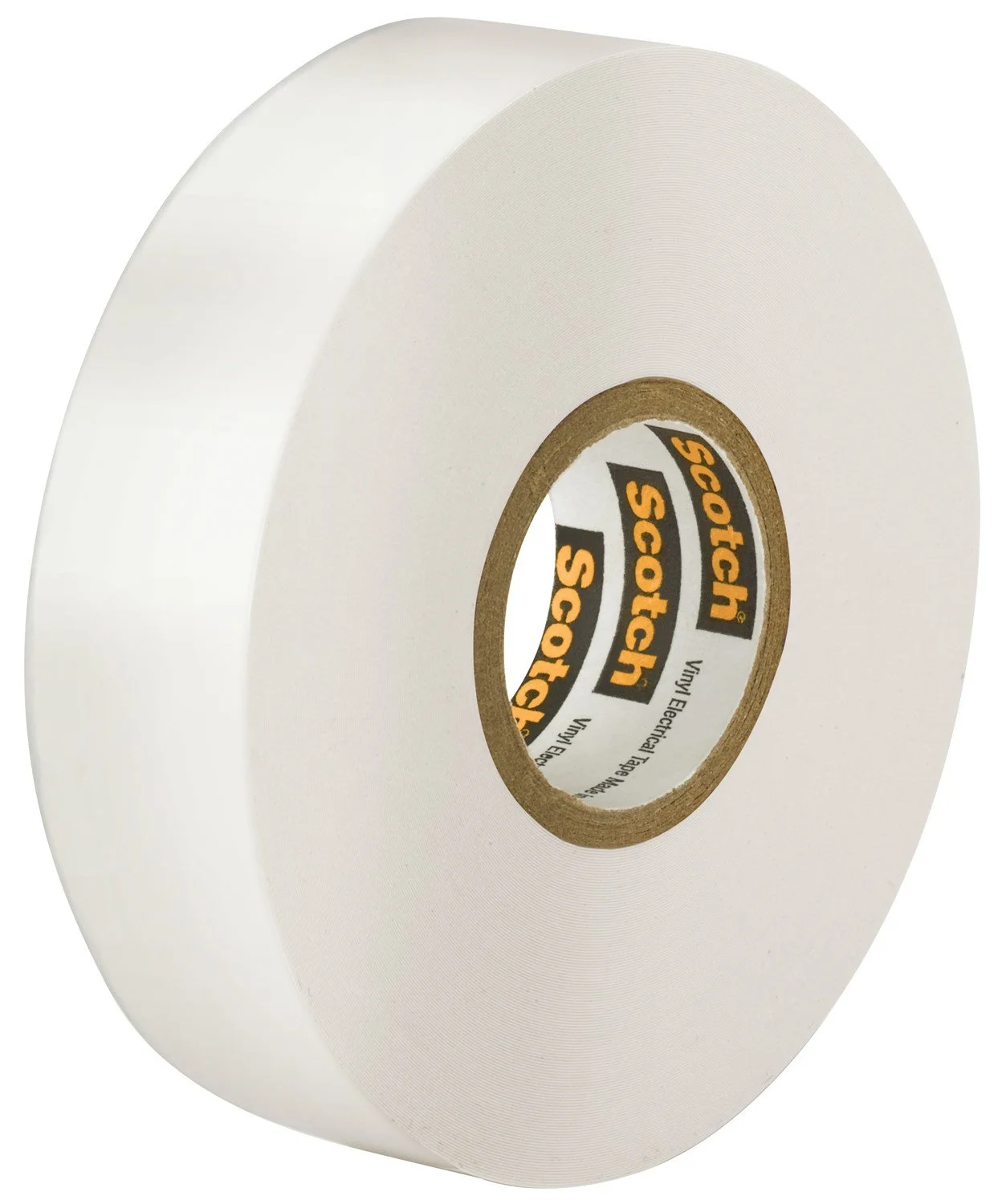

3M 35 1/2" X 20' White Scotch® Vinyl Electrical Tape No. 35
Customize
Electrical Tape: 1/2" Wide, 20' Long, 7 mil Thick, White 32 to 220 ° F Operating Temp, 1,250 V/mil, Series 35, Width (Inch): 1/2 , Length Range: 6 to 11.9 Yd , Thickness (mil): 7.0000 , Color: White , Series: 35 , Series Part Number: 35 , Adhesive Material: Rubber , Tensile Strength (Lb./Inch): 17.00 , Standards: CSA Certified; Standard C22.2 No. 197- M1983 PVC Insulating Tape (File LR48769); UL 510 File E129200; VDE 0340-TEIL1 , Length (Meters): 6.10 , Applications: Color Coding; Insulating; Protecting; Safety Coding; Wrapping , Minimum Operating Temperature F: 32.00 , Maximum Operating Temperature F: 220.00 , Minimum Operating Temperature C: 0.00 , Length Ft.: 20.00 , Maximum Operating Temperature C: 105.00 , Width (mm - 2 Decimals): 12.00 , Dielectric Strength (V/mil): 1250.00. 3M Scotch #35 White Vinyl Electrical Tape, Size: 1/2" x 20' (13 mm x 6,1 m). Priced per roll, can be purchased in packs of 10 or case qty of 100, same price.
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Vinyl |
| Outer Material | Vinyl |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Dielectric Strength (V/Mil) | 1250.00 |
| Number of Items | 10 |
| Recommended Uses For Product | Electrical |
| Series | 35 |
| Series Part Number | 35 |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength (Lb./Inch) | 17.00 |
| Sizing & Dimensions | |
| Height | 8 inches |
| Length (Meters) | 240.16 inches |
| Length Ft. | 240 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 6 x 8 inches |
| Size | 1/2" x 20' |
| Thickness (Mil) | 7.0000 mil |
| Weight | 7.76 ounces |
| Width (Inch) | 0.5 inches |
| Width | 6 inches |
| Technical Specifications | |
| Maximum Operating Temperature C | 105.00 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | 0.00 |
| Minimum Operating Temperature F | 32.00 |
