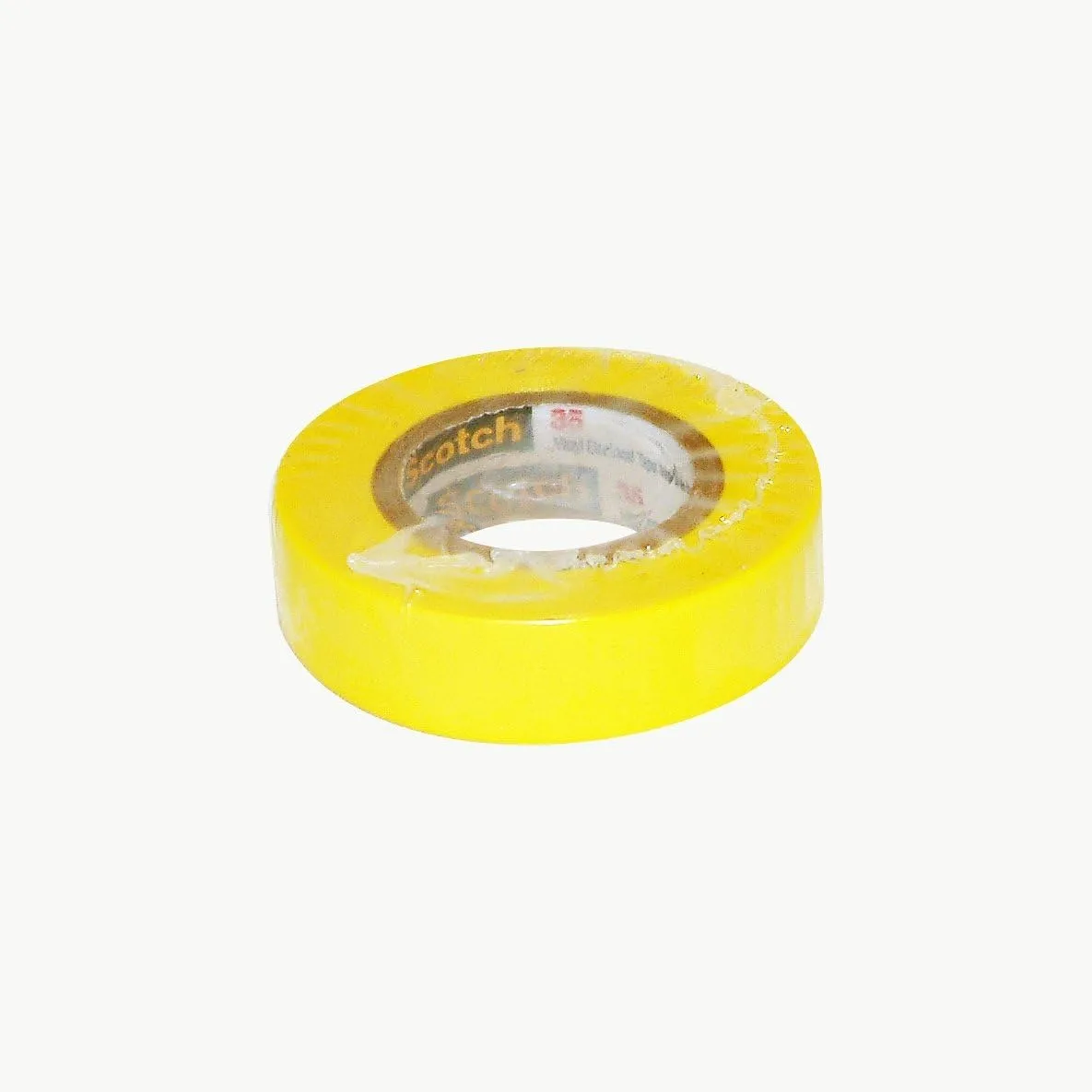

3M Scotch 35 Vinyl Yellow Electrical Tape 1/2 x 20' - 10 Pack
Customize
3M 10257 Scotch Yellow Color Coding Electrical Tape 35 1/2 Inch, 0 to 105 Degree C is a polyvinyl chloride (PVC) color-coding tape. It can operate over a wide range of temperatures- between 32 and 220 degrees fahrenheit and 0 to 105 degrees celsius. Its outstanding electrical and mechanical properties make this tape perfect for use in phase identification, color coding of motor leads and piping systems, and for making safety areas. Abrasion and water-resistant, with great mechanical and electrical insulation properties. Features pressure sensitive rubber based adhesive and inhibits corrosion of electrical conductors. Flame-resistant meaning it resists UV rays, abrasion, moisture, alkalies, solvents, and many acids. Can be used for indoor or weather-protected outdoor applications. Stretches in order to fit to virtually any shape. UL Listed and CSA certified. Product dimensions: (2.5 x 1.9 x 8.8 cm) Warning: This product can expose you to chemicals which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
- Stretches to conform to any shape
- Abrasion-resistant and weather-resistant, flame resistant: resists UV rays, abrasion, moisture, alkalies, solvents, many acids
- Excellent for phase identification, color coding of motor leads and piping systems, and for making safety areas
- 1/2 Inch x 20 Feet, Yellow
- 3M 10257 Scotch Yellow Color Coding Electrical Tape 35 1/2 Inch, 0 to 105 Degree C
Specifications:
| Materials & Construction | |
| Color | Yellow |
| Compatible Material | Vinyl, Rubber, Polyvinyl Chloride |
| Material | Vinyl, Rubber, Polyvinyl Chloride |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Dielectric Strength (V/Mil) | 1250.00 |
| Item Thickness | 7 Mils |
| Model Number | 10257_10PACK |
| Part Number | 7000058435 |
| Series | 35 |
| Series Part Number | 35 |
| Special Feature | Rubber |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength (Lb./Inch) | 17.00 |
| Water Resistance Level | Water Resistant |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 7.9 inches |
| Product Dimensions | 7.9 x 2 x 2 inches |
| Size | 1/2 in x 20 ft |
| Weight | 5.28 pounds |
| Width | 2 inches |
| Technical Specifications | |
| Length (Meters) | 6.10 |
| Length Ft. | 20.00 |
| Maximum Operating Temperature C | 105.00 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | 0.00 |
| Minimum Operating Temperature F | 32.00 |
