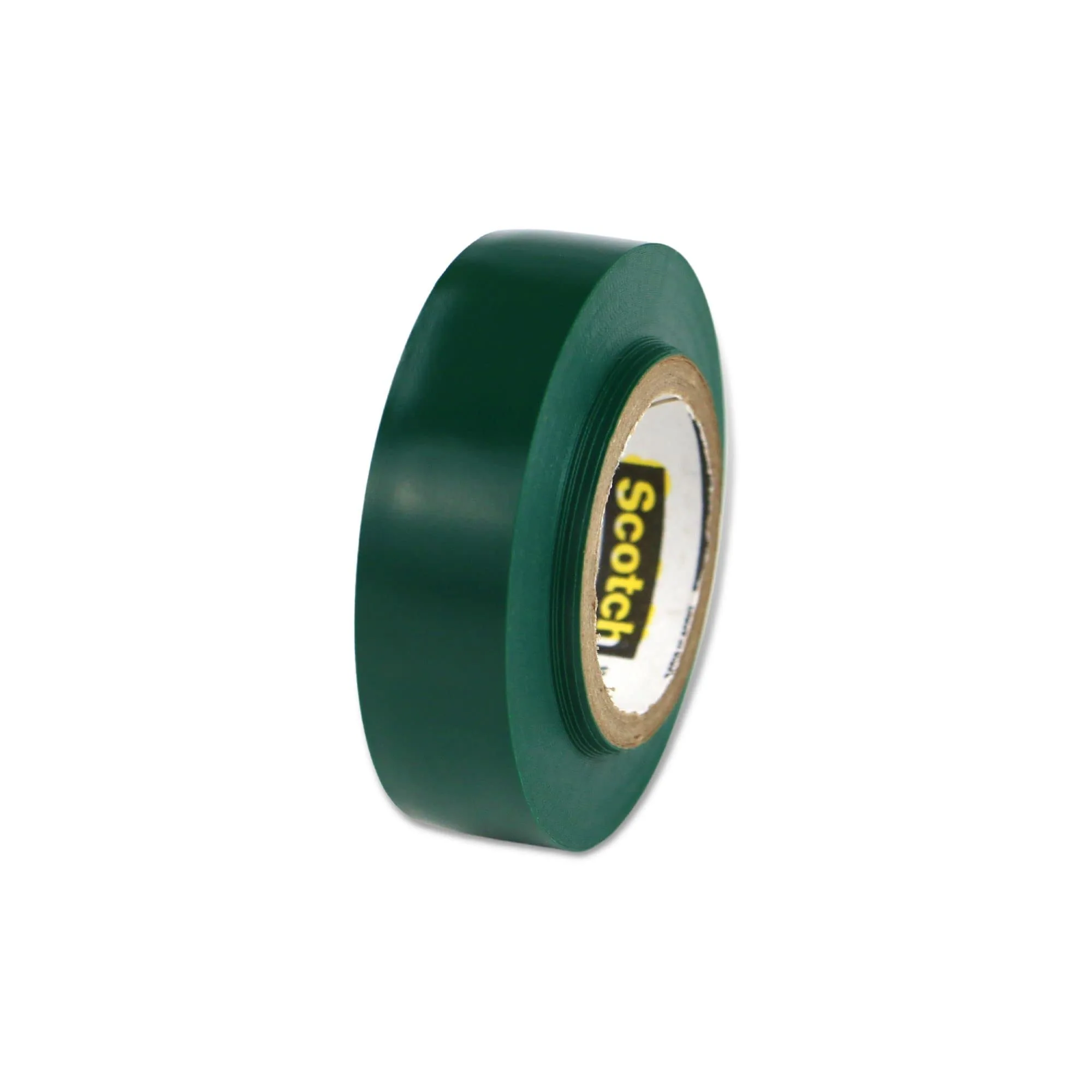

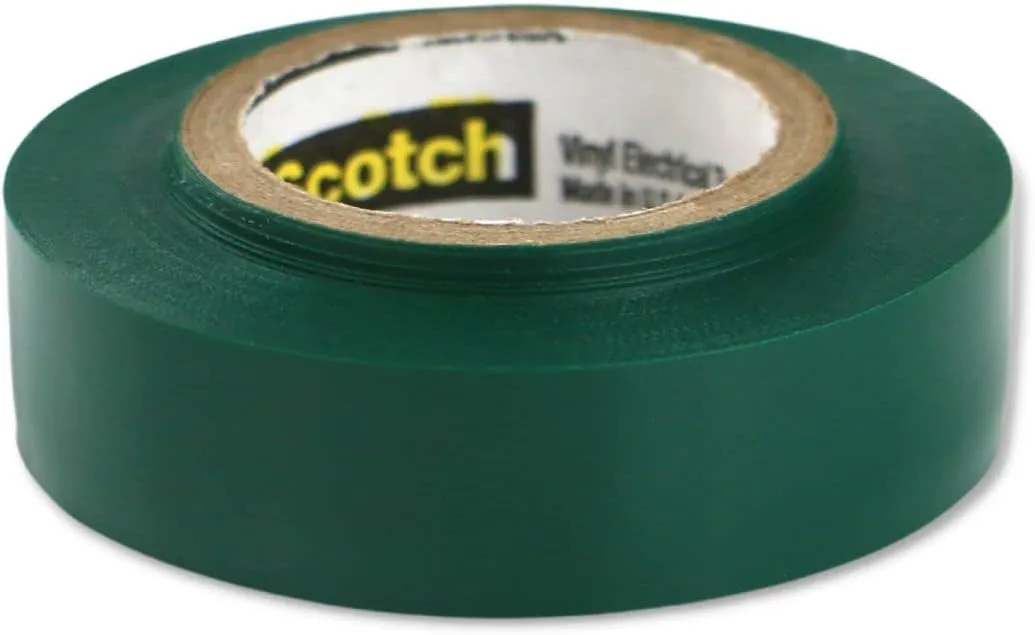

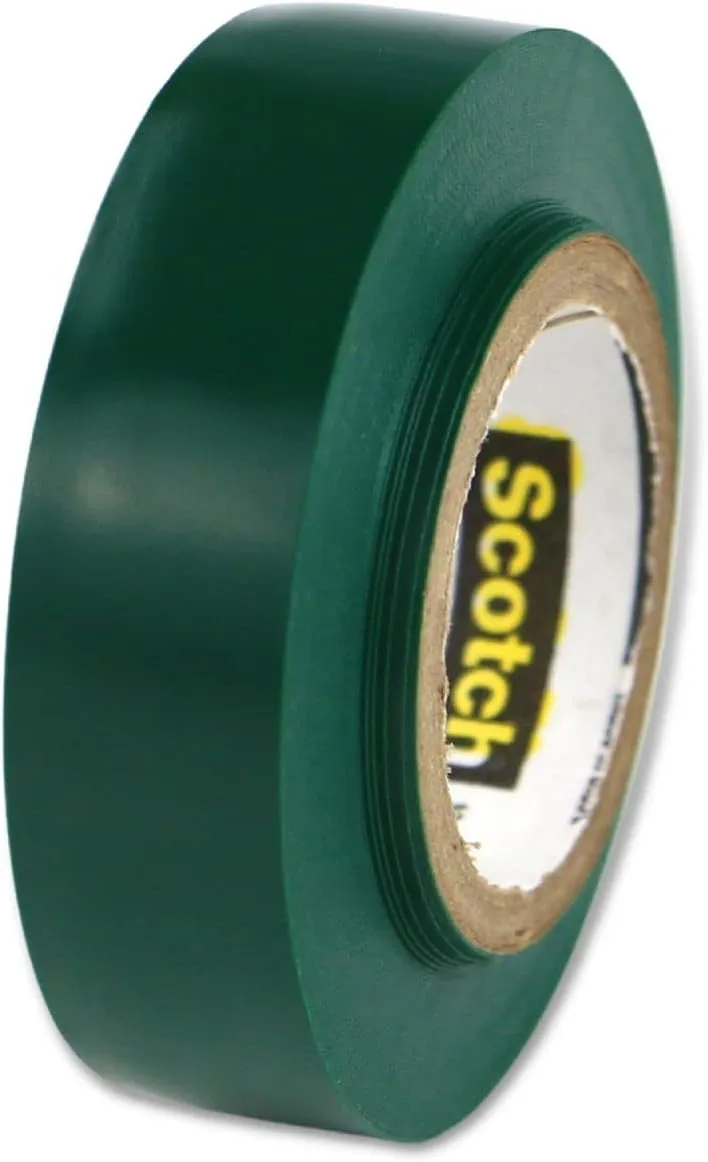

Scotch Vinyl Electrical Tape No. 35 Size: 0.5" W x 240" D, Color: Green
Customize
Electrical Tape: 1/2" Wide, 20' Long, 7 mil Thick, Green 32 to 220 °F Operating Temp, 1,250 V/mil, Series 35, Width (Inch): 1/2 , Length Range: 6 to 11.9 Yd , Thickness (mil): 7.0000 , Color: Green , Series: 35 , Series Part Number: 35 , Adhesive Material: Rubber , Tensile Strength (Lb./Inch): 17.00 , Standards: CSA Certified; Standard C22.2 No. 197- M1983 PVC Insulating Tape (File LR48769); UL 510 File E129200; VDE 0340-TEIL1 , Length (Meters): 6.10 , Applications: Color Coding; Insulating; Protecting; Safety Coding; Wrapping , Minimum Operating Temperature F: 32.00 , Maximum Operating Temperature F: 220.00 , Minimum Operating Temperature C: 0.00 , Length Ft.: 20.00 , Maximum Operating Temperature C: 105.00 , Width (mm - 2 Decimals): 12.00 , Dielectric Strength (V/mil): 1250.00 , UNSPSC Code: 31201502
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection.
- Flame retardant and is highly resistant to UV rays and varying weather conditions.
- UL Listed, VDE, CSA Certified and RoHS compliant.
- Withstands a temperature range of 14ºF to 221ºF (-10ºC to 105ºC).
- Suitable for use in phase identification, color coding of motor leads and piping systems, and for marking safety areas.
Specifications:
| Materials & Construction | |
| Color | Green |
| Material | Polyvinyl Chloride, Rubber |
| Outer Material | Polyvinyl Chloride |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Dielectric Strength (V/mil) | 1250.00 V/mil |
| Length Range | 6 To 11.9 yd |
| Series | 35 |
| Series Part Number | 35 |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength (Lb./Inch) | 17.00 |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 1.75 inches |
| Product Dimensions | 1.75 x 1.75 x 0.5 inches |
| Size | 0.5 in x 20 ft |
| Thickness (inches) | 0.0070 inches |
| Thickness (mil) | 7.0000 mil |
| Weight | 0.8 ounces |
| Width | 1.75 inches |
| Technical Specifications | |
| Maximum Operating Temperature C | 105.00 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | 0.00 |
| Minimum Operating Temperature F | 32.00 |
