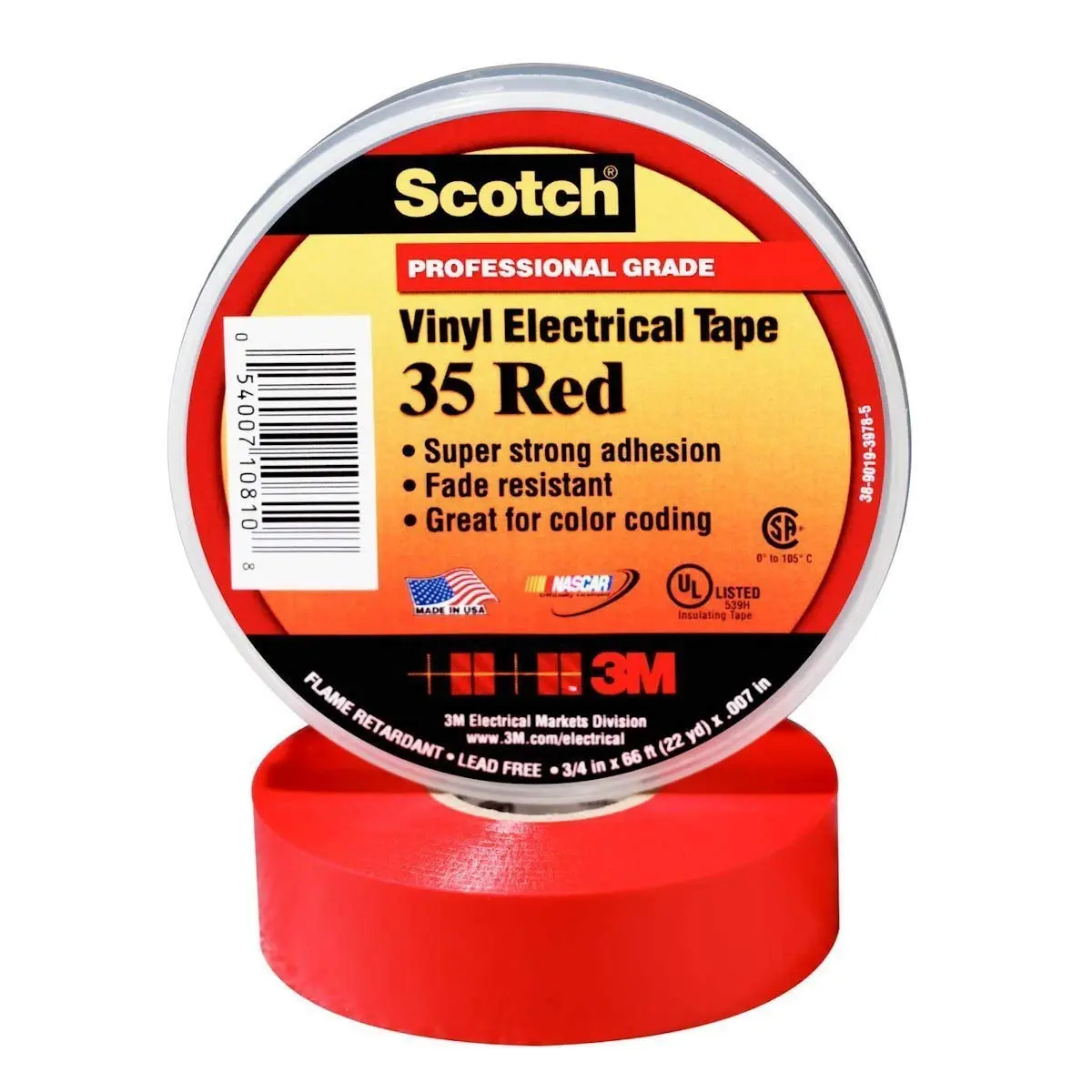

3M Scotch 10810 Vinyl Electrical Color Coding Tape, 0 to 105 Degree C, 1250 mV Dielectric Strength, 66' Length x 3/4" Width
Customize
3M Scotch 10810-35 Vinyl Electrical Tape is a premium-grade PVC insulating tape designed for electrical applications and color coding. It is 3/4" (0.75 in / 18 mm) wide and 66' (20.12 m) long, with a 7 mil thickness and rubber-based adhesive for strong adhesion and long life. The tape offers excellent electrical insulating properties (approx. 1250 V/mil dielectric strength), good tensile strength (17 lb./inch), and wide operating temperature range (32°F to 220°F / 0°C to 104.44°C). Series 35 vinyl tape is UL 510 and CSA certified and conforms well to irregular surfaces, making it suitable for phase identification, motor lead color coding, piping identification, safety marking, wrapping, and general insulating/protecting applications. Standards include CSA Certified; Standard C22.2 No. 197- M1983 PVC Insulating Tape (File LR48769); UL 510 File E129200; VDE 0340-TEIL1. Material: PVC (Vinyl). Dielectric Strength: ~1250 V/mil. Length: 66 ft (20.12 m). Width: 3/4 in (18 mm). Thickness: 7 mil. Series/Part: Series 35 / Part 35. Adhesive Material: Rubber. Applications: Color coding; insulating; protecting; safety coding; wrapping.
- Premium grade electrical tape
- Stretches to conform to any shape
- Abrasion, weather and flame resistant
- Great for phase identification, color coding of motor leads and piping systems and for marking safety areas
- 3M Scotch 10810-35 Vinyl Electrical Tape, 0 to 105 Degree C, 1250 V/mil Dielectric Strength, 66' Length x 3/4" Width, Red
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Vinyl, Polyvinyl Chloride |
| Outer Material | Vinyl |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Dielectric Strength (V/Mil) | 1250.00 |
| Length Range | 12 To 35.9 yd |
| Number of Items | 1 |
| Recommended Uses For Product | Electrical |
| Series | 35 |
| Series Part Number | 35 |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength | 17.00 lb./inch |
| Tensile Strength (Lb./Inch) | 17.00 |
| Thickness (Mil) | 7.0000 |
| Sizing & Dimensions | |
| Length | 792 inches |
| Product Dimensions | 8.1 x 4.6 x 5.1 inches; 4.94 ounces |
| Size | 3/4 in x 66 ft |
| Weight | 4.94 ounces |
| Width | 0.71 inches |
| Technical Specifications | |
| Maximum Operating Temperature C | 104.44 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | 0.00 |
| Minimum Operating Temperature F | 32.00 |
